- Page 1 文件号：XSW-J-04-0008-2023 USERS GUIDE SW-M818 E-Bike Display Model：SW-M818 Protocol：Lithium II Version：V6.02 Scan QR Code to Download PDF Changzhou Sciwil E-Mobility Technology Co., Ltd. Wechat Website...
-
Page 2: Table Of Contents
Contents Ⅰ. Safety Notes ..................... 3 Ⅱ. Overview ....................... 4 1. Product Name and Model ................4 2. Product Introduction ..................4 3. Specifications ....................4 4. Function ......................4 5. Size ........................5 6. Assembly ......................5 7. Serial Code ......................6 Ⅲ. -
Page 3: Ⅰ. Safety Notes
Ⅰ. Safety Notes PLEASE TAKE CAUTION WHEN USE，DO NOT PLUG OR UNPLUG THE DISPLAY WHILE YOUR E-BIKE IS POWERED ON. AVOID CLASHES OR BUMPS TO THE DISPLAY. AVOID USING IN HEAVY RAINS, SNOWS OR LONG EXPOSURE TO STRONG SUNLIGHT. -
Page 4: Ⅱ. Overview

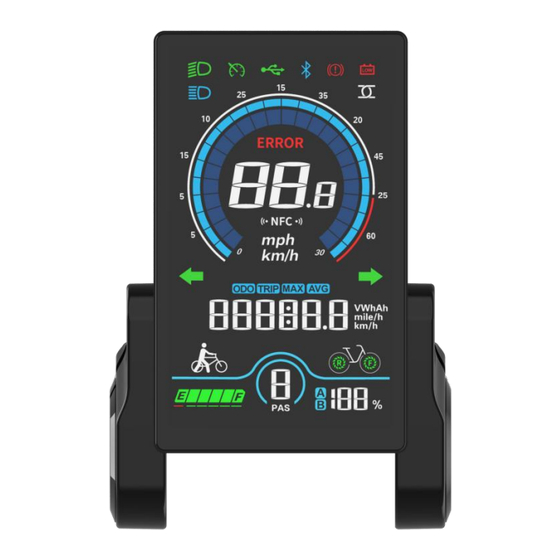

1. Product Name and Model Product Name: E-Bike Display Product Model: SW-M818 2. Product Introduction SW-M818 features high-brightness anti-glare color LCD and minimalist interface, working as an ideal HMI solution for EN15194 electric bikes. 3. Specifications Working Voltage: DC 24V/36V/48V/60V/72V ... -
Page 5: Size
Front light indication: front light status supported by controller. Error code indication Riding Info: Braking Status, Front Light Status, Cruise, Low Voltage. Turning Signals: This function works with controller. Dual Drive Control and Display: This function works with controller. ... -
Page 6: Serial Code
Open the holder ring/rubber spacer of the keypad and fix it on the ② handlebar, adjust it to a proper facing angle. Use a M3 Hex Wrench to fix and tighten the screws. Standard fixing torque: 1N·m. *Damage due to excessive fixing torque is not covered by warranty. Plug the 5-pin connector of the display to the coupling connector of the ③... -
Page 7: Display Interface
1. Display Interface 1.1 Riding Interface Status: Real-time Riding Status: Bluetooth, Front Light, Brake, Low Voltage, Turning, Cruise, Drive Status, etc. Battery Status: Residual Battery Percentage Multi-Function Section: ODO (total range), TRIP (single ride range), MAX (max. speed), AVG (average speed), TIME (riding time), VOL (battery voltage), Wh (motor power), CUR (current), etc. -
Page 8: Setting Interface
1.2 Setting Interface Settings P01 Parameter 02 In the above interface: Setting Item: P01, Parameter Value: 02 1.3 Error Interface Error Mark Error Code In the above interface: Error Indicator: ERROR, Error Code: 06 - 8 -... -
Page 9: Key Pad
2. Key Pad SWK2 Keypad Illustration: There are 5 keys on the SWK2 keypad, in the following instructions: is called Plus Key； is called On/Off Key； is called Minus/Walk Assist Key； is called Light Key； is called Info Key； 3. Key Operation Key operation guide as follows: Press and Hold: means press and hold the key(s) for more than 2s. -
Page 10: Assist Level
(0km/h), the display will be auto-off. Auto-off time can be set in the Settings. 3.2 Assist Level Press the Plus Key or Minus/Walk Assist Key to switch assist levels. There are 5 levels by default: 0/1/2/3/4/5. 0 means no assist power. 3.3 Toggle Displays When the display is on, press the Info Key to toggle among ODO (total range), Trip (single trip range), TIME (riding time) etc. -
Page 11: Settings
4. Settings 4.1 Setting Operations ① Enter the Settings: when the display is on, press and hold the Plus Key and the Minus/Walk Assist Key together to enter the Settings. Available setting items include: system voltage, wheel size (inch), magnetic steel number for speed gauge, speed limit etc (please refer to 4.2 Setting Items). - Page 12 P08: Speed Limit. Range: 0-100km/, communications status (controller- controlled). The max speed will be kept constant at the set value. Error Value: ±1km/h (applicable to both the PAS/throttle mode) Note: The above-mentioned values are measured by metric unit (km/h). When the system unit is set to imperial unit (mph), the speed displayed will be automatically switched to corresponding value in imperial unit, however the speed limit value in the imperial unit interface won’t change accordingly.
-
Page 13: Error Code
P20: Boot Password. 4-Digit, default password: 1212 P21: Password for Advanced Settings. 4-Digit. 5. Error Code Error Code Status Note (decimal) Normal Reserved Brake Error PAS Sensor Error (Riding Mark) Not Realized Walk Assist Mode Real-Time Cruise Low Voltage Protection Motor Error Throttle Error Controller Error... -
Page 14: Warranty
The limited warranty shall not be transferred to a third party other than as specified in the agreement with Sciwil. Warranty Exclusions: 1. Sciwil products that have been opened, modified or repaired without authorization. 2. Damage on the connectors. -
Page 15: Version
V. Version This display user manual is in compliance with the general software version (A/0) of Changzhou Sciwil E-Mobility Technology Co., Ltd. There are chances that display products on some e-bikes may have a different software version, which is subject to the actual version in use.
