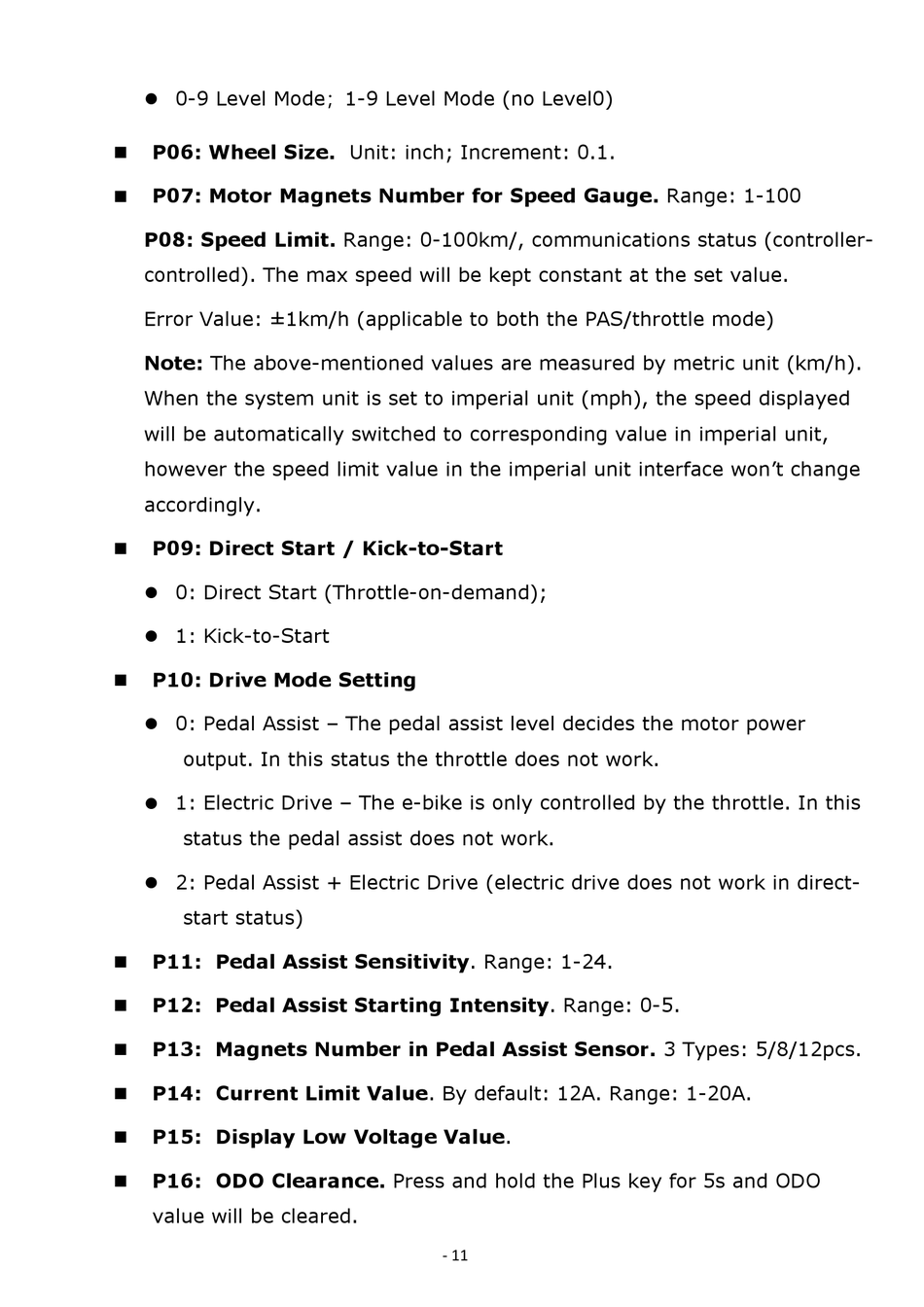

SCIWIL SW-M808X User Manual page 11

 0-9 Level Mode；1-9 Level Mode (no Level0)
P06: Wheel Size. Unit: inch; Increment: 0.1.

P07: Motor Magnets Number for Speed Gauge. Range: 1-100

P08: Speed Limit. Range: 0-100km/, communications status (controller-
controlled). The max speed will be kept constant at the set value.
Error Value: ±1km/h (applicable to both the PAS/throttle mode)
Note: The above-mentioned values are measured by metric unit (km/h).
When the system unit is set to imperial unit (mph), the speed displayed
will be automatically switched to corresponding value in imperial unit,
however the speed limit value in the imperial unit interface won't change
accordingly.
P09: Direct Start / Kick-to-Start

 0: Direct Start (Throttle-on-demand);
 1: Kick-to-Start
P10: Drive Mode Setting

 0: Pedal Assist – The pedal assist level decides the motor power
output. In this status the throttle does not work.
 1: Electric Drive – The e-bike is only controlled by the throttle. In this
status the pedal assist does not work.
 2: Pedal Assist + Electric Drive (electric drive does not work in direct-
start status)
P11: Pedal Assist Sensitivity. Range: 1-24.

P12: Pedal Assist Starting Intensity. Range: 0-5.

P13: Magnets Number in Pedal Assist Sensor. 3 Types: 5/8/12pcs.

P14: Current Limit Value. By default: 12A. Range: 1-20A.

P15: Display Low Voltage Value.

P16: ODO Clearance. Press and hold the Plus key for 5s and ODO

value will be cleared.
- 11
-
