- Page 1 文件号：XSW-J-06-0026-2024 USERS GUIDE SW-M58 E-Bike Display Model：SW-M58 Protocol：Lithium II Version：V6.05 Scan QR Code to Download PDF Changzhou Sciwil E-Mobility Technology Co., Ltd. Wechat Website...
-
Page 2: Table Of Contents
Changzhou Sciwil E-Mobility Technology Co., Ltd. Huashan Road, Changzhou, Jiangsu, China- 213022 Fax: +86 519-85602675 Tel: +86 519-85600675 Contents Ⅰ. Safety Notes ..................... 3 Ⅱ. Overview ....................... 4 1. Product Name and Model ................5 2. Product Introduction ..................5 3. - Page 3 Changzhou Sciwil E-Mobility Technology Co., Ltd. Huashan Road, Changzhou, Jiangsu, China- 213022 Fax: +86 519-85602675 Tel: +86 519-85600675 Ⅰ. Safety Notes PLEASE TAKE CAUTION WHEN USE，DO NOT PLUG OR UNPLUG THE DISPLAY WHILE YOUR E-BIKE IS POWERED ON. AVOID CLASHES OR BUMPS TO THE DISPLAY.
-
Page 4: Ⅱ. Overview

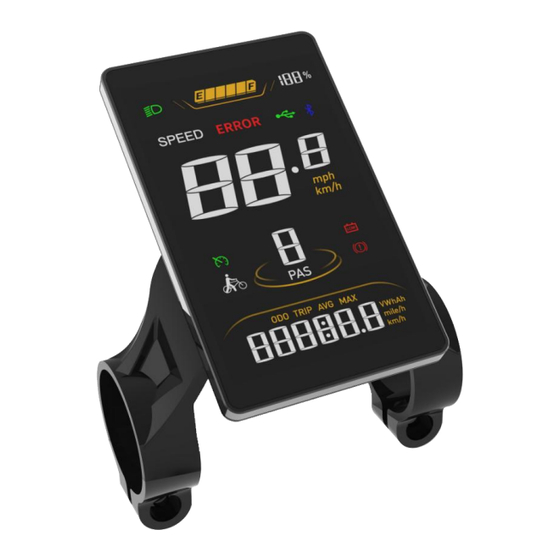

1. Product Name and Model Product Name: E-Bike Display Product Model: SW-M58 2. Product Introduction SW-M58 features high-brightness anti-glare color LCD and minimalist interface, working as an ideal HMI solution for EN15194 electric bikes. 3. Specifications Working Voltage: DC 24V/36V/48V/60V/72V ... -
Page 5: Size
Changzhou Sciwil E-Mobility Technology Co., Ltd. Huashan Road, Changzhou, Jiangsu, China- 213022 Fax: +86 519-85602675 Tel: +86 519-85600675 Walk assist mode Front light indication: front light status supported by controller. Error code indication Riding Info: Braking Status, Front Light Status, Cruise, Low Voltage. -
Page 6: Assembly
6. Assembly ① Open the holder ring/rubber spacer of the display and fix the display on the handlebar, adjust it to a proper facing angle. Use a M4 Hex Wrench to fix and tighten the screws. Standard fixing torque: 1N·m. *Damage due to excessive fixing torque is not covered by warranty. -
Page 7: Ⅲ. Operation
Ⅲ. Operation 1. Display Interface 1.1 Riding Interface Status: Real-time Riding Status: Bluetooth, Front Light, Brake, Low Voltage, Turning, Cruise, Drive Status, etc. Battery Status: Residual Battery Percentage Multi-Function Section: ODO (total range), TRIP (single ride range), MAX (max. -
Page 8: Error Interface
Setting P02 Parameter 02 In the above interface: Setting Item: P01, Parameter Value: 02 1.3 Error Interface Error Indicator Error Code In the above interface: Error Indicator: ERROR, Error Code: 30 - 9 -... -
Page 9: Key Pad
2. Key Pad SWK2 Keypad Illustration: There are 5 keys on the SWK2 keypad, in the following instructions: is called Up Key； is called Mode Key； is called Down Key； 3. Key Operation Key operation guide as follows: Press and Hold: means press and hold the key(s) for more than 2s. Press: means press the key(s) for less than 0.5s. -
Page 10: Toggle Displays
3.3 Toggle Displays When the display is on, press the Mode Key to toggle among ODO (total range), Trip (single trip range), TIME (riding time) etc. 3.4 Light On/Off Turn on the Front Light: when the front light is off, press and hold the Up Key to turn it on, and the light icon will be shown on the riding interface (to remove this functions, please reconfigure the controller). - Page 11 4.2 Setting Items P00: Factory Reset: optional. P01: Backlight Brightness. 1: darkest; 3: brightest. P02: System Unit. 0: km (metric); 1: mile (imperial). P03:System Voltage: 24V/36V/48V/60V/72V. P04: Auto-Off Time 0: never, other value means auto-off time interval. Unit: minute P05: Pedal Assist Level ...
-
Page 12: Error Code
1: Electric Drive – The e-bike is only controlled by the throttle. In this status the pedal assist does not work. 2: Pedal Assist + Electric Drive (electric drive does not work in direct- start status) P11: Pedal Assist Sensitivity. Range: 1-24. ... -
Page 13: Connection
Note: For waterproof connectors, wire sequences are concealed. IV. Warranty In compliance with local laws, Sciwil provides limited warranty period covering 24 months after the date of manufacturing (as indicated by the serial number), applies to quality issues during normal operations. -
Page 14: Version
V. Version This display user manual is in compliance with the general software version (A/0) of Changzhou Sciwil E-Mobility Technology Co., Ltd. There are chances that display products on some e-bikes may have a different software version, which is subject to the actual version in use.
