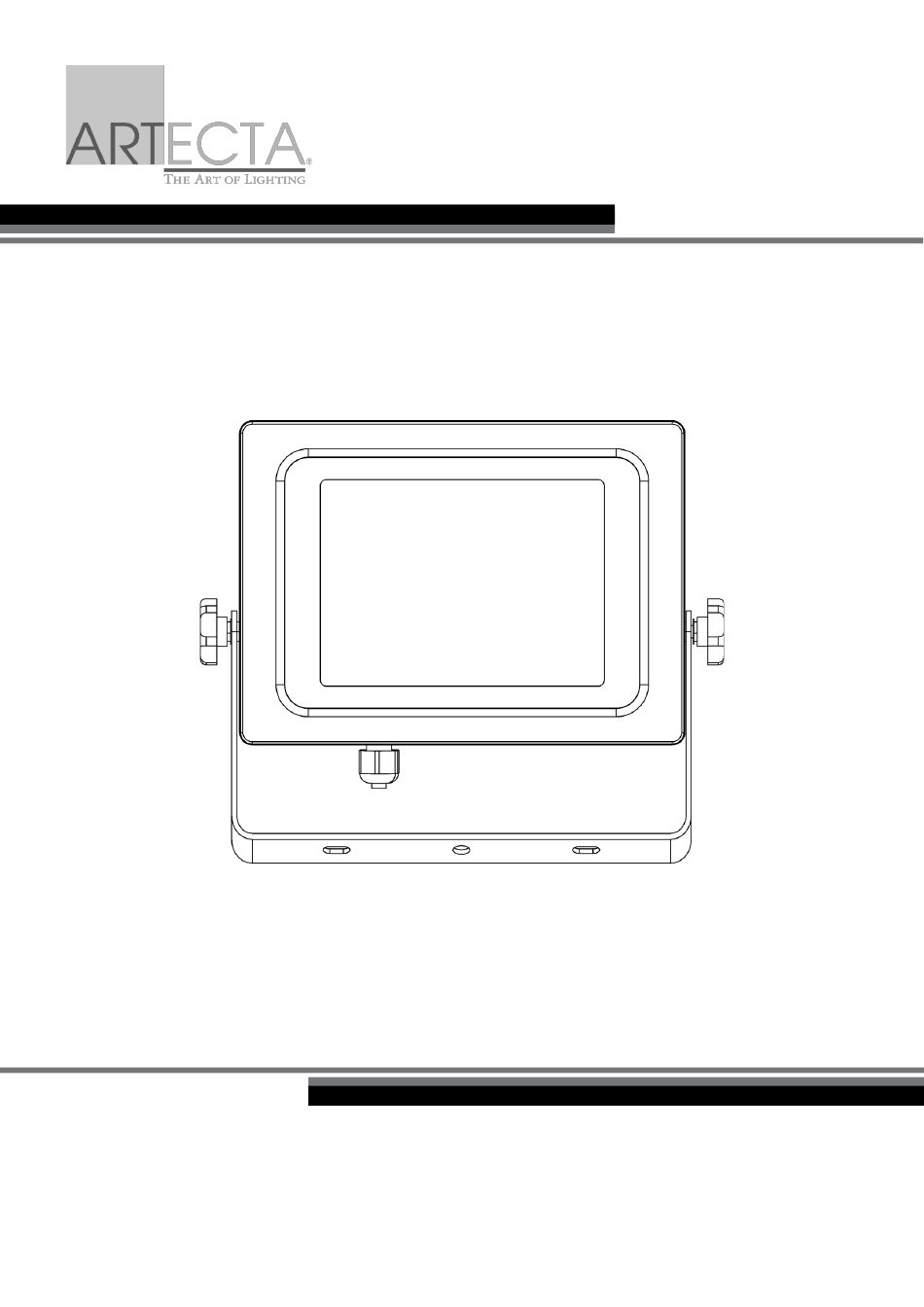

- Page 1 USER MANUAL ENGLISH Aviano 50 CCT Product code: A0720118 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
- Page 2 Aviano 50 CCT Preface Thank you for purchasing this Artecta product. The purpose of this user manual is to provide instructions for the correct and safe use of this product. Keep the user manual for future reference as it is an integral part of the product. The user manual shall be stored at an easily accessible location.
-
Page 3: Table Of Contents
Aviano 50 CCT Table of contents Introduction ................................3 Before Using the Product ..........................3 Intended Use ............................... 3 Product Lifespan ..............................3 LEDs Lifespan ............................... 3 Text Conventions ..............................3 Symbols and Signal Words ..........................4 Symbols on the Information Label ........................4 Safety .................................. -
Page 4: Introduction
After unpacking, check the contents of the box. If any parts are missing or damaged, contact your Highlite International dealer. Your shipment includes: ● Artecta Aviano 50 CCT with fixed Schuko power cable (6 m) ● User manual Fig. 01 Intended Use This device is intended for professional use as an outdoor flood light. -
Page 5: Symbols And Signal Words
Aviano 50 CCT Symbols and Signal Words Safety notes and warnings are indicated throughout the user manual by safety signs. Always follow the instructions provided in this user manual. Indicates an imminently hazardous situation which, if not avoided, will result in DANGER death or serious injury. -
Page 6: Safety
Aviano 50 CCT Safety Important Read and follow the instructions in this user manual before installing, operating or servicing this product. The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual. Warnings and Safety Instructions DANGER Danger for children For adult use only. - Page 7 Aviano 50 CCT WARNING Risk of burns due to hot surface The surface and the inner parts of the device can become very hot during operation. ● Do not touch the device during operation. ● Allow the device to cool down for at least 15 minutes before handling. Attention Power supply ●...
-
Page 8: Requirements For The User
Aviano 50 CCT Attention Before each use, examine the device visually for any defects. Make sure that: ● All screws used for installing the device or parts of the device are tightly fastened and are not corroded. ● The safety devices are not damaged. ●... -
Page 9: Description Of The Device

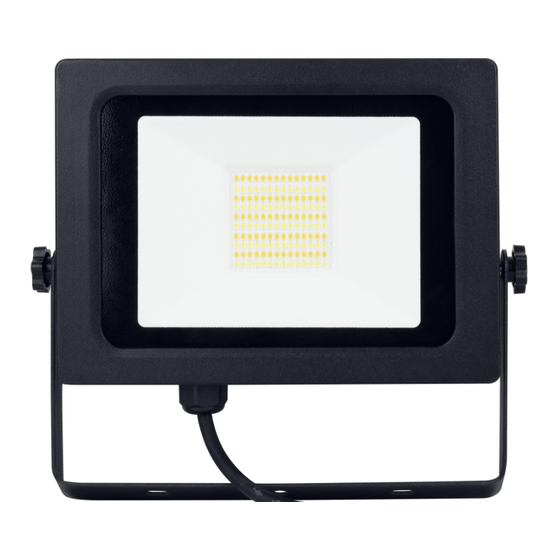

Description of the Device The Artecta Aviano 50 CCT is a 50 W LED floodlight with a 110° beam angle and a color temperature switch. The device can be installed with a clamp or can be mounted to a wooden or concrete wall. -
Page 10: Product Specifications
Aviano 50 CCT Product Specifications Model: Aviano 50 CCT Electrical: Input voltage: 220–240 V AC, 50/60 Hz Power consumption: 53 W Physical: Dimensions: 252 x 47 x 213 mm (LxWxH) Weight: 1,8 kg Optics: Light source: 96 x WW/NW/CW (0,4 W) LEDs Lumen: 4400 lm CRI:... -
Page 11: Installation And Operation
Aviano 50 CCT Installation and Operation Safety Instructions WARNING Incorrect installation can cause serious injuries and damage of property. If trussing systems are used, installation must be carried out only by instructed or skilled persons. Follow all applicable European, national and local safety regulations concerning rigging and trussing. Attention Power supply Before connecting the device to the power supply, make sure that the current, voltage and frequency... -
Page 12: Mounting
Aviano 50 CCT Mounting The device can be mounted to a truss or other rigging structure in any orientation or can be mounted to a wall. Make sure that all loads are within the pre-determined limits of the supporting structure. CAUTION Restrict the access under the work area during rigging and/or derigging. -
Page 13: Installation On A Wall
Aviano 50 CCT Installation on a Wall To install the device, follow the steps below: 01) Turn the 2 adjustment screws (01) counterclockwise to loosen them (Fig. 07). 02) Remove the 2 adjustment screws (01). The device and the mounting bracket (03) will disconnect. 03) Hold the mounting bracket (03) against the wall and mark the mounting locations (Fig. -
Page 14: Drilling Into Wood
Aviano 50 CCT 08) Insert the 2 adjustment screws (01) to connect the device to the mounting bracket (03). 09) Turn the 2 adjustment screws (01) clockwise to tighten them (Fig. 11). Fig. 11 Drilling into Wood If you drill into wood, use hardwood drill bits. Predrill before inserting screws, to remove drill dust and to avoid damaging of the wood. -
Page 15: Angle Adjustment
Aviano 50 CCT Angle Adjustment You can adjust the angle of the device with the adjustment screws (01). 01) Turn the adjustment screws (01) counterclockwise to release them. 02) Tilt the device to the desired angle (Fig. 14). 03) Turn the adjustment screws (01) clockwise to tighten them. Make sure that the device cannot move freely. -
Page 16: Connecting To Power Supply
Aviano 50 CCT Connecting to Power Supply DANGER Electric shock caused by short-circuit The device accepts AC mains power at 220–240 V and 50/60 Hz. Do not supply power at any other voltage or frequency to the device. This device falls under IEC protection class I. Make sure that the device is always electrically connected to the ground (earth). -
Page 17: Preventive Maintenance
Aviano 50 CCT Preventive Maintenance Attention Before each use, examine the device visually for any defects. Make sure that: ● All screws used for installing the device or parts of the device are tightly fastened and are not corroded. ● The safety devices are not damaged. -
Page 18: Instructions For Transportation
Aviano 50 CCT Instructions for Transportation ● Use the original packaging to transport the device, if possible. ● Always observe the handling instructions printed on the outer carton box, for example: “Handle with care”, “This side up”, “Fragile”. Storage ● Clean the device before storing. - Page 19 Aviano 50 CCT Product code: A0720118...
- Page 20 ©2022 Artecta...
