- Page 1 USER MANUAL ENGLISH Display Track Profile 50 SW Product code: A0320160 – Black housing A0320161 – White housing Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
- Page 2 Display Track Profile 50 SW Preface Thank you for purchasing this Artecta product. The purpose of this user manual is to provide instructions for the correct and safe use of this product. Keep the user manual for future reference as it is an integral part of the product. The user manual shall be stored at an easily accessible location.
-
Page 3: Table Of Contents
Display Track Profile 50 SW Table of contents Introduction ................................3 Before Using the Product ..........................3 Intended Use ............................... 3 LEDs Lifespan ............................... 3 Text Conventions ..............................3 Symbols and Signal Words ..........................4 Symbols on the Information Label ........................4 Safety .................................. -
Page 4: Introduction
After unpacking, check the contents of the box. If any parts are missing or damaged, contact your Highlite International dealer. Your shipment includes: ● Artecta Display Track Profile 50 SW (including track adapter) ● Barndoor ● Color frame ●... -
Page 5: Symbols And Signal Words
Display Track Profile 50 SW Symbols and Signal Words Safety notes and warnings are indicated throughout the user manual by safety signs. Always follow the instructions provided in this user manual. Indicates an imminently hazardous situation which, if not avoided, will result in DANGER death or serious injury. -
Page 6: Safety
Display Track Profile 50 SW Safety Important Read and follow the instructions in this user manual before installing, operating or servicing this product. The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual. - Page 7 Display Track Profile 50 SW Attention Power supply Before connecting the device to the power supply, make sure that the current, voltage and frequency match the input voltage, current and frequency specified on the information label on the device. Attention General safety ●...
-
Page 8: Requirements For The User
Display Track Profile 50 SW Requirements for the User This product may be used by ordinary persons. Maintenance may be carried by ordinary persons. Installation and service shall be carried out only by instructed or skilled persons. Contact your Highlite dealer for more information. -
Page 9: Description Of The Device

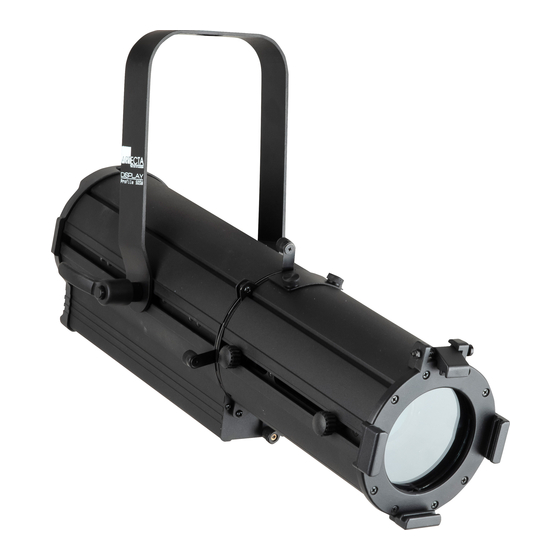

Display Track Profile 50 SW Description of the Device The Artecta Display Profile 50 SW is a versatile lighting fixture suitable for indoor venues. It features two selectable color temperatures: warm white and cold white. It has manual zooming and a built-in, manually controllable dimmer (5 –... -
Page 10: Product Specifications
Display Track Profile 50 SW Product Specifications Model: Display Track Profile 50 SW Electrical: Input voltage: 100–240 V AC, 50/60 Hz Power consumption: 56 W PFC: 0,93 Fuse: F1 AL, 250 V Physical: Dimensions: 405 x 171 x 321 mm (L x W x H) (with track adapter) -
Page 11: Dimensions
Display Track Profile 50 SW Dimensions Fig. 04 Product code: A0320160 / A0320161... -
Page 12: Installation And Deinstallation
Display Track Profile 50 SW Installation and Deinstallation Safety Instructions WARNING Incorrect installation and deinstallation can cause serious injuries and damage of property. Installation and deinstallation of the device must be carried out only by instructed or skilled persons. Follow all applicable European, national and local safety regulations concerning electrical installations in buildings and working at heights. -
Page 13: Mounting
Display Track Profile 50 SW Mounting The device can be mounted only to a 3-phase track system. CAUTION Restrict the access under the work area during mounting. To mount the device, follow the steps below: 01) Make sure that the circuit selector (03) is in OFF position and the track lock (02) is in unlocked position, as shown in Fig. -
Page 14: Direction Adjustment
Display Track Profile 50 SW 05) Select the circuit with the circuit selector (03). You can select 1-, 2- and 3-phase circuit, as shown in Fig. 09. Attention Do not slide the track adapter in the track to adjust the position of the device (see Fig. 10). This can damage the connectors. -
Page 15: Color Frame Installation
Display Track Profile 50 SW Color Frame Installation The Display Track Profile 50 SW is delivered with a color frame. You can insert a color gel or a diffusion filter into the color frame. To install the color frame, follow the steps below: 01) Push the spring-loaded screw (10) and at the same time lift and flip backwards the color frame clip (09) (see Fig. -
Page 16: Dismounting
Display Track Profile 50 SW Dismounting CAUTION Restrict the access under the work area during dismounting. To dismount the device, follow the steps below: 01) Set the color temperature switch (19) to OFF position to turn the device off. 02) Let the device cool down before dismounting. -
Page 17: Operation
Set the color temperature switch (19) to OFF position to turn the device off. Focusing and Zooming You can manually adjust the focus and the beam angle of the Display Track Profile 50 SW. The beam angle is adjustable in the range 13–30°. -
Page 18: Beam Shaping
Display Track Profile 50 SW Beam Shaping You can shape the beam with the 4 framing shutters (06). Move the framing shutters (06) back and forth to modify the shape of the beam (see Fig. 20). Fig. 20 Product code: A0320160 / A0320161... -
Page 19: Replacing The Gobo
Replacing the Gobo The Display Track Profile 50 SW is delivered with a gobo holder and a set of 5 metal gobos with seasonal patterns. You can order an additional gobo set of 5 metal gobos with general patterns (product code: SPHAOT076). -
Page 20: Changing The Gobo
Display Track Profile 50 SW Changing the Gobo To change the gobo, follow the steps below: 01) Remove the retaining ring from the gobo holder (13) with needle-nose pliers or a similar sharp tool. 02) Change the metal gobo. Make sure that the painted (black) side of the gobo is facing upwards as shown in Fig. -
Page 21: Troubleshooting
Display Track Profile 50 SW Troubleshooting This troubleshooting guide contains solutions to problems which can be carried out by an ordinary person. The device does not contain user-serviceable parts. Unauthorized modifications to the device will render the warranty void. Such modifications may result in injuries and material damage. -
Page 22: Basic Cleaning Instructions
Display Track Profile 50 SW Basic Cleaning Instructions The external lens of the device must be cleaned periodically in order to optimize the light output. The cleaning schedule depends on the conditions at the site where the device is installed. When smoke or fog machines are used at the site, the device will need more frequent cleaning. -
Page 23: Transportation And Storage
Display Track Profile 50 SW Transportation and Storage Instructions for Transportation ● Use the original packaging to transport the device, if possible. ● Always observe the handling instructions printed on the outer carton box, for example: “Handle with care”, “This side up”, “Fragile”. - Page 24 ©2020 Artecta...
