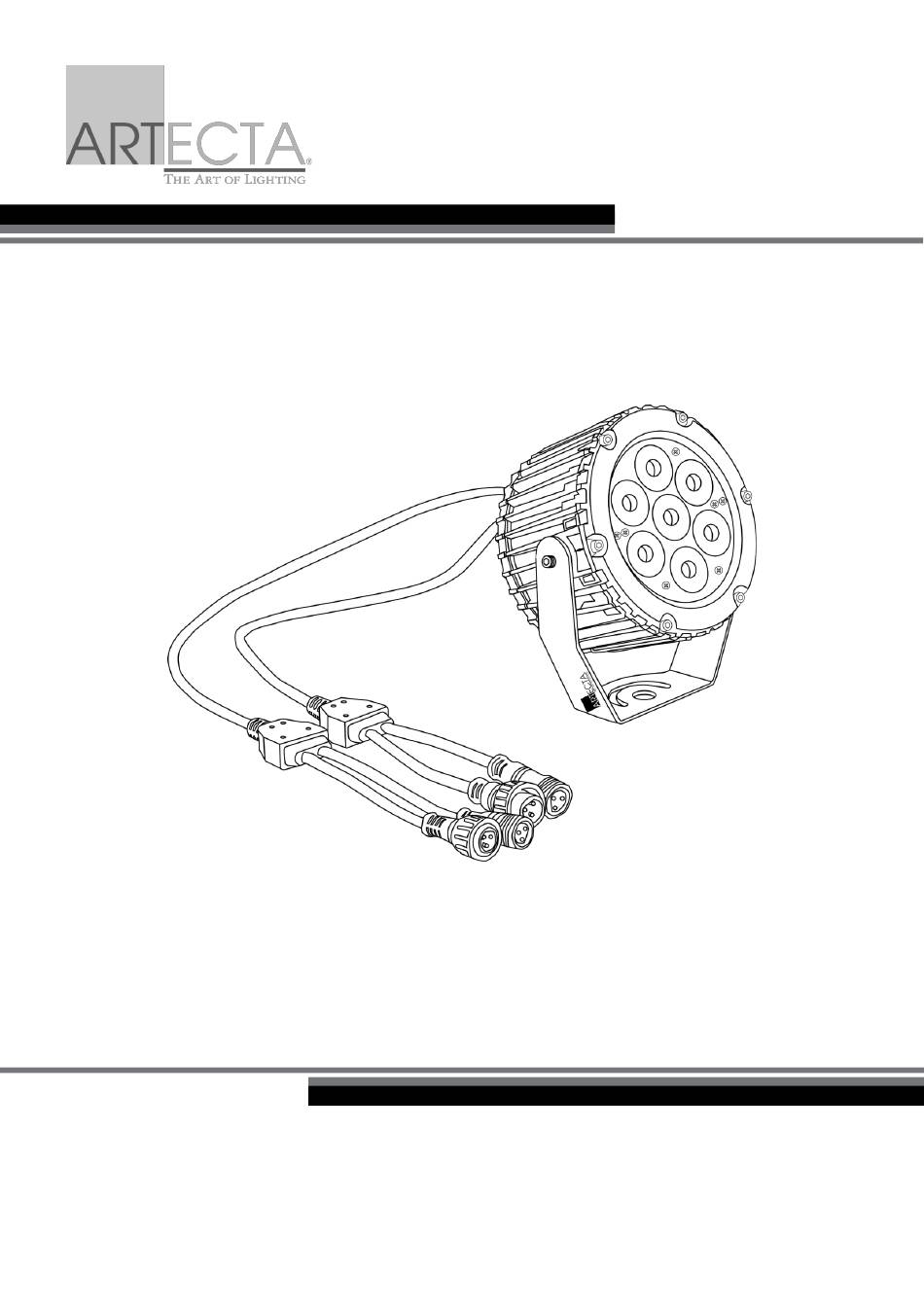

- Page 1 USER MANUAL ENGLISH Carlow 21-RGB 7/3 Product code: A0720050 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
- Page 2 Carlow 21-RGB 7/3 Preface Thank you for purchasing this Artecta product. The purpose of this user manual is to provide instructions for the correct and safe use of this product. Keep the user manual for future reference as it is an integral part of the product. The user manual shall be stored at an easily accessible location.
-
Page 3: Table Of Contents
Carlow 21-RGB 7/3 Table of contents Introduction ................................4 Before Using the Product ..........................4 Intended Use ............................... 4 Product Lifespan ..............................4 LEDs Lifespan ............................... 4 Text Conventions ..............................4 Symbols and Signal Words ..........................5 Symbols on the Information Label ........................5 Safety .................................. - Page 4 Carlow 21-RGB 7/3 Custom Color ............................25 Static Colors ............................25 DMX-512 Mode ............................26 Slave Mode ..............................26 Blackout ................................26 Reset ................................26 Troubleshooting ..............................27 Maintenance ..............................28 Safety Instructions for Maintenance ......................28 Preventive Maintenance ..........................28 Basic Cleaning Instructions ........................28 Draining Condensation Water .........................29 Corrective Maintenance ..........................29...
-
Page 5: Introduction
After unpacking, check the contents of the box. If any parts are missing or damaged, contact your Highlite International dealer. Your shipment includes: ● Artecta Carlow 21-RGB 7/3 ● 1 x Schuko to 3-pin (IP66 ) power cable (0,5 m) ●... -
Page 6: Symbols And Signal Words
Carlow 21-RGB 7/3 Symbols and Signal Words Safety notes and warnings are indicated throughout the user manual by safety signs. Always follow the instructions provided in this user manual. Indicates an imminently hazardous situation which, if not avoided, will result in DANGER death or serious injury. -
Page 7: Safety
Carlow 21-RGB 7/3 Safety Important Read and follow the instructions in this user manual before installing, operating or servicing this product. The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual. Warnings and Safety Instructions... - Page 8 Carlow 21-RGB 7/3 WARNING Risk of epileptic shock Strobe lighting can trigger seizures in photosensitive epilepsy. Sensitive persons should avoid looking at strobe lights. Attention Power supply ● Before connecting the device to the power supply, make sure that the current, voltage and frequency match the input voltage, current and frequency specified on the information label on the device.
-
Page 9: Requirements For The User
Carlow 21-RGB 7/3 Attention Before each use, examine the device visually for any defects. Make sure that: ● All screws used for installing the device or parts of the device are tightly fastened and are not corroded. ● The safety devices are not damaged. -
Page 10: Description Of The Device

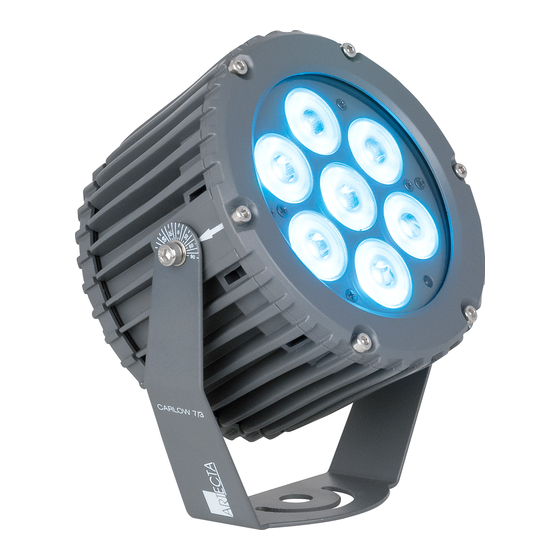

Description of the Device The Artecta Carlow 21-RGB 7/3 is a 7 x 3 W RGB LED outdoor spot. The IP rating of the device is IP66. The device can be used for enhancement of the ambience of objects, buildings and scenes. -
Page 11: Product Specifications
Carlow 21-RGB 7/3 Product Specifications Model: Carlow 21-RGB 7/3 Electrical: Input voltage: 100–240 V AC, 50/60 Hz Power consumption: 22 W Physical: Dimensions: 156 x 98 x 178 mm (L x W x H) Weight: 1,48 kg Optics: Light source:... -
Page 12: Optional Accessories
Carlow 21-RGB 7/3 3.4. Optional Accessories You can additionally purchase the following accessories: 42698 (Power Extension End Cap Set, Male/female) 42699 (DMX Extension End Cap Set, Male/female) 42704 (IR Controller for Cameleon/Carlow RGB) 42705 (Power Extension Cable for Cameleon Series, 3 m) -
Page 13: Installation
Carlow 21-RGB 7/3 Installation Safety Instructions for Installation WARNING Incorrect installation can cause serious injuries and damage of property. If trussing systems are used, installation must be carried out only by instructed or skilled persons. Follow all applicable European, national and local safety regulations concerning rigging and trussing. -
Page 14: Angle Adjustment
Carlow 21-RGB 7/3 Angle Adjustment You can adjust the angle of the device with the 2 adjustment screws (08). To adjust the angle, you need a hex key (size 4). Use the hex key to turn both adjustment screws (08) counterclockwise to release them. -
Page 15: Power Linking Of Multiple Devices
Carlow 21-RGB 7/3 Power Linking of Multiple Devices This device supports power linking. Power can be relayed to another device via the power OUT connector. Note that the input and the output connectors have different designs: one type cannot be connected to the other. -
Page 16: Setup
Disconnect power supply before connecting or disconnecting data cables. Stand-alone Setup When the Carlow 21-RGB 7/3 is not connected to a controller or to other devices, it functions as a stand- alone device. For more information about the control modes, refer to 6.2. Control Modes on page 18. -
Page 17: Dmx Cables
Fig. 07 Master/Slave Setup The Carlow 21-RGB 7/3 supports master/slave control mode. To connect multiple devices in a master/slave setup, follow the steps below: Connect the first device’s DMX OUT connector to the second device’s DMX IN connector with an extension cable (see 3.4. -
Page 18: Dmx Linking
Continue assigning the starting addresses of the remaining devices by adding each time 7 to the previous number. Make sure that you do not have any overlapping channels in order to control the Carlow 21-RGB 7/3 correctly. If two or more devices are addressed similarly, they will work similarly. -
Page 19: Operation
Control Modes The Carlow 21-RGB 7/3 can be operated with a DMX controller, or without a DMX controller as a stand- alone device or in a master/slave setup. -
Page 20: Control Panel
Carlow 21-RGB 7/3 To operate the device with a DMX controller: Set the DMX starting address of the device in the Address menu. See 5.3.5. DMX Addressing on page 17 and 6.6.4. DMX-512 Mode on page 22. 02) Select the DMX channel mode. See 6.6.4. DMX-512 Mode on page 22 for more information. See 6.7. -
Page 21: Menu Overview
Carlow 21-RGB 7/3 Menu Overview Product code: A0720050... -
Page 22: Main Menu Options
Carlow 21-RGB 7/3 Main Menu Options The main menu has the following options: Auto Mode (See 6.6.1. Auto Mode) Built-in Programs (See 6.6.2. Built-in Programs) Manual Mode (See 6.6.3. Manual Mode) DMX-512 Mode/DMX Channel Modes (See 6.6.4. DMX-512 Mode) Master/Slave (See 6.6.5. Master/Slave Mode) Auto Mode The device will run the built-in auto show. -
Page 23: Dmx-512 Mode
Carlow 21-RGB 7/3 DMX-512 Mode In this menu you can set the DMX starting address of the device and select the DMX channel mode. Press the UP/DOWN buttons to select the DMX starting address of the device. The selection range is 001–512. -
Page 24: Remote Control
Carlow 21-RGB 7/3 Remote Control The device can be controlled with an IR remote control (42704). DANGER Do not ingest battery, chemical burn hazard The remote control contains a coin cell battery. If the coin cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death. - Page 25 Carlow 21-RGB 7/3 To operate the device with the IR remote control, point the remote control at the device. The remote control has the following functions: Fig. 13 Button Function Description Blackout Turns the LEDs on/off Auto Run Activates Auto mode...
-
Page 26: Auto Mode
Carlow 21-RGB 7/3 Auto Mode Press the button. The device will run the built-in auto show. Built-in Programs In this menu you can select one of the 6 built-in programs (2–7), add strobe effect and set the program speed. Press the button to activate built-in programs. -
Page 27: Dmx-512 Mode
Carlow 21-RGB 7/3 DMX-512 Mode In this menu you can set the DMX starting address of the device. The selection range is 001–512. Refer to 5.3.5. DMX Addressing on page 17 for more information. Press the button to activate DMX-512 mode. -
Page 28: Troubleshooting
Carlow 21-RGB 7/3 Troubleshooting This troubleshooting guide contains solutions to problems which can be carried out by an ordinary person. The device does not contain user-serviceable parts. Unauthorized modifications to the device will render the warranty void. Such modifications may result in injuries and material damage. -
Page 29: Maintenance
Carlow 21-RGB 7/3 Maintenance Safety Instructions for Maintenance DANGER Electric shock caused by dangerous voltage inside Disconnect power supply before servicing or cleaning. Preventive Maintenance Attention Before each use, examine the device visually for any defects. Make sure that: ●... -
Page 30: Draining Condensation Water
Carlow 21-RGB 7/3 Draining Condensation Water The Carlow 21-RGB 7/3 is IP66 rated. The device can resist powerful water jets and heavy seas. If the device is exposed to extreme humid conditions during servicing, condensation may collect inside the device. This can happen also during transportation, if the device is exposed to extreme temperature variations. -
Page 31: Deinstallation, Transportation And Storage
Carlow 21-RGB 7/3 Deinstallation, Transportation and Storage Instructions for Deinstallation WARNING Incorrect deinstallation can cause serious injuries and damage of property. ● Let the device cool down before dismounting. ● Disconnect power supply before deinstallation. ● Always observe the national and site-specific regulations during deinstallation and derigging of the device. - Page 32 ©2022 Artecta...
