- Page 1 USER MANUAL ENGLISH Trenton GU10 Track Light Product code: A0320015 – Black housing A0320016 – White housing Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Trenton GU10 Track Light Preface Thank you for purchasing this Artecta product. The purpose of this user manual is to provide instructions for the correct and safe use of this product. Keep the user manual for future reference as it is an integral part of the product. The user manual shall be stored at an easily accessible location. -
Page 3: Introduction
After unpacking, check the contents of the box. If any parts are missing or damaged, contact your Highlite International dealer. Your shipment includes: ● Artecta Trenton GU10 Track Light (including track adapter, not including light source) ● Suction cup ●... -
Page 4: Symbols And Signal Words
Trenton GU10 Track Light Symbols and Signal Words Safety notes and warnings are indicated throughout the user manual by safety signs. Always follow the instructions provided in this user manual. Indicates an imminently hazardous situation which, if not avoided, will result in DANGER death or serious injury. -
Page 5: Requirements For The User
Trenton GU10 Track Light Attention Attention Power supply General safety Before connecting the device to the power supply, ● Do not shake the device. Avoid brute force make sure that the current, voltage and frequency when installing or operating the device. -
Page 6: Description Of The Device

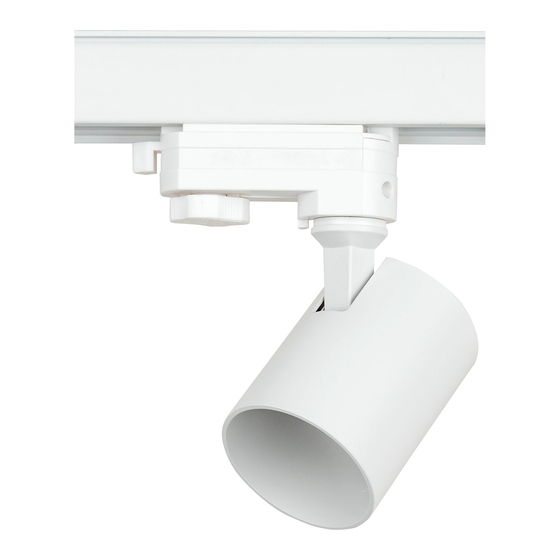

Description of the Device The Artecta Trenton GU10 Track Light features a GU10 socket. It can be fitted with any GU10 LED or halogen light bulb of up to 50 W. It Is suitable for illumination of residential and commercial buildings. -
Page 7: Installation And Deinstallation
The relative humidity must not exceed 50 % with an ambient temperature of 40 °C. Lamp Installation The Trenton GU10 Track Light is delivered without the light source. It can be used with LED or halogen bulbs with a GU10 lamp cap. -
Page 8: Mounting
Trenton GU10 Track Light Mounting The device can be mounted only to a 3-phase track system. CAUTION Restrict the access under the work area during mounting. To mount the device, follow the steps below: 01) Disconnect the track system from the power supply. -
Page 9: Dismounting
Trenton GU10 Track Light 06) Select the circuit with the circuit selector (05). You can select 1-, 2- and 3-phase circuit, as shown in Fig. 10. Attention Do not slide the track adapter in the track to adjust the position of the device (see Fig. 11). -
Page 10: Direction Adjustment
Trenton GU10 Track Light Direction Adjustment To adjust the angle of the device and the direction of the beam: ● Move the track head (03) around the pivot connector (02) to adjust the vertical position of the track head (03). The adjustment range is 0–90°. -
Page 11: Maintenance
Trenton GU10 Track Light Maintenance Preventive Maintenance Attention Before use, examine the device visually for any defects. Basic Cleaning Instructions To clean the device, follow the steps below: Disconnect the device from the electrical power supply. Allow the device to cool down for at least 15 minutes. -
Page 12: Disposal
Check the respective product page on the website of Highlite International (www.highlite.com) for an available declaration of conformity. ©2021 Artecta. All rights reserved. No part of this document may be copied, published or otherwise reproduced without the prior written consent of Highlite International.
