Artecta Cali Jade Series User Manual

User Manual
1. Product Description
The Cali Jade/Tube Series are 48 V, IP65 LED strips for indoor and
outdoor installation. They are suitable for mounting in an open
aluminum prole. The Jade Series are available in various color
temperatures and as RGBW options.
The LED strips are delivered with a mounting set, which consists of
end caps, clips, self-tapping screws, and a tube with silicone glue.
For complete product specications visit the respective product
page on our website www.highlite.com
2. Safety Instructions
Important
Read and follow the instructions in this user manual
before installing, operating or servicing this product.
DANGER
Installation, service and maintenance of this product
shall be carried out only by qualied persons.
This product must be installed in accordance with the applicable
national and international standards for electrical installations.
Improper installation may lead to hazardous situations and
material damage.
3. Installation Site Requirements
Attention
The LED strips are not suitable for underwater installation.
They are suitable for installation in damp or wet locations.
The LED strips can be installed in an open aluminum prole.
Make sure that the mounting surface is clean and smooth, and
free of grease or silicone oil.
Make sure that the mounting surface is thermally conductive and
provides good heat dissipation.
If the LED strips are installed outdoors, make sure that they are not
exposed to the effects of the weather. The LED strips are not UV
resistant.
Do not install the LED strips:
under water
at a place where the LED strips are exposed to direct sunlight
near heat-generating devices
in closed aluminum proles.
Do not install the LED strips in environments with highly volatile
substances, such as sulfur, chlorine, bromine and VOC. This will
reduce the life of the LED chips.
Make sure that the LED strips are installed at a place with:
ambient temperature between -20 °C and 50 °C
sufcient airow.
©2024 Artecta. All rights reserved.
No part of this document may be copied, published or
otherwise reproduced without the prior written consent of
Highlite International.
Design and product specications are subject to change
without prior notice.
For the latest version of this document and other language
versions, please visit our website
contact us at service@highlite.com
Highlite International B.V. • Vestastraat 2 • 6468 EX • Kerkrade • the Netherlands
1
Cali
Jade/Tube
V1
Series
.
www.highlite.com
.

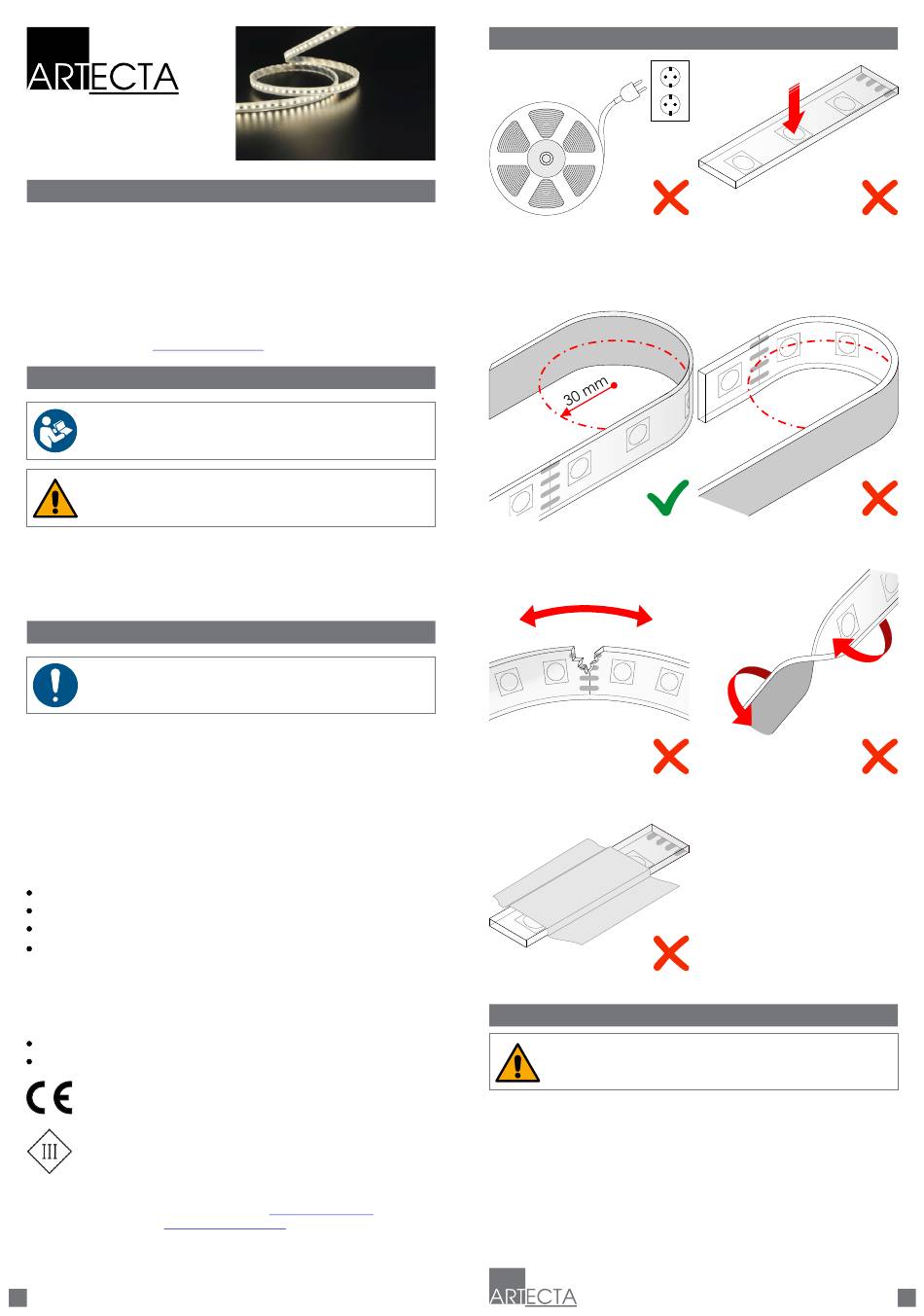

4. Handling
Do not connect the LED strip to
electrical power supply when
the LED strip is on the reel or
when it is tightly coiled. This will
damage the LEDs.
You can bend the LED strip only
along the vertical axis. The
maximum bending radius is
30 mm.
Do not bend the LED strip on the
horizontal plane.
5. Installation
WARNING
Incorrect installation can cause serious injuries and
damage of property.
The installation of this product shall be carried out only by qualied
persons.
Disconnect the power supply in the area where the product will
be installed.
Use an SELV DC constant voltage driver to connect the LED strip to
the mains.
or
To connect the LED strip to the controller/driver or to other LED
strips use wires with sufcient cross-sectional area and current-
carrying capacity.
Do not put excessive pressure
on the LED chips.
Do not bend the LED strip with
the LEDs on the inside.
Do not twist the LED strip.
Do not cover the LED strip with
any material during operation.
2
