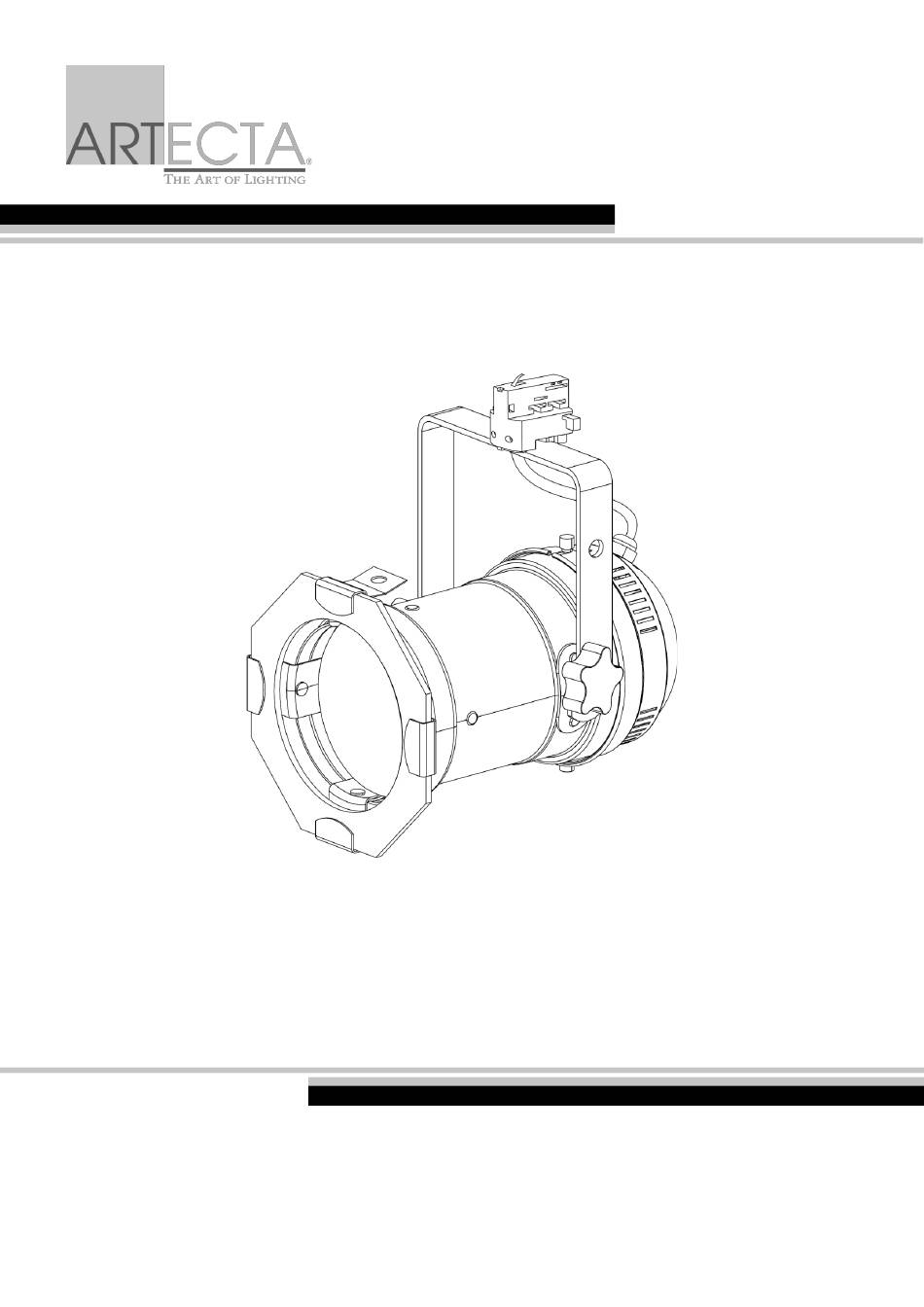

- Page 1 USER MANUAL ENGLISH Par 46 Tracklight - Warm on Dim Product code: A0320073 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
- Page 2 Par 46 Tracklight - Warm on Dim Preface Thank you for purchasing this Artecta product. The purpose of this user manual is to provide instructions for the correct and safe use of this product. Keep the user manual for future reference as it is an integral part of the product. The user manual shall be stored at an easily accessible location.
-
Page 3: Table Of Contents
Troubleshooting ..............................13 Maintenance ..............................13 Safety Instructions for Maintenance ......................13 Preventive Maintenance ..........................13 Basic Cleaning Instructions ........................13 Corrective Maintenance ..........................14 Transportation and Storage ..........................14 Instructions for Transportation ........................14 Storage ................................14 Disposal ................................14 Approval ................................14 Product code: A0320073... -
Page 4: Introduction
After unpacking, check the contents of the box. If any parts are missing or damaged, contact your Highlite International dealer. Your shipment includes: ● Artecta Par 46 Tracklight – Warm on Dim (including track adapter) ● Color frame (installed) ●... -
Page 5: Symbols And Signal Words
This device shall not be treated as household waste. Safety Important Read and follow the instructions in this user manual before installing, operating or servicing this product. The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual. Product code: A0320073... -
Page 6: Warnings And Safety Instructions
Attention General safety ● Do not shake the device. Avoid brute force when installing or operating the device. ● If the device fails to work properly, discontinue the use immediately. Product code: A0320073... -
Page 7: Requirements For The User
Ordinary persons are all persons other than instructed persons and skilled persons. Ordinary persons include not only users of the product but also any other persons that may have access to the device or who may be in the vicinity of the device. Product code: A0320073... -
Page 8: Description Of The Device

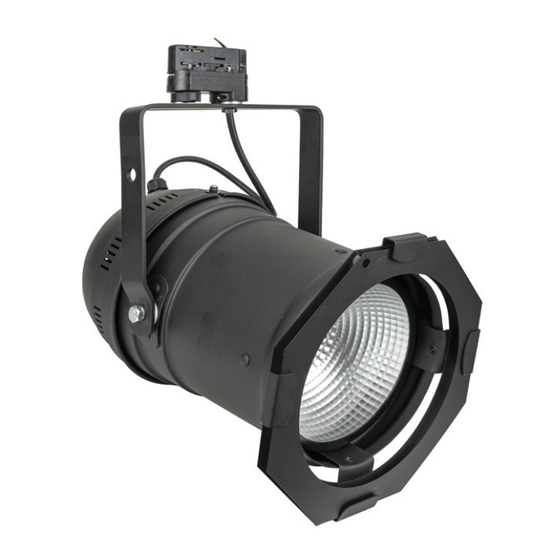

Par 46 Tracklight - Warm on Dim Description of the Device The Artecta Par 46 Tracklight – Warm on Dim is a compact spot suitable for indoor venues. It features a warm-on-dim technology which mimics the dimming curve of a traditional tungsten lamp. At 100 % output the color temperature is 2700 K and at 5 % –... -
Page 9: Product Specifications
Extruded aluminum Color: Black IP rating: IP20 Cooling: Natural convection Thermal: Maximum ambient temperature t 40 °C Minimum ambient temperature: -5 °C Minimum distance: Minimum distance from flammable surfaces: 0,5 m Minimum distance to lighted object: 0,5 m Product code: A0320073... -
Page 10: Installation And Deinstallation
02) Make sure that the circuit selector (03) is in OFF position and the track lock (02) is in unlocked position, as shown in Fig. 04. 03) Align the flange of the track adapter (01) with the track, as shown in Fig. 05. Fig. 04 Fig. 05 Product code: A0320073... - Page 11 Remove the device from the track and install it at the new place. For more information on how to remove the device from the track, refer to 4.5. Dismounting on page 11. Fig. 08 Fig. 09 Product code: A0320073...
-
Page 12: Dismounting
03) Set the circuit selector (03) in OFF position, as shown in Fig. 10. Fig. 10 04) Turn the track lock (02) counterclockwise to unlock the device (see Fig. 11). 05) Pull the track adapter (01) from the track (see Fig. 12). Fig. 11 Fig. 12 Product code: A0320073... -
Page 13: Direction Adjustment
This device is suitable for mounting only to a 3-phase track system. The device is connected to power supply when it is mounted to the track system. Before installing or deinstalling the device make sure that the track system is disconnected from power supply. Product code: A0320073... -
Page 14: Troubleshooting
On the other hand, if the device is installed in a well-ventilated area, it will need less frequent cleaning. To establish a cleaning schedule, examine the device at regular intervals during the first 100 hours of operation. Product code: A0320073... -
Page 15: Corrective Maintenance
For more detailed information about recycling of this product contact the local authorities or the authorized dealer. Approval Check the respective product page on the website of Highlite International (www.highlite.com) for an available declaration of conformity. Product code: A0320073... - Page 16 ©2021 Artecta...
