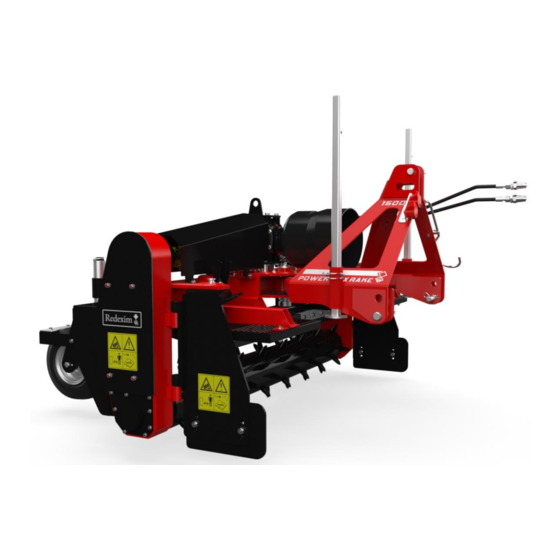

- Page 1 User manual POWER BOX RAKE 1500 Translation of the original user manual 2139 English 952.120.019 EN Kwekerijweg 8 | 3709JA | Zeist | The Netherlands | T: +31 (0)306 933 227 redexim@redexim.com www.redexim.com...
- Page 2 Redexim EU DECLARATION We – Redexim BV, Utrechtseweg 127, 3702 AC Zeist, Holland – declare entirely under our own responsibility that the product: POWER BOX RAKE WITH A MACHINE NUMBER AS INDICATED ON THE MACHINE AND INDICATED IN THIS MANUAL...
- Page 3 WITH DELIVERY THIS REDEXIM MACHINE IS GUARANTEED AGAINST MATERIAL DEFECTS. THIS WARRANTY IS VALID FOR A PERIOD OF 12 MONTHS FROM THE PURCHASE DATE. REDEXIM WARRANTIES ARE SUBJECT TO THE ‘GENERAL CONDITIONS FOR SUPPLY OF PLANT AND MACHINERY FOR EXPORT, NUMBER 188’ THAT ARE PUBLISHED UNDER THE AUSPICES OF THE UNITED NATIONS ECONOMIC COMMISSION FOR EUROPE.
-
Page 4: Table Of Contents
Redexim TABLE OF CONTENTS SAFETY INSTRUCTIONS ................5 1.1. Obligations of the user ................5 1.2. Maintenance, repairs and adjustments ..........6 1.3. Using the machine ................. 6 TECHNICAL DATA ..................7 GENERAL DESCRIPTION ................7 SAFETY STICKERS ..................8 FIRST INSTALLATION ................... -
Page 5: Safety Instructions
Redexim 1. SAFETY INSTRUCTIONS This machine is designed for safe use. This can only be achieved if you completely follow the safety instructions described in this manual. Read and understand the manual before you start using this machine. If the machine is not used as described in this manual, this can result in injuries and/or damage to the machine. -
Page 6: Maintenance, Repairs And Adjustments
When unskilled people use, maintain or repair the machine, this could result in injuries to the user and to third parties. This should be avoided! Use only original Redexim parts for maintenance or repairs because of the safety of the machine and of the user. -
Page 7: Technical Data
Redexim 2. TECHNICAL DATA Type Power Box Rake 1500 Recomended voertuig Minimum 30 Hp with a minimum lift capicity 610mm behind lifting eyes of 425 Kg (935 lbs) Working width 1.5 mtr (59”) 50 - 100mm (2” – 4”) Working depth Drive speed Maximum 12 Km/h (7.5 mph) -
Page 8: Safety Stickers
Redexim 4. SAFETY STICKERS Safety stickers are located on both sides of the machine. These safety stickers must always be clearly visible and legible and must be replaced if they have become damaged. In case of maintenance, adjustments and repair, always switch OFF the engine of the towing vehicle. -
Page 9: First Installation
1. Attach cables to the hoisting point (1). Ensure that the crane and hoisting cable can handle at least the following weights: POWER BOX RAKE 1500 650 kg (1430 lbs) 2. Remove the wheels (2) from the pallet and mount these at the back of the machine in the square beams. -
Page 10: Attaching And Detaching The Machine
Redexim 6. ATTACHING AND DETACHING THE MACHINE Attaching and detaching the machine has to be done carefully. Follow the instructions below: Figure 2 6.1. Attaching the machine Prior to attaching the machine, check the following points: Check whether the machine is undamaged and whether it is safe to attach and use the machine. -
Page 11: Detaching The Machine
Power Box Rake can get damaged. The rotor can rotate in both directions. It is important to stop the rotor before reversing the rotating direction. Changing the rotating direction too fast can damage the hydraulic engine. !! Redexim does not accept responsibility for damage to the hydraulic engine due to operating errors by the operator !! -
Page 12: Starting To Cultivate
Redexim 8.1. Starting to cultivate The Power Box Rake can cultivate soil effectively at a depth between 50-100mm. 1. Raise the guide plate by loosen the nuts (1) and tighten the nuts. Make sure that there is minimum 50mm distance between the rotor and the rubber plate (X) (Figure 3). -
Page 13: Starting To Cultivate
Redexim 6. Start moving the shovel and lower the Power Box Rake until it touches the ground. It is essential to drive slowly (1-2 km/h). Soil and rocks will now accumulate in front of the rotor, they will be forced over the rotor, and this will leave a level condition of the field behind the machine. -
Page 14: Starting To Cultivate
Redexim Start moving the shovel and lower the Power Box Rake until it sinks into the ground. Rubble and rocks will now accumulate at the front of the rotor and shifted forwards. The fine material will be forces over the rotor and this will leave a level condition of the field behind the machine. -
Page 15: Transport
Redexim When the material has to be moved to the left side, turn the rotor to the right and place side plate (2) maximum turned to the outside (Figure 6). Fix the side plate by using the lock pin and secure with the R-clip. -
Page 16: Maintenance
Redexim MAINTENANCE Time schedule Check / Grease point Method Before every use Check for loose bolts / nuts. Tighten loose bolts / nuts with the correct tightening moment. Attach the machine to the shovel Listen and observe any and operate the machine for 5 strange movements / minutes. -
Page 17: Tightening Torques
Redexim 10.2. Tightening torques To ensure proper operation of the Power Box Rake, the grease points on both sides of the machine (see Figure 7) must be greased periodically. Lubricate the points according to table 1. Figure 7... -
Page 18: Trouble Shooting (Problem Analysis)
Redexim TROUBLE SHOOTING (PROBLEM ANALYSIS) Problem Possible cause Solution − − Too much damage to Mount new teeth. Rotor teeth are damaged. − − the treated ground Try to drive in a straight line. Not driving in a straight line. -
Page 19: Chain Tension
Redexim CHAIN TENSION The chain tension is important and should be checked regularly. It is also important to regularly clean and lubricate the chain and sprocket wheel when necessary (Figure 8). 1. Remove the protective cover and rubber seeling flap.
