Operator and Parts
manual
Rapidcore
Model 1600
Serial number:
NOTE:
IN ORDER TO ENSURE THE SAFE USE AND TO ACHIEVE THE
BEST PERFORMANCE, IT IS ESSENTIAL THAT THIS OPERATORS
MANUAL IS CAREFULLY READ BEFORE THE RAPIDCORE IS
USED.
Redexim

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Rapidcore 1600 and is the answer not in the manual?

Questions and answers

Summary of Contents for Redexim Rapidcore 1600

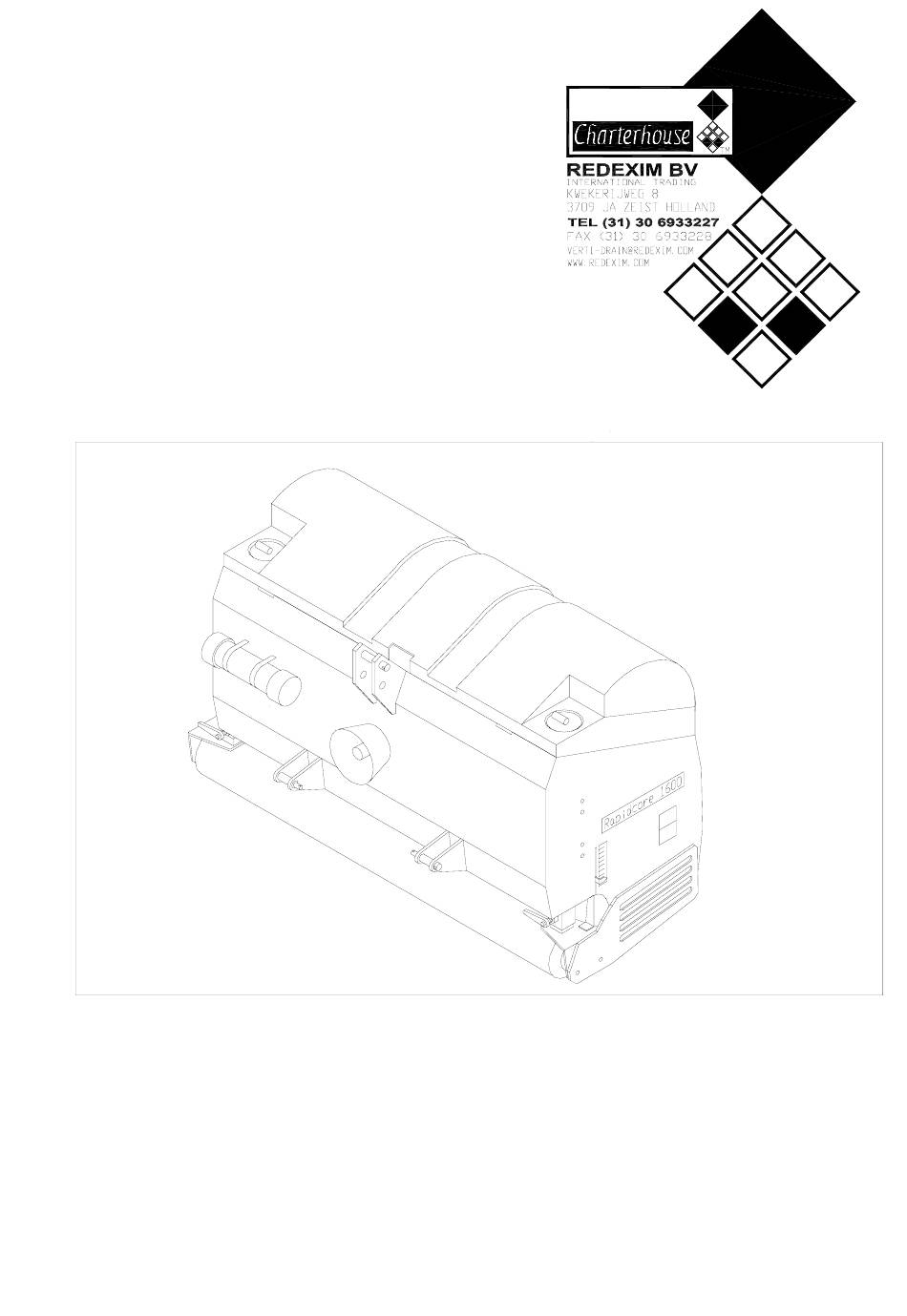

  • Page 1 Operator and Parts Redexim manual Rapidcore Model 1600 Serial number: NOTE: IN ORDER TO ENSURE THE SAFE USE AND TO ACHIEVE THE BEST PERFORMANCE, IT IS ESSENTIAL THAT THIS OPERATORS MANUAL IS CAREFULLY READ BEFORE THE RAPIDCORE IS USED.
  • Page 2: Foreword

    FOREWORD. Congratulations on the purchase of your Redexim-Charterhouse RAPIDCORE. To ensure the safe and lasting operations of this RAPICORE you (and anyone using the machine) should read and understand this user's manual. A complete knowledge of the contents of the manual is necessary in order to ensure the safe use of this machine.
  • Page 3: Safety Instruction

    SAFETY INSTRUCTIONS Always use the RAPIDCORE with the correct tractor as described in the technical information The user is responsible for a safe Tractor/RAPIDCORE combination. The combination must be tested for noise, safety, risk and easy usage. It is also necessary to draw up user instructions.
  • Page 4: Table Of Contents

    CONTENTS. Paragraph Description Page Foreword Guarantee conditions Registration card Safety instruction Technical specification First setup General controls PTO length Use of PTO Working depth adjustment Groundspeed Starting procedures General usage of the Rapidcore Transport of the Rapidcore 10.0 Uncoupling of the Rapidcore 11.0 Problem analysis 12.0...
  • Page 5: Technical Specification

    TECHNICAL SPECIFICATIONS. Model 1600 Working width 1.65 m (65”) Working depth Up to 125 mm (5”) Tractor speed @540 rev’s at PTO Hole spacing 55 mm (2-1/8”) Up to 1.8 km-h (1.2 mph) Hole spacing 110 mm (4-3/8”) Up to 3.6 km-h (2.4 mph) PTO speed Up to 540 rpm Weight...
  • Page 6: First Setup

    2.0 FIRST SET UP The machine is delivered on a pallet. To install the machine behind a tractor, handle as follows (see fig 1.): 1. Connect the machine to a tractor. * Use correct tractor see specifications. 2. Lift the machine from the pallet. 3.
  • Page 7: General Controls

    3.0 GENERAL CONTROLS In fig. 2, some key details of the machine are shown, as follows: 1. Manual box with manual enclosed and safety decal RA :Read manual before using the machine. 2. Serial number plate 3. Cat 1 & 2 bottom link pin 4.
  • Page 8: Pto

    4.0 PTO. The PTO is a very important item. It drives the machine from the tractor and ensures the safe operations when correctly maintained and installed. The PTO shaft has its own CE certification. Read the PTO shaft manual, which is connected to the shaft itself Fig.3.
  • Page 9: Use Of Pto

    4.2 USE OF PTO For the correct use of the PTO, the following items need to be checked: 1. During work the angle of the joints may never exceed 30 degrees 2. The joints have to be in line all the time 3.
  • Page 10: Groundspeed

    6.0 GROUNDSPEED The groundspeed determines the hole spacing in the drive direction. The input speed R on the PTO may be maximum 540 rpm. When stones or rocks are expected, the input speed should be reduced till 200-300 rpm. @ See technical specifications for the relation between tractor speed and hole distance. @ If the machine is not set correctly behind the tractor, see fig.1., different angles at the PTO may cause vibration into the drive line of the RAPIDCORE.
  • Page 11: General Usage Of The Rapidcore

    2. Raise machine out of the ground. 3. As soon as all tines are out of the ground, disengage PTO. 4. Raise machine further, till the lowest tines are at least 120 mm (5") above the ground. 5. Move to the next spot and start again as described above. @ It is absolutely necessary to proceed as described above.
  • Page 12: Uncoupling Of The Rapidcore

    10.0 UNCOUPLING OF THE RAPIDCORE The machine can be disconnected from the tractor as follows, 1. When the tines are still mounted: Drop the front roller down to a working depth of “0”. (see chapter 5) Drop the rear jack till the end last hole available Gently drop the machine on the front roller or rear jack Get the machine fully on the ground by changing the length of the top link Block the RAPIDCORE against rolling away.
  • Page 13: Maintenance

    Replenish gearbox oil Use SAE 90 W 13.0 EU-Declaration We, Redexim Utrechtseweg 127 3702 AC Zeist Holland, hereby declare fully on our authority that the product: RAPIDCORE 1600, WITH SERIAL NUMBER AS INDICATED ON THE MACHINE AND IN THIS MANUAL,...
  • Page 14: Belt Tension Adjustment

    292-2 and NEN-EN 294, according to the stipulations of: The Machine Directive 89/392, updated by 93/368/EEG, 93/44/EEG and 93/68/EEG Redexim Holland May 2000. 14.0 BELT TENSION ADJUSTMENT. The belt tension is important and need to be checked regularly. It is also important to clean the belts and poelies regularly when necessary.
  • Page 15: Solid Tines

    Use always tines with the same length and size. Replace a bent tine immediately. When this is not done, the machine can be unstable. Don’t use any thicker/ longer tines as what is specified under the technical specifications Shorter (worn) tines can be used in case shallower penetration is required. The machine doesn’t need to be adjusted that much at that time.
  • Page 16: Hollow Tines

    15.2 HOLLOW TINES. With hollow tines, the soil can be exchanged. Different sizes are available, see the spare part pages. The side outlet should face to the rear of the machine, see fig.5, because if used the other way round, we may hurt the turf.. The RAPIDCORE is standard delivered with 19 x 125 (5/8”x 5”) hollow tines with top eject.
  • Page 17: Windrow Kit

    15.4 WINDROW KIT (RC 1600). (added 15/08/00). A windrow kit can be assembled at the rear side of the Rapidcore, as drawn in Fig. 9. The pivot angle supports 11 and 12 can be mounted to the mainframe with bolts A, using holes B and adding plate 16.
  • Page 18: Turf Hold Down Fingers For Needle Tines

    • Remove the windrow kit when not needed. Be careful when driving around the machine with windrow kit at the back. 15.5 TURF HOLD DOWN FINGERS FOR NEEDLE TINES (RC 1600). (Added 30/11/00) Turf hold down fingers for needle tines are an option. If not really necessary, we advise not to use them, because they may get damaged when a tine hits a stone or bends.
  • Page 19 @ The alignment of the plates 9 to the tines 7 should only be done once, if next time the turf hold down sub assemblies ( 3 x beams) are assembled at the same position. Mark them. @ U channels 10 are identical to the ones used for the standard Turf Hold Down kit. For easy exchange of the different Turf Hold Down kits, we prefer using independent U channels for all kits.
