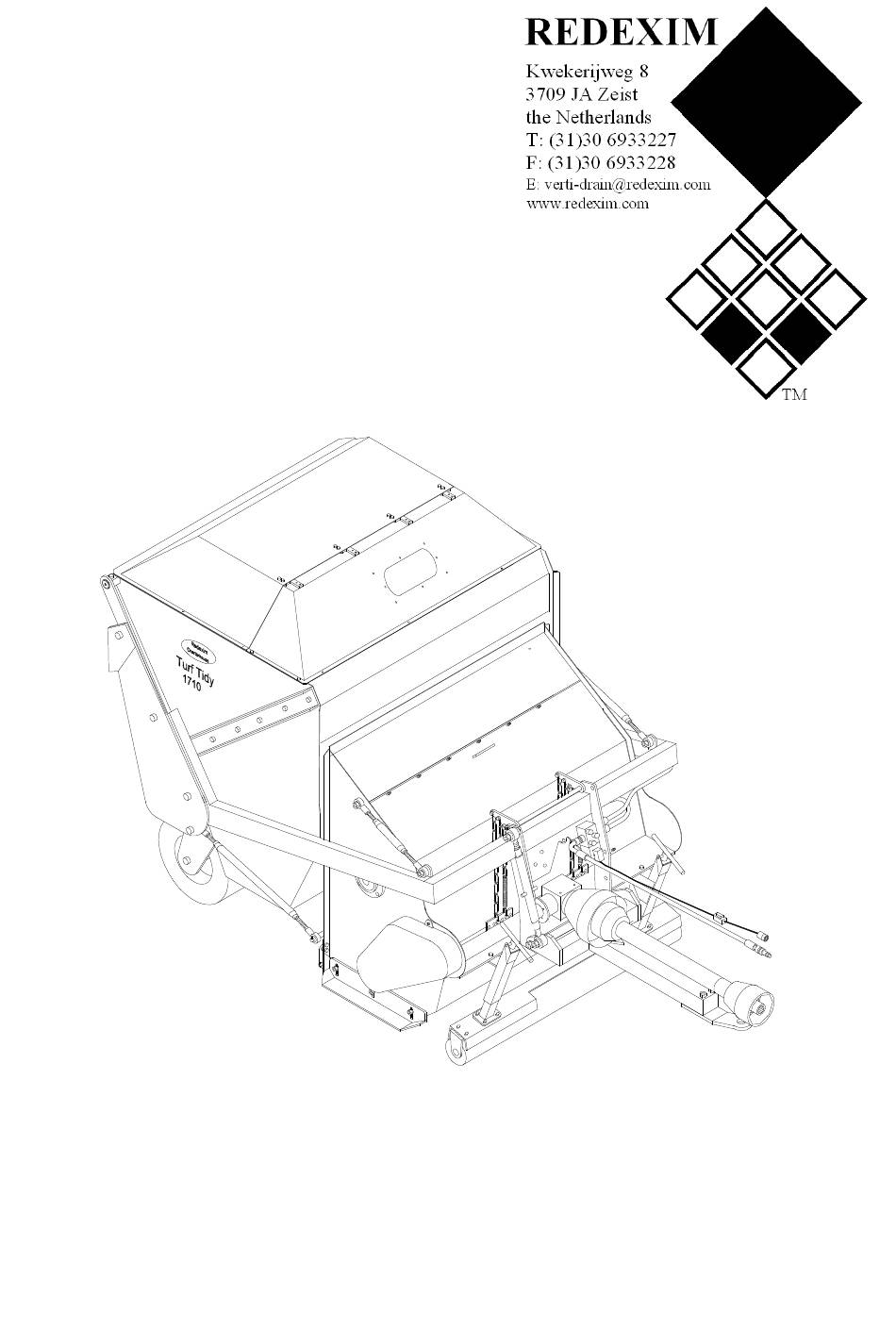

Operating and Parts
manual
Turf Tidy
Model 1310 & 1710
Serial number:
Translation of the original operating instructions
IN ORDER TO ENSURE THE SAFE USE AND TO ACHIEVE THE
BEST PERFORMANCE, IT IS ESSENTIAL THAT THIS OPERATING
MANUAL IS CAREFULLY READ BEFORE THE TURF TIDY IS
USED.
NOTE:
0948 English 941.120.405

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Turf Tidy 1310 and is the answer not in the manual?

Questions and answers

Related Manuals for Redexim Turf Tidy 1310

Summary of Contents for Redexim Turf Tidy 1310

  • Page 1 Operating and Parts manual Turf Tidy Model 1310 & 1710 Serial number: Translation of the original operating instructions NOTE: IN ORDER TO ENSURE THE SAFE USE AND TO ACHIEVE THE BEST PERFORMANCE, IT IS ESSENTIAL THAT THIS OPERATING MANUAL IS CAREFULLY READ BEFORE THE TURF TIDY IS USED.

  • Page 2: Foreword

    FOREWORD. Congratulations on the purchase of your TURF TIDY. To ensure the safe and lasting operations of this TURF TIFY you (and anyone using the machine) should read and understand this users manual. A complete knowledge of the contents of the manual is necessary in order to ensure the safe use of this machine.
  • Page 3 SAFETY INSTRUCTIONS Always use the TURF TIDY with the correct tractor as described in the technical information The user is responsible for a safe Tractor/TURF TIDY combination. The combination must be tested for noise, safety, risk and easy usage. It is also necessary to draw up user instructions.

  • Page 4: Table Of Contents

    CONTENTS. Paragraph Description Page Foreword Guarantee conditions Registration card Safety instruction Technical specification First setup, lifting TURF TIDY from pallet Preparing the Turf Tidy The pulled version The short-coupled-version General controls PTO length Working depth adjustment Adjusting the front roller Adjusting the rear roller Weight compensation springs Ground speed/ Power requirements...

  • Page 5: Technical Specification

    1.0 TECHNICAL SPECIFICATIONS. Model: 1310 1710 Working width: 1300 mm (60”) 1700 mm (72”) Tractor speed @ 540 rev’s at PTO Sweeping 1-10 km/h (0.6- 6 mph) 1-10 km/h (0.6- 6 mph) Scarifying 1-5 km/h (0.6- 3 mph) 1-5 km/h (0.6- 3 mph) Flail mower 1-2 km/h (0.6- 1.5 mph) 1-2 km/h (0.6- 1.5 mph)
  • Page 6 2.0 FIRST SETUP, LIFTING MACHINE FROM PALLET The machine stands vertically up on the pallet. To remove the pallet and place the machine horizontal on the ground, handle as follows (see fig.1) Plac e the machine with pallet on a hard leveled floor 11, fig 1. 1.

  • Page 7: Preparing The Turf Tidy

    9. Block the wheels from moving. Disconnect the cable. 10. Connect the cable at the pallet side of the Turf Tidy and raise the machine. Be sure the unit is well secured, so it doesn’t move when lifting • The cable should be well secured to the chassis of the machine and lifting device. •...
  • Page 8 Connect the Turf-Tidy to the tractor. With turnbuckles 10 we can adjust the machine height to the ground. The size A should be 805 mm (32”). When correctly adjusted, we will use the maximum stroke of the head. For PTO information, see Chapter 5. Next the hydraulic hose should be connected to a (single) acting outlet of the tractor.

  • Page 9: The Short-Coupled-Version

    3.2 THE SHORT- COUPLED- VERSION. The model 1310 can be used as a short coupled version as well, which means that the machine is connected to the two bottom arms 12 of the tractor’s 3-point linkage, see Fig.4. Read Chapter 3.1. carefully as well, regarding all comments and notes for the hydraulics and electrical connections.

  • Page 10: General Controls

    4.0 GENERAL CONTROLS. As the machine with tractor is ready for use, an overview of key components on the Turf- Tidy are explained, as follows, see Fig.5 as well: 1. Top door hopper. 2. Opening for air to escape. 3. Window for checking filling rate op hopper. 4.

  • Page 11: Pto

    17. Safety decal 911.280.402: Keep distance to the machine, switch off engine and lock machine when maintaining or adjusting and be aware of moving parts. 18. Lift cable. 19. Shoe. Should be close to the ground all the time. So adjust them when height is altered.

  • Page 12: Pto Length

    5.1 PTO LENGTH. The length of the PTO is very important. When too long, the transmission of the tractor and/or TURF TIDY may be damaged. When the overlap length of the tubes drops under 300 mm (12") anytime, the PTO may get damaged as well. The size B, fig.2,3,4., should be 100 mm (4”) minimum to allow the PTO tubes to move freely all the time.

  • Page 13: Adjusting The Rear Roller

    6.2 ADJUSTING THE REAR ROLLER. As mentioned in 5.1, the rear roller 22 (Fig 5.) should be close to the ground to prevent scalping of the turf when the machine is used as a scarifier or sweeper. To adjust the rear roller, work as follows see fig.6.: Be sure the engine is shut off •...

  • Page 14: Ground Speed/ Power Requirements

    7.0 GROUND SPEED / POWER REQUIREMENTS. The ground speed is directly related to the power needed for the job. The more power, the lower the forward speed. If we are transmitting too much power, the following may happen: the V belts may start to slip. The blades are swinging more around the pins, causing excessive wear on pins and holes The blades are wearing quicker and in a wrong direction.

  • Page 15: General Notes On Using The Turf Tidy

    8.0 GENERAL NOTES ON USING THE TURF TIDY The TURF TIDY can only be used when the circumstances are right. First some items regarding the working area: 1. Are there any loose objects on the field. If so, these must be removed first. 2.

  • Page 16: Problem Analysis

    10.0 PROBLEM ANALYSIS Machine vibrates Missing blades/ brushes Check and replace Rotor out of balance Check for damages and or material wrapped around PTO shaft damaged Check carefully Drive line vibrates Adjust working conditions Ground conditions Use wide angle PTO Are the brushes damaged Check and replace.

  • Page 17: Maintenance

    Check components for wear 12.0 EU-Declaration We, Redexim Utrechtseweg 127 3702 AC Zeist Holland, hereby declare fully on our authority that the product: TURF TIDY 1310/ 1710, WITH MACHINE NUMBER AS INDICATED ON THE MACHINE AND MENTIONED IN THIS MANUAL, to which this declaration relates is according to the stipulation of the 2006/42/EC directive for machines.

  • Page 18: Technical Issues

    13.0 TECHNICAL ISSUES. 13.1 BELT TENSION ADJUSTMENT. The main rotor is driven directly from the gearbox via 2 V-belts at the right side of the head. At the left side, the V belt drive for the second rotor is taken from the main rotor. Both belts are tensioned via an identical idler.

  • Page 19: Repositioning The Head

    5. Rotate the pulleys by hand and check the alignment. If okay, assemble the protection cover. @ When the V-belts are worn, adjusting the tension wouldn’t help preventing the slip. Replace the V-belts. @ Do not overtighten the belts. Damage to the machine may appear. 13.2 REPOSITIONING THE HEAD.

  • Page 20: Flail Blades

    14.1 SCARIFYING BLADES. The Turf Tidy is standard delivered with fixed scarifier blades 2 ( see Fig. 9.). When hard objects are to be expected, reduce the rpm’s of the PTO till about 300 rpm’s. The blades may break and dangerous circumstances may appear. Do not replace any worn blades for new ones.

  • Page 21: Brush Kit

    14.3 BRUSH KIT. The Turf Tidy can also be used as a sweeper. A brush kit is necessary to transform the unit into a sweeper unit. Sweeping can be done on grass or hard surfaces. With grass sweeping, we advise using the standard front roller 5 ( fig.6.). If we want to sweep hard areas, the wheel assembly is needed.

  • Page 22: Short-Coupled-Kit

    14.5 DUAL WHEEL KIT 1310. The Turf Tidy 1310 can be equipped with dual wheels at the back for less imprints on the turf. Basically two extra wheels with support ( 14 in Fig.4) are added to the Turf-Tidy. Remove bar 13 ( Fig.4.) and add the supports with plates 15 and 16 into holes 17 of the main frame.
  • Page 23 Redexim-Charterhouse Turftidy 1310/ 1710 pag 01 code 0102 Part # 1310 Part# 1710 DESCRIPTION REMARKS 494.170.218 494.207.218 Main frame 713.250.120 Same Ball bearing 6005 2RS 2/ / 4 830.100.100 Same Self lock nut M10 464.101.100 Same Bearing plate castor top 2 / 4 444.104.500...
  • Page 24 Redexim-Charterhouse Turftidy 1310/ 1710 pag 02 code 0102 Part# 1310 Part# 1710 DESCRIPTION REMARKS 464.159.111 Same Hopper guide arm left 830.100.100 Same Self lock nut M10 802.100.300 Same Bolt M10 x 30 464.109.181 464.109.216 Strip for cross section 468.065.310 Same Secure beam left 802.100.650...
  • Page 25 Redexim-Charterhouse Turftidy 1310/ 1710 pag 03 code 0102 Part# 1310 Part# 1710 DESCRIPTION REMARKS 858.060.150 Same Screw M6 x 15 446.039.140 446.039.176 Rubber U seal head 830.060.060 Same Self lock nut M6 444.084.900 Same Plastic guide strip head 816.060.200 Same Tapered head screw 468.052.620...
  • Page 26 Redexim-Charterhouse Turftidy 1310/1710 pag 04 code 0102 Part # 1310 Part# 1710 DESCRIPTION REMARKS 468.152.900 same Idler support plate Both side the same 866.080.020 same Spring washer M8 804.080.200 same Bolt M8 x 20 416.200.680 Same Idler shaft 412.200.020 Same Distance washer 713.200.120...
  • Page 27 Redexim-Charterhouse Turftidy 1310/1710 pag 05 code 1102 Part# 1310 Part# 1710 DESCRIPTION REMARKS 424.060.480 Same Lock pin 878.060.450 Same Roll pin 6 x 45 414.351.590 Same Pin for hydraulic cylinder top 534.765.220 534.765.250 Telescopic cylinder 414.350.720 Same Pin for hydraulic cylinder bottom 523.030.750...
  • Page 28 29 32 See other page Redexim-Charterhouse Turftidy 1310/1710 pag 06 code 0102 Part# 1310 Part# 1710 DESCRIPTION REMARKS 830.100.100 Same Self lock nut M10 468.049.133 468.049.172 Brush base plate second rotor 422.302.600 Same Drive shaft second rotor 422.301.200 same Square support shaft second rotor...
  • Page 29 Redexim-Charterhouse Turftidy 1310/1710 pag 07 code 0102 Part# 1310 Part# 1710 DESCRIPTION REMARKS 438.020.400 Same Secure spring for knife pin 56/72 341.303.160 Same Scarifier blade with two holes 56/72 241.131.001 Scarifier blade kit 1310 Standard with machine 241.171.001 Scarifier blade kit 1710 Standard with machine 424.100.400...
