Redexim Verti-Cut 2000 User Manual And Parts Book

Hide thumbs Also See for Verti-Cut 2000:
Table of Contents

Advertisement

Quick Links

Download this manual
User manual and parts book

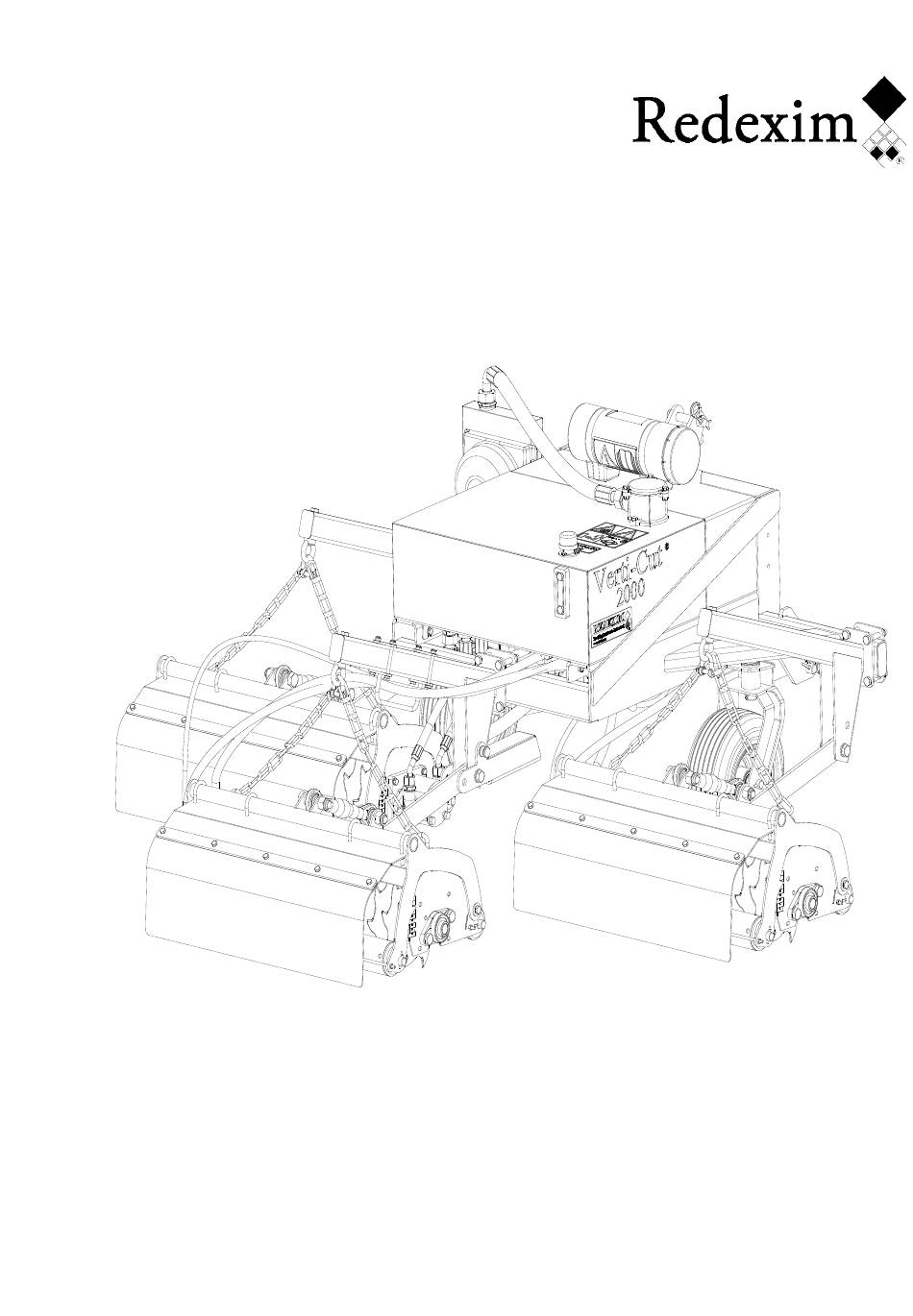

Verti-Cut 2000
Serial number:
Translation of the original user manual
NOTE:
IN THE INTERESTS OF SAFETY AND ACHIEVING THE BEST RESULT, IT IS
VERY IMPORTANT THAT THIS MANUAL IS READ CAREFULLY BEFORE USING
THE VERTI-CUT.
1628 English 944,140,400
Kwekerijweg 8
3709JA Zeist
The Netherlands
T: (31)306933227
F: (31)306933228
E: verti-drain@redexim.com
www.redexim.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Verti-Cut 2000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Redexim Verti-Cut 2000

Summary of Contents for Redexim Verti-Cut 2000

  • Page 1 User manual and parts book Verti-Cut 2000 Kwekerijweg 8 3709JA Zeist The Netherlands Serial number: T: (31)306933227 F: (31)306933228 E: verti-drain@redexim.com www.redexim.com Translation of the original user manual NOTE: IN THE INTERESTS OF SAFETY AND ACHIEVING THE BEST RESULT, IT IS VERY IMPORTANT THAT THIS MANUAL IS READ CAREFULLY BEFORE USING THE VERTI-CUT.

  • Page 2: Warranty Conditions

    FOREWORD Congratulations with the purchase of your Verti-Cut. This manual must be read and understood in order to ensure safe and long-term operation of this Verti-Cut. Safe operation of this machine is not possible if the user is not fully familiar with the contents of this manual.

  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS De Verti-Cut is ontworpen voor een veilig gebruik. This is only possible if the safety instructions defined in this manual are observed in full. Read and understand the manual before (Fig. 1) proceeding to use the Verti-Cut. Failure to use the machine as described in the manual can result in injury and/or damage to the Fig.
  • Page 4 Regularly check any hydraulic hoses and replace these if damaged or show signs of ageing. The replacement hoses must meet the manufacturer’s technical requirements. If present, the hydraulic system must be depressurised at all times before performing any activities on it. The Verti-Cut may NEVER be used if the safety stickers are not present.
  • Page 5 Ensure that you have a clear long distance view and clear sight of the immediate vicinity. Safety stickers with identical meaning can be found on both sides of the (Fig. 2, 3 and 4) Verti-Cut . These safety stickers must be clearly visible and legible at all times (Fig.

  • Page 6: Eu Declaration

    (Fig. 5) Used oil/grease constitutes an environmental hazard and must be disposed in accordance with current regulations. EU DECLARATION Redexim BV Utrechtseweg 127 3702 AC Zeist, the Netherlands declare entirely under our own responsibility that the product: VERTI-CUT WITH MACHINE NUMBER AS STATED ON THE MACHINE AND IN THIS...

  • Page 7: Table Of Contents

    TABLE OF CONTENTS WARRANTY CONDITIONS ..................... 2 REGISTRATION CARD ......................2 SAFETY INSTRUCTIONS ! ..................3 EU DECLARATION ........................6 TECHNICAL DATA ......................8 GENERAL DESCRIPTION .................... 9 FIRST INSTALLATION VERTI-CUT ................10 CONNECTING / DISCONNECTING THE VERTI-CUT ..........13 THE PTO ........................

  • Page 8: Technical Data

    TECHNICAL DATA Model Verti-Cut 2000 Operating width 2,000mm (78.3”) Operating depth Depending on soil conditions Distance between the blades 45mm (1.77”) Working speed Depending on conditions Recommended tractor 30 HP with minimal lifting capacity of 500 Kg (1102lbs) PTO RPM...

  • Page 9: General Description

    GENERAL DESCRIPTION The Verti-Cut 2000 is a machine designed to harrow grassy surfaces. Fig. 6...

  • Page 10: First Installation Verti-Cut

    FIRST INSTALLATION VERTI-CUT The machine is in the transport position on the pallet. To remove the pallet, follow the instructions below: (see Fig.6) !! NEVER CRAWL UNDERNEATH THE MACHINE!! 1. Secure a cable to the lifting points (1) and to the separate harrowing cages. 2.
  • Page 11 Fig.8...
  • Page 12 3. Now fit the engines on the cages. Make sure that the engine numbers correspond with the cage numbers (see Fig.9) Fig.9...

  • Page 13: Connecting / Disconnecting The Verti-Cut

    Connect the machine to the tractor (see section 4.0 - connection to the tractor). Use the correct tractor; see specifications. Switch the tractor off and secure the tractor/Verti-Cut combination to prevent activation/slipping. CONNECTING / DISCONNECTING THE VERTI-CUT Check procedure before proceeding to connect the Verti-Cut. ...

  • Page 14: The Pto

    !! Ensure that all locking pins are properly secured !! 4. Screw the top rod (2) in, creating tension on this. 5. Connect the PTO between the Verti-Cut and the tractor !! Determine the length of the PTO in accordance with section 5.1 !! 6.

  • Page 15: Using The Pto

    7. Check the tube overlap. Never use the machine if the PTO safety guard is damaged. 5.2 USING THE PTO Correct use of the PTO requires checks of the following items: 1. The angle of the centres of rotation may never exceed 30 degrees when operational. 2.

  • Page 16: Operating Speed

    OPERATING SPEED The maximum working speed for the Verti-Cut is 5 km/h (3.1 mph), however, the user will have to determine the correct speed based on the surface to be treated in combination with the desired working depth. USING THE VERTI-CUT The following checks must be made before proceeding to use the Verti-Cut at a site: Are there any freestanding objects in the field? Remove them first.

  • Page 17: Troubleshooting

    11.0 TROUBLESHOOTING Problem Possible cause Solution Blade rotor (see fig. 13 (3)) Machine depth setting is Decrease depth setting on does not rotate. too deep. machine PTO not connected Connect PTO correctly. correctly. Blade rotor blocked Remove obstacle. Crunching sound when Bearings are worn.
  • Page 18 Time schedule/frequency Checkpoint/Lubrication Method point After every 100 operation Check the roller bearings Use EP2 lubricating grease. hours or annually and the drive line. Replace if necessary. Check for loose bolts / nuts. Tighten the loose nuts / bolts. Check for oil leaks. Repair or replace.

  • Page 19: Changing / Replacing Blades

    13.0 CHANGING / REPLACING BLADES Fig.13 The blades have to be exchanged if the blades are worn or another thickness of blade is required; this takes place according to the following procedure (See fig.14) !! Ensure that that tractor/Verti-Cut is properly blocked and cannot move independently !! !! Ensure that the PTO on the Verti-Cut has been disconnected !! 1.
