Chapter 3: System Setup

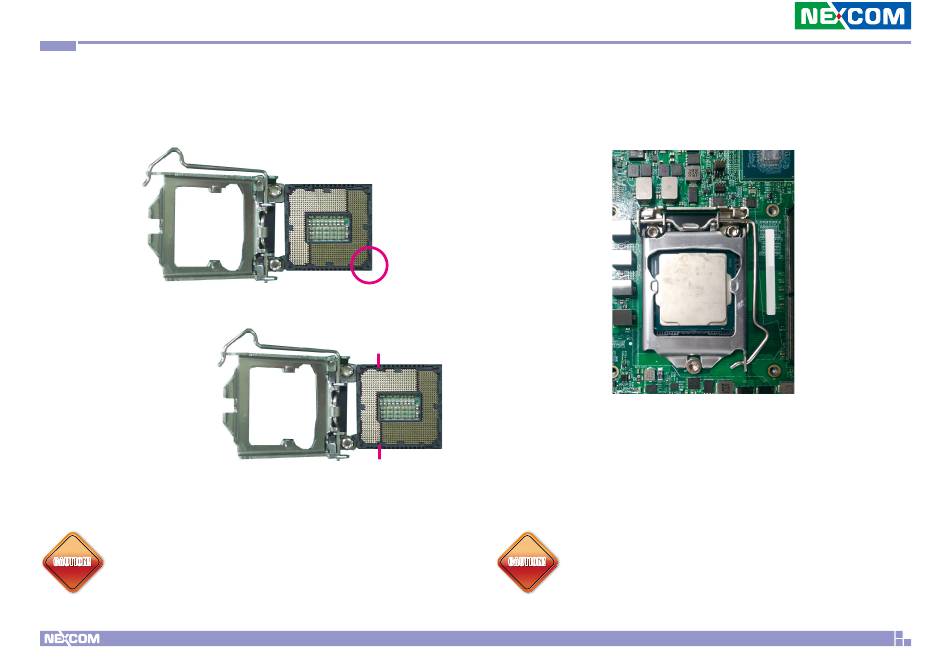

5. Insert the CPU into the socket. The triangular edge on the CPU must
align with the corner of the CPU socket shown on the photo.
The CPU's notch will at
the same time fit into the
socket's alignment key.
• Handle the CPU by its edges and avoid touching the pins.
CAUTION! CAUTION!
CAUTION! • The CPU will fit in only one orientation and can easily be
inserted without exerting any force.
Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved.
6. Close the load plate and then hook the load lever under the retention
tab.
Alignment key
Alignment key
CAUTION! CAUTION!
CAUTION!
28
Do not force the CPU into the socket. Forcing the CPU into
the socket may bend the pins and damage the CPU.
Neu-X303mini User Manual
