Chapter 2: Jumpers and Connectors

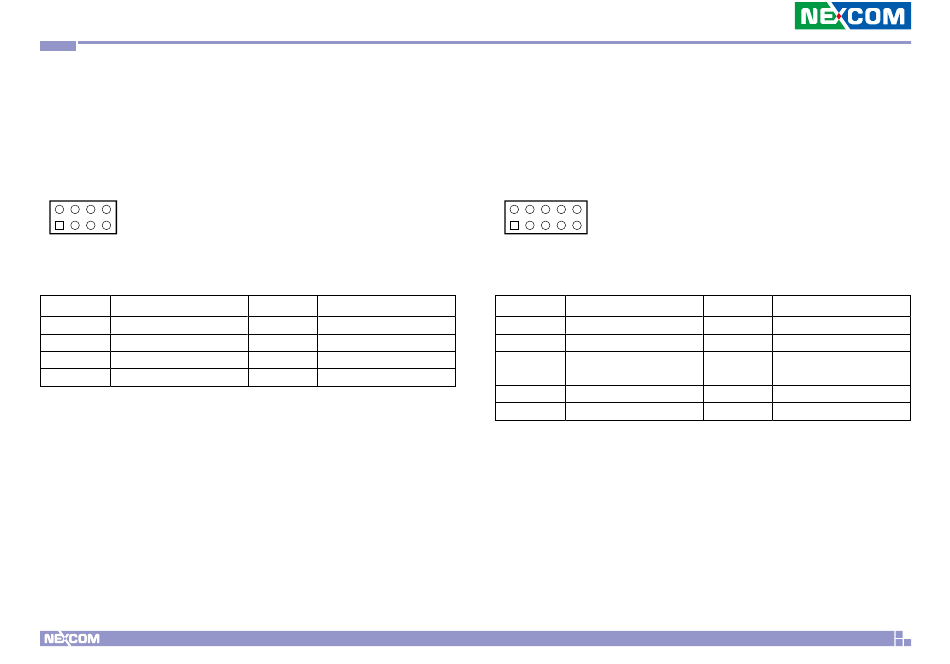

PWR Button / Reset Button / HDD LED / PWR LED

Connector type: 2x4 8-pin header
Connector location: J3
2
8
1
7
Pin
Definition
1
HDD_LED+
3
HDD_LED-
5
GND
7
RESET#
Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved.
Pin
Definition
2
PWR_LED+
4
PWR_LED-
6
Power On Butten
8
GND

CCG6DF Programming Header / I2C Debug

Connector type: 2x5 10-pin header
Connector location: J4
2
10
1
9
Pin
Definition
1
CCG6_I2C_SCL_SCB1
3
CCG6_I2C_SDA_SCB1
GPPC_B11_PMC_
5
ALERT_N
7
CCG6_I2C_SCL_SCB0
9
CCG6_I2C_SDA_SCB0
12
Pin
Definition
2
+VDDD_CCG6_TCP0
4
GND
6
TCP0_CCG6_XRES_I
8
TCP0_CCG6_I2C_CFG
10
TCP0_CCG6_SWD_IO
