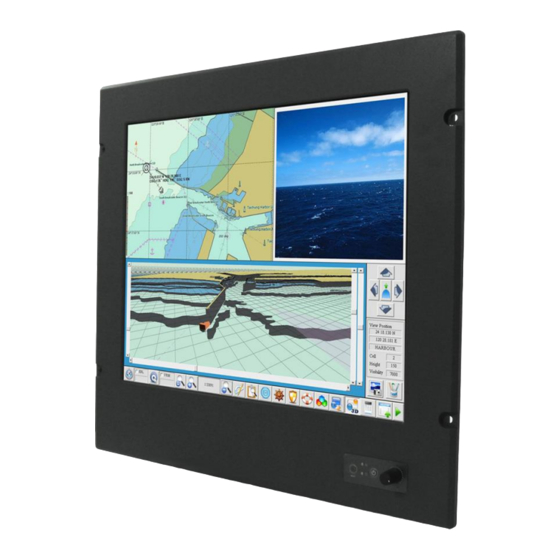

Marine Panel Computer
USER MANUAL
R15IV3S-MRXX
R17IV3S-MRM1
R19IV3S-MRXX
W24L100-MRA1IV3S
User Manual
Version: 1.1
15.0 inch Marine Bridge Panel PC System
17.0 inch Marine Bridge Panel PC System
19.0 inch Marine Bridge Panel PC System
24.0 inch Marine Bridge Panel PC System
Marine Bridge Panel PC System
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Winmate R17IV3S-MRM1
Summary of Contents for Winmate R17IV3S-MRM1
- Page 1 Marine Panel Computer USER MANUAL Version: 1.1 R15IV3S-MRXX 15.0 inch Marine Bridge Panel PC System R17IV3S-MRM1 17.0 inch Marine Bridge Panel PC System R19IV3S-MRXX 19.0 inch Marine Bridge Panel PC System W24L100-MRA1IV3S 24.0 inch Marine Bridge Panel PC System User Manual...
- Page 2 REVISION HISTORY EVISION UTHOR ESCRIPTION First version release 1.00 Marc Tsai June. 4, 2013 1.10 Jonathan Chi Nov. 29, 2018 Added 17” and 24” Marine Panel PC models Copyright @2018 Winmate INC. Users Manual Marine Bridge Panel PC System...
-
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Please read these instructions carefully before using the product and save for later reference. Follow all warnings and instructions marked on the product. Unplug this product from the wall outlet before cleaning. Clean the product with a damp soft cloth. Do not use liquid or aerosol cleaners as it may cause permanent damage to the screen. -
Page 4: Packing List
Packing List This product is shipped with the items list below. Please make sure that all are in your package. Item Description Note 1 x User Manual. 1 x CD for Mainboard Driver Utility. 4 x M6x30 black screw bolt with M6 nut. 10.4 inch above Notice: Only be used to screw the display display use. - Page 5 Optional Accessories Item Description Note 1 x CD for Recovery CD for Operation Optional with System (Windows 7). Windows 7 pre-installed. 1 x Windows 7 Recovery Users Guide. Optional with Windows 7 pre-installed. 1 x Standard Power Cord. Optional AC version of Euro / U.S.
-
Page 6: Table Of Contents
Contents IMPORTANT SAFETY INSTRUCTIONS ............2 PACKING LIST ....................3 CHAPTER 1 GENERAL INFORMATION ............7 1.1 F .............. 7 EATURES ABOUT THE ARINE RIDGE YSTEM ISPLAY 1.2 B PC ................. 9 ASIC ONSTRUCTION OF ARINE ANEL 1.3 T ) ..................10 OUCH CREEN OLUTION... - Page 7 CHAPTER 1 General Information User Manual Marine Bridge Panel PC System...
-
Page 8: Chapter 1 General Information
Chapter 1 General Information The Marine Grade Ivy Bridge Panel PC is high performance Panel PC with Intel® Core i7-3517UE and HM76 chipset combined with a TFT LCD Panel. Design with transflective panel, dimming brightness, ease of use OSD front panel control, IP65 proof, high quality touch-screen, wide voltage range power input acceptable, and anti-corrosion protection. - Page 9 Approved Marine Panel PC Winmate Marine Panel PC design is followed IEC-60945 Maritime Navigation and Radio-communication Equipment and Systems requirements. The Marine Panel PC series consists wide range sizes from 10.4 inches to 24 inches. By testing for usability in a ship’s wheelhouse during different ambient light conditions.
-
Page 10: Basic Construction Of Marine Panel Pc
1.2 Basic Construction of Marine Panel PC The state of the art modulized technology can integrate all marine display components flexibly. Figure 1.1 Basic Construction User Manual Marine Bridge Panel PC System... -
Page 11: Touch Screen Solution (Optional)
1.3 Touch Screen Solution (Optional) 1.3.1 Five-Wire Resistive Touch screen (Optional 1) Introduction to Five-Wire Resistive Touch screen The five-wire resistive touchscreens use a glass panel with a uniform resistive coating. A thick polyester coversheet is tightly suspended over the top of the glass, separated by small, transparent insulating dots. -
Page 12: Secure Touch Surface Wave Touch Screen (Optional 2)
1.3.2 Secure Touch Surface Wave Touch screen (Optional 2) Introduction to SAW Touch screen The surface wave is the optical standard of touch. Its pure glass construction provides superior optical performance and makes it the most scratch-resistant technology available. It's nearly impossible to physically "wear out"... - Page 13 CHAPTER 2 Installation User Manual Marine Bridge Panel PC System...
-
Page 14: Chapter 2 Installation
Chapter 2 Installation 2.1 General installation The Marine Panel PC can be applied for several different installation methods. Including panel (flush) mounting, bracket mounting, ceiling / wall mounting…etc. For panel (flush) mounting is normally for a ship’s wheelhouse use, it’s easy to follow few steps to fix the display product in customer’s fixture. - Page 15 Step1. Put the marine product on the fixture (console) from the front, and screw by four M6 x 30 mm black bolts with nuts. Step2. Use M4x 15mm bolts to drill through the fixture into the mounting holes on the rear side of IP65 front bezel.(The quantity of mounting screws based on drawing) User Manual Marine Bridge Panel PC System...
- Page 16 Step3. Check the finished mounting concept. ** Please Note: VESA and wall mount with mounting kit by special request. User Manual Marine Bridge Panel PC System...
-
Page 17: Installation Notice
2.2 Installation Notice 2.2.1 Brightness Control Knob Precaution The dimming brightness control knob may be damaged by wrong placement. Please make sure the right way to protect the knob. 2.2.2 Cable Connection Precaution Make sure to use qualified shielded signal cable to connect to Marine products. These cables including RS232, VGA, HDMI, LAN, USB cable should be connected inside the area as marked below. - Page 18 2.2.3 Isolation RS422/485 Jumper Settings 1.RS-485/RS-422 RS2T4-420 2.RS-232 RS2T4-420 User Manual Marine Bridge Panel PC System...
- Page 19 SW1 (On Back side): COM3(J3) / COM4(J8) RS-422/485 Mode Switch D-Sub 9P RS-232/RS-422/RS-485 (J3,J8) Used connector: DB9 Female Related connector: DB9 Male Pin No. Symbol Description DCD/D-/TX-/RX- RXD/D+/TX+/RX+ TXD/RX+/TX+ DTR/RX-/TX- Ground DSR/NC RTS/NC CTS/NC RI/NC Pins definition of J3 and J8 of 3 types 1.
- Page 20 3. RS-422 Slave Pin No. Symbol Description User Manual Marine Bridge Panel PC System...
- Page 21 CHAPTER 3 Operating the Panel PC User Manual Marine Bridge Panel PC System...
-
Page 22: Chapter 3 Operating The Panel Pc
Chapter 3 Operating the Panel PC 3.1 Input / Output Signals Overview The Marine Panel PCs designed with versatile computing functions fulfilling embedded applications. The default function includes two COM ports (one for RS232 and one for RS232/422/485), one for VGA output, one for HDMI output, two for USB 3.0, two RJ45. Figure 3.1 Input / Output Signals Power input (DC Version / AC Version) Default DC terminal block power source input compact design meets the maritime application. -
Page 23: I Nfront User Controls
USB port connection Use standard USB type A cable to connect any device that use USB interface for expansion functions. 3.2 In Front User Controls The compact in front user control is a user-friendly interface both to control the system function and status. - Page 24 Appendix User Manual Marine Bridge Panel PC System...
-
Page 25: Appendix A: Cleaning The Monitor
Appendix A: Cleaning the Monitor 1. Make sure the monitor is turned off. 2. Never spray or pour any liquid directly on the screen or case. 3. Wipe the screen with a clean, soft, lint-free cloth. This removes dust and other particles. 4. -
Page 26: Appendix B: Sunlight Readable (Transflective) Outdoor Readability (Optional)
Appendix B: Sunlight Readable (Transflective) Outdoor Readability (Optional) Transflective LCD technology can be applied to certain selected regular TFT LCD to introduce the LCD with a reflective function. With the imposed reflective function, the modified LCD can reflect the ambient light passing the LCD cell and utilize the reflected light beams as its illumination.
