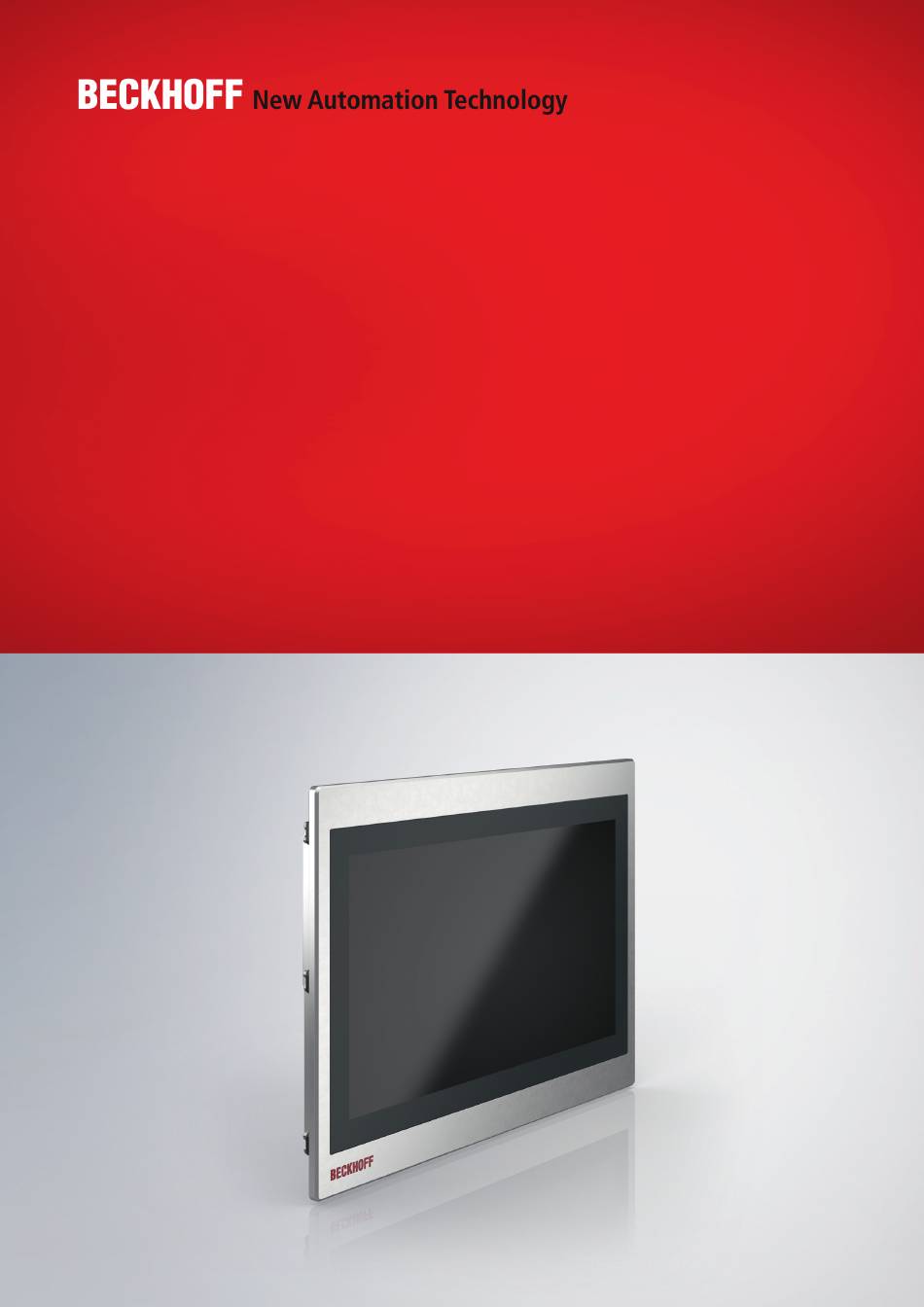

- Page 1 Manual | EN CP29xx-2xxx-0000 Control Panel 4/8/2021 | Version: 1.2...
-
Page 3: Table Of Contents
Table of contents Table of contents 1 Notes on the documentation ........................ 5 2 For your safety............................ 6 Description of safety symbols ...................... 6 Intended use ............................ 6 Fundamental safety instructions ...................... 7 Operator's obligation to exercise diligence .................. 7 3 Product overview............................ 8 Structure ............................ 9 Interface description ........................ 10 3.2.1 Power supply ........................ - Page 4 Table of contents Version: 1.2 CP29xx-2xxx-0000...
-
Page 5: Notes On The Documentation
Copyright © Beckhoff Automation GmbH & Co. KG. Publication of this document on websites other than ours is prohibited. Offenders will be held liable for the payment of damages. All rights reserved in the event of the grant of a patent, utility model or design. -
Page 6: For Your Safety
Exclusion of liability Beckhoff shall not be liable in the event of non-compliance with this documentation and thus the use of the devices outside the documented operating conditions. -
Page 7: Fundamental Safety Instructions
For your safety Fundamental safety instructions The following safety instructions must be observed when handling the device. Application conditions • Do not use the device under extreme environmental conditions. Protect the device against dust, moisture and heat and keep the ventilation slits free. •... -
Page 8: Product Overview

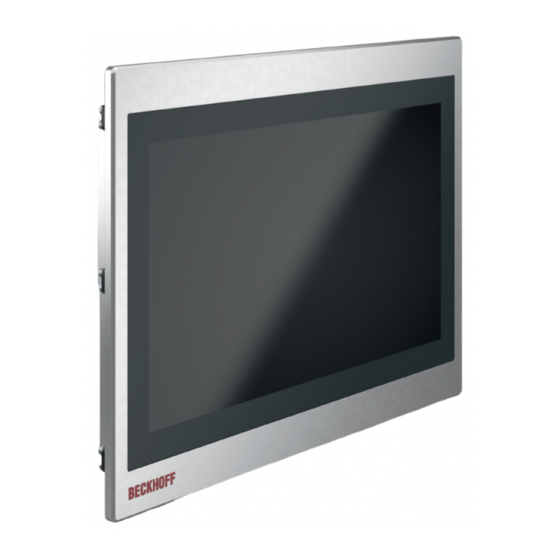

Product overview Product overview The Beckhoff Panel generation with industrial multi-touch display is generally suitable for control cabinet installation and for mounting arm installation, although only control cabinet installation is considered in this documentation. The devices offer suitable solutions for a variety of applications. The wide model variety ranges from different display sizes and formats to custom models. -
Page 9: Structure
Product overview Structure Figure 1 shows an example of the device configuration for all CP29xx variants. Fig. 1: CP29xx_configuration Table 1: Legend for CP29xx configuration Component Description Touch Screen Operating the Control Panel Clamping lever Mounting the Control Panel in the control cabinet Industrial PC C6030, optional Control system in machine construction and plant engineering... -
Page 10: Interface Description
The plug for the power supply is specified for 16 A and can accommodate cable cross-sections of up to 1.5 mm . The plug is included in the delivery. Replacement plugs can be obtained from your Beckhoff service contact (see Chapter 9.1, Service and Support). -
Page 11: Usb
Product overview 3.2.2 The Control Panel has a USB 3.0 interface (X104) that supports the USB 3.0 specification. The Control Panel is connected to the Industrial PC via the USB input. X104 Fig. 3: CP29xx_USB interface pin numbering Table 3: USB interface pin assignment Connection Typical assignment Shell... -
Page 12: Name Plate
Product overview Name plate Fig. 5: CP29xx_name plate Table 5: Legend for CP29xx name plate Description Model FCC approval Serial number (BTN) Date of manufacture Display Touch screen Power supply unit: 24 V NEC class 2 DVI interface (X106) USB interface (X104) Grounding bolt Connection of the power supply and external wiring of the Industrial PC (X101) -
Page 13: Connection Cables/Connection Kits
Ready-made connection kits for DVI/USB connection are available as an option. They are included as standard when you order the C6030 as an option for mounting at the back of the Control Panel. They can also be ordered separately from Beckhoff sales, quoting the following article descriptions: Table 7: Connection kits CP29xx with C6030... -
Page 14: Commissioning
4. Check the contents for visible shipping damage. 5. In case of discrepancies between the package contents and the order, or in case of transport damage, please inform Beckhoff Service (see chapter 9.1 Service and support [} 28]). Version: 1.2 CP29xx-2xxx-0000... -
Page 15: Installation In The Control Cabinet
Commissioning Installation in the control cabinet The CP29xx Control Panel is designed for installation in control cabinets for machine and plant engineering applications. Please observe the environmental conditions prescribed for the operation (see chapter 8 Technical Data). The C6030 Industrial PC can optionally me mounted at the back of the Control Panel. If you choose this option, you must first install the C6030 before you can mount the Control Panel in the control cabinet. - Page 16 Commissioning 51,5 cut-out dimensions: 1,5 - 2,5 Fig. 8: CP29xx_dimensions, 19 inch Fig. 9 shows the dimensions of the Control Panel with 21.5 inch display. 51,5 cut-out dimensions: 1,5-2,5 Fig. 9: CP29xx_dimensions, 21.5 inch Version: 1.2 CP29xx-2xxx-0000...
-
Page 17: C6030 Installation
Commissioning 4.2.2 C6030 installation A C6030 can optionally be mounted at the back of the Control Panel. The following section contains the information required for installing the Industrial PC. The following two ordering options are available for the C6030 Industrial PC: •... -
Page 18: Installation In The Control Cabinet
Commissioning For more information about the C6030 Industrial PC please refer to the device documentation. 4.2.3 Installation in the control cabinet Preparation of the control cabinet The control cabinet must have the required installation cutout according to the device dimensions (see Chapter 4.2.1 Dimensions [} 15]) of the Control Panel. -
Page 19: Connecting The Control Panel
Commissioning Connecting the Control Panel CAUTION Risk of electric shock Dangerous touch voltages can lead to electric shock. To avoid electric shock, observe the following: • Never connect or disconnect the device cables during a thunderstorm. • Provide protective earthing for handling the device. To prepare the Industrial PC for operation, it must be connected. - Page 20 Commissioning Fig. 14: CP29xx_assembly of strain relief housing Version: 1.2 CP29xx-2xxx-0000...
-
Page 21: Grounding The Control Panel
Commissioning 4.3.2 Grounding the Control Panel Potential differences are minimized and electrical currents are diverted to the ground through grounding or potential equalization of electronic devices. This is to prevent dangerous touch voltages and electromagnetic interference. Protective earth The low-resistance protective earthing of the Industrial PC prevents dangerous touch voltages. The protective earthing of the device is established via the protective conductor in the voltage connector. -
Page 22: Connecting Cables And Power Supply
Commissioning 4.3.3 Connecting cables and power supply NOTE Incorrect connection procedure Incorrect procedure when connecting the cables and the power supply can cause hardware damage. • Follow the documented procedure for connecting the cables and the power supply. • Always connect the cables first and only then switch on the power supply. •... -
Page 23: Shutting Down
Shutting down Shutting down NOTE Hardware damage due to power supply A connected power supply can cause damage to the Control Panel during disassembly. • Disconnect the power supply from the device before starting to disassemble it. When taking the Control Panel out of operation, you must first disconnect the power supply and cables. You can then remove the device from the control cabinet. -
Page 24: Disassembly And Disposal
Shutting down Disassembly and disposal Removal from the control cabinet Before you can remove the Control Panel from the control cabinet, you must first disconnect the power supply and the cables (see Chapter 5.1 Disconnecting the power supply and cables [} 23]). To remove the Control Panel from the control cabinet, follow the steps shown in Fig. -
Page 25: Servicing And Maintenance
• scouring agents • hard objects Use a soft, damp cloth to clean the device. Repair Only the manufacturer may repair the device. If a repair should be necessary, contact Beckhoff Service (see chapter 9.1 Service and support [} 28]). CP29xx-2xxx-0000 Version: 1.2... -
Page 26: Troubleshooting
Panel/ Industrial PC supply 1. Correctly connect the cable Cable not connected 2. Call Beckhoff Service Industrial PC boots, software starts Cause of the fault is either in the Call the machine or software up but controller does not work... -
Page 27: Technical Data
Technical Data Technical Data Table 9: Technical data Product designation CP29xx-0000 Dimensions (W x H x D) CP2916: 432 x 302 x 61 mm CP2918: 498 x 341 x 59 mm CP2919: 463 x 393 x 59 mm CP2921: 569 x 377 x 59 mm Weight CP2916: approx. -
Page 28: Appendix
Phone: + 49 (0) 5246/963-0 Fax: + 49 (0) 5246/963-198 E-mail: info@beckhoff.de The addresses of the worldwide Beckhoff branches and agencies can be found on our website at http:// www.beckhoff.com/. You will also find further documentation for Beckhoff components there. -
Page 29: Approvals
Appendix Approvals FCC approvals for the United States of America FCC: Federal Communications Commission Radio Frequency Interference Statement This device was tested and complies with the limits for a digital device of class A, according part 15 of the FCC regulations. These limits are designed to provide adequate protection against adverse interference, if the device is used in a commercial environment. - Page 31 Beckhoff Automation GmbH & Co. KG Hülshorstweg 20 33415 Verl Germany Phone: +49 5246 9630 info@beckhoff.com www.beckhoff.com...
