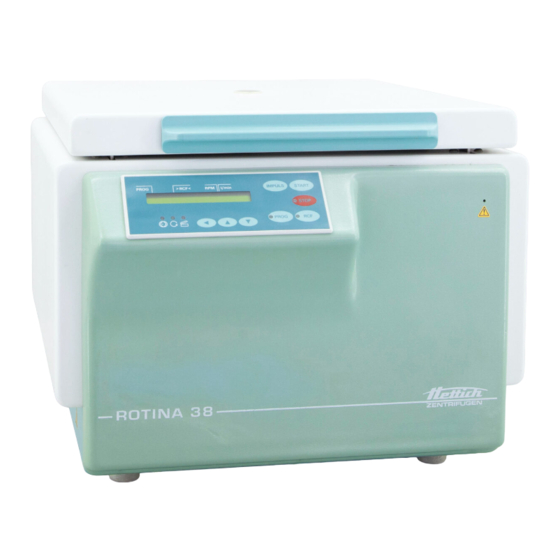

- Page 1 Repair instructions ROTINA 38 / 38 R 11.05 Andreas Hettich GmbH & Co. KG AR1703EN...
- Page 2 (07461) 705-0 (07461) 705-125 info@hettichlab.com, service@hettichlab.com www.hettichlab.com © 2005 by Andreas Hettich GmbH & Co. KG All rights reserved. No part of this publication may be reproduced without the written prior permission of the copyright owner. Modifications reserved! AR1703EN / 11.05...
-
Page 3: Table Of Contents
Contents Introduction ......................7 Meaning of the symbols ..................7 Description of the centrifuge ................8 Control panel (CP) .................... 8 Supply board (SB)..................... 9 Frequency converter (FC) ................. 9 Special features ....................10 Motor / Tacho system..................10 Imbalance switch..................... 11 Interlocking...................... - Page 4 Appliance plug (B1), overvoltage protection (F1)..........37 8.16 Imbalance switch .................... 37 8.17 Fan (M5) at the motor (only ROTINA 38 R) ............ 37 8.18 Temperature sensor B1 in centrifuge chamber..........37 8.19 Temperature sensor (B2) at condenser ............38 8.20...
- Page 5 Technical documents ..................40 Speedometer-code-position of the rotors ............40 Cooling diagram ....................41 Circuit diagrams ....................42 9.3.1 Abbreviations of the cable colours ............42 9.3.2 Mains input with supply board (SB) with 1703, 1707 ....... 43 9.3.3 Mains input with supply board (SB) with 1703-01, 1707-01 ..... 44 9.3.4 Mains input with supply board (SB) with 1703-02, 1707-02 .....
- Page 6 Abbreviations Control panel Frequency converter Supply board Cooling board Control cable Lid locking Braking chopper Brake resistor Mains reset, mains switch OFF - ON Error cause Error consequence Error remedy Measurements Error-code reset 6/55...
-
Page 7: Introduction
Interventions and modifications at centrifuges, which have been conducted by persons not authorized by the HETTICH company, are at their own risk and entail the loss off all guarantee and liability claims. In such an event any guarantee claim or liability claim against the HETTICH company expire. -
Page 8: Description Of The Centrifuge
• Motor with speed sensor (speedometer) • Braking chopper (BC) with brake resistor (BR) • Lid locking (LL) • Cooling board (CB), only Rotina 38 R Control panel (CP) The CP is the ”brain” or ”master” of the centrifuge. Via a serial data bus system, the MASTER controls its SLAVE, the component: −... -
Page 9: Supply Board (Sb)
• 12 V DC and 5 V DC supply for the SB. • 12 V DC supply for the CP. • 12 V DC supply for the CB (only ROTINA 38 R). • Plugging station X5 for mains power supply, LL magnet and transmission of the signalling circuit for LL-switch (open/closed over opto-coupler to the CP). -
Page 10: Special Features
• The CP issues the following via the serial interface: − Speed − Starting and braking levels − Control commands START, BRAKE, STOP • State display by LED´s: In standby mode the green LED is on In running mode the green LED is on In fault mode the green LED flashes If the FC processor detects a fault, it shuts down itself automatically and triggers the... -
Page 11: Imbalance Switch
Imbalance switch • A switch detects any imbalance. • Imbalance can only be detected in running mode (starting, centrifuging and braking). • If any imbalance is detected, the drive is changed over to braking. Interlocking • Opening of the LL is prevented by a latch. The LL can only be opened when the relay on the SB is energized by the CP. -
Page 12: Offset Calibration
3.10 Offset calibration • Offset calibration is performed in order to equalize the tolerances of the temperature sensor and the electronics. Perform Offset calibration Where/How when replacing: − the temperature sensor calibrate the temperature sensor. − the CP calibrate temperature sensor and read out the old offset values and put them in the new CP. -
Page 13: Error Messages
Error messages MAINS RESET • Switch off the mains switch. • Wait at least for 10 seconds and then switch on the mains switch again. Brief description Error designation Brief description Page TACHO-ERROR Speedometer pulses break down during rotation TACHO-ERROR No speedometer pulses after start command IMBALANCE (03)* Imbalance on motor axle... - Page 14 Error designation Brief description Page No cooling Overtemperature at condenser (No error displayed) °C / *-ERROR Overtemperature in centrifuge chamber °C / *-ERROR Temperature sensor in centrifuge chamber is defective FU/CCI-ERROR Faulty release signal to FC FU/CCI-ERROR FC - error: computing section FU/CCI-ERROR FC - error:...
-
Page 15: Description And Elimination Of Errors
Description and elimination of errors TACHO - ERROR 01 During centrifugation the speedometer pulses are interrupted. The rotor slows down until it stops. After the rotor stops, there is a DC braking for 30 sec. An MR during slowing-down causes a DC braking for 3 min. After the DC braking, the ”open the lid”... - Page 16 IMBALANCE Imbalance on motor axle. The centrifuge slows down until the “open the lid” release occurs. Further cooling until NOMINAL temperature is reached. • Weight difference in rotor components. • Supporting lugs not lubricated. • False IMBALANCE MODE is set (see chapter "Imbalance Mode"). •...
- Page 17 ROTORCODE 10 An invalid rotor code was read during startup. The centrifuge slows down until the ”open the lid” release occurs. Further cooling until NOMINAL temperature is reached. • Magnetic coding on rotor is defective. • Speedometer system is defective. •...
- Page 18 N < MIN 13 Insufficient speed; the slippage of the motor is too great. The centrifuge regulation can adjust the speed by 5% max (the limit of adjustment). The error is indicated if the ACTUAL speed is lower than the NOMINAL speed minus 5%.
- Page 19 SER I/O - ERROR 30 and ERROR 31 CP has no connection to the component FC via serial interface. The centrifuge slows down until the ”open the lid” release occurs. • CC to FC is defective. • There is no voltage on FC. •...
- Page 20 °C / * - NO COOLING No cooling in centrifuge chamber. Overtemperature at condenser, temperature > 60°C. Cooling switches off. Continuance of centrifugation until temperature switch in the centrifuge chamber triggers and “ERROR 52” appears. The centrifuge slows down until the “open the lid” release occurs. •...
- Page 21 FU / CCI - ERROR 60 The release signal was not correctly transmitted to FC. The evaluation of the release signal only occurs once after MR. No further user operation is possible. • CC to FC is defective. • CC to CP is defective. •...
- Page 22 FU / CCI - ERROR 64 Voltage in intermediate circuit: >410 V DC at 230 V >205 V DC at 115 V This error normally only occurs when the drive is being braked. • BR is defective. • CC is defective. •...
- Page 23 FU / CCI - ERROR 84 FC recognizes excess speed. During rotation the speedometer pulses (6 per revolution) are controlled by the FC. The FC switches the centrifuge off, when the maximum speed of the rotor is exeeded more than 500 rpm. •...
-
Page 24: Settings And Interrogations
Settings and interrogations Control panel IMPULS START PROG T/°C >RCF< RPM t/min 4000 22:11 STOP PROG The EPROM of the CP must, in all circumstances, correspond to the machine version and the cooling version. Procedure for initialization An initialization must be carried out: •... -
Page 25: Imbalance Mode
• Press → Display: *** OK *** START and then: PARAM - INIT F001 ↑ ↑ machine version Number of initializations • Mains switch is OFF. • Remove both jumpers from slot 3 and slot 4 on coding strip X3 on the CP. Put a jumper on slot zero at the plug on coding strip X3 on the CP. -
Page 26: Offset Value
6.4.1 OFFSET value The OFFSET value is the difference between the actual temperature and the sensor temperature. Example: Actual temperature - Sensor temperature = OFFSET value 25.5 °C 27.0 °C -1.5 °C 6.4.2 Procedure for performing an OFFSET alignment 1. Mains switch is ON →... -
Page 27: Parameter Interrogation
Parameter interrogation Requirements: 1. Rotor is stopped. 2. Mains switch is ON. Keep key pressed down until (after about 8 sec) the following appears in the display: 1. SOUND / BELL ON1 or OFF (acoustic signal) Press key. Every time the key is pressed, the display alters as follows: 2. -
Page 28: Checking The Motor Slippage
Checking the motor slippage The centrifuge control can readjust the speed depending on the rotor. The error (N < MIN 13) is displayed if the rotor speed (ACTUAL speed) is lower than the permitted range of control. It is only possible to check the slippage during a centrifugation run. •... -
Page 29: Imbalance Switch-Off
6.10 Imbalance switch-off The permissible imbalance is specified for rotor 1724 by the indication of the difference in weight of opposite rotor positions. When having a difference in weight within the range of 15g to 30g during run-up, the drive has to switch off before reaching 1500 RPM. The imbalance switch-off is adjusted by changing the distance of the imbalance switch. -
Page 30: Functional Check After A Repair
Assembling and disassembling components Before assembling or disassembling components, the working processes in Tabelle 8-B for ROTINA 38 and ROTINA 38 R must first be carried out to reach the components and make a note of the plug numbers. The components are assembled in reverse order ! The further procedure is described on the following pages. - Page 31 In Tabelle 8-A the components are ordered in the following sequence: Column 1: Abreviation Column 2: Components Column 3: Abreviations in the circuit diagrams Column 4: Plug connections Column 5: Connections at the electronic-panels Column 6: Described in capture. Tabelle 8-A A Speed sensor (speedometer) B Motor S101...
- Page 32 Tabelle 8-B Working processes A B C D E F G H I J K L M N O P Q R S T U V W X Y Z 1. Open lid X X X 2. Set mains switch X X X X X X X X X X X X X X X X X X X X X X X X X to OFF...
-
Page 33: Speed Sensor B3 (Speedometer)
Speed sensor B3 (speedometer) • Unscrew speed sensor (speedometer) from upper end plate of motor. • Unplug plug number X4 from Supply board A1. • Replace speed sensor (speedometer). Motor M1 / Vibration damper Wait at least 2 minutes after disconnecting the centrifuge from the mains, until the intermediate circuit capacitors of the frequency converter are unloaded. -
Page 34: Eprom On Fc
• Unscrew the four screws, and take SB out of centrifuge. • Replace SB CB A3 (cooling board) only ROTINA 38 R • All plugs on the CB must be pulled out. • Unplug the two cables (RD and BK) at the SB. -
Page 35: Control Cables (Cc)
Control cables (CC) • Unplug the corresponding control cable from the boards. • Replace the control cable. 8.10 Lid locking (LL) Y1 • Remove the front panel. • Unplug all cable from the lid lock. • Loosen the to fastening screws on the to of the housing. •... -
Page 36: Mains Choke Coil (L1)
8.13 Mains choke coil (L1) (only in centrifuge model 1703) 8.13.1 Assembly and disassembly • Remove the frequency converter, see chapter "8.3". • Pull both plugs from the mains choke coil. • Undo the fastening screws of the mains choke coil. •... -
Page 37: Mains Switch (Q1)
After the installation the imbalance cutoff must be checked, see chapter "Imbalance switch-off". 8.17 Fan (M5) at the motor (only ROTINA 38 R) • Remove the FC, see chapter "8.3". • Remove plug number X6 from the SB. • From below loosen the two fastening screws of the fan. -
Page 38: Temperature Sensor (B2) At Condenser
8.19 Temperature sensor (B2) at condenser • Remove plug number X2 at the CB. • Unscrew the temperature sensor (one screw). • Replace temperature sensor. 8.20 Fan (M3, M4) • Remove both plugs at the defective ventilator. • Unscrew the two fastening screws of the defective fan (through the ventilating louvres). -
Page 39: Isolating Transformer (Tr1)
8.23 Isolating transformer (TR1) (only in centrifuge models 1703-02 and 1707-02) • Loosen both cable of the isolating transformer at terminal block X10. • Hold the isolating transformer and unscrew the fastening screw. • Replace the defective isolating transformer. 8.24 Fuse holder (only in centrifuge models 1703-01, 1703-02, 1707-01, 1707-02) •... -
Page 40: Technical Documents
1001 01010101 15.000 1789 1001 01010110 4.000 1798 1001 01011010 5.000 SK 15.05 1001 01100011 2.000 1001 01110001 16.000 1001 10000111 2.000 1001 10001011 15.000 1711 1001 10001101 2.000 1001 10100011 2.000 1001 11000011 * only with ROTINA 38 R 40/55... -
Page 41: Cooling Diagram
Cooling diagram Zentrifuge centrifuge Elektronik Zentrifuge Electronc centrifuge Evaporator (centrifuge chamber) Capillary tube Air-cooled condenser Filter dryer (flow direction vertical from top to bottom !!!) B3 Temperature sensor on condenser (controlled by centrifuge electronics) M2 Compressor 41/55... -
Page 42: Circuit Diagrams
Circuit diagrams 9.3.1 Abbreviations of the cable colours Abbreviation Colour black brown blue gold green GNYE green-yellow grey orange pink silver turquoise Transp. transparent violet white yellow 42/55... -
Page 43: Mains Input With Supply Board (Sb) With 1703, 1707
F3 to cooling board A3 / X1 radio interference to overtemperature suppression filter Netzschalter switch F3 mains switch ROTINA 38: zur Netzdrossel L1 Deckelver- to mains coke coil L1 riegelung lid locking ROTINA 38R: zum Frequenzum- richter A2 / S102 / N... -
Page 44: Mains Input With Supply Board (Sb) With 1703-01, 1707-01
9.3.3 Mains input with supply board (SB) with 1703-01, 1707-01 Gerätestecker Überspannungsschutz appliance plug Netzschalter overvoltage protection mains switch Netz GNYE mains Zur Kühlungsplatine A3 / X1 to cooling board A3 / X1 Funkentstörfilter zum Übertemperatur- radio interference schalter F3 suppression filter to overtemperature switch F3... -
Page 45: Mains Input With Supply Board (Sb) With 1703-02, 1707-02
9.3.4 Mains input with supply board (SB) with 1703-02, 1707-02 Gerätestecker Überspannungsschutz appliance plug Netzschalter overvoltage protection mains switch Netz GNYE mains 120V Zur Kühlungsplatine A3 / X1 to cooling board A3 / X1 Funkentstörfilter zum Übertemperatur- 120V radio interference schalter F3 suppression filter to overtemperature... -
Page 46: Circuit Diagram Supply Board (Sb)
9.3.5 Circuit diagram supply board (SB) FC-Fehler Fehlermeldung von FC FC-ERROR error message from FC (-)485-Bus listen/talk (+)485-Bus Hardware-stop Hardware-stop Tacho Verschlußrelais lid lock relay Deckel offen-Meldung lid open-message Unwucht GND imbalance GND Unwucht imbalance Tacho Netz mains Stillstand Zur Kühlplatine 115V Version standstill to cooling board... -
Page 47: Connecting Diagram And Component Layout Supply Board (Sb)
9.3.6 Connecting diagram and component layout supply board (SB) zum Frequenzumrichter A2 / S501 zur Kühlungsplatine to frequency converter A2 / S501 to cooling board zum Steuerteil A4 / X1 to control panel A4 / X1 Diagramm Pin 12 Unwuchtschalter Imbalance switch Transp Drehzahlsensor... -
Page 48: Signals At Control Cable (Between Cp-Sb)
9.3.7 Signals at control cable (between CP-SB) X1 Pin 5 X1 Pin 4 X1 Pin 3 FC Hardware Stop Deckel offen Deckel offen lid open lid open Deckel zu Deckel zu lid closed lid closed Verschluß offen Verschlußmagnet oder Lauf aktiviert lid locking open lid locking magnet... -
Page 49: Block Diagram Control Panel (Cp)
9.3.8 Block diagram control panel (CP) U (5.00V) r e f Reset Verschluss / lid locking FC Stop Deckel offen / lid open µP empfangen / senden listen / talk Unwucht / imbalance FC - ERROR Tacho in & & Temp.-fühler X101 temp. -
Page 50: Connecting Diagram Control Board (Cp)
9.3.9 Connecting diagram Control board (CP) Steuerteil A4 control panel A4 X101 A4/X101 A4/X1 A3/X4 A1/X2 zur Kühlungspaltine zur Versorgungsplatine nur gekühlte Version to supply board to cooling board only refigerated Version 50/55... -
Page 51: Block Diagram And Control Panel Signals At Fc
9.3.10 Block diagram and control panel signals at FC Netzdrossel L1 (nur bei ROTINA 38, 230 V Ausführung) mains choke coil L1 (only with ROTINA 38, 230 V model) Signale an S501: signals at S501: Netzdrossel L1 mains choke coil L1... -
Page 52: Connecting Diagram Frequency Converter (Fc)
Übertemperaturschalter für R1 overtemperature switch for R1 Netzdrossel L1 Motor / motor (nur bei ROTINA 38, 230 V Ausführung) mains choke coil L1 (only with ROTINA 38, 230 V model) vom Funkentstörfilter Z1/3 vom Funkentstörfilter Z1/4 from radio interference... -
Page 53: Circuit Diagram Cooling Board
9.3.12 Circuit diagram cooling board zum Steuerteil A4 / X101 to control panel A4 / X101 9 10 BC327 VDR1 1N4148 YE (GY) GN (YE) BN (GN) WH (BN) 53/55... -
Page 54: Connecting Diagram And Component Layout Cooling Board
9.3.13 Connecting diagram and component layout cooling board Anlauf- kondensator startup condenser Wicklungsschutzschalter winding protection switch VDR1 C6 C4 C5 3 4 5 6 A3 / X4 Temperaturfühler und Über- temperaturschalter im Kessel temperature sensor and overtemperature switch in centrifuge chamber A4 / X101 zum Steuerteil A4 to control panel A4... -
Page 55: Technical Specifications
Technical specifications Hettich Zentrifugen Hersteller / Manufacturer D-78532 Tuttlingen Typenbezeichnung / Model ROTINA 38 ROTINA 38 R 1703-01 1707-01 Verkaufs-Nr. / Product no. 1703 1707 1703-02 1707-02 Netzspannung / Mains voltage (± 10%) 208-240 V 1∼ 110-127 V 1~ 208-240 V 1∼ 220-240 V 1∼ 110-127 V 1~ Netzfrequenz / Mains frequency 50 –...
