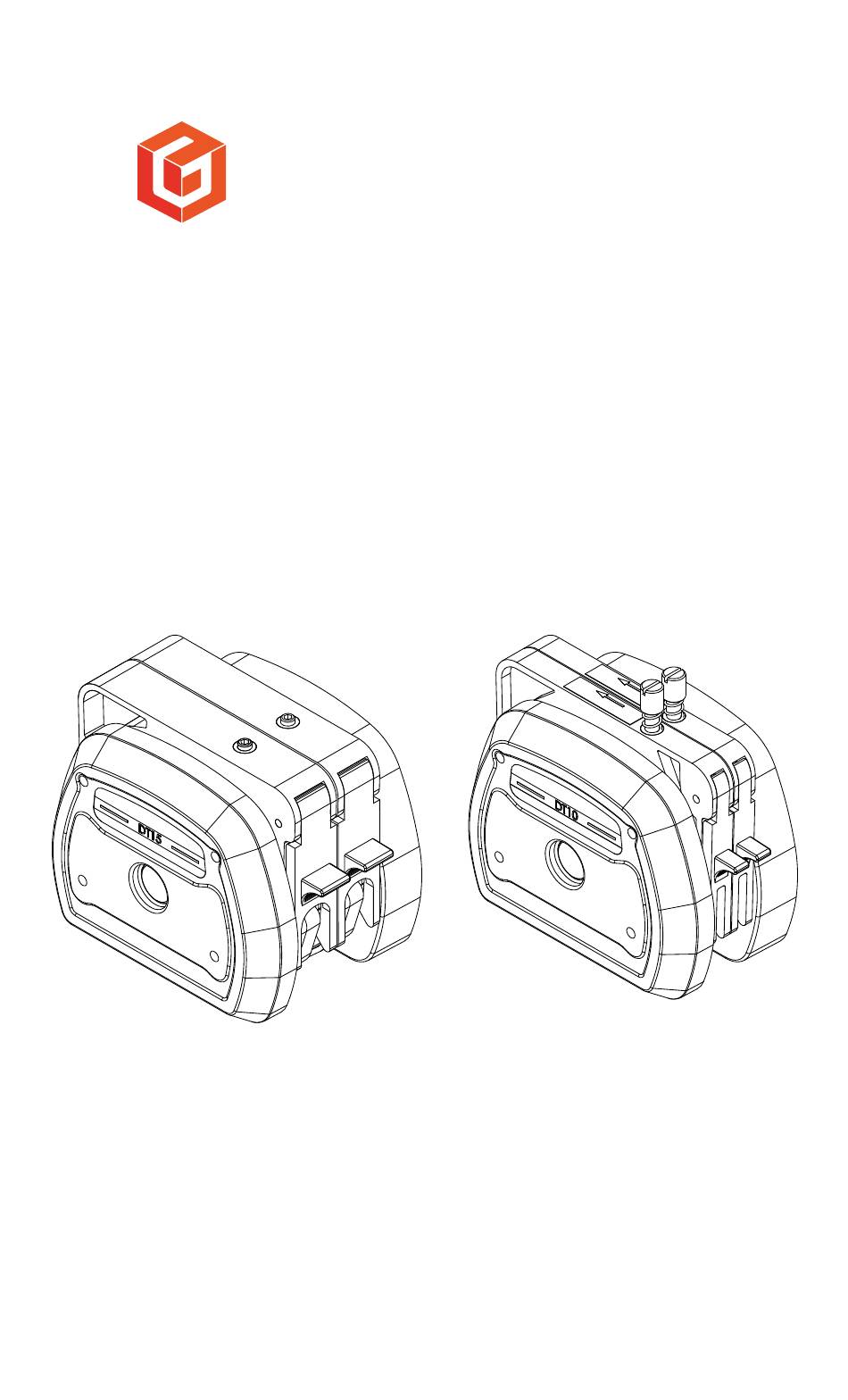

- Page 1 GOLANDER DT Pump Head User’s Guide...
-
Page 2: Safety Cautions
DT Pump Head User’s Guide 1 Safety Cautions Warning • Please carefully read this user's guide before operating the pump head. • Regularly check the tubing for breakage as it may cause fluid to be sprayed from the pump. Replace the tubing promptly when needed. -
Page 3: Specifications
These pump heads feature a convenient cartridge for easy tubing replacement. With a PPS case and stainless steel rollers, the DT series pump heads are more compact compared to multiple-channel YZ or YT pump heads. -
Page 4: Setup And Operation

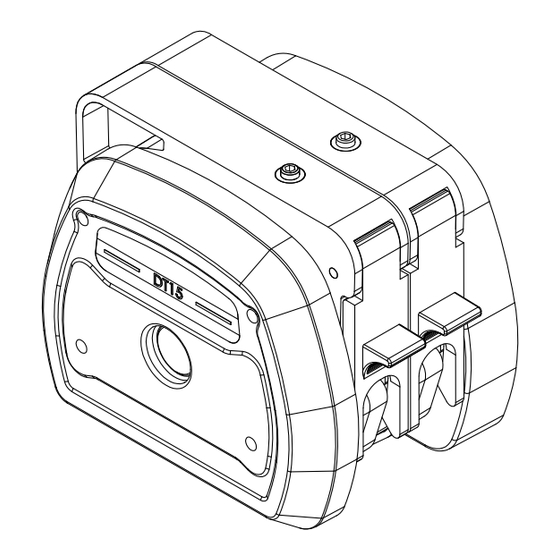

DT Pump Head User’s Guide 4 Setup and Operation 4.1 DT Pump Head Figure 1. DT15 and DT10 Pump Heads (without/with knobs) 1 – Front panel 2 – Tubing cartridge 3 – Occlusion adjustment set screw 4 – Back panel 5 –... - Page 5 DT Pump Head User’s Guide 4.2 Pump Head Installation 4-M4 Screws Shaft Tang Cartridge Snap-fit Hook Figure 2. Pump Head Installation To install the pump head, follow these steps: • Insert the shaft tang of the pump head into the slot on the drive shaft.
-
Page 6: Tube Loading
DT Pump Head User’s Guide • Use the Allen key to insert into the mounting holes and tighten the four screws to securely mount the pump head to the drive. 4.3 Tube Loading 1) Ensure that the pump drive is turned off. 2) Remove the cartridge from the pump head. - Page 7 DT Pump Head User’s Guide Figure 5. Fix the Cartridge For multiple-channel applications, it is important to ensure that the tubing length in the cartridge and the stress on the tubing are nearly the same. This helps minimize the flow rate differences between the channels. Note: 1) In multiple-channel setups, it is expected that the flow rates may not be identical.
-
Page 8: Warranty
DT Pump Head User’s Guide 5 Dimensions Figure 6. Dimensions (mm) Model Length L (mm) DT10-18 57.5 DT10-28 DT10 DT10-48 87.5 DT10-88 DT15-14 DT15 DT15-24 87.5 DT15-44 6 Warranty The product includes a one-year warranty for both labor and parts. Please note that the limited warranty does not cover any damage caused by improper usage or mishandling. - Page 9 DT Pump Head User’s Guide Table 1. DT15 Flow Rate (mL/min) Tubing Size Speed (rpm) 1060 1600 Table 2. DT10 Flow Rate (mL/min) Tubing Size (ID mm) Speed (rpm) 0.13 0.25 0.76 1.22 1.52 0.000 0.001 0.003 0.008 0.010 0.016 0.027 0.046 0.182...
- Page 12 Golander LLC Golander GmbH 4405 International Blvd, Dechant-Heimbach-Str. 29 Ste B117, Norcross 53177 Bonn GA 30093, USA Germany Tel: +1 678-587-8806 Tel: +49 228 50446952 info@golanderpump.com info@golander.de www.golanderpump.com www.golander.de...
