Assembly and Operating Instructions
max. 150 kg
~ 130 Min.
77 kg
L 153 | W 164 | H 212
SEBR2584.01.04
SKU: SEBR2584
BodyMax
Cable Motion Rack System
TF

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SEBR2584 and is the answer not in the manual?

Questions and answers

Summary of Contents for BODYMAX SEBR2584

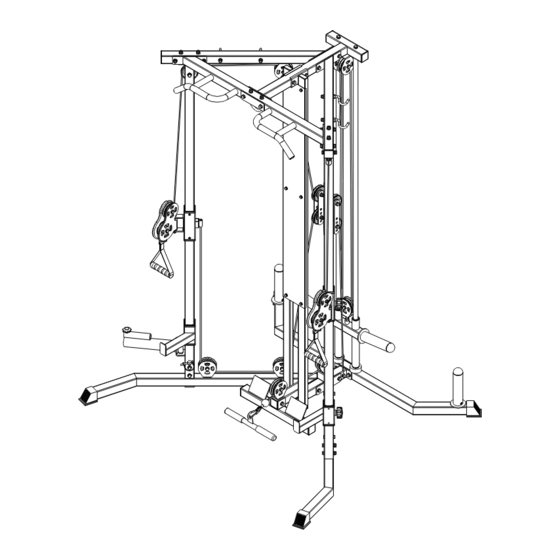

  • Page 1 Assembly and Operating Instructions max. 150 kg ~ 130 Min. 77 kg L 153 | W 164 | H 212 SEBR2584.01.04 SKU: SEBR2584 BodyMax Cable Motion Rack System...
  • Page 2 Cable Motion...
  • Page 3: Table Of Contents

    Content GENERAL INFORMATION Technical Data Personal Safety Set-Up Place ASSEMBLY General Instructions Scope of Delivery Assembly STORAGE AND TRANSPORT General Instructions TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions Faults and Fault Diagnosis Maintenance and Inspection Calendar DISPOSAL RECOMMENDED ACCESSORIES ORDERING SPARE PARTS Serial Number and Model Name Parts List Exploded Drawing...
  • Page 4 Cable Motion...
  • Page 5 The BodyMax headquarter is based in Rutherglen, Glasgow. Our brand was created with the intention of providing innovative exercise equipment at affordable prices for users of all training levels.
  • Page 6 ABOUT THIS MANUAL Please carefully read the entire manual before installation and first use. The manual will help you to quickly set up the system and explains how to safely use it. Make sure that all persons exercising with the equipment (especially children and persons with physical, sensory, mental or motor disabilities) are informed about this manual and its contents in advance.
  • Page 7: General Information

    GENERAL INFORMATION Technical Data Weight and Dimensions: Article weight (gross, including packaging): Box1/Box2: 46/37 kg Packaging dimensions (L x W x H): Box 1/2 - 150 cm x 53 cm x 20 cm Box 2/2 - 216 cm x 38 cm x 19 cm Set-up dimensions (L x W x H): approx.
  • Page 8: Personal Safety

    Personal Safety DANGER ⚠ Before you start using the equipment, you should consult your physician that this type of exercise is suitable for you from a health perspective. Particularly affected are persons who: have a hereditary disposition to high blood pressure or heart disease, are over the age of 45, smoke, have high cholesterol values, are overweight and/or have not exercised regularly in the past year.
  • Page 9: Set-Up Place

    Set-Up Place WARNING ⚠ Do not place the equipment in main corridors or escape routes. ⚠ CAUTION Choose a location in which to place the equipment such that there is enough free space/ clearance to the front, the rear and to the sides of the equipment. The training room should be well ventilated during training and not be exposed to any draughts.
  • Page 10: Assembly

    ASSEMBLY General Instructions ⚠ DANGER Do not leave any tools, packaging materials such as foils or small parts lying around, as otherwise there is a danger of suffocation for children. Keep children away from the equipment during assembly. ⚠ WARNING Pay attention to the instructions attached to the equipment in order to reduce the risk of injuries.
  • Page 11: Scope Of Delivery

    Scope of Delivery The scope of delivery consist of the following parts. At the beginning, check whether all parts and tools belonging to the device are included in the scope of delivery and whether damage has occurred. In the event of complaints, the contractual partner must be contacted directly. CAUTION ⚠...
  • Page 12 Cable Motion...
  • Page 13: Assembly

    Assembly Before assembly, take a close look at the individual assembly steps shown and carry out the assembly in the order given. NOTICE First loosely screw all parts together and check that they fit properly. Tighten the screws using the tool only when you are instructed to do so. If you have difficulty recognising the graphics, we recommend that you open and/or download the PDF instructions stored in the webshop on your end device (e.g.
  • Page 14 Step 2: Attach two end caps (7) to rear base (4). Insert weight storage (5) into hole on rear base (4) and secure with two bolts (44) and two washers (57). Slide weight support (6) and two rubber donuts (10) through two guide rods (9). Attach two guide rods (9) to rear base (4) and secure with two bolts (47) and two washers (57).
  • Page 15 Step 3: Attach rear base (4) and reinforcement plate (36) to mid base (3) with two bolts (48), four washers (57) and two lock nuts (59).
  • Page 16 Step 4: Unscrew the fast pins (8) on safety supports (38, 39) and sliding shelf (37). Attach sliding shelf (37) and left safety support (38) to one upright frame (1) and secure with two fast pins (8). Attach upright frame (1) to left base (2) with two bolts (46), four washers (57) and two lock nuts (59).
  • Page 17 Step 5: Attach right beam (11) to upright frame (1) and secure with two bolts (47), four washers (57) and two lock nuts (59). Make sure to insert the bolts from the bottom to the top. Attach left beam (42) to upright frame (1) and secure use two bolts (47), four washers (57) and two lock nuts (59).
  • Page 18 Step 6: Attach reinforcement plate (67) and joint tube (15) to cross beam (12) and secure with two bolts (48), four washers (57) and two lock nuts (59). Attach joint tube (15) to left and right beam (42, 11) and secure with four bolts (47), eight washers (57) and four lock nuts (59).
  • Page 19 Step 7: Attach left and right hand (13, 14) to joint tube (15) with four bolts (51) and four washers (58). Attach four hooks (25) to left and right beam (42, 11) with four washers (57) and four lock nuts (59).
  • Page 20 Step 8: Attach four round plugs (32) to four adapters (33). Attach two adapters (33) to weight storages (5) and secure with hexagon socket set screw (53). Attach two adapters (33) to weight support (6) and secure with hexagon socket set screw (53). Attach four rubber rings (55) to four adapters (33).
  • Page 21 Step 9: A,K: Attach one Φ90 pulley (22) and one Φ115 pulley (23) to double pulley block (19) and secure with two bolts (45), four washers (57) and two lock nuts (59). Attach pulley block to sliding shelf and secure with one bushing (24), one bolt (49), two washers (57) and one lock nut (59). B,J: Attach one Φ115 pulley (23) to upright frame and secure with two nylon bushings (40), one bolt (47), two washers (57) and one lock nut (59).
  • Page 22 Cable Motion...
  • Page 23 Step 10: To assemble cable #63, cable and pulleys have to be assembled together as order follows: Cable #63 L,M,O,P: Attach one Φ90 pulley (22) to pulley bracket and secure with one bolt 45), two washers (57) and one lock nut (59). Q: Screw the screw on cable to the sliding shelf.
  • Page 24 Step 11: S,T: Attach one Φ90 pulley (22) to pulley bracket and secure with one bolt (45), two washers (57) and one lock nut (59). R: Screw the screw on cable to the other sliding shelf. Take the other end of cable #62 through pulleys. The order is as follows: Cable #62 V: Attach the end of cable to the mid base and secure with one bolt (47), two washers (57) and one lock nut (59).
  • Page 25 Step 12: Attach left and right column (76, 17) to mid base (3) and cross beam (12) and secure with four bolts (47), eight washers (57) and four lock nuts (59).
  • Page 26 Step 13: Attach baffle plate (61) to left and right column (76, 17) with six bolts (43) and six washers (56). Attach foot against (18) to mid base (3) with one bolt (47), two washers (57) and one lock nut (59).
  • Page 27 Step 14: Attach two bushings (70) to joint support (66). Attach two bushings (41) to bar support (29). Attach bar support (29) to joint support (66) with one bolt (52), two washers (58) and one lock nut (54). Attach joint support (66) to upright frame with axis (72), nylon washer (74) and two lock pins (27).
  • Page 28: Storage And Transport

    STORAGE AND TRANSPORT General Instructions ⚠ WARNING The storage location should be chosen so that improper use by third parties or children can be prevented. If your equipment does not have transportation wheels, the equipment must be disassembled before transportation. ࣑...
  • Page 29: Troubleshooting, Care And Maintenance

    TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions ⚠ WARNING Do not make any improper changes to the equipment. CAUTION ⚠ Damaged or worn components may affect your safety and the life of the equipment. Therefore, immediately replace damaged or worn components. In such a case, contact the contract partner.
  • Page 30: Maintenance And Inspection Calendar

    Maintenance and Inspection Calendar To avoid damage from body sweat, the equipment must be cleaned with a damp towel (no solvents!) after each training session. The following routine tasks must be performed at the specified intervals: Part Weekly Monthly Quarterly Cables Screw connections Pulleys and cable routing...
  • Page 31: Recommended Accessories

    RECOMMENDED ACCESSORIES To make your training experience even more efficient and pleasant, we recommend that you add suiting accessories to your fitness equipment. For training equipment like smith machines, weight benches or racks this could for example be a floor mat, which makes your fitness equipment stand more securely and also protects the floor from sweat but it could be also additional weights, handles, foot straps for leg exercises or triceps ropes.
  • Page 32: Ordering Spare Parts

    NOTICE The serial number of your equipment is unique. It's located on a white sticker. Enter the serial number in the appropriate field. Serial number: Brand / Category: BodyMax / multi-gym Model Name: Cable Motion Rack System SKU: SEBR2584 Cable Motion...
  • Page 33: Parts List

    Parts List Name Qty. Upright Frame Left Base Mid Base Rear Base Weight Storage Φ30 Weight Support Φ30 Square End Cap Fast Pin Guide Rod Rubber Dount Right Beam Cross Beam Left Hand Right Hand Joint Tube Bent Hook Right Column Foot Against Double Pulley Block Swivel Pulley Block...
  • Page 34 Handle Cap Round Plug Φ50 Olympic Adapter Square Plug Gourd Hook Reinforcement Plate 120 Sliding Shelf Left Safely Support Right Safely Support Nylon Bushing Φ15.5*11.5 Bushing Φ25*Φ12*20 Left Beam Bolt M8*16 Bolt M10*20 Bolt M10*50 Bolt M10*65 Bolt M10*70 Bolt M10*75 Bolt M10*105 Bolt M10*110 Bolt M12*20...
  • Page 35 Cable With One Ball-Short Cable With One Ball Set-Long Right Base Joint Support Reinforcement Plate 170 Rectangular Plug 50*25 Bushing Φ28*Φ16*20 Bushing Φ32*Φ19*20 Square Sleeve 60*50 Axis Nylon Bushing Nylon Washer Round Plug Φ30 Left Column...
  • Page 36: Exploded Drawing

    Exploded Drawing Cable Motion...
  • Page 37: Warranty

    WARRANTY Training equipment from BodyMax® is subject to strict quality control. However, if a fitness equipment purchased from us does not work perfectly, we take it very seriously and ask you to contact our customer service as indicated. We are happy to help you by phone via our service hotline.
  • Page 38 Warranty Service Within the warranty period, equipment which develops faults as a result of material or manufacturing defects, will be repaired or replaced at our discretion. Ownership of equipment or parts of equipment which have been replaced is transferred to us. The warranty period is not extended nor does a new warranty period begin following repair or replacement under the warranty.
  • Page 39: Contact
