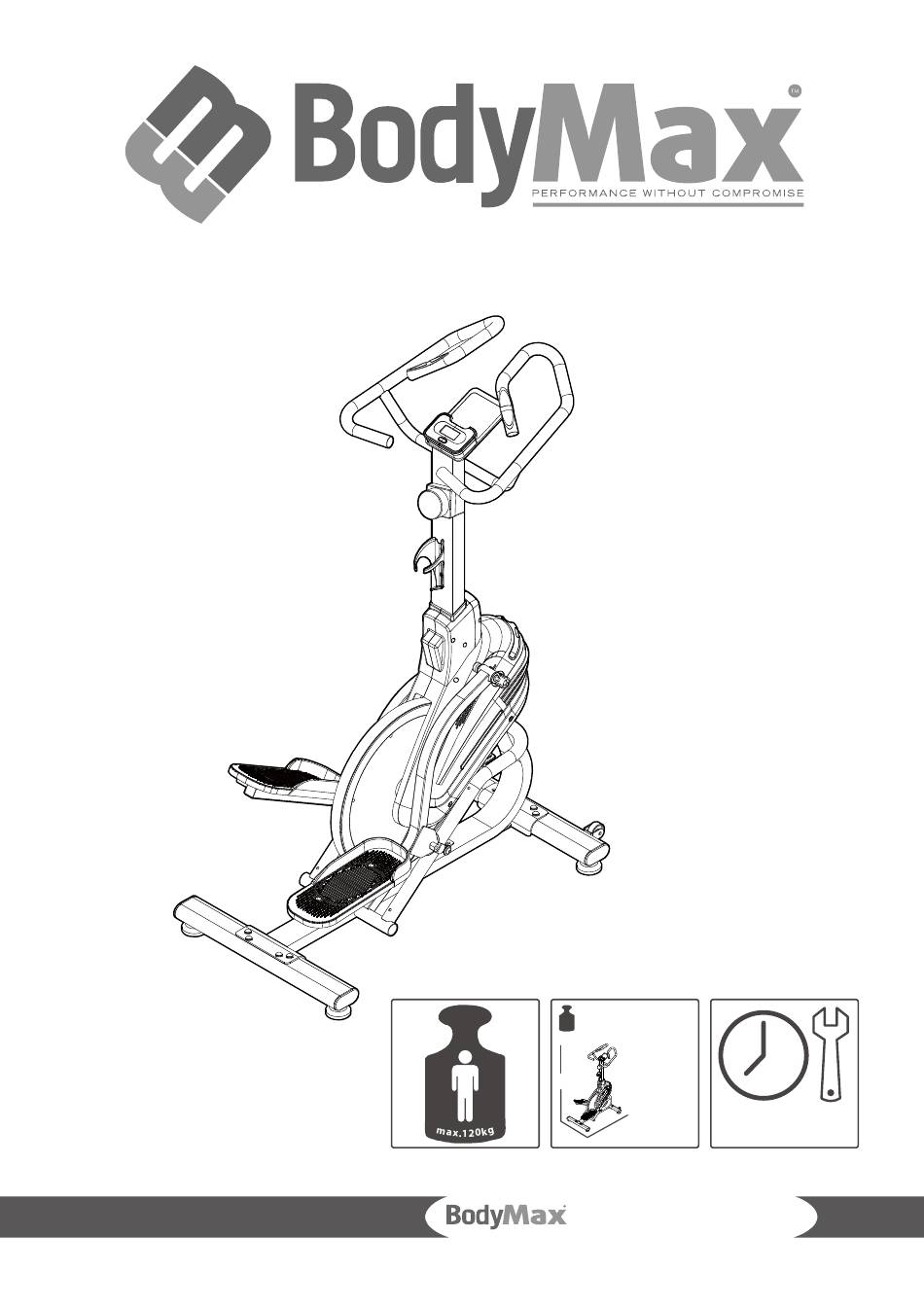

- Page 1 Assembly and operating instructions A 54.5 cm 36.5 kg B 98 cm C 146 cm ~ 60 min. 2021.05 MXT40-M1 APEX TRAINER Item number CVET2703...
- Page 3 Thank you for deciding for a high-quality training equipment of the brand BodyMax, the brand that makes athlete‘s hearts beat faster. BodyMax offers a wide range of home fitness equipm nt is the optimal equipment for all those who want to train at home independent of goals and fitness level.
-
Page 4: Table Of Contents
STORAGE AND TRANSPORT General Instructions Folding Mechanism TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions Faults and Fault Diagnosis Maintenance and Inspection Calendar DISPOSAL RECOMMENDED ACCESSORIES ORDERING SPARE PARTS Serial Number and Model Name Parts list Exploded drawing WARRANTY CONTACT MXT40-M1 APEX TRAINER... -
Page 5: Important Safety Notice
IMPORTANT SAFETY NOTICE ABOUT THIS MANUAL Please carefully read the entire manual before installation and first use. The manual will help you to quickly set up the system and explains how to safely use it. Make sure that all persons exercising with the equipment (especially children and persons with physical, sensory, mental or motor disabilities) are informed about this manual and its contents in advance. -
Page 6: General Information
Packaging dimensions (L x W x H) approx.: 93.5 cm x 33 cm x 77.5 cm Set up dimensions (L x W x H) approx.: 98 cm x 54.5 cm x 146 cm Maximum user weight: 120 kg MXT40-M1 APEX TRAINER... -
Page 7: Personal Safety
GENERAL INFORMATION Personal safety DANGER + Before you start using the equipment, you should consult your physician that this type of exercise is suitable for you from a health perspective. Particularly affected are persons who: have a hereditary disposition to high blood pressure or heart disease, are over the age of 45, smoke, have high cholesterol values, are overweight and/or have not exercised regularly in the past year. -
Page 8: Set-Up Place
(over 70%) like swimming pools. + A floor protective mat/equipment underlay can help to protect high-quality floor coverings (parquet, laminate, cork, carpets) from dents and sweat and can help to level out slight unevenness. MXT40-M1 APEX TRAINER... -
Page 9: General Instructions
ASSEMBLY General instructions DANGER + Do not leave any tools, packaging materials such as foils or small parts lying around, as otherwise there is a danger of suffocation for children. Keep children away from the equipment during assembly. WARNING + Pay attention to the instructions attached to the equipment in order to reduce the risk of injuries. -
Page 10: Assembly Instruction
NO. 73 NO. 70L / 70R Front Stabilizer × 1pc Pedal Subplate × 1set Down Decorative Cover × 1set NO. 3 No. 10L / 10R User Manual × 1pc Front Stabilizer × 1pc Pedal Tube (L/R) × 1pc MXT40-M1 APEX TRAINER... - Page 11 ASSEMBLY INSTRUCTION Step 1 Step 2 NO.12 NO.6 Nylon Nut (M8) × 4pcs Washer (D8) × 4pcs NO.5 Spring Washer (D8) × 8pcs NO.4 NO.6 NO.11 Screw (M8×55) × 8pcs Flat Washer (D8) × 8pcs Bolt (B8×50) × 4pcs Step 3 NO.12 Nylon Nut (M8) ×...
-
Page 12: Assembly
2. Mount the rear stabilizer (3) to the main frame (1) with four screws (4), four s p ring washers (5) and four flat washers (6). NO.4 Screw (M8×55) × 8pcs NO.5 Spring Washer (D8) × 8pcs NO.6 Flat Washer (D8) × 8pcs Wrench × 1pc MXT40-M1 APEX TRAINER... - Page 13 ASSEMBLY INSTRUCTION Step 2: Assembly of the Pedals 1. Place one pedal subplate (73) on each of the pedal tubes (9R & 9L). 2. Mount the pedals (10R & 10L) to their respective pedal tube (9R & 9L) with two screws (11), two washers (6) and two nylon nuts (12) on each side.
- Page 14 NO.12 Nylon Nut (M8) × 1pc NO.25 Screw (M8×48) × 1pc NO.26 Screw (M8×20) × 1pc NO.72 Screw (ST4.2×20) × 2pcs NO.75 Screw (ST4.2×20) × 4pcs Wrench × 1pc Multi Hex Tool with Screwdriver (S13/14/15) × 1pc MXT40-M1 APEX TRAINER...
- Page 15 ASSEMBLY INSTRUCTION Step 4: Assembly of the Mid Handlebar Mount the mid handlebar (37) to the mid upright (39) with four screws (26), four s p ring washers (5) and four curved washers (6). NO.26 Screw (M8×20) × 4pcs NO.5 Spring Washer (D8) × 4pcs NO.6 Flat Washer (D8) ×...
- Page 16 Make sure not to pinch the cables during the following step. 3. Mount the monitor (41) to the mid upright (39) with the two previously removed screws (42) in step 1. NO.32 Screw (M5x10xø10) × 4pcs Multi Hex Tool with Screwdriver (S13/14/15) × 1pc MXT40-M1 APEX TRAINER...
- Page 17 ASSEMBLY INSTRUCTION Step 6: Assembly of the Kettle Shelf 1. Mount the kettle shelf (31) to the mid upright (39) with two screws (32). 2. Now tighten all screw joints with the necessary tools. → The assembly of the equipment is finished. NO.32 Screw (M5×10) ×...
-
Page 18: Operating Instructions
In order to reset a value, press and then hold the respective button for 3 seconds Hibernation The console enters hibernation mode automatically if the sensor does not receive a signal. The console will turn on again once the functions button is pressed or the sensor receives a signal. MXT40-M1 APEX TRAINER... -
Page 19: Storage And Transport
STORAGE AND TRANSPORT General Instructions WARNING + The storage location should be chosen so that improper use by third parties or children can be prevented. + If your equipment does not have transportation wheels, the equipment must be disassembled before transportation. ATTENTION + Make sure that the equipment is protected from moisture, dust and dirt in the selected storage location. -
Page 20: Troubleshooting, Care And Maintenance
To avoid damage from body sweat, the equipment must be cleaned with a damp towel (no solvents!) after each training session. The following routine tasks must be performed at the specified intervals: Part Weekly Monthly Quarterly Screw connections Screws and cable connections Legend: C = clean; I = inspect MXT40-M1 APEX TRAINER... -
Page 21: Disposal
DISPOSAL At the end of its operational life, this equipment cannot be disposed of in normal household waste. Instead, it must be disposed of via an recycling centre. Further information can be obtained from your local authority‘s recycling service. The materials can be recycled as per their symbols. Through the reuse, recycling of materials or other forms of recovery of old equipment, you make an important contribution to the protection of the environment. -
Page 22: Ordering Spare Parts
The serial number of your equipment is unique. It's located on a white sticker. The exact position of this sticker is shown in the following illustration. Enter the serial number in the appropriate field. Serial number: Brand / Category: BodyMax / Stepper Model Name: MXT40-M1 Apex Trainer SKU-Code: CVET2703 MXT40-M1 APEX TRAINER... -
Page 23: Parts List
ORDERING SPARE PARTS Parts List Name Qt'y Name Qt'y Main Frame Bearing (6203ZZ) Front Stabilizer Screw (M6×15mm) Rear Stabilizer Mid Bearing Screw (M8×55mm) Belt Wheel Curved Washer (D8) Brake Seat Inner Cap Flat Washer (D8) Washer (ø21×ø17.5×0.3) Tube Cap Ring (D17) Adjustable Foot Pad Crank Cover 9L/R Pedal Tube (L/R) -
Page 24: Exploded Drawing
ORDERING SPARE PARTS Exploded drawing MXT40-M1 APEX TRAINER... -
Page 25: Warranty
WARRANTY Training equipment from BodyMax Fitness® is subject to strict quality control. However, if a fitness equipment purchased from us does not work perfectly, we take it very seriously and ask you to contact our customer service as indicated. We are happy to help you by phone via our service hotline. - Page 26 For that reason, we also want to resolve your queries quickly and in a straightforward manner. Thus, please always keep your customer number and the serial number of the faulty equipment handy. MXT40-M1 APEX TRAINER...
-
Page 27: Contact
CONTACT TECHNICAL SUPPORT TECHNICAL SUPPORT & SERVICE TECHNICAL SUPPORT & SERVICE +49 4621 4210-900 80 90 16 50 +33 (0) 172 770033 +49 4621 4210-945 +49 4621 4210-933 +49 4621 4210-698 technik@sport-tiedje.de Mo - Fr 08:00 18:00 Mo - Fr 08:00 - 18:00 Mo - Fr 08:00 - 18:00... - Page 28 +49 4621 42 10-0 +49 4621 42 10-0 info@sport-tiedje.ch info@sport-tiedje.at Mo - Fr 08:00 - 18:00 Mo - Fr 08:00 - 18:00 09:00 - 18:00 09:00 - 18:00 Group in Germany and abroad on the following website: www.sport-tiedje.com/en/stores MXT40-M1 APEX TRAINER...
- Page 29 LIVE FITNESS WEBSHOP AND SOCIAL MEDIA Sport-Tiedje is Europe’s largest specialist store www.sport-tiedje.co.uk www.sport-tiedje.de/blog 70 stores and one of the world’s most renowned equipment. Private customers order via the 25 www.facebook.com/SportTiedje web shops in the respective national language or have their desired equpiment assembled on studios, hotels, sports clubs, companies and www.instagram.com/sporttiedje physio practices with professional equipment...
- Page 30 Notes MXT40-M1 APEX TRAINER...
