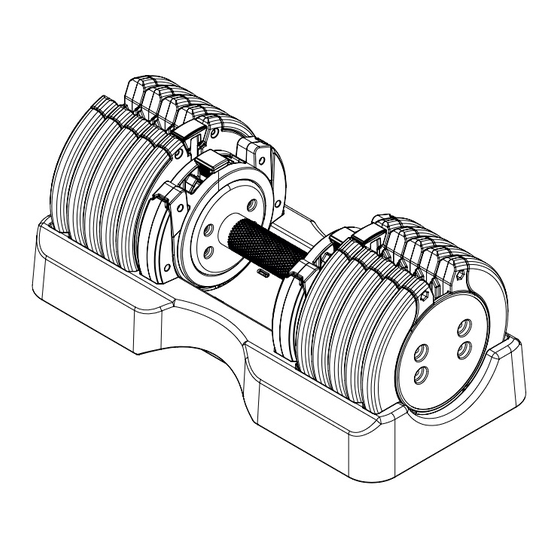

- Page 1 Assembly and Operating Instructions WTFD2156 WTFD2157 ~ 60 Min. WTFD2156.01.06 WTFD2157.02.06 SKU: WTFD2156/ WTFD2157 BodyMax Selectabell Dumbbell...
- Page 2 Selectabell...
-
Page 3: Table Of Contents
Content GENERAL INFORMATION Technical Data Personal Safety Set-Up Place ASSEMBLY General Instructions Scope of Delivery Assembly OPERATING INSTRUCTIONS STORAGE AND TRANSPORT General Instructions TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions Faults and Fault Diagnosis Maintenance and Inspection Calendar DISPOSAL RECOMMENDED ACCESSORIES ORDERING SPARE PARTS Serial Number and Model Name Parts List... - Page 4 Selectabell...
- Page 5 Our products are not only strong, durable, and affordable but also designed to fit your personal needs. The BodyMax headquarter is based in Rutherglen, Glasgow. Our brand was created with the intention of providing innovative exercise equipment at affordable prices for users of all training levels.
- Page 6 ABOUT THIS MANUAL Please carefully read the entire manual before installation and first use. The manual will help you to quickly set up the system and explains how to safely use it. Make sure that all persons exercising with the equipment (especially children and persons with physical, sensory, mental or motor disabilities) are informed about this manual and its contents in advance.
-
Page 7: General Information
GENERAL INFORMATION Technical Data TF-ADB-55 Packaging dimensions (L x W x H): approx. 55 cm x 26.5 cm x 28.5 cm Set-up dimensions (L x W x H): approx. 45.6 cm x 21.7 cm x 18.2 cm Article weight (gross, including packaging): 28 kg Article weight (net, without packaging): 26.14 kg... -
Page 8: Personal Safety
Personal Safety DANGER ⚠ Before you start using the equipment, you should consult your physician that this type of exercise is suitable for you from a health perspective. Particularly affected are persons who: have a hereditary disposition to high blood pressure or heart disease, are over the age of 45, smoke, have high cholesterol values, are overweight and/or have not exercised regularly in the past year. -
Page 9: Set-Up Place
Set-Up Place WARNING ⚠ Do not place the equipment in main corridors or escape routes. ⚠ CAUTION Choose a location in which to place the equipment such that there is enough free space/ clearance to the front, the rear and to the sides of the equipment. The training room should be well ventilated during training and not be exposed to any draughts. -
Page 10: Assembly
ASSEMBLY General Instructions ⚠ DANGER Do not leave any tools, packaging materials such as foils or small parts lying around, as otherwise there is a danger of suffocation for children. Keep children away from the equipment during assembly. ⚠ WARNING Pay attention to the instructions attached to the equipment in order to reduce the risk of injuries. -
Page 11: Assembly
Assembly Before assembly, take a close look at the individual assembly steps shown and carry out the assembly in the order given. NOTICE First loosely screw all parts together and check that they fit properly. Tighten the screws using the tool only when you are instructed to do so. Step1 To assemble the base, connect the legs (2,4) to the bottom stabilizer (3) with four long screws (8) and nuts (7). -
Page 12: Operating Instructions
OPERATING INSTRUCTIONS NOTICE Familiarise yourself with all the functions and settings of the device before you start your training. Have a specialist explain the proper use of this product to you. Grip (A) weighs 10 lbs. (4.5 kg). Each outer weight plate (B) weighs 5 lbs.(2.3 kg) and each inner weight plate (C) weighs 1.25 lbs. -
Page 13: Storage And Transport
STORAGE AND TRANSPORT General Instructions ⚠ WARNING The storage location should be chosen so that improper use by third parties or children can be prevented. If your equipment does not have transportation wheels, the equipment must be disassembled before transportation. ࣑... - Page 14 The weight plates are not correctly aligned If the plates are not correctly aligned, the dumbbell is hard to adjust. Check if there are any foreign objects (dirt/small objects) are in the dumbbell tray. Choose the maximum weight of 55 lbs and lift up the dumbbell 3 - 5 times. Change the order of the outer weight plates.
- Page 15 Loosen the screws underneath the dumbbell tray and push or pull the tray in the direction so that the weight plates can correctly stay positioned in the dumbbell tray. Re-tighten the screws. Detached weight plates Please make sure that the dumbbells are never dropped. In case the dumbbell is accidentally dropped, the adjusting pin can spring inwards, resulting in some weight plates detaching.
-
Page 16: Maintenance And Inspection Calendar
Internal weight plate adjustment not smooth running If the adjustment of the inner weight plates is not smooth, set the adjustment lever to 0lb (no weight selected). Lift the dumbbell and set it down 3-5 times quickly. Maintenance and Inspection Calendar To avoid damage from body sweat, the equipment must be cleaned with a damp towel (no solvents!) after each training session. -
Page 17: Recommended Accessories
RECOMMENDED ACCESSORIES To make your training experience even more efficient and pleasant, we recommend that you add suiting accessories to your fitness equipment. For training equipment like smith machines, weight benches or racks this could for example be a floor mat, which makes your fitness equipment stand more securely and also protects the floor from sweat but it could be also additional weights, handles, foot straps for leg exercises or triceps ropes. -
Page 18: Ordering Spare Parts
The serial number of your equipment is unique. It's located on a white sticker. The exact position of this sticker is shown in the following illustration. Enter the serial number in the appropriate field. Serial number: Brand / Category: BodyMax / Dumbbells Model Name: SelectaBell 50LB + Stand SKU: WTFD2156... -
Page 19: Parts List
Parts List TF-ADB-55 Name Qty. 10LB Handle Bar Adjustment Rod Weight Plate A Weight Plate B (End plate) 1.25LB Weight Plate A (inner) 1.25LB Weight Plate B (outer) Tray Exploded Drawing TF-ADB-55... -
Page 20: Parts List
Parts List TF-ADJ-STAND-2 Name Qty. Name Qty. Stand Base Screw M6x15mm Stand Right Leg Screw M6x20mm Rear Tube M6 Nut Stand Left Leg Screw M6x80mm Exploded Drawing TF-ADJ-STAND-2 Selectabell... -
Page 21: Warranty
WARRANTY Training equipment from BodyMax® is subject to strict quality control. However, if a fitness equipment purchased from us does not work perfectly, we take it very seriously and ask you to contact our customer service as indicated. We are happy to help you by phone via our service hotline. - Page 22 Warranty Service Within the warranty period, equipment which develops faults as a result of material or manufacturing defects, will be repaired or replaced at our discretion. Ownership of equipment or parts of equipment which have been replaced is transferred to us. The warranty period is not extended nor does a new warranty period begin following repair or replacement under the warranty.
-
Page 23: Contact
CONTACT TECHNIK TEKNIK OG SERVICE TECHNIQUE & SERVICE �� �� �� +49 4621 4210-900 80 90 16 50 +33 (0) 189 530984 +49 4621 4210-945 +49 4621 42 10 933 �� +49 4621 4210-698 �� �� info@fitshop.dk info@fitshop.fr �� technik@sport-tiedje.de ��... - Page 24 LIVE FITNESS WEBSHOP AND SOCIAL MEDIA The Sport-Tiedje Group is Europe’s largest http://www.powerhouse-fitness.co.uk/ specialist for home fitness equipment with www.powerhouse-fitness.co.uk/blog/ currently 70 stores and one of the world’s most renowned online mail order companies for fitness equipment. https://www.facebook.com/powerhousefitness.co.uk Powerhouse Fitness is part of the Sport-Tiedje Group.
- Page 25 Notes...
- Page 26 Notes Selectabell...
- Page 28 BodyMax Selectabell Dumbbell...
