Summary of Contents for BODYMAX E80

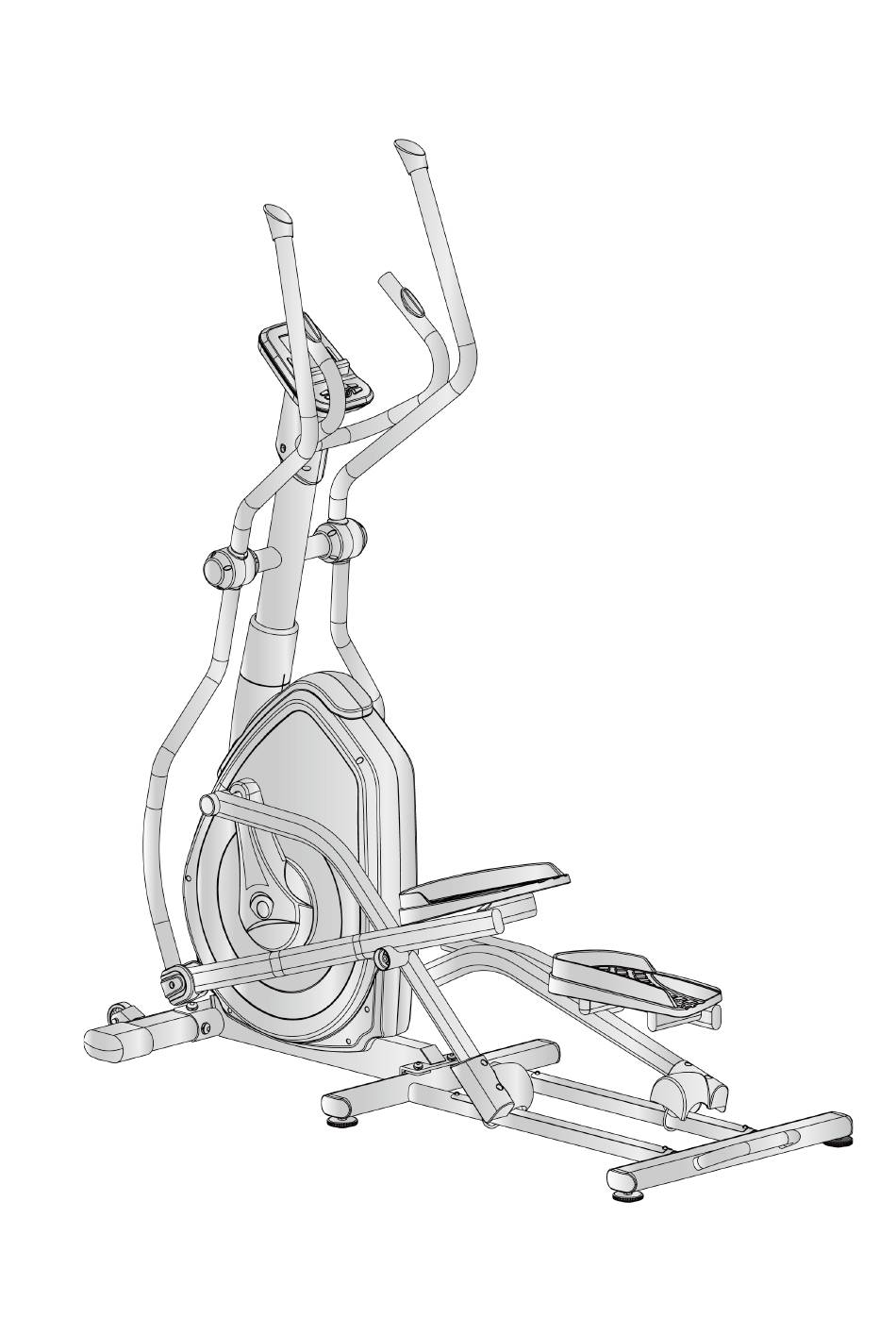

- Page 1 USER MANUAL BodyMax E80 Elliptical Cross Trainer...
- Page 2 Safety Instructions • To ensure the best safety of the exerciser, regularly sure that the exerciser is standing in a stable way and check it on damages and worn parts. that any possible unevenness of the floor is evened out. •...
- Page 3 • Be sure to set up the exerciser in a dry and even place and always protect it from humidity. If you wish to protect the place particularly against pressure points, contamination, etc., it is recommended to put a suitable, non-slip mat under the exercise •...
-
Page 4: Exploded Drawing
Exploded drawing:... -
Page 5: Checking List
Checking list:... -
Page 6: Part List
Part list: Part no Description Drawing no. Specification Q'ty Main frame 741J2-3-1000-J0 Front stabilizer 741J2-3-2100-J0 Oval base 741J2-6-2173-B0 50*100*100 Curved washer D22xD8.5x1.5T 55108-3-2215-FA D22xD8.5x1.5T Spring washer D15.4xD8.2x2T 55108-2-1520-FA D15.4xD8.2x2T Flat washer D25*D8.5*2T 55108-1-2520-FA D25*D8.5*2T Allen bolt M8x1.25x20L 50308-5-0020-F0 M8x1.25x20L Handlebar post 741J2-3-2000-J0 Supporting tube for left pedal 741J2-3-3810-J1... - Page 7 Nylon nut M8*1.25*8T 55208-1-2008-FA M8*1.25*8T Multi-groove belt 58004-6-1013-00 440 PJ6 Left chain cover 74102-6-4501-B0 757.3*558.1*73.6 Right chain cover 74102-6-4502-B0 757.3*558.1*69.2 Flywheel 741H2-3-3102-00 D260*116 Wheel 26100-6-1087-B0 D65*24 Side cover 70200-6-4582-B1 D36x14 Bolt M8x1.25x25 50108-2-0025-U0 M8x1.25x25 Inner tube 70802-6-1071-B0 D71.5*108L Pedal joint tube 73800-3-3804-J0 Bearing #6004ZZ 58006-6-1017-00...
- Page 8 Screw bolt 52606-2-0015-F0 M6*1*15L Left cover for universal joint 73800-6-3888-B0 91.5*37*72 Right cover for universal joint 73800-6-3889-B0 91.5*40*72 C-clip S-16(1T) 55516-1-0010-00 S-16(1T) Roller limit rope 741E2-6-3891-B0 D4*180 Left cover for wheel 742S2-6-3897-B0 143.1*113.3*65 Right cover for wheel 742S2-6-3898-B0 143.1*113.3*65 Cover for crank 739G0-6-4524-B0 356.6*197 Screw...
-
Page 9: Assembly Drawing
Assembly drawing: STEP 1... - Page 10 STEP 2...
- Page 11 STEP 3...
- Page 12 STEP 4...
- Page 13 STEP 5...
- Page 14 STEP 6...
- Page 15 SM(SE)17 / 27 / 37 SERIES INSTRUCTION MANUAL I1248 DISPLAY FUNCTIONS ITEM DESCRIPTION TIME Count up – No preset target, Time will count up from 00:00 to maximum 99:59 with each increment is 1 minute. Count down - If training with preset Time, Time will count down from reset to 00:00. Each preset increment or decrement is 1 minute between 00:00 to 99:00.
-
Page 16: Workout Selection
OPERATION: POWER ON Plug in power supply, computer will power on and display all segments on LCD for 2 seconds (Drawing 1). Drawing 1 Then enter into User data setting. Use UP or DOWN (Encoder) to select U1~U4 (Drawing 2), then set SEX, AGE, HEIGHT, WEIGHT (Drawing 3) and confirm by pressing MODE / ENTER button. - Page 17 Drawing 9 Drawing 10 Drawing 11 Drawing 12 Drawing 13 Program Mode 1. Use UP or DOWN (Encoder) to select workout program, choose Beginner mode and press MODE / ENTER to get into. 2. Use UP or DOWN (Encoder) to select program 1~12 (Drawing 14) and press MODE / ENTER to get...
- Page 18 Drawing 15 H.R.C. Mode 1. Use UP or DOWN (Encoder) to select workout program, choose H.R.C. and press MODE / ENTER to get into. 2. Use UP or DOWN (Encoder) to select 55% (Drawing 16).75%.90% or TAG (TARGET H.R.) (default : 100, Drawing 17). 3.
- Page 19 *The LCD displays “= = ” “ = =” (Drawing 25)–means not hand the grip or wear chest strap correctly. *E-1–There is no heart rate signal input detected. *E-4–Occurs when FAT% is below 5 or exceeds 50 and BMI result is below 5 or exceeds 50 (Drawing 26).
