- Page 1 Assembly and Operating Instructions SKU: BM-ADB-55 SKU: BM-ADJ-STAND-2 ~ 60 Min. SKU: BM-EZBAR FSUKBMADB55.01.02 FSUKBMADJSTAND.02.02 FSUKBMEZBAR.01.02 BodyMax Selectabell Dumbbell...
- Page 2 Selectabell...
-
Page 3: Table Of Contents
Content GENERAL INFORMATION Technical Data Personal Safety Set-Up Place ASSEMBLY General Instructions Scope of Delivery Assembly OPERATING INSTRUCTIONS STORAGE AND TRANSPORT General Instructions TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions Faults and Fault Diagnosis Maintenance and Inspection Calendar DISPOSAL RECOMMENDED ACCESSORIES ORDERING SPARE PARTS Serial Number and Model Name Parts List... - Page 4 Selectabell...
- Page 5 European VAT Number: DE813211547 Disclaimer © BodyMax is a registered brand of the company Fitshop GmbH. All rights reserved. Any use of this trademark without the explicit written permission of Fitshop is prohibited. Product and manual are subject to change. Technical data can be changed without advance notice.
- Page 6 ABOUT THIS MANUAL Please carefully read the entire manual before installation and fi rst use. The manual will help you to quickly set up the system and explains how to safely use it. Make sure that all persons exercising with the equipment (especially children and persons with physical, sensory, mental or motor disabilities) are informed about this manual and its contents in advance.
- Page 7 Please pay close attention to the safety and maintenance instructions given here. The contract partner cannot be held liable for damage to health, accidents or damage to the equipment when it is not used in accordance with these instructions. The following safety instructions may appear in this manual: ATTENTION This notice indicates potentially hazardous situations which, if not avoided, may result in property damage.
-
Page 8: General Information
GENERAL INFORMATION Technical Data BM-ADB-55 Packaging dimensions (L x W x H): approx. 55 cm x 26.5 cm x 28.5 cm Set-up dimensions (L x W x H): approx. 45.6 cm x 21.7 cm x 18.2 cm Article weight (gross, including packaging): 28 kg Article weight (net, without packaging): 26.14 kg... -
Page 9: Personal Safety
Personal Safety ⚠ DANGER Before you start using the equipment, you should consult your physician that this type of exercise is suitable for you from a health perspective. Particularly aff ected are persons who: have a hereditary disposition to high blood pressure or heart disease, are over the age of 45, smoke, have high cholesterol values, are overweight and/or have not exercised regularly in the past year. -
Page 10: Set-Up Place
Set-Up Place ⚠ WARNING Do not place the equipment in main corridors or escape routes. ⚠ CAUTION Choose a location in which to place the equipment such that there is enough free space/ clearance to the front, the rear and to the sides of the equipment. The training room should be well ventilated during training and not be exposed to any draughts. -
Page 11: Assembly
ASSEMBLY General Instructions ⚠ DANGER Do not leave any tools, packaging materials such as foils or small parts lying around, as otherwise there is a danger of suff ocation for children. Keep children away from the equipment during assembly. ⚠ WARNING Pay attention to the instructions attached to the equipment in order to reduce the risk of injuries. - Page 12 NOTICE First loosely screw all parts together and check that they fi t properly. Tighten the screws using the tool only when you are instructed to do so. Step 1 Attach the left and right stand legs (2 & 4) to the rear tube (3) with four screws (8) and four nuts (7). Tighten with a screwdriver and wrench.
- Page 13 Easy Bar NOTICE If the rack and tray have already been fully installed, you must fi rst remove the right tray by removing the four screws (6). Attach the hook (2) to the stand base (1) with the enclosed hook screws (3). Attach the right dumbbell tray to the stand base (1) with four screws (6).
-
Page 14: Operating Instructions
OPERATING INSTRUCTIONS NOTICE Familiarise yourself with all the functions and settings of the device before you start your training. Have a specialist explain the proper use of this product to you. Grip (A) weighs 10 lbs. (4.5 kg). Each outer weight plate (B) weighs 5 lbs.(2.3 kg) and each inner weight plate (C) weighs 1.25 lbs. - Page 15 Easy Bar ⚠ CAUTION The Easy Bar must be secured to both dumbbells. Place the Easy Bar on top of the dumbbell handle. Pull the plate back by pressing it together. Press the wing bolt down to latch the Easy Bar onto the handle. Tighten the wing bolt.
-
Page 16: Storage And Transport
STORAGE AND TRANSPORT General Instructions ⚠ WARNING The storage location should be chosen so that improper use by third parties or children can be prevented. If your equipment does not have transportation wheels, the equipment must be disassembled before transportation. ATTENTION Make sure that the equipment is protected from moisture, dust and dirt in the selected storage location. - Page 17 The weight plates are not correctly aligned If the plates are not correctly aligned, the dumbbell is hard to adjust. Check if there are any foreign objects (dirt/small objects) are in the dumbbell tray. Choose the maximum weight of 55 lbs and lift up the dumbbell 3 - 5 times. Change the order of the outer weight plates.
- Page 18 Loosen the screws underneath the dumbbell tray and push or pull the tray in the direction so that the weight plates can correctly stay positioned in the dumbbell tray. Re-tighten the screws. Detached weight plates Please make sure that the dumbbells are never dropped. In case the dumbbell is accidentally dropped, the adjusting pin can spring inwards, resulting in some weight plates detaching.
-
Page 19: Maintenance And Inspection Calendar
Internal weight plate adjustment not smooth running If the adjustment of the inner weight plates is not smooth, set the adjustment lever to 0lb (no weight selected). Lift the dumbbell and set it down 3-5 times quickly. Maintenance and Inspection Calendar To avoid damage from body sweat, the equipment must be cleaned with a damp towel (no solvents!) after each training session. -
Page 20: Recommended Accessories
RECOMMENDED ACCESSORIES To make your training experience even more effi cient and pleasant, we recommend that you add suiting accessories to your fi tness equipment. For training equipment like smith machines, weight benches or racks this could for example be a fl oor mat, which makes your fi tness equipment stand more securely and also protects the fl oor from sweat but it could be also additional weights, handles, foot straps for leg exercises or triceps ropes. -
Page 21: Ordering Spare Parts
The serial number of your equipment is unique. It's located on a white sticker. The exact position of this sticker is shown in the following illustration. Enter the serial number in the appropriate fi eld. Serial number: Brand / Category: BodyMax / Dumbbells Model Name: SelectaBell 55 LB / Stand / Easy Bar SKU: BM-ADB-55 BM-ADJ-STAND-2... -
Page 22: Parts List
Parts List BM-ADB-55 Name Qty. 10LB Handle Bar Adjustment Rod Weight Plate A Weight Plate B (End plate) 1.25LB Weight Plate A (inner) 1.25LB Weight Plate B (outer) Tray Exploded Drawing BM-ADB-55 Selectabell... -
Page 23: Parts List

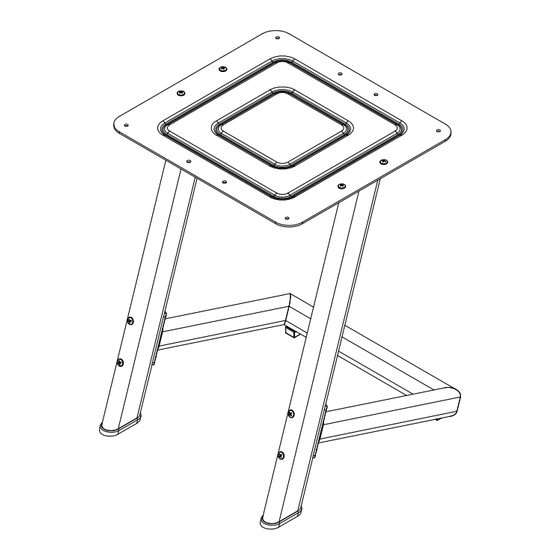

Parts List BM-ADJ-STAND-2 Name Qty. Name Qty. Stand Base Screw M6x15mm Stand Right Leg Screw M6x20mm Rear Tube M6 Nut Stand Left Leg Screw M6x80mm Exploded Drawing BM-ADJ-STAND-2... -
Page 24: Parts List
Parts List BM-EZBAR Name Qty. EZ bar Hook Screw M5x12L Exploded Drawing BM-EZBAR Selectabell... -
Page 25: Warranty
WARRANTY Products from TAURUS® are subject to strict quality control. However, if a fi tness equipment purchased from us does not work perfectly, we take it very seriously and ask you to contact our customer service as indicated. We are happy to help you by phone via our service hotline. Error Descriptions Your fi tness equipment is developed for long-term, high-quality training. - Page 26 Warranty Service Within the warranty period, equipment which develops faults as a result of material or manufacturing defects, will be repaired or replaced at our discretion. Ownership of equipment or parts of equipment which have been replaced is transferred to us. The warranty period is not extended nor does a new warranty period begin following repair or replacement under the warranty.
-
Page 27: Contact
CONTACT TECHNIK TEKNIK OG SERVICE CUSTOMER CARE �� �� �� +49 4621 4210-900 80 90 16 50 +44 141 737 2249 or +44 141 876 3972 +49 4621 4210-945 �� +49 4621 4210-698 �� �� info@fi tshop.dk customercare@fi tshop.co.uk �� technik@fi tshop.de ��... - Page 28 LIVE FITNESS WEBSHOP AND SOCIAL MEDIA The Fitshop Group is Europe’s largest specialist for https://www.fi tshop.co.uk/ home fi tness equipment with currently 70 stores www.fi tshop.co.uk/blog/ and one of the world’s most renowned online mail order companies for fi tness equipment. Fitshop UK is part of the Fitshop Group.
- Page 29 Notes...
- Page 30 Notes Selectabell...
- Page 32 BodyMax Selectabell Dumbbell...
