Pack 04
B U I L D
I N S T R U C T I O N S

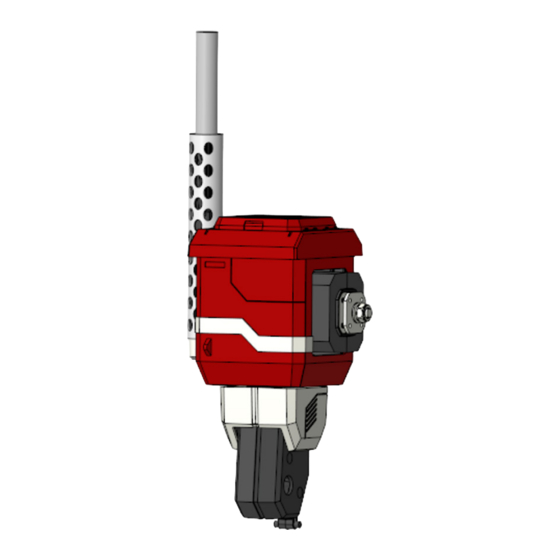

ASSEMBLING THE RIGHT SHOULDER & ARM
TRANSFORMERS and HASBRO and all related trademarks and logos are trademarks of Hasbro, Inc. ©2023 Hasbro.

Advertisement

loading
Need help?

Need help?

Do you have a question about the OPTIMUS PRIME Pack 04 and is the answer not in the manual?

Questions and answers

Related Manuals for Agora Models OPTIMUS PRIME Pack 04

Summary of Contents for Agora Models OPTIMUS PRIME Pack 04

  • Page 1 Pack 04 B U I L D I N S T R U C T I O N S ASSEMBLING THE RIGHT SHOULDER & ARM TRANSFORMERS and HASBRO and all related trademarks and logos are trademarks of Hasbro, Inc. ©2023 Hasbro.
  • Page 2 Advice from the experts Please keep ALL unused screws as they may be required in a later stage. Please make sure you don’t mix up the screws. They look quite similar, but the threads do vary slightly. Using the wrong screws may damage the parts. When securing parts together using multiple screws, fit each screw loosely to ensure all the parts are correctly aligned before gently tightening them firmly, but not overtight, in the order in which you placed them.
  • Page 3 Pack 4 Parts T R A Y 1 TR-4-28 TR-4-15 TR-4-07 TR-4-47 TR-4-44 TR-4-23 TR-4-24 TR-4-06 TR-4-22 TR-4-02 PM3x8 mm TR-4-48 PM3x6 mm TR-4-57 TR-4-45 PM3x10 mm PM3x14 mm TR-4-49 TR-4-43 TR-4-13 TR-4-17 TR-4-12 TR-4-16 AGORAMODELS OPTIMUS PRIME...
  • Page 4 Pack 4 Parts T R A Y 2 TR-4-10 TR-4-35 TR-4-34 TR-4-11 TR-4-14 PWM2x6 mm PWM2x4 mm TR-4-26 PWM2.3x6 mm PB2x4 mm TR-4-20 TR-4-25 TR-4-46 TR-4-41 TR-4-04 TR-4-29 TR-4-18 TR-4-21 TR-4-27 TR-4-19 AGORAMODELS OPTIMUS PRIME...
  • Page 5 Pack 4 Parts T R A Y 3 TR-4-09 TR-4-08 TR-4-32 TR-4-37 TR-4-36 TR-4-31 TR-4-42 TR-4-40 TR-4-03 TR-4-30 TR-4-33 TR-4-39 TR-4-38 TR-4-01 TR-4-05 AGORAMODELS OPTIMUS PRIME...
  • Page 6 Pack 4 : Assembling the Right Shoulder & Arm S T E P 1 TR-4-13 TR-4-12 Align TR-4-12 and TR-4-13 as shown and secure them together using 2x PB2x4 mm screws. PB2x4 S T E P 2 Glue the assembly from step 1 as shown in 2a, then fix TR-4-12 over the glued TR-4-12...
  • Page 7 Pack 4 : Assembling the Right Shoulder & Arm S T E P 5 TR-4-32 Attach TR-4-32 to TR-4-02. TR-4-02 S T E P 6 Fix TR-4-02 to the assembly from step 4 using PB2.3x6 1x PB2.3x6 mm screw. TR-4-16 TR-4-47 PM3x8 TR-4-48...
  • Page 8 Pack 4 : Assembling the Right Shoulder & Arm PM3x8 TR-4-48 TR-4-49 TR-4-47 TR-4-22 S T E P 8 Push assembly A into TR-4-22 as shown. Thread washers TR-4-48 and then TR-4-49 onto a PM3x8 mm screw. Make 4 sets and then screw them into TR-4-47 as shown.
  • Page 9 Pack 4 : Assembling the Right Shoulder & Arm IMPORTANT! Check that the sides are flat, as indictaed by the red lines. S T E P 1 0 Place a washer TR-4-48 onto a TR-4-48 PM3x6 mm screw before pushing it through TR-4-45 TR-4-47 to attach it to PM3x6...
  • Page 10 Pack 4 : Assembling the Right Shoulder & Arm S T E P 1 2 Align TR-4-24 with assembly A as shown, then fix it in place using 2x PB2.3x6 mm screws. Pay close attention to the shape of the hole in part TR-4-24, checking that it fits the fixing point on TR-4-45 PB2.3x6 (shown in the completed 12b below).
  • Page 11 Pack 4 : Assembling the Right Shoulder & Arm TR-4-48 PM3x8 S T E P 1 4 Secure A to B using 4x washers TR-4-48 and 4x PM3x8 mm screws as shown. TR-4-07 TR-4-06 PB2.3x6 PB2.3x6 S T E P 1 5 Attach TR-4-07 to assembly A by driving 2x PB2.3x6 mm screws through the tabs (blue arrows) and into the screw posts on TR-4-07 (blue circles).
  • Page 12 Pack 4 : Assembling the Right Shoulder & Arm S T E P 1 6 Secure TR-4-35 to A using 4x PB2.3x6 mm screws. PB2.3x6 TR-4-35 TR-4-34 PB2.3x6 S T E P 1 7 Secure TR-4-34 to A using 4x PB2.3x6 mm screws. AGORAMODELS OPTIMUS PRIME...
  • Page 13 Pack 4 : Assembling the Right Shoulder & Arm TR-4-26 TR-4-11 PB2.3x6 TR-4-46 TR-4-14 S T E P 1 8 Attach TR-4-26 to TR-4-11 and secure them with 2x PB2.3x6 mm screws. Attach TR-4-46 to TR-4-26. Attach TR-4-14 to TR-4-11. Do not glue as this is a moving part. This is now referred to as assembly A.
  • Page 14 Pack 4 : Assembling the Right Shoulder & Arm S T E P 2 0 Attach TR-4-18 and TR-4-19 TR-4-48 to A. Thread washer TR-4-48 onto 1x PM3x8 mm screw and feed TR-4-57 through the assembly, securing from the opposite side using a nut TR-4-57.
  • Page 15 Pack 4 : Assembling the Right Shoulder & Arm TR-4-57 PM3x8 TR-4-25 TR-4-48 S T E P 2 3 Attach TR-4-25 to A as shown. Thread washers TR-4-48 onto PM3x8 mm screws and push them through the assembly as shown, securing them in place from the opposite side using nuts TR-4-57.
  • Page 16 Pack 4 : Assembling the Right Shoulder & Arm This is how your assembly should now look. PM3x10 TR-4-48 TR-4-57 TR-4-57 S T E P 2 5 Start by placing TR-4-57 into each notch (shown above right), then place washers TR-4-48 onto 2 x PM3x10 mm screws before screwing them into TR-4-57 as shown.
  • Page 17 Pack 4 : Assembling the Right Shoulder & Arm PM3x10 TR-4-48 TR-4-57 S T E P 2 6 Turn the assembly over and repeat step 25 on the opposite side. TR-4-04 S T E P 2 7 Position TR-4-04 onto A. AGORAMODELS OPTIMUS PRIME...
  • Page 18 Pack 4 : Assembling the Right Shoulder & Arm PB2.3x6 S T E P 2 8 Secure the parts together using 4x PB2.3x6 mm screws. AGORAMODELS OPTIMUS PRIME...
  • Page 19 Pack 4 : Assembling the Right Shoulder & Arm S T E P 2 9 TR-4-31 Attach TR-4-31 to TR-4-30 as shown. TR-4-30 Back of model S T E P 3 0 TR-4-05 Place TR-4-05 on top of TR-4-30 and secure it in place using 4x PWM2x6 mm screws.
  • Page 20 Pack 4 : Assembling the Right Shoulder & Arm S T E P 3 2 TR-4-33 PWM2x4 Place TR-4-33 onto TR-4-03 TR-4-03 and secure them together using 4x PWM2x4 mm screws as shown. S T E P 3 3 Place the assembly from step 32 onto the shoulder assembly from step 31, sliding it into position in...
  • Page 21 Pack 4 : Assembling the Right Shoulder & Arm S T E P 3 6 Apply a drop of super glue to the assembly from step 35 (shown in green in 36a) before attaching it to A as shown. PWM2x4 TR-4-38 TR-4-39 TR-4-01...
  • Page 22 Pack 4 : Assembling the Right Shoulder & Arm S T E P 3 8 Place the assembly from step 37 onto the shoulder, sliding them into position in the direction of the arrow. PB2.3x6 TR-4-36 S T E P 3 9 Secure the parts from step 38 in place using a PB2.3x6 mm screw.
  • Page 23 Pack 4 : Assembling the Right Shoulder & Arm PB2.3x6 PB2x4 TR-4-08 PB2.3x6 TR-4-09 S T E P 4 0 Position TR-4-08 and TR-4-09 either side of A as shown. Secure them together using 2x PB2.3x6 mm screws in the outer holes, and 1x PB2x4 mm screw in the central hole. TR-4-27 S T E P 4 1 Attach TR-4-27 to A.
  • Page 24 Pack 4 : Assembling the Right Shoulder & Arm P A C K 4 C O M P L E T E AGORAMODELS OPTIMUS PRIME...
