- Page 1 Pack 08 B U I L D I N S T R U C T I O N S ASSEMBLING THE LOWER LEFT LEG - PART 1 – 8 TRANSFORMERS and HASBRO and all related trademarks and logos are trademarks of Hasbro, Inc. ©2023 Hasbro.
- Page 2 Advice from the experts Please keep ALL unused screws as they may be required in a later stage. Please make sure you don’t mix up the screws. They look quite similar, but the threads do vary slightly. Using the wrong screws may damage the parts. When securing parts together using multiple screws, fit each screw loosely to ensure all the parts are correctly aligned before gently tightening them firmly, but not overtight, in the order in which you placed them.
- Page 3 Pack 8 Parts T R A Y 1 TR-8-05 TR-8-13 TR-8-10 2x6 mm x37 2.6x8 mm x17 TR-8-01 2.6x8 mm x14 2.3x8 mm x5 TR-8-03 TR-8-22 M 3x10 mm x4 TR-8-32 M 3x8 mm x12 TR-8-37 TR-8-38 TR-8-12 TR-8-11 TR-8-34 AGORAMODELS OPTIMUS PRIME...
- Page 4 Pack 8 Parts T R A Y 2 TR-8-04 TR-8-02 TR-8-07 TR-8-18 TR-8-23 TR-8-15 TR-8-14 TR-8-06 AGORAMODELS OPTIMUS PRIME...
- Page 5 Pack 8 Parts T R A Y 3 TR-8-35 TR-8-29 TR-8-08 TR-8-26 TR-8-30 TR-8-19 TR-8-31 TR-8-25 TR-8-28 TR-8-20 (1) TR-8-17 TR-8-09 TR-8-21 (2) TR-8-27 TR-8-33 TR-8-24 TR-8-16 AGORAMODELS OPTIMUS PRIME...
- Page 6 Assembling the Lower Left Leg TR-8-22 TR-8-34 TR-8-01 P A R T 1 – S T E P 1 Take part TR-8-01 and then fit part TR-8-34, and part TR-8-22 over the top. Apply a little glue to TR-8-22 as shown in 1a, before moving on to step 2 S T E P 2 TR-8-03...
- Page 7 Assembling the Lower Left Leg PWB 2.6x8 TR-8-32 S T E P 4 Attach TR-8-32 to A. Secure from the opposite side using 2x PWB 2.6x8 mm screws. PB 2.6x8 TR-8-10 TR-8-11 TR-8-13 TR-8-12 P A R T 2 – S T E P 1 S T E P 2 Attach TR-8-11 and TR-8-12 to TR-8-10.
- Page 8 Assembling the Lower Left Leg P A R T 3 – S T E P 1 Fit assembly B to assembly A, securing them together using 2x PWB 2.6x8 mm screws. PWB 2.6x8 S T E P 2 Attach TR-8-05 to A. TR-8-05 S T E P 3 Secure in place using 8x...
- Page 9 Assembling the Lower Left Leg S T E P 4 Continue to secure the M 3x8 assembly together by threading washers TR-8-38 onto 2x M 3x8 mm screws and drive them into the screw posts as shown. TR-8-38 S T E P 5 Turn the assembly over and drive PB 2.6x8 1x PB 2.6x8 mm screw into place...
- Page 10 Assembling the Lower Left Leg TR-8-23 TR-8-02 TR-8-24 P A R T 4 – S T E P 1 You will now repeat Steps 1–3 from Part 1. Take part TR-8-02. Attach TR-8-24 and then TR-8-23. Apply a little glue to TR-8-23 as shown in 1a.
- Page 11 Assembling the Lower Left Leg S T E P 3 Secure parts together PWM 2x6 using 8x PWM 2 x 6 mm screws. S T E P 4 Attach TR-8-35 to A, then TR-8-06 attach TR-8-06 over the top. TR-8-35 AGORAMODELS OPTIMUS PRIME...
- Page 12 Assembling the Lower Left Leg PWM 2x6 M 3x8 TR-8-38 S T E P 5 S T E P 6 Thread 2x TR-8-38 washers onto 2 x M 3x8 mm Secure parts together using 8x PWM 2x6 mm screws. screws before screwing them into place as shown. PB 2.6x8 S T E P 7 Turn the assembly over and use 1 x PB 2.6x8 mm...
- Page 13 Assembling the Lower Left Leg P A R T 5 – S T E P 1 Take the left foot from Pack 7. You can check you have the correct foot by Pack 7 looking at the position of LEFT FOOT the lights - indicated by the dotted line.
- Page 14 Assembling the Lower Left Leg S T E P 3 Attach Assembly D to the opposite side of the left foot. S T E P 4 M 3x10 Secure in place using 4x TR-8-38 washers and 4x M 3x10 mm screws. TR-8-38 AGORAMODELS OPTIMUS PRIME...
- Page 15 Assembling the Lower Left Leg S T E P 5 Attach TR-8-16 to A and secure it using 4x PWB 2.6x8 mm screws. TR-8-16 PWB 2.6x8 P A R T 6 – S T E P 1 Attach TR-8-24 to TR-8-08 and secure them together using 4x PWM 2x6 mm screws.
- Page 16 Assembling the Lower Left Leg S T E P 3 Attach E to F, lining up the fixing points as shown. M 3x8 TR-8-37 S T E P 4 Secure them together using 4x TR-8-37 washers and 4x M 3x8 mm screws. AGORAMODELS OPTIMUS PRIME...
- Page 17 Assembling the Lower Left Leg P A R T 7 – S T E P 1 Attach G to A. S T E P 2 Secure them using 2x PB 2.6x8 mm screws. PB 2.6x8 AGORAMODELS OPTIMUS PRIME...
- Page 18 Assembling the Lower Left Leg S T E P 3 Continue to secure the leg parts together using another 4x PB 2.6x8 mm screws. PB 2.6x8 S T E P 4 Press part TR-8-25 onto A. TR-8-25 S T E P 5 Press parts TR-8-20 and TR-8-21 onto A.
- Page 19 Assembling the Lower Left Leg TR-8-33 TR-8-14 S T E P 6 Apply a little glue to TR-8-14 before placing TR-8-33 in the recess. TR-8-33 TR-8-15 S T E P 7 Apply a little glue to TR-8-15 before placing another part TR-8-33 in the recess. S T E P 8 Press assembly H and Assembly I into place on A.
- Page 20 Assembling the Lower Left Leg S T E P 9 Attach TR-8-19 to A and secure it using 2x PWB 2.6x8 mm screws. PWB 2.6x8 TR-8-19 S T E P 1 0 Attach TR-8-07 to A and secure it using 4x PWB 2.6x8 mm screws.
- Page 21 Assembling the Lower Left Leg TR-8-28 TR-8-26 P A R T 8 – S T E P 1 Glue part TR-8-26 as shown in 1a, then attach it to TR-8-28. TR-8-27 S T E P 2 Glue part TR-8-27 as shown in 2a, then attach the assembly from the previous step to make J (shown below). AGORAMODELS OPTIMUS PRIME...
- Page 22 Assembling the Lower Left Leg S T E P 3 Press Assembly J and part TR-8-18 onto A. TR-8-18 S T E P 4 Press part TR-8-30 onto A. TR-8-30 AGORAMODELS OPTIMUS PRIME...
- Page 23 Assembling the Lower Left Leg S T E P 5 TR-8-29 Attach TR-8-31 to TR-8-29 and secure them together using 2x PWB 2.6x8 mm screws. PWB 2.6X8 TR-8-31 S T E P 6 Press Assembly K onto A. Note, there are two holes that Assembly K slides into as the the foot extends.

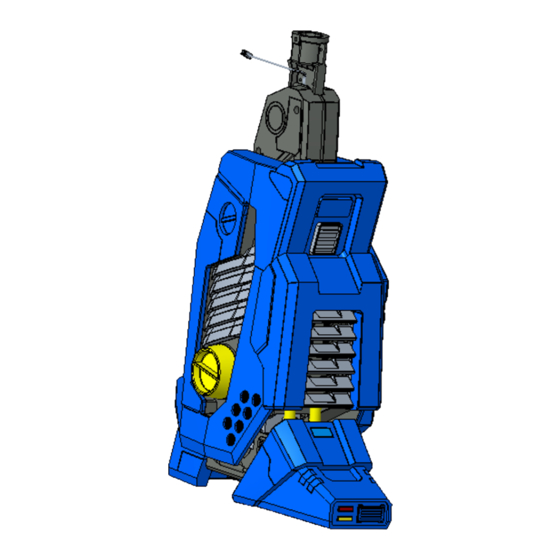

- Page 24 Assembling the Lower Left Leg P A C K 8 C O M P L E T E AGORAMODELS OPTIMUS PRIME...
