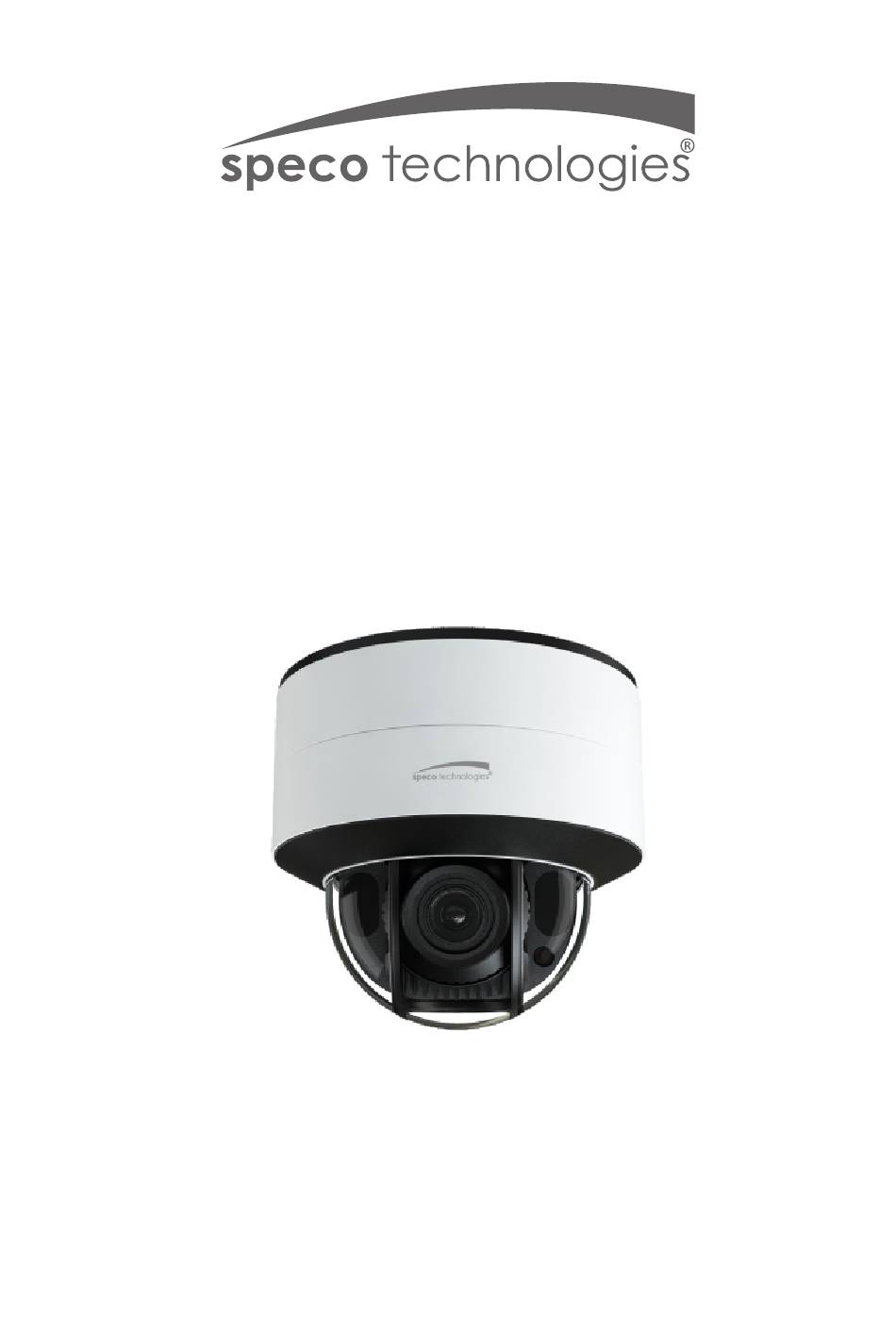

- Page 1 Quick Start Guide O4DM...
- Page 2 This owner's manual is designed to be a reference tool for your system. Please read this manual carefully before operating the unit and retain it for future reference. Should you require any technical assistance, contact Speco Technologies Tech Support at 1-800-645-5516 Important Safeguards and Warning 1.
- Page 3 Technologies reserves the right to modify these without notice and without incurring any obligation. Speco Technologies is not liable for any loss caused by improper operation. Note: Before installation, check the package and make sure that all components are included.
- Page 4 Tapping screw×4 Plastic screw × 4 anchor Quick start guide Camera Machine screw×1 CVBS&DC Terminal for 12VD Drill template L-wrench IN cable C/24VAC power Overview Overview 10-pin Interface Network Interface Audio InInterface Audio Out Interface DC12VPower Interface AC24VPower Interface CVBS&DC SDcardslot INInterface Zoom-...
-
Page 5: Installation
10-pin Interface： ALM-I ALM-O RS 485 12V+ CVBS DC12V Output RS 485 Interface CVBS Output Alarm Input Alarm Output (200mA) Reset: Press Reset button for about 10s when the camera is powering on to restore the default settings. Installation Please make sure that the wall or ceiling is strong enough to withstand 3 times the weight of the camera. - Page 6 ② Drill the screw holes and the cable hole according to the drill template. ③ Connect the earth wire. 63.6 (mm) Ø155.4 63.6 4-Ø7.0 Ø90.0 Earth wire Base connection ④ Mount the junction box to the wall or ceiling. 6.5x38mm If conduit pipe is not used, apply Rubber o-ring...
- Page 7 ⑤ Connect the cables. ⑥ Coilupthesecablesandtheninstallthecamera onto the junction box by turning the base clockwise and tightening the spring screws.
- Page 8 ⑦Three-axis adjustment-Before adjustment, preview the image of the camera on a monitor. Loosen the lock screw to adjust view angle of the camera. After that, tighten the lock screw. ⑧ Press T/W to obtain an optimum image. Pan: 0° 350° Zoom-(W) Lock Screw Zoom+(T)
- Page 9 ① Make sure that the camera and the PC are connected to the same local network. The camera is set to DHCP by default. ② Install IP Scanner from the CD and run it after installation. Or download from https://www.specotech.com/ip-scanner/ 5C:F2:07:24:68:B9 O4DM...
- Page 10 ③ In the device list, you can view the IP address, model number, and MAC address of each device. Select the applicable device and double click to open up the web viewer. You can also manually enter the IP address in the address bar of the web browser. The login interface is shown above.
