Speco Internet Protocol (SIP)H.264
Series Camera Instruction Manual
(Version 1.0.0)

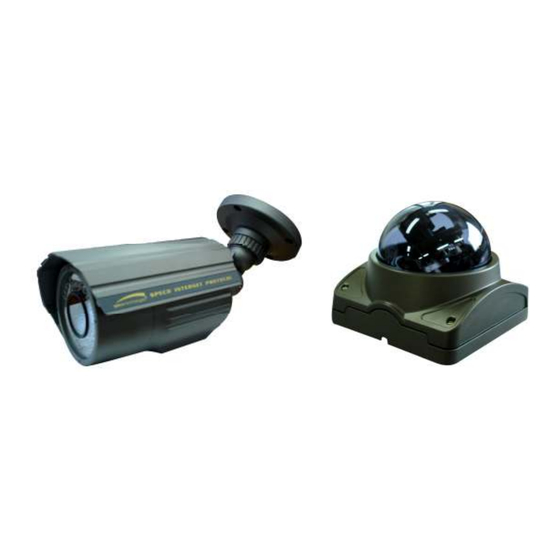

SIP H.264 Megapixel Cameras
SIPMPBVFH & SIPMPDVFH
Speco Technologies
200 New Hwy, Amityville, NY 11701
i
800-645-5516
www.specotech.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Internet Protocol SIP H.264 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Speco Internet Protocol SIP H.264 Series

Summary of Contents for Speco Internet Protocol SIP H.264 Series

  • Page 1 All manuals and user guides at all-guides.com Speco Internet Protocol (SIP)H.264 Series Camera Instruction Manual (Version 1.0.0) SIP H.264 Megapixel Cameras SIPMPBVFH & SIPMPDVFH Speco Technologies 200 New Hwy, Amityville, NY 11701 800-645-5516 www.specotech.com...

  • Page 2: Table Of Contents

    All manuals and user guides at all-guides.com Table of Contents FEATURES ....................... 1-1 1.1 Package ........................1-1 1.2 Dimension and Connector Description ..............1-2 1.2.1 Dimensions ........................1-2 1.2.2 Connector Description ....................1-4 INSTALLATION ....................2-5 2.1 Recommended PC Specification ................2-5 2.2 Preparation before setup ..................
  • Page 3 All manuals and user guides at all-guides.com Profile Upload .......................... 2-55 Save & Reboot ......................... 2-56 Logout ............................2-56 APPENDIX ..........................2-57 3.1 Specification ......................2-57 3.1.1 SIP H.264Camera Series ..................... 2-57...
  • Page 4 All manuals and user guides at all-guides.com...

  • Page 5: Features

    All manuals and user guides at all-guides.com FEATURES 1.1 Package SIPMPBVFH Camera SIPMPDVFH Camera Software CD Accessory Pack Quick Install Guide Cross LAN Cable Power Lead Cable Package of Products is composed of the main body of the camera, Software CD (NVR Program, Product Manual, NVR Manual), Quick Install Guide, Cross LAN Cable, Accessory Pack, Power Lead Cable.

  • Page 6: Dimension And Connector Description

    All manuals and user guides at all-guides.com 1.2 Dimension and Connector Description 1.2.1 Dimensions SIPMPBVFH ① ② ③ ④ ⑤ ⑥...
  • Page 7 All manuals and user guides at all-guides.com SIPMPDVFH ① ② ③ ④ ⑤...

  • Page 8: Connector Description

    All manuals and user guides at all-guides.com 1.2.2 Connector Description ① 12 Volts DC Power Input ② Audio Output ③ Audio Input : The SIP Camera supports one audio input and output ④ Ethernet Port : Standard RJ45 connector. Supporting POE. ⑤...

  • Page 9: Installation

    All manuals and user guides at all-guides.com INSTALLATION 2.1 Recommended PC Specification Core2Duo 2.13GHz and above Memory 2 GB or above Windows XP with SP2 or above. Windows Vista / Windows 2003 / Operating System Windows 7 Internet Explorer 6.0 SP2 and above. Video Resolution SVGA or XGA with 1024x768 resolution Core2Duo 2.13GHz and above...

  • Page 10: Preparation Before Setup

    All manuals and user guides at all-guides.com 2.2 Preparation before setup To configure your IP device, you have to use Internet Explorer to log in. Before that, your PC’s network settings and the IP device’s IP address must be set up. Make sure all the connections are connected correctly, and then follow the procedures below.
  • Page 11 All manuals and user guides at all-guides.com The procedure below is the setup procedure of a PC using Windows XP as its OS. When running an OS other than Windows XP, please refer to the manual included with the OS. STEP 1 Start up your PC.
  • Page 12 All manuals and user guides at all-guides.com STEP 3 Double-click the "Network and Internet connections" icon. STEP 4 Double-click the "Network connections" icon...
  • Page 13 All manuals and user guides at all-guides.com STEP 5 Click “Local Area Connections”, and then click “Change settings of this connection” in the network Task menu. STEP 6 Click “Internet Protocol (TCP/IP)”, and then click the [Properties] button.
  • Page 14 All manuals and user guides at all-guides.com STEP 7 Click the “Use the following IP address” radio button and enter the IP address and the subnet mask. Please set the settings as below. IP address: 192.168. 0.xxx Subnet mask: 255.255.255. 0 (NOTE: xxx should be a number from 1 to 254, but 100 is excepted.)

  • Page 15: Configuring The Ip Device

    All manuals and user guides at all-guides.com 2.3 Configuring the IP device This section describes how to configure the IP device. The product administrator has unlimited access to all setup windows and normal users can only watch the live image. The IP device is configured under a standard browser (Microsoft Internet Explorer 6.0 or above).
  • Page 16 All manuals and user guides at all-guides.com 2-12...

  • Page 17: Video Display

    All manuals and user guides at all-guides.com 2.3.1 Video Display This section tells you how to view live images via Internet Explorer. Click the [Live] tab to show [Live page]. Refer to the table below for how to configure each setting. Function List Function Description...
  • Page 18 All manuals and user guides at all-guides.com Audio out Click the icon to enable the audio out from PC to IP camera or video server. When it is enabled, your voice will be transferred to the audio out of the IP camera or video server.
  • Page 19 All manuals and user guides at all-guides.com not zoomed-in (no zoom status). Indicates the network state. If the light on the right is Network green, it means the network is ok. If the light is gray, it status means the network is broken. The light on the left is not used DO Setting Click...

  • Page 20: Date & Time

    All manuals and user guides at all-guides.com 2.3.2 Date & Time This section tells you how to setup IP device’s date and time settings. STEP 1: Click the [Date & Time] on the “Main Setup page”. The “Date setting page” is displayed as below STEP 2: Configure these settings with reference to the table below.
  • Page 21 All manuals and user guides at all-guides.com manually Date : Select the date Time: Select the time Select the time zone offset for local settings Time zone Select Type 1 to specify daylight saving time by week number in a month; select Type 2 to specify daylight saving time Day Light by date.

  • Page 22: Network Section

    All manuals and user guides at all-guides.com 2.3.3 Network Section Click the [Network] item on the “Setup Page”. 2-18...

  • Page 23: Host

    All manuals and user guides at all-guides.com Host Click the [Host] to enter Host settings page. Refer to the table below for how to configure each setting. Description Parameters Enter a host name, and this host name will be shown when you use the IP utility or the SDK to search for the IP Host name device.

  • Page 24: Ip Address Filtering

    All manuals and user guides at all-guides.com IP Address Filtering WARNING: Please be very careful when using this function, as you may lose access to your camera if you make mistakes in setup. You may either accidentally deny yourself access, or forgot to include your own IP address in the allowed address list.
  • Page 25 All manuals and user guides at all-guides.com Parameters Description IP address Check this box to enable IP Address Filtering. filter enable The filter can be set in either “Allow” mode or “Block” mode. 1. “Allow” mode will refuse access to all IP addresses except the Filter ones listed below.

  • Page 26: Port Mapping

    All manuals and user guides at all-guides.com Port Mapping Click the [Port Mapping] item to display the “Port Mapping Page”. Refer to the table below for how to configure each setting. Parameters Description HTTP port Select the port assigned for HTTP protocol access Select the port assigned for HTTPS protocol access HTTPS Select the first port used by server search applications to...
  • Page 27 All manuals and user guides at all-guides.com Video streaming Select the port used by this IP device for Video port (TCP Only) Streaming. Video Multicast Enable/disable multicast audio streaming Port RTSP port Select the port assigned for RTSP protocol access RTP Multicast Select the port for the multicast video streaming of Video Port for...

  • Page 28: Tos

    All manuals and user guides at all-guides.com Click the [ToS] (Type of Service) item to display the “ToS Page”. Refer to the table below for how to configure each setting. Parameters Description Select whether to add the TOS tag onto the streaming data. TOS (type of Streaming data with a higher priority TOS tag will be service)

  • Page 29: Upnp Tm

    All manuals and user guides at all-guides.com UPnP Click the [UPnP ] item to display the “UPnP Setting Page”. Click checkbox to enable or disable the UPnP function. Edit the UPnP Friendly Name in text field. Click the [Apply] button to confirm the settings or click the [Reset] button re-enter the parameters.

  • Page 30: Snmp Setting

    All manuals and user guides at all-guides.com SNMP Setting Click the SNMP Setting item to display the SNMP setting Page Click to enable SNMP function. Select to use SNMP V1/V2 or to use SNMP V3 Check the check box to enable traps Enter the Destination IP address in Enter the Trap Community used in Select the Available trap in...
  • Page 31 All manuals and user guides at all-guides.com RTSP Authen Check box to enable RTP streaming’s Account/Password Enable authentication. RTP B2 Frame Check box to enable the B2 frame in RTP streaming Enable Click the [Apply] button to confirm the settings or click the [Reset] button re-enter the parameters.

  • Page 32: Speed & Duplex

    All manuals and user guides at all-guides.com Speed & Duplex Click the [Speed & Duplex] item in the network section to display the ”Speed and Duplex” Page. Refer to the table below for how to configure each setting. Parameters Description This item lets you select the network transmission speed.

  • Page 33: Ip Settings

    All manuals and user guides at all-guides.com 2.3.4 IP Settings Connection Type Click the [Connection Type] item to display the “Connection Type Page”. Refer to the table below for how to configure each setting. Parameters Description Click this to enable IP device’s DHCP function. Dynamic IP It will acquire its WAN port IP address from a DHCP server within the same network.
  • Page 34 All manuals and user guides at all-guides.com Click the check box to support IPV6 protocol IPV6 Click the [Apply] button to confirm the settings or click the [Reset] button to re-enter the parameters. 2-30...

  • Page 35: Dns

    All manuals and user guides at all-guides.com Click the [DNS] item to display the “DNS Server Settings Page”. Refer to the table below for how to configure each setting. Parameters Description Defines the IP address of the primary DNS server. This is Primary DNS server used for identifying this computer by name instead of IP address.

  • Page 36: Ddns

    All manuals and user guides at all-guides.com DDNS Click the [DDNS] item to display the “DDNS Server Setting Page”. Refer to the table below for how to configure each setting. Parameters Description Click this to enable IP device’s DDNS function. DDNS type DDNS function enables user to connect to this IP device by domain name even if its IP address is not static.

  • Page 37: Video & Audio

    All manuals and user guides at all-guides.com 2.3.5 Video & Audio Click the [Video & Audio] item on the “Setup Page”. Please note that some elements may not appear on all models. Video Click the [Video] item to display the “Video Page”. The functions here are grouped under different tabs.
  • Page 38 All manuals and user guides at all-guides.com Parameters Description Live View Live view of the camera Motion activity status Activity Video Flipping Check this box to flip the video up-down Video Mirror Check this box to mirror the video left-right Check this box to use best pre-set settings for Lens Compensation bundled lens...
  • Page 39 All manuals and user guides at all-guides.com Image (CCD Models) This tab concerns the general video settings. Please refer to the table below for functions. Parameters Description Live view of the camera Live View Activity Motion activity status Video Flipping Check this box to flip the video up-down Check this box to mirror the video left-right Video Mirror...
  • Page 40 All manuals and user guides at all-guides.com Day/Night (CMOS Non-D/N Models) This tab concerns the day and night switch timing for your camera. Please refer to the table below. Parameters Description This value controls the level of light where camera Switch from Day switches into night mode.
  • Page 41 All manuals and user guides at all-guides.com to night or day mode (Blue bars), and shows the current detected illumination level (Green bars). Use this bar to fine tune the day/Night switch timing. Clicking this button will refresh the illumination level Get Current reading from the camera sensor.
  • Page 42 All manuals and user guides at all-guides.com Parameters Description Select the day/night mode. Auto: The camera would switch between day and night mode automatically. It will follow Day to Night and Night Day/Night Mode to Day threshold defined by user below. Day: The camera will stay in day (Color) mode.
  • Page 43 All manuals and user guides at all-guides.com Day/Night (CCD D/N Models) This tab concerns the day and night switch timing for your camera. Please refer to the table below. Parameters Description Select the day/night mode. Auto: The camera would switch between day and night mode automatically.
  • Page 44 All manuals and user guides at all-guides.com mode to Night switches into night mode. Increasing it will make camera switch to night mode at a darker illumination mode level. This value controls the level of light where camera Switch from Night switches into Day mode.
  • Page 45 All manuals and user guides at all-guides.com Motion Detection Adjust Column Adjust Square Click the [Apply] button to confirm the settings or click the [Reset] button to re-enter the parameters. Video Motion Detection: STEP1: Click the Plus sign to expand the Motion Detection settings then Click the Motion Enable checkbox to enable motion detection.
  • Page 46 All manuals and user guides at all-guides.com STEP2: Click the checkbox to enable motion detection for each individual region. STEP3: Click one region to start to edit its size and location. You can click the “Adjust Column” to drag motion region to your desired location. You can click the “Adjust Square”...
  • Page 47 All manuals and user guides at all-guides.com Compression There are two streams output available for this network device. Click the [Stream 1] or 2-43...
  • Page 48 All manuals and user guides at all-guides.com [Stream 2] item to display the content page, Contents for both stream are identical. Refer to the table below for how to configure each setting. Parameters Description Select the encoder’s compression type. Encoder Type MPEG-4 / MJPEG / H.264 Resolution Select the video resolution of the IP device.
  • Page 49 All manuals and user guides at all-guides.com (Stream2) down list. Frame rates available for stream 2 may be less than stream 1, depending upon the setting. When encoder type is MJPEG: Quality Select the quality value of MJPEG encoder type from 1 to 100. Click the [Apply] button to confirm the settings or click the Reset] button to...
  • Page 50 All manuals and user guides at all-guides.com Select exposure mode to auto or manual. 1. Auto: The IP camera will adjust the exposure automatically. 2. Manual: Manually select the Exposure Exposure Mode Gain and Shutter Speed below. Day and night mode change will not operate as normal under manual Exposure.
  • Page 51 All manuals and user guides at all-guides.com Select exposure mode to auto or manual. 1. Auto: The IP camera will adjust the exposure automatically. Exposure Mode Manual: Manually select the Exposure Gain Shutter Speed below.. Select the white balance mode. After you set the parameter, you need to wait for 5~10seconds to see the final result.
  • Page 52 All manuals and user guides at all-guides.com Audio Audio In Select to enable or disable the audio in function. Audio In sensitivity Select the sensitivity of audio microphone. Audio Out Volume Adjust the Audio Out volume. Click the [Apply] button to confirm the settings or click the [Reset] button to re-enter the parameters.
  • Page 53 All manuals and user guides at all-guides.com OSD/Privacy Mask OSD (On Screen Display) and Privacy masks are configured in this section. There are four regions available. Each may be used either as a Privacy mask or an OSD text. 2-49...
  • Page 54 All manuals and user guides at all-guides.com Description Parameters Enable Check this box to enable each OSD / Privacy mask region OSD / Each region can be in one of two types. OSD (On Screen Privacy mask Display) or Privacy mask Color This determines the color of the Privacy Mask Area.

  • Page 55: System

    All manuals and user guides at all-guides.com 2.3.6 System Click the [System] item on the “Setup Page”. User Account Click the [User Account Setting] item to display the “User Account Setting Page”. Setup the account names and their respective passwords. There are 1 root (administrator) account and 10 common user accounts .

  • Page 56: System Info

    All manuals and user guides at all-guides.com login this camera to view video without input account and password. But user will be required to input account and password if they want to change any setting Click the [Apply] button to confirm the settings or click the [Reset] button to re-enter the parameters.

  • Page 57: Factory Default

    All manuals and user guides at all-guides.com Column Description It shows the firmware version, MAC address, production ID, and System info factory default type of IP device. It shows the WAN port’s IP address, netmask, gateway, DNS WAN status server, DDNS host and connection status. It shows the system event.

  • Page 58: Firmware Upload

    All manuals and user guides at all-guides.com Firmware Upload Click the [Firmware Upload] item to display the “Firmware Upgrade Page”. Upgrade the IP device’s firmware through this page with the following instructions. Click [Apply] button. The ‘’Firmware Upgrade Page-2” will be displayed as below. Click the [Browse] to select the upgrade image file and click the [enter].

  • Page 59: Profile Upload

    All manuals and user guides at all-guides.com Once the process is finished, the progress bar will show the upgrading as OK, and reboot the IP device system. If you cancel the firmware upgrade during upgrade process, the browser window will be NOTE: closed Profile Upload...

  • Page 60: Save & Reboot

    All manuals and user guides at all-guides.com STEP3: Click the [Apply] button to start upgrading STEP5: The upgrade process window shows a progress bar indicating upgrade status. STEP6: The system will reboot after profile upload. Save & Reboot This section tells you how to save all the settings and reboot this IP device. This is critical because some settings might not take effect before save and reboot.

  • Page 61: Appendix

    All manuals and user guides at all-guides.com APPENDIX 3.1 Specification 3.1.1 SIPMPH Camera Series * Network Spec. Video Compression Compression H.264 Baseline / MPEG-4 SP / M-JPEG SXGA (1280x1024) at 18 fps Resolution HD720 (1280x720) at 26fps VGA (640x480) at 30 fps Up to 18 fps at SXGA resolution;...
  • Page 62 All manuals and user guides at all-guides.com * Camera Spec. SIPMPBVFH Image Sensor 1/3" Micron Progressive Scan CCD Effective Pixels 1280 x 1024 1/10 ~ 1/2,000sec (60Hz) Electric Shutter 1/10 ~ 1/2,000sec (50Hz) Lens Varifocal Lens f=3.3~12mm Min. scene Illumination 0.5 Lux at F1.0 (2400K, 30IRE) Synchronization Internal...
  • Page 63 All manuals and user guides at all-guides.com SIPMPDVFH Image Sensor 1/3" Micron Progressive Scan CCD Effective Pixels 1280 x 1024 1/10 ~ 1/2,000sec (60Hz) Electric Shutter 1/10 ~ 1/2,000sec (50Hz) Lens Varifocal Lens f=3.3~12mm Min. scene Illumination 0.5 Lux at F1.0 (2400K, 30IRE) Synchronization Internal S/N Ratio...
  • Page 64 All manuals and user guides at all-guides.com 200 New Highway Amityville, NY 11701 631-957-8700 www.specotech.com Rev.100518 Speco Technologies is constantly developing product improvements. We reserve the right to modify product design and specifications without notice and without incurring any obligation. 2-60...
