Speco CVC-612C Specifications

Specifications subject to change
Speco Technologies 200 New Highway, Amityville, NY 11701 Web: www.specotech.com
Toll Free: 1-800-645-5516 In Metro NY: 631-957-8700 Fax: 631-957-9142 or 631-957-3880

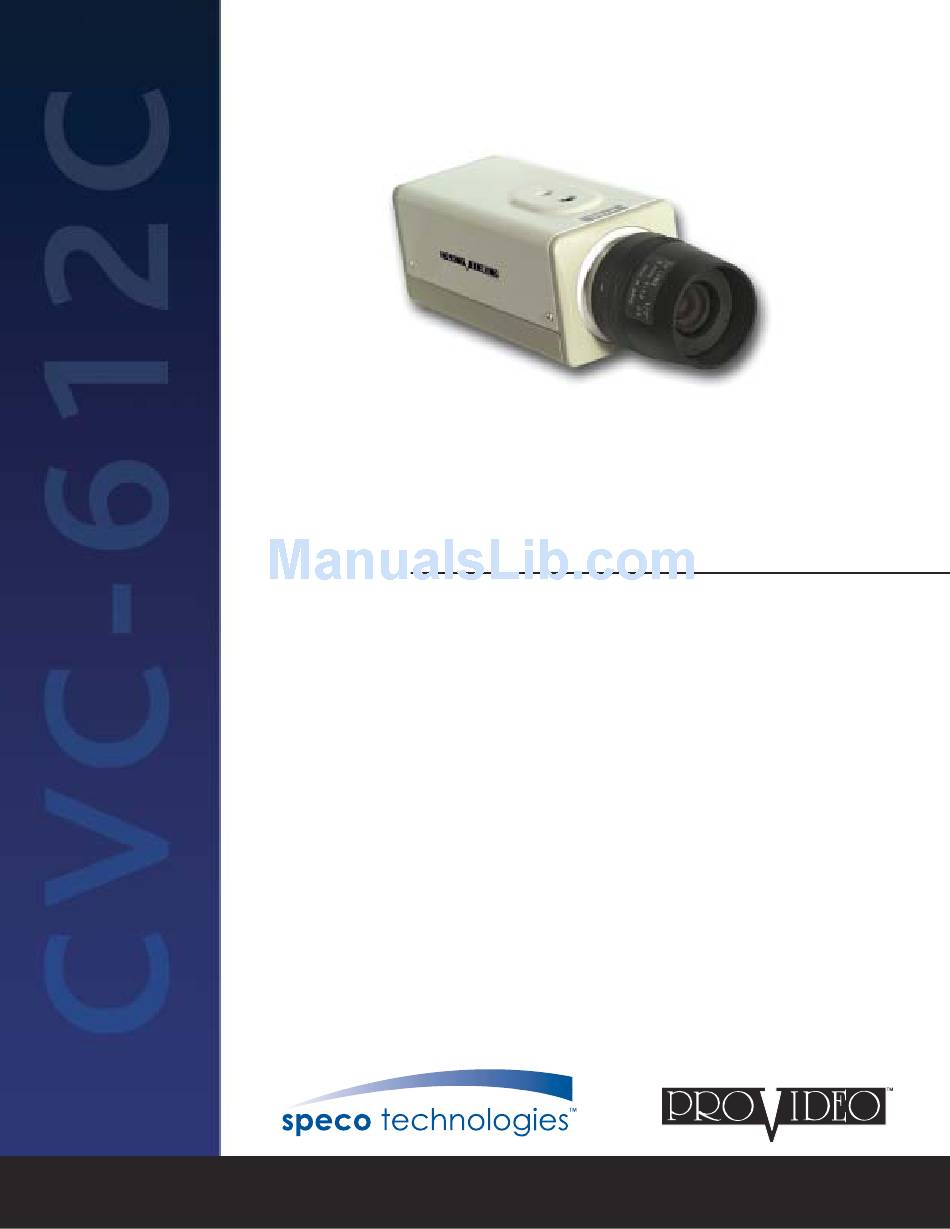

CVC-612C
12V DC/24V AC Dual Voltage Color Camera
The CVC-612C color camera features 380 line resolution and 1.0 lux rating. It
offers a 1/3" color image sensor and in 24V AC mode, the camera has internal
synchronization and line lock. It supports both video and DC drive auto iris
lenses. The camera accommodates C/CS lens types. This dual voltage camera
operates on either 12V DC or 24V AC power supply (not included).

Specifications

Resolution
Image Sensor
Minimum Illumination
Electronic Shutter
Humidity
Lens
Number of Pixels
Operating Temperature
Output
Power Consumption
Scanning Frequency
Scanning System
Video Output Level
Video S/N Ratio
Power Supply
Special Features
Dimensions
Weight
For more information contact us at:
380 line
1/3" color image sensor
1.0 lux
Auto 1/60 - 1/100,000 second
Within 95 % RH
Accepts both video and DC auto iris lenses
510 horizontal x 492 vertical
14 degrees F to 122 degrees F
Video BNC, Power- DC jack
130 ma
Horizontal 15.75 kHz vertical 60 Hz
NTSC color 525 line 60 fields/second
1.0 Vp-p 75 ohm
Greater than 46 dB
Operates on either 12V DC or 24V AC
power supplies (not included)
Internal synchronization and line lock
in 24V AC mode
5.75"L x 2.5"W x 2.1"H
1lb. without lens
