Speco Intensifier T HTINTT5T Instruction Manual

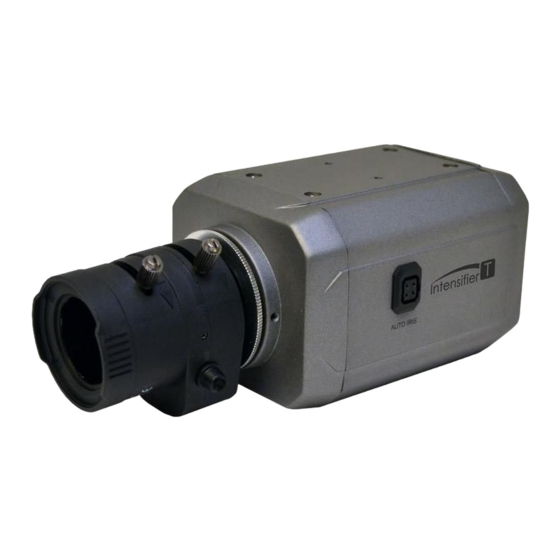

Intensifier T® Series HD-TVI 1080p 2MP Traditional Camera
UTC, 2BNC out for TVI & CVBS, Dual voltage
Accepts C & CS mount lenses
HTINTT5T – Grey housing

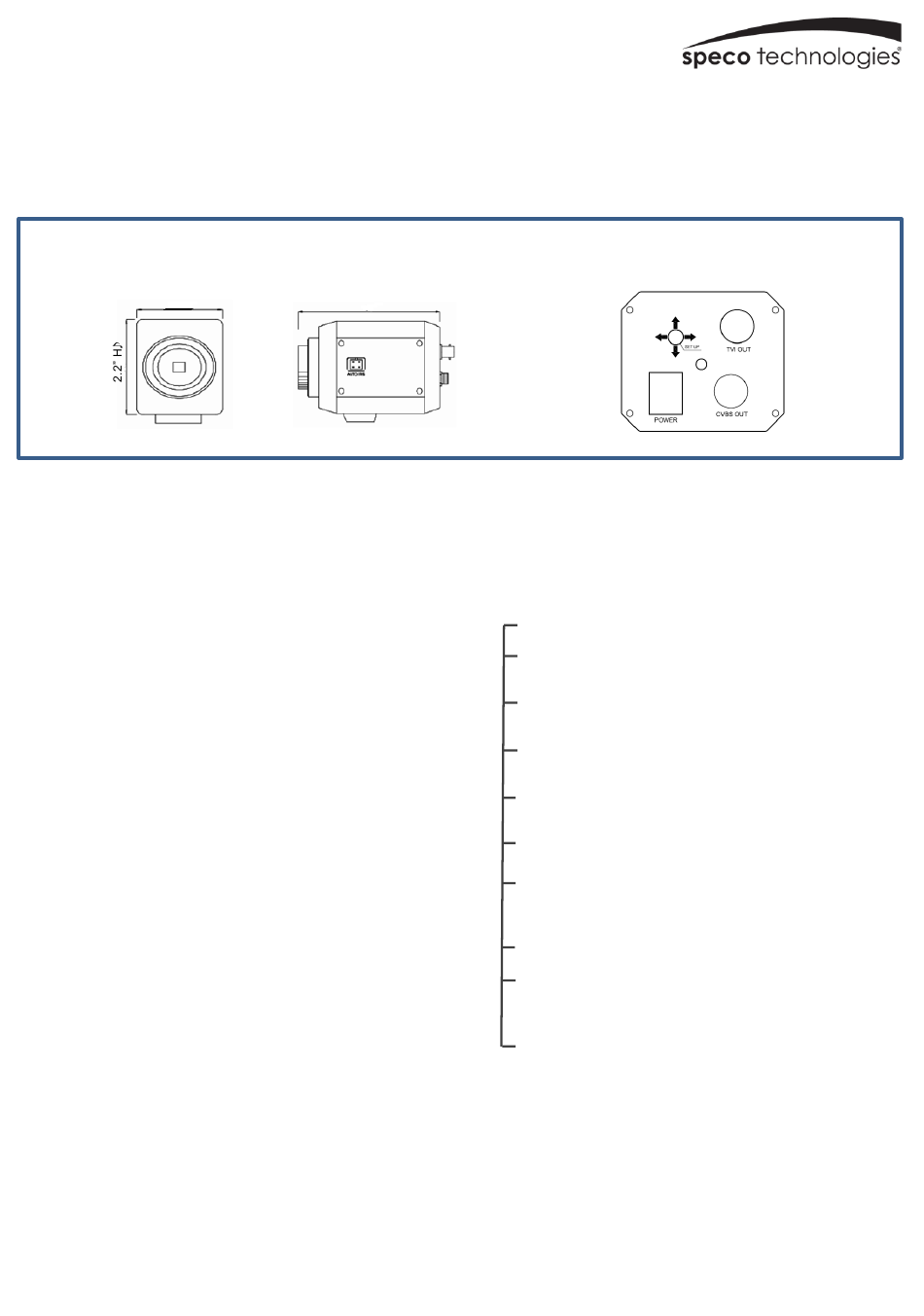

DIMENSIONS
Front View
2.5" W
Unit : inch
FEATURES
• Full HD resolution over coax (HD-TVI)
• Supports up to Full HD 1080p @ 30fps
• True WDR operation
• Superior low-light performance
• Amplify existing light with no distance limitation
• PRESET (Indoor/Outdoor/Lowlight/Hallway/Lobby/Elevator)
• Full OSD operation thru on-board control and UTC (up the coax)
• Additional 960H analog output
• Signal distance up to 1600 feet*
• 12VDC/24VAC dual voltage operation
• 5 year warranty
SPECIFICATIONS
Image Sensor.................. 1/3" Progressive Scan CMOS, 2MP
Minimum Illumination....... 0.001 lux (Sens-up X32)
Effective Pixels................ 1984 (H) x 1105 (V)
Total Pixels...................... 2000 (H) x 1121 (V)
Scanning System............ Progressive
S/N Ratio......................... More than 50dB
Output Resolution............ 1920x1080 @ 30fps
Video Output.................... 1.0Vp-p / 75 Ohms
Electronic Shutter............ Auto / Manual (1/30 – 1/30,000 sec.)
Day / Night....................... Auto / Color / BW / External
Communication............... UTC (up the coax)
Power............................. 12VDC / 24VAC
Power Consumption........ 150mA (DC), 2W (AC)
Operating Temperature....14° F – 122° F
Unit Dimensions.............. 2.5"(W) x 2.2"(H) x 4"(L)
Unit Weight...................... 1.5Ibs.
Certifications.................... FCC, RoHS
Signal Distance............... Up to 1600 feet
(depending on coax quality)*
Side View
4" L
OSD M ENU T REE
OSD M ENU D etails
LENS : S elect t he l ens t ype ( ALC/ELC)
EXPOSURE : A djusts e xposure s eEngs.
B RIGHTNESS : A djusts i mage b rightness. ( 0~ 2 0)
S HUTTER : A uto / M anual S huTer c an b e s electable
-­‐ A UTO : S huTer c an b e s electable a utomaVcally.
-­‐ F LICKER(Flicker L ess) : S elects t his w hen p icture fl ickering.
-­‐ M anual : C ontrols t he s huTer s peed m anually f rom 1 /30 ~ 1/30000
I NTENSIFY : S ets t he d esired m ulVple o f t he d igital e xposure l ength.
( OFF/x2 ~ x 32)
A GC(Auto G ain C ontrol): A djusts t he A GC l evel. ( 0~10)
200 New Highway, Amityville, NY 11701
Back panel Configuration
OSD joystick
Power In
(12VDC/24VAC)

PRESET MODE

• INDOOR • OUTDOOR • LOW LIGHT

MAIN SETUP

LENS
EXPOSURE
• S HUTTER • I NTENSIFY
• B RIGHTNESS
BACKLIGHT
• B LC • H LC
• W DR
DAY / N IGHT
• B /W • E XTERN
• C OLOR
WHITE B AL.
• A WB • C OLOR G AIN
SPECO D NR
• L OW • M IDDLE • H IGH
• S HARPNESS • G AMMA
• P RIVACY
• A CE • D EFOG
MOTION
SYSTEM
• O UTPUT • F RAME R ATE • F REQ
• C OLOR S PACE • C OLOR B AR
EXIT
800-645-5516 / www.specotech.com
TVI Out
CVBS Out
(Analogue)
• HALLWAY • LOBBY • ELEVATOR
• A GC
• A UTO
• M IRROR
• F LIP
• C OM. • I MAGE R ANGE
• L ANGUAGE
• C AMERA T ITLE • R ESET
