Summary of Contents for Speco O2BFRM

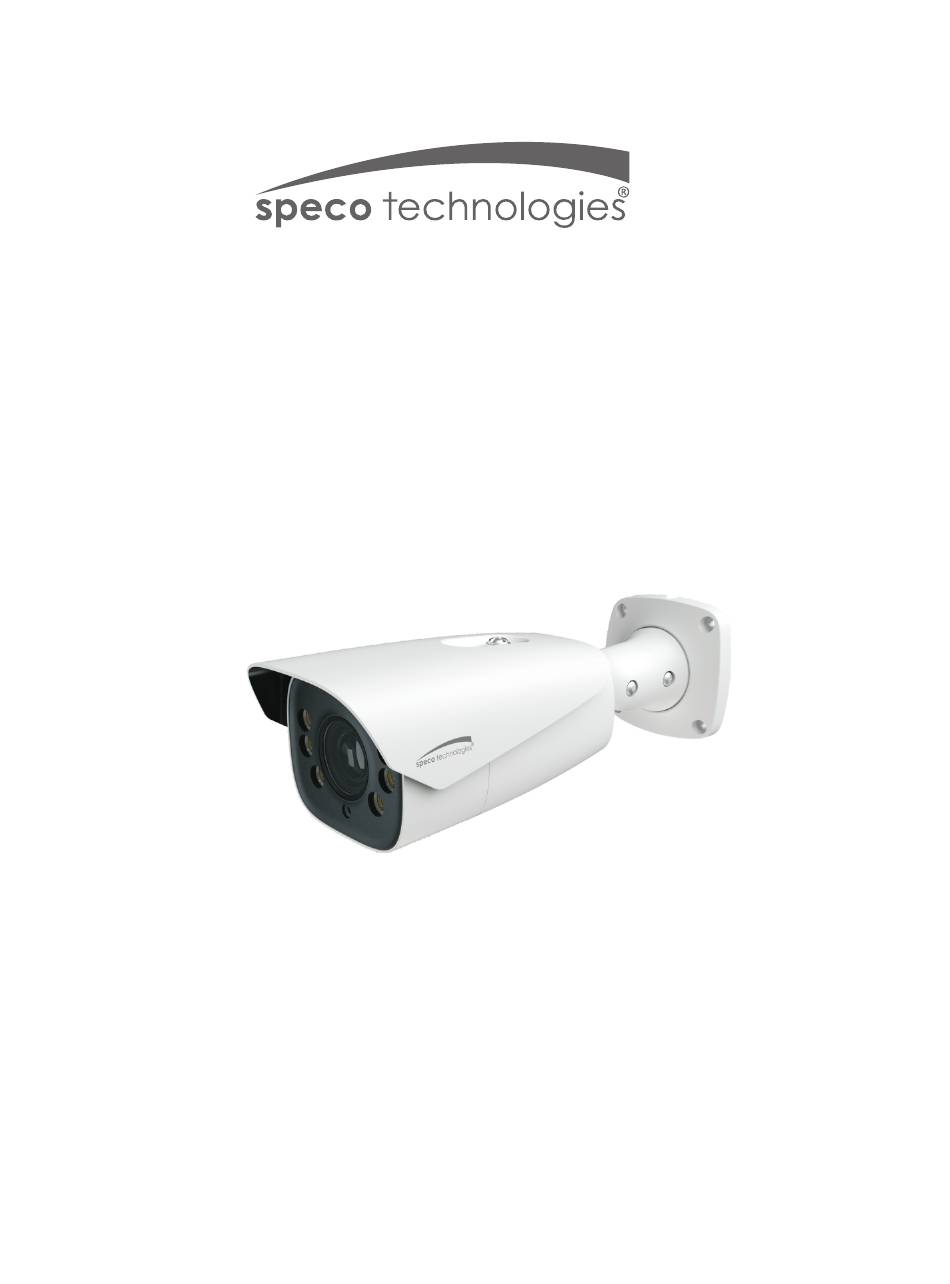

- Page 1 Quick Start Guide O2BFRM...
- Page 2 Warning and Caution Package...
- Page 3 4 tapping screws Camera Quick start guide 1 machine screw Drill template ×4 Plastic plug CVBS&DC Screwdriver IN cables Junction box Overview Overview Ethernet Connector * 2 MIC Audio Input 3 HP Audio Output 4 CVBS Video Output Alarm Input/Output 6 RS485 7 Power Connector * Micro SD Card Slot...
-
Page 4: Connecting Network Cable
ALM-COM ALM-OPEN ALM-INA ALM-GND RS485T+ RS485T- DC12V/AC24V * 1 It is recommended to install the security cap for outdoor installations. * 2 DC 12V power supply is not required if a PoE switch or injector is used to power the camera. ►... -
Page 5: Installation
Installation ► Requirements of Camera Installation & Surrounding Areas 1. The camera shall be installed right in front of the passage to take snapshots of full-frontal faces. 2. The installation height ranges from 2.0m(6.6ft) to 3.5m(11.5ft), adjustable according to the focal-length of different lenses and object distances). 3. -
Page 6: Sd Card Installation
SD Card Installation Open the cover of the camera as shown in the following figure and then insert a micro SD card. After that, install the cover back to the camera (Note that the cover shouldn’t be installed unevenly). Insert a micro SD card Cover Camera Installation with a Junction Box... - Page 7 ③ Fix the mounting base of the camera to the upper cover of the junction box. ④ Route the cables through the cable hole and connect the camera. Then install the camera onto the mounting base of the junction box. ⑤...
- Page 8 IP Scanner can search for the device on the local network. ● Operation ① Make sure that the camera and the PC are connected to the same local network. The camera is set to DHCP by default. ② Install IP Scanner from the CD and run it after installation. O2BFRM...
- Page 9 ③ In the device list, you can view the IP address, model number, and MAC address of each device. Select the applicable device and double click to open up the web viewer. You can also manually enter the IP address in the address bar of the web browser.
