INSTRUCTION
MANUAL
Intensifier K Series
Speco Technologies is constantly developing product improvements.
We reserve the right to modify product design and specifications without notice and without incurring any obligation.

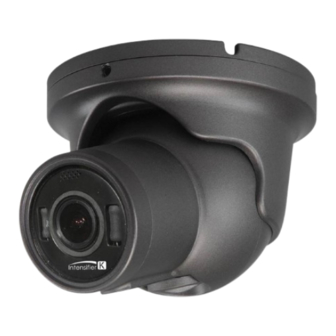

HTINT60K
(Turret Camera)
HTINT59K
(Dome Camera)
Rev. 01/01/2018

Advertisement

Table of Contents
loading

Related Manuals for Speco Intensifier K Series

Summary of Contents for Speco Intensifier K Series

  • Page 1 INSTRUCTION MANUAL Intensifier K Series HTINT60K (Turret Camera) HTINT59K (Dome Camera) Speco Technologies is constantly developing product improvements. We reserve the right to modify product design and specifications without notice and without incurring any obligation. Rev. 01/01/2018...

  • Page 2: Table Of Contents

    Contents Contents ............1 ◑ Precautions ..........2, 3 ◑ Safety Instructions ........4 ◑ Package Contents ........5 ◑ Camera Installation ........6-9 ◑ Lens Adjustment ......... 10-11 ◑ Specifications ..........12-13 ◑ Camera Dimension ........14 ◑ Features ............15 ◑...

  • Page 3: Precautions

    Precautions Do not install the camera in Do not install the camera under Do not touch the front lens of the extreme temperature conditions. unstable lighting conditions. camera. Only use the camera under conditions Severe lighting change or flicker can This is one of the most important parts of where temperatures are between cause the camera to work improperly.

  • Page 5: Safety Instructions

    Safety Instructions Precautions for use ◑ This camera should be installed by qualified personnel only ◑ There are no user serviceable parts inside ◑ Do not disassemble this camera other than to make initial adjustments ◑ Use a UL approved regulated 24 volt AC or 12 volt DC power supply ◑...

  • Page 6: Package Contents

    Package Contents Please make sure that the following items are included in the Package: 1) HTINT60K • 1 Video Test Connector, Power Jack • 2 Wrenches • Set Screw - 3 Tapping Screws 4x25 2) HTINT59K • 1 Video Test Connector, Power Jack •...

  • Page 7: Camera Installation

    CAMERA INSTALLATION...
  • Page 8 CAMERA INSTALLATION Compatibility 1) HTINT60K CVCJBD → Adaptor plate(60PLATE) with rubber 2) HTINT59K CVCJBD → Adaptor plate(59PLATE) with rubber...
  • Page 9 CAMERA INSTALLATION 1. HTINT60K BALL DOME BASE SCREW TS T1, 4X25, TH, SUS, 3EA BALL DOME BALL DOME BODY...
  • Page 10 CAMERA INSTALLATION 2. HTINT59K CEILING JUNCTION BASE SPONGE JUNCTION BOX ASSEMBLY TAPPING SCREW 4X25, 4EA MACHINE SCREW M4X10, 3EA DOME COVER SCREW-MS,WHT,SUS,ST_ M3X10,TORX, 3EA...

  • Page 11: Lens Adjustment

    LENS ADJUSTMENT 1. HTINT60K Zoom adjustment Lock screw Focus adjustment...
  • Page 12 LENS ADJUSTMENT 2. HTINT59K Open the cap Focus adjustment Zoom adjustment...

  • Page 13: Specifications

    Intensifier K Series DC Auto Iris Varifocal Lens 2.8-12mm ■ HTINT60K SPECIFICATIONS HTINT60K Image Sensor 1/3" 1.3MP Sensor Resolution 1000TV Lines Effective Pixels 1296 (H) × 1032 (V), 1.34M Pixels Total Pixels 1304 (H) × 1074 (V), 1.4M Pixels Scanning System...
  • Page 14 Intensifier K Series with included Junction Box DC Auto Iris Varifocal Lens 2.8-12mm ■ HTINT59K SPECIFICATIONS HTINT59K Image Sensor 1/3" 1.3MP Sensor Resolution 1000TV Lines Effective Pixels 1296 (H) × 1032 (V), 1.34M Pixels Total Pixels 1304 (H) × 1074 (V), 1.4M Pixels...

  • Page 15: Camera Dimension

    CAMERA DIMENSION 1) HTINT60K 4.65” dia 2) HTINT59K 3.23” dia...

  • Page 16: Features

    General Features 1000 TV Lines ● 1.3MEGA HD ANALOG 1000 TVL combined with 1.3MP CMOS Sensor WDR (Wide Dynamic Range) ● A powerful and ultra-advanced technology that captures cleaner and superior high resolution picture even where images appear dark because there is a strong back light present. PRESET ●...

  • Page 17: Osd Menu Details

    How to Set Up the camera menu ● Setup Menu PRESET MODE MENU * Fixed board lens type camera is available for "MANUAL" option in LENS menu only. MAIN SETUP PRESET INDOOR OUTDOOR LOW LIGHT HALL WAY LOBBY ELEVATOR MAIN SETUP RESET LENS MODE...
  • Page 18 MIDDLE MIDDLE HIGH HIGH AUTO SMART IR 0 ~ 20 AUTO SMART IR AGC THRES 0 ~ 20 0 ~ 20 DAY&NIGHT AGC THRES 0 ~ 20 0 ~ 20 AGC MARGIN DAY&NIGHT AGC MARGIN DELAY 0 ~ 20 LOW / MIDDLE / HIGH How to Set Up the camera menu DELAY RETURN...
  • Page 19 RETURN INTELLIGENT MTN TRACKER DET. SETTING SENSITIVITY 0 ~ 20 OBJ KEEP LV 0 ~ LV 60 MOTION EST 0 ~ 20 SIGNAL OUT OFF / ON RETURN WINDOW TONE 0 ~6 How to Set Up the camera menu WINDOW ZONE 0 ~ 3 WINDOW USE OFF / ON...
  • Page 20 * MENU will be displayed on the monitor. ◆ MENU → PRESET : Preset is provided to maximize user convenience. ( PRESET : Indoor // Outdoor // Low light // Hallway // Lobby // Elevator ) SPECO TECH 1. PRESET INDOOR 2. MAIN SETUP 3.
  • Page 21 1. Press the set button. * The Set Up menu will be displayed on the monitor. MENU 1. LENS 2. EXPOSURE 3. WHITE BAL 4. BACKLIGHT 5. SPECO DNR MIDDLE 6. DAY&NIGHT AUTO 7. IMAGE 8. SYSTEM 9. SPECIAL RETURN 2.
  • Page 22 MENU 1. LENS 1. LENS MANUAL 2. EXPOSURE 2. EXPOSURE 3. WHITE BAL 3. WHITE BAL 4. BACKLIGHT 4. BACKLIGHT 5. SPECO DNR MIDDLE 5. SPECO DNR MIDDLE 6. DAY&NIGHT AUTO 6. DAY&NIGHT AUTO 7. IMAGE 7. IMAGE 8. SYSTEM 8.
  • Page 23 1. Move the triangular indicator to EXPOSURE on the SETUP menu screen using the Up and Down button 2. Select the desired mode using the Left or Right buttons. MENU 1. LENS 2. EXPOSURE 3. WHITE BAL 4. BACKLIGHT 5. SPECO DNR MIDDLE 6. DAY&NIGHT AUTO 7. IMAGE 8. SYSTEM 9. SPECIAL RETURN ◆...
  • Page 24 → SHUTTER : Users adjust electronic shutter speed by selecting one of modes(AUTO, MANUAL, FLICKER). 2. EXPOSURE BRIGHTNESS IIIIIIIIII IIIIIIIIII SHUTTER MANUAL INTENSIFY IIIIIIIIII IIIIIIIIII RETURN Manaul mode : shutter speed is adjustable from 1/60 up to 1/60,000. SHUTTER SPEED 1/60 RETURN →...
  • Page 25 1. Move the triangular indicator to WHITE BAL on the SETUP menu screen using the Up and Down button. 2. Select the desired mode by using the left or Right button. MENU 1. LENS 2. EXPOSURE 3. WHITE BAL 4. BACKLIGHT 5. SPECO DNR MIDDLE 6. DAY&NIGHT AUTO 7. IMAGE 8. SYSTEM 9. SPECIAL RETURN Use the appropriate mode according to your purposes among these three modes.
  • Page 26 1. Move the triangular indicator to BACKLIGHT on the SETUP menu screen using the Up and Down button 2. Select the desired mode using the Left or Right buttons. MENU 1. LENS 2. EXPOSURE 3. WHITE BAL 4. BACKLIGHT 5. SPECO DNR MIDDLE 6. DAY&NIGHT AUTO 7. IMAGE 8. SYSTEM 9. SPECIAL...
  • Page 27 ◆ HLC (Highlight Light Compensation) : When there is a car head light turned on at the entrance of the gas station or in some place in the parking lot, the numbers of the car plate can be recognized by blocking only the light from the car headlight. At the area is set up specifically, you can recognize the car plate numbers by blocking the strong light signal.
  • Page 28 ◆ WDR(wide dynamic range) : the function is intended to provide clear images even under back light circumstances where intensity of illumination can vary excessively, namely when there are both very bright and very dark areas simultaneously in the field of view of the camera.
  • Page 29 2. Select one of modes(OFF, LOW, MIDDLE, HIGH) to use DNR by pressing the Right or Left button. MENU 1. LENS 2. EXPOSURE 3. WHITE BAL 4. BACKLIGHT 5. SPECO DNR MIDDLE 6. DAY&NIGHT AUTO 7. IMAGE 8. SYSTEM 9. SPECIAL...
  • Page 30 1. Select DAY&NIGHT using the Up or Down button on the Set Up menu screen. 2. Select one of modes (EXTERN, AUTO, COLOR, B/W) using the Left or Right buttons. MENU 1. LENS 2. EXPOSURE 3. WHITE BAL 4. BACKLIGHT 5. SPECO DNR MIDDLE 6. DAY&NIGHT AUTO 7. IMAGE 8. SYSTEM 9. SPECIAL RETURN ◆...
  • Page 31 1.When the SETUP menu is displayed, select IMAGE using the Up and Down button. 2. Select one of the mode using the Left or Right buttons. MENU 1. LENS 2. EXPOSURE 3. WHITE BAL 4. BACKLIGHT 5. SPECO DNR MIDDLE 6. DAY&NIGHT AUTO 7. IMAGE 8. SYSTEM 9. SPECIAL RETURN 7.
  • Page 32 ◆ IMAGE → SHARPNESS : the outline of an image becomes sharp and more distinct as the level of sharpness increases. It has better be used to adjust the value to the proper one depending on a sort of image. ( SHARPNESS : 0 ~ 10 ) →...
  • Page 33 1.When the SETUP menu is displayed, select SYSTEM using the Up and Down button. 2. Select one of the mode using the Left or Right buttons. MENU 1. LENS 2. EXPOSURE 3. WHITE BAL 4. BACKLIGHT 5. SPECO DNR MIDDLE 6. DAY&NIGHT AUTO 7. IMAGE 8. SYSTEM 9. SPECIAL RETURN 8.
  • Page 34 2. Select one of the mode using the Left or Right buttons. SPECIAL MENU 1. LENS D-ZOOM 1. 0X 2. EXPOSURE D-WDR 3. WHITE BAL DEFOG 4. BACKLIGHT SHADING 5. SPECO DNR MIDDLE PRIVACY 6. DAY&NIGHT AUTO INTELLIGENT 7. IMAGE RETURN 8. SYSTEM 9. SPECIAL RETURN...
  • Page 35 ◆ SPECIAL → D-ZOOM : diginal zoom supports up to x8 available (x1 ~ x8) The higher the digital zoom magnification is, the lower the resolution is. → D-WDR : This camera which is using 3D-DNR DSP provides intelligent light level control to overcome even strong backlight conditions.
  • Page 36 → SHADING : It is used to increase brightness in case angle of lens set as wide cause darker image on both sides than that on the center. SHADING 100% WEIGHT RETURN → PRIVACY : This is used to hide certain areas on the monitor. You can designate each different 15 area. The size of a designated area can be adjusted.
  • Page 37 MTN TRACKER DET. SETTING WINDOW TONE WINDOW ZONE WINDOW USE DET H-POS DET V-POS DET H-SIZE DET V-SIZE RETURN 2) ALARM : it is used to set 'ANTI-SHIFT' or 'ANTI-BLOCK' based on motion tracking. scale level of these functions are adjustable. ALARM ANTI-SHIFT SHIFT SCALE...
  • Page 38 * ANTI-BLOCK: If someone intentionally block the front of camera by hands or spray, etc., it will be automatically detected by a warning message(BLOCKING DETECTED !!!) on monitor. 3) QUICK ZOOM : Digital 'zoom-in' is operated to precisely detect objects when objects get in a designated motion-detection area.
  • Page 39 10. RETURN MENU 1. LENS 2. EXPOSURE 3. WHITE BAL 4. BACKLIGHT 5. SPECO DNR MIDDLE 6. DAY&NIGHT AUTO 7. IMAGE 8. SYSTEM 9. SPECIAL RETURN Press 'RETURN' button to save the current settings and exit the setup menu.

  • Page 40: Trouble Shooting

    Trouble Shooting ● PROBLEM POSSIBLE CAUSE FCheck the power cable, power supply output and video Northing appears on connection between the camera and monitor. the screen. FAre the camera lens or the lens glass dirty? Clean the lens / glass with a soft clean cloth. The image on the FAdjust the monitor controls, as required.
  • Page 44 200 New Highway Amityville, NY 11701 631-957-8700 1 800 645 5516 www.specotech.com...
