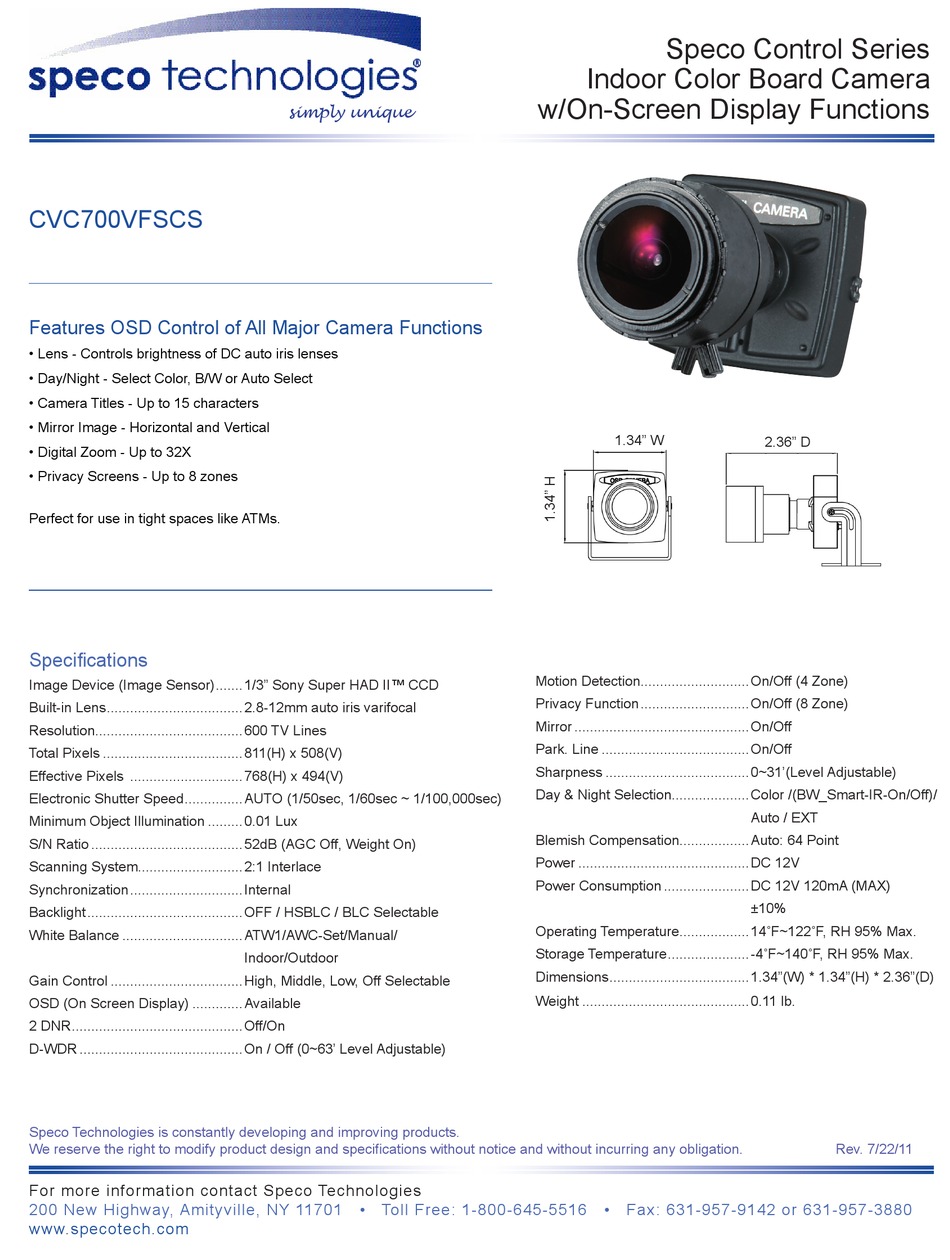

Speco CVC700VFSCS Specifications

CVC700VFSCS
Features OSD Control of All Major Camera Functions
• Lens - Controls brightness of DC auto iris lenses
• Day/Night - Select Color, B/W or Auto Select
• Camera Titles - Up to 15 characters
• Mirror Image - Horizontal and Vertical
• Digital Zoom - Up to 32X
• Privacy Screens - Up to 8 zones
Perfect for use in tight spaces like ATMs.

Specifications

Image Device (Image Sensor) .......1/3" Sony Super HAD II™ CCD
Built-in Lens ...................................2.8-12mm auto iris varifocal
Resolution......................................600 TV Lines
Total Pixels ....................................811(H) x 508(V)
Effective Pixels .............................768(H) x 494(V)
Electronic Shutter Speed ...............AUTO (1/50sec, 1/60sec ~ 1/100,000sec)
Minimum Object Illumination .........0.01 Lux
S/N Ratio .......................................52dB (AGC Off, Weight On)
Scanning System...........................2:1 Interlace
Synchronization .............................Internal
Backlight ........................................OFF / HSBLC / BLC Selectable
White Balance ...............................ATW1/AWC-Set/Manual/
Gain Control ..................................High, Middle, Low, Off Selectable
OSD (On Screen Display) .............Available
2 DNR ............................................Off/On
D-WDR ..........................................On / Off (0~63' Level Adjustable)
Speco Technologies is constantly developing and improving products.
We reserve the right to modify product design and specifications without notice and without incurring any obligation.
For more information contact Speco Technologies
200 New Highway, Amityville, NY 11701
www.specotech.com
simply unique
Indoor/Outdoor
• Toll Free: 1-800-645-5516
Speco Control Series
Indoor Color Board Camera
w/On-Screen Display Functions
1.34" W
Motion Detection............................On/Off (4 Zone)
Privacy Function ............................On/Off (8 Zone)
Mirror .............................................On/Off
Park. Line ......................................On/Off
Sharpness .....................................0~31'(Level Adjustable)
Day & Night Selection....................Color /(BW_Smart-IR-On/Off)/
Blemish Compensation..................Auto: 64 Point
Power ............................................DC 12V
Power Consumption ......................DC 12V 120mA (MAX)
Operating Temperature ..................14˚F~122˚F, RH 95% Max.
Storage Temperature .....................-4˚F~140˚F, RH 95% Max.
Dimensions ....................................1.34"(W) * 1.34"(H) * 2.36"(D)
Weight ...........................................0.11 lb.
• Fax: 631-957-9142 or 631-957-3880
2.36" D
Auto / EXT
±10%
Rev. 7/22/11
