Echoflex Installation Guide
Power Load Controller
Overview
The ELEDR Power Load Controller
is used to switch circuits for
lighting, motor, receptacle, or
general purpose loads. It receives
input from linked wireless devices
or gateways based on switch
stations, room occupancy state,
ambient light levels, scheduled
events and network commands.
The ELEDR can also provide
process control for circuit or fan
control applications eliminating
long wire runs.
This document covers installation
of ELEDR(H) Power Load
Controller models. The Echoflex Power Load Controller ELEDR Configuration
Guide is available for download at echoflexsolutions.com.
The package contents includes the controller and the installation guide.
Prepare for Installation
Echoflex recommends paying special attention to the installation
environment.
• High density construction materials and large metal appliances or
fixtures in the space may disrupt wireless reception.
• Mount the controller to an electrical junction box or a panel in a
location and at a height where it is not subject to tampering by
unauthorized personnel.
Supplies required to install the controller (not provided):
• Appropriately sized wire nuts
• Wire insulation
• Small cable ties
Corporate Headquarters Middleton, WI, USA
Web
echoflexsolutions.com
© 2021 Echoflex Solutions, Inc. Trademark and patent info:
Echoflex intends this document to be provided in its entirety. Product information and specifications subject to change.
8189M2130 Rev B Released 2021-04
|
Phone +1 608 831 4116
|
Email
info@echoflexsolutions.com

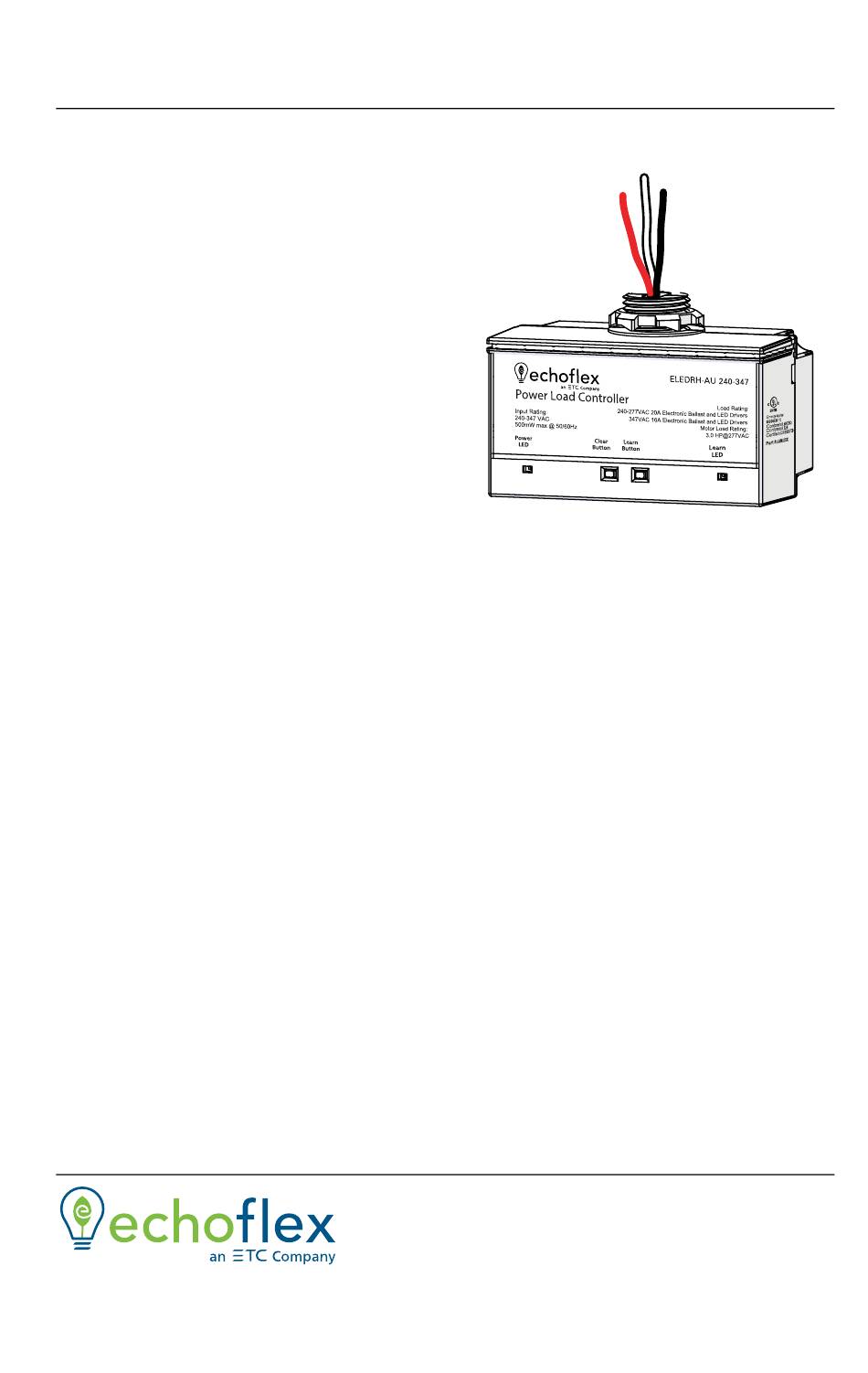

High voltage
model shown
|
Support
service@echoflexsolutions.com
echoflexsolutions.com/ip

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the echoflex ELEDR-RH and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ETC echoflex ELEDR-RH

  • Page 1 Echoflex Installation Guide Power Load Controller Overview The ELEDR Power Load Controller is used to switch circuits for lighting, motor, receptacle, or High voltage general purpose loads. It receives model shown input from linked wireless devices or gateways based on switch stations, room occupancy state, ambient light levels, scheduled events and network commands.
  • Page 2: Important Safeguards

    Echoflex Installation Guide Power Load Controller IMPORTANT SAFEGUARDS READ AND FOLLOW ALL SAFETY INSTRUCTIONS WARNING: Risk of electric shock! This device utilizes high voltage and should only be installed by a qualified installer or electrician. Follow all local codes for installation. Before terminating the AC power wiring verify that the main breaker is in the off position and follow the proper lockout/tag out procedures per NFPA Standard 70E.
  • Page 3: Installation

    Echoflex Installation Guide Power Load Controller Installation All local codes and standard electrical practices should be observed. Ensure that the junction box is clean and free of obstructions and that all wiring is installed correctly. Note: Follow applicable NEC and local electrical code requirements when installing and powering the controller.
  • Page 4: Wiring Diagram

    Echoflex Installation Guide Power Load Controller Wiring Diagram White - Neutral Neutral to others Red - Load, Switched Hot Red - To other loads Max. Load: Black - Line, (ELEDR) 20 A @ 120-277 VAC, 120-277 VAC or 240-347 VAC Electronic Ballast or LED Driver @ 50/60 Hz 500 mW max Load...
  • Page 5: Controller Interface

    Echoflex Installation Guide Power Load Controller Diagram 2 of 2 Normal Hot Normal Neutral Neutral ELED3 Load Control Power Load Controller Power Clear Learn Learn Button Button LED + LED + LED Emi er Ba ery Backup LED Driver LED - LED - Electrical Terminations Power to the controller is connected between the White (Neutral) and the...
  • Page 6: Clear Button

    Echoflex Installation Guide Power Load Controller Clear Button The [Clear] button resets the controller either to its pre-commissioned state or to its factory default state. To reset to pre-commissioned state: 1. Press the [Clear] button until the Power and Learn LEDs start blinking. 2.
  • Page 7 Echoflex Installation Guide Power Load Controller Blink Codes and Operations The tables below describe the controller's LED blink codes and operating activity. • If the controller is in factory default state, the Power LED remains solid • If the controller has one or more devices linked to it, the Power LED repeats a code of blinks that represent the type and number of linked devices.
  • Page 8 Echoflex Installation Guide Power Load Controller Compliance and Listings For complete regulatory compliance information, see the Echoflex Power Load Controller datasheet at echoflexsolutions.com. FCC Part 15.231 Contains FCC ID: SZV-STM300U This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1.) this device may not cause harmful interference and (2.) this device must accept any interference received, including interference that may cause...
