  • Page 1 TECHNOLOGY Art 4 LITE/G2+ monitor Art 4H LITE/G2+ monitor Hands-free Art 4TH LITE/G2+ monitor Hands-free / Handset 2-wire installation Code 50122623 TART 4 LITE/G2+ EN REV.0221...

  • Page 2: Table Of Contents

    If you have the “S5110 ART 4 LITE” villa kit with Soul door panel, download “TS5110 ART 4 LITE (cód. 50122625)” h ps://doc.golmar.es/search/manual/50122625 user manual from the next QR or in the link Golmar web: TS5110 ART 4 LITE MANUAL...

  • Page 3: Communication With Hearing Aid (Art 4H Lite/G2+ And Art 4Th Lite/G2+ Monitors Only)

    ART 4 LITE/G2+ MONITOR COMMUNICATION WITH HEARING AID (ART 4TH LITE/G2+ MONITOR ONLY) The handset of the ART 4TH LITE G2+ monitor enables communication with hearing aids equipped with T-mode, making conversation possible (inductive loop).Remember: Set the hearing aid switch to position T. CHARACTERISTICS - Hands-free monitor ("ART 4TH/LITE"...

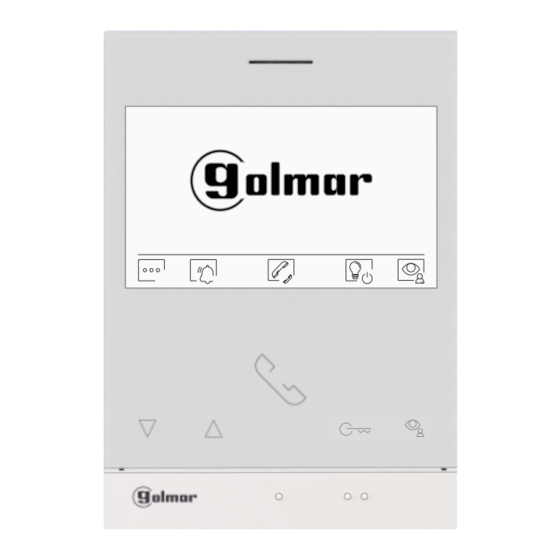

  • Page 4: Description

    OFF = 0 ON = 1 F. 4.3" TFT colour screen. A. Handset. B. Function buttons, access and selection of menu G. Golmar use. functions. Microphone (hands-free communication mode). The function of each button is shown on the monitor I. Communication with hearing aids (ART 4H LITE G2+/ screen with an icon located just above each button ART 4TH LITE G2+).
  • Page 5 ART 4 LITE/G2+ MONITOR INSTALLATION Avoid dusty or smoky environments or locations near sources of heat. For proper installation, use the template supplied with the product. 1. Position the top of the template at a height of 1.65m. 2. If you are going to use an embedding box to pass the wiring through, make sure that it is in line with the holes corresponding to the box model chosen and fix the connector.

  • Page 6: Main Menu

    ART 4 LITE/G2+ MONITOR MAIN MENU Main menu If the device is in standby (screen switched off), to access the main menu, press any of the buttons of the monitor. Then press the button located just below the corresponding icon. The device will return to standby mode after 20 seconds without activity.

  • Page 7: Settings Menu

    ART 4 LITE/G2+ MONITOR SETTINGS MENU Press the button below icon to access the settings menu screen. Main menu Access settings menu screen Note: Icon to intercom menu will be placed in “Access settings menu screen”, if there is a guard monitor configured in the building.
  • Page 8 ART 4 LITE/G2+ MONITOR Continued from previous page. SETTINGS MENU Settings menu screen Returning to the main menu: Press the button below icon to return to the main menu. The 'About' screen provides information about the monitor, such as the software version, address and whether it is master or slave (M, S1, S2 or S3).
  • Page 9 ART 4 LITE/G2+ MONITOR Continued from previous page. SETTINGS MENU Selecting the melody and call volume: Press the button below icon to access the settings screen. In order to identify the origin of the calls when you are not in front of the monitor, select different melodies and the desired call volume.

  • Page 10: Door Panel Call Screen

    ART 4 LITE/G2+ MONITOR DOOR PANEL CALL SCREEN This screen is displayed when receiving a call or pressing the button below icon of the main menu. During a call, icon displayed on the screen is in green color (during the call process). In the top left of the screen, the source of the image is displayed.

  • Page 11: Communication Screen

    ART 4 LITE/G2+ MONITOR COMMUNICATION SCREEN This screen is displayed during a communication process. During a communication, icon displayed on the screen is in green color. In the top left of the screen, the source of the image is displayed. The communication has a duration of 90 seconds.

  • Page 12: Image And Communication Settings

    ART 4 LITE/G2+ MONITOR IMAGE AND COMMUNICATION SETTINGS During a call process (Screen A) or during a communication process (Screen B) , press the button below icon for 3 seconds to access the image and monitor in call/ communication volume settings menu. Screen A Screen B Call process screen...
  • Page 13 ART 4 LITE/G2+ MONITOR Continued from previous page. IMAGE AND COMMUNICATION SETTINGS The following contrast control menu will then be displayed. Adjust to the desired level by pressing the buttons below icons . To access the colour control, press the button below icon .
  • Page 14 ART 4 LITE/G2+ MONITOR Continued from previous page. IMAGE AND COMMUNICATION SETTINGS The following call tone settings volume during a call process (Screen A) or communication settings volume during a communication process (Screen B) will then be displayed. Adjust to the desired level by pressing the buttons below icons .

  • Page 15: P Eriod Of Time For 'Do Not Disturb' Mod E Menu

    ART 4 LITE/G2+ MONITOR PERIOD OF TIME FOR 'DO NOT DISTURB' MODE MENÚ 'Do not disturb' mode settings: If the device is in standby (screen switched off), to access the main menu, press any of the buttons of the monitor. Then press the button below icon to access the settings screen.
  • Page 16 ART 4 LITE/G2+ MONITOR Continued from previous page. PERIOD OF TIME FOR 'DO NOT DISTURB' MODE MENÚ Press the button below icon to return to the main menu. If the 'Do not disturb' mode is enable (see pages 15 to 16) will be shown the icon in the main menu and the monitor status LED will turn on (red color).
  • Page 17 ART 4 LITE/G2+ MONITOR Continued from previous page. PERIOD OF TIME FOR 'DO NOT DISTURB' MODE MENÚ ”Automatic door openning”: This selection is visible in the “Do Not Disturb” settings menu, with the special code '0441' (Doctor mode) already entered in the monitor for automatic door opening (see special codes pp.

  • Page 18: Intercom Menu

    ART 4 LITE/G2+ MONITOR Continued from previous page. PERIOD OF TIME FOR 'DO NOT DISTURB' MODE MENÚ Press the push button below the icon to return to the main menu screen. If the "automatic door opening" mode has been activated (see page 17) the icon will be displayed at the top left of the main menu screen and the led of the push button will blink in white color when the monitor is in...
  • Page 19 ART 4 LITE/G2+ MONITOR Continued from previous page. INTERCOM MENU To make an internal intercom call (to another monitor(s) in the same apartment), press the buttons below corresponding icons to select the monitor to be called, press the push button below the icon to make the call.
  • Page 20 ART 4 LITE/G2+ MONITOR Continued from previous page. INTERCOM MENU To make an external intercom call (to other apartments), go to the option with the icon by pressing the push buttons located below the corresponding icons, press the push button located below the icon to access the menu for selecting the apartment code you wish to communicate with.
  • Page 21 ART 4 LITE/G2+ MONITOR Continued from previous page. INTERCOM MENU The monitor making the call will sound a confirmation melody and will indicate the code of the apartment called and available call time, if you wish to cancel the call press the button below icon returning to the main menu.

  • Page 22: Settings And Operation Of The Guard Monitor

    ART 4 LITE/G2+ MONITOR SETTINGS AND OPERATION OF THE GUARD MONITOR Settings "guard monitor" mode: The monitor/s to be configured as a guard monitor/s (up to 4 monitors) in the building, must be configured with address 1 and as master, slave 1, slave 2 or slave 3. Then enter the special code '5001' in a master monitor (see special codes on pages 23 to 26), the monitor/s with address 1 will be now a guard monitor/s with address 129 and displaying the symbol at the top right of the...

  • Page 23: Special Codes

    ART 4 LITE/G2+ MONITOR SPECIAL CODES The enabling of some functions, as well as the modification of some factory parameters, can be carried out by entering special codes. To do so, the installer menu must be accessed from the monitor. Go to the 'About' screen in the Settings menu (p.
  • Page 24 ART 4 LITE/G2+ MONITOR Continued from previous page. SPECIAL CODES Video sources available on a monitor (configure only on the master monitor). Visible Not visible Factory setting Door panel 1 0111 0110 0111 Door panel 2 0121 0120 0120 Door panel 3 0131 0130 0130...
  • Page 25 ART 4 LITE/G2+ MONITOR Continued from previous page. SPECIAL CODES Configuration of the remote activation button Relay1 (Door panel ). (Configure only on the master monitor). Factory setting Delay From 1400 (0,5s) to 1419 (10s) 1403 (2s) Configuration of the remote activation button Relay2 (Door panel ).
  • Page 26 ART 4 LITE/G2+ MONITOR Continued from previous page. SPECIAL CODES (GENERAL DOOR PANELS) General door panels video sources available on a monitor (configure only on the master monitor). Visible Not visible Factory setting General door panel 1 1111 1110 1111 General door panel 2 1121 1120...

  • Page 27: Cleaning The Monitor

    ART 4 LITE/G2+ MONITOR CLEANING THE MONITOR - Do not use solvents, detergents or cleaning products that contain acids, vinegar or abrasive components. - Use a soft damp lint-free cloth with water. - Always wipe the monitor in the same direction, from top to bottom. - After cleaning the monitor, remove any moisture with a soft dry lint-free cloth.

  • Page 28: Compliance
