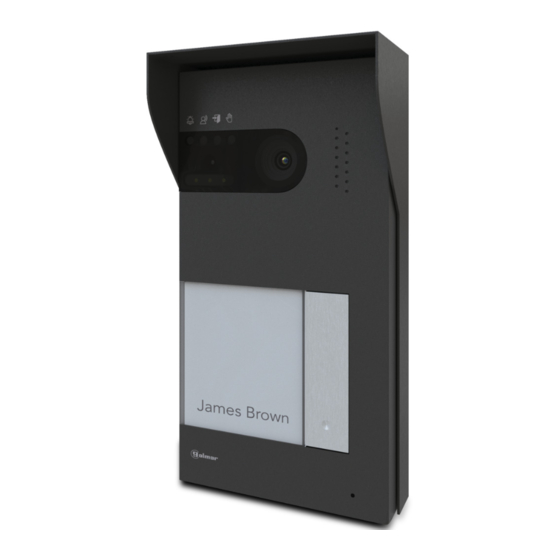

  • Page 1 Kit Soul TECHNOLOGY J. Brown G2+ 2-wire installation Art 1 Terminal T-Art Telephone Cód. 50123042 TS4110 AUDIO EN REV.0321...
  • Page 2: Table Of Contents

    SOUL S 110 1 G2+ / T-ART G2+ AUDIO DOOR ENTRY SYSTEM KIT CONTENTS Contents ..................................2 Recommendations..............................3 System operation(Art 1/G2+ terminal) ........................3 System operation (T-Art/G2+ telephone) ........................3 FA-G2+/LITE power supply............................4 Descrip tion ..............................4 Installation ...............................4 Soul/1A panel................................5 a 7 Description ..............................5 Installation ...............................6 Installation terminals ............................6 Configuration switches.............................7...
  • Page 3: Recommendations

    SOUL S 110 1 G2+ / T-ART G2+ AUDIO DOOR ENTRY SYSTEM KIT RECOMMENDATIONS - Preferably use a Golmar RAP-GTWIN/HF cable (2x1mm²). - The wiring must run at least 40cm away from any other wiring. Always disconnect the power supply before making modifications to the device.
  • Page 4: Fa-G2+/Lite Power Supply

    Description BUS(M) BUS(PL) 12240141 FA-G2+/LITE BUS BUS OUTPUT ± BUS 30V 2V 0.5A GOLMAR S.A. C/ Silici, 13 08940 - SPAIN INPUT ~100-240V 0.8A 50-60Hz A. Terminal/telephone Bus connection terminals. B. Door panel Bus connection terminals. C. Protective cover for the current input.
  • Page 5: Soul/1A Panel

    SOUL S 110 1 G2+ / T-ART G2+ AUDIO DOOR ENTRY SYSTEM KIT SOUL/1A PANEL Description A. Protective polycarbonate. B. Nameplate label. C. Speaker grill. D. Call button E. Microphone hole. F. Front fixing screw. G. Illumination module. H. Wall fixing hole (x3). Do not overtighten the fixing screws.
  • Page 6: Installation

    SOUL S 110 1 G2+ / T-ART G2+ AUDIO DOOR ENTRY SYSTEM KIT SOUL/1A PANEL Installation The door panel has been designed to withstand diverse environmental conditions. It is however advisable to take extra precautions to prolong its service life, such as locating it in a covered area. For correct installation: (locate the top of the door panel at a height of 1.65m).
  • Page 7: Configuration Switches

    SOUL S 110 1 G2+ / T-ART G2+ AUDIO DOOR ENTRY SYSTEM KIT SOUL/1A PANEL Configuration switches ( ) Configuration changes should be made with the equipment turned off. If they are performed with the equipment turned on, disconnect it for 10 seconds after any modification. All switches are factory set to OFF.
  • Page 8: Art 1/G2+ Terminal

    00 - Master 10 - Slave 1 DIP 10 01 - Slave 2 End of line resistor 11 - Slave 3 GOLMAR S.A. C/ Silici, 13. 08940-SPAIN Speaker. Micr ophone Function push buttons. Wall mounting connector fixing (x4). Raised dots for the visually impaired people.
  • Page 9 SOUL S 110 1 G2+ / T-ART G2+ AUDIO DOOR ENTRY SYSTEM KIT ART 1/G2+ TERMINAL DESCRIPTION: Configuration switches: Switches 1 to 7. These assign the address of the corresponding terminal call button on the door panel. Switches must remain in the OFF position. Apartment 1 Switches 8 to 9...
  • Page 10 SOUL S 110 1 G2+ / T-ART G2+ AUDIO DOOR ENTRY SYSTEM KIT ART 1/G2+ TERMINAL DESCRIPTION: Autoswitch-on function: With the ART 1/G2+ terminal in standby mode, you can establish an audio communication with the master door panel. It is only operative if there is no communication in progress. With the terminal in standby mode, press the button for 3 seconds, a confirmation tone will sound and the led of the button...
  • Page 11 SOUL S 110 1 G2+ / T-ART G2+ AUDIO DOOR ENTRY SYSTEM KIT Continued from previous page. ART 1/G2+ TERMINAL DESCRIPTION: Configuration & selection of the call tone: The terminal must be in standby mode for the configuration and selection of the desired call tone. To modify the call tones, press the button for 3 seconds until you hear 3 confirmation tones that indicate that the terminal is in configuration mode.
  • Page 12 SOUL S 110 1 G2+ / T-ART G2+ AUDIO DOOR ENTRY SYSTEM KIT INSTALLING THE ART 1/G2+ TERMINAL IN A WALL MOUNTING CONNECTOR Avoid dusty or smoky environments or locations near sources of heat. Positioning the wall mounting connector: The top of the wall mounting connector should be located at a height of 1.6 m from the ground. The minimum distance between the wall mounting connector and the closest object must be 5 cm.
  • Page 13 SOUL S 110 1 G2+ / T-ART G2+ AUDIO DOOR ENTRY SYSTEM KIT INSTALLATION OF THE ART 1/G2+ TERMINAL IN AN EMBEDDING BOX Avoid dusty or smoky environments or locations near sources of heat. Positioning the embedding box: Make a hole in the wall to position the top of the universal embedding box at a height of 1.6 m from the ground. The minimum distance between the sides of the embedding box and the closest object must be 5 cm.
  • Page 14: In Wall Mounting Connector

    10 - Slave 1 DIP 10 01 - Slave 2 End of line resistor 11 - Slave 3 GOLMAR S.A. C/ Silici, 13. 08940-SPAIN Handset. Wall mounting connector fixing (x4). Function push buttons. Gol ar use. Raised dots for the visually impaired people.
  • Page 15 SOUL S 110 1 G2+ / T-ART G2+ AUDIO DOOR ENTRY SYSTEM KIT T-ART/G2+ TELEPHONE DESCRIPTION: Configuration switches: Switches 1 to 7. These assign the address of the corresponding terminal call button on the door panel. Switches must remain in the OFF position. Apartment 1 Switches 8 to 9...
  • Page 16 SOUL S 110 1 G2+ / T-ART G2+ AUDIO DOOR ENTRY SYSTEM KIT T-ART/G2+ TELEPHONE DESCRIPTION: Autoswitch-on function: With the T-ART/G2+ telephone in standby mode , you can establish an audio communication and the handset off the hook with the master door panel. It is only operative if there is no communication in progress. With the telephone in standby mode and handset off...
  • Page 17 SOUL S 110 1 G2+ / T-ART G2+ AUDIO DOOR ENTRY SYSTEM KIT Continued from previous page. T-ART/G2+ TELEPHONE DESCRIPTION: Configuration & selection of the call tone: The telephone must be in standby for the configuration and selection of the desired call tone. (handset off...
  • Page 18 SOUL S 110 1 G2+ / T-ART G2+ AUDIO DOOR ENTRY SYSTEM KIT INSTALLING THE T-ART/G2+ EPHONE IN A WALL MOUNTING CONNECTOR Avoid dusty or smoky environments or locations near sources of heat. Positioning the wall mounting connector: The top of the wall mounting connector should be located at a height of 1.6 m from the ground. The minimum distance between the wall mounting connector and the closest object must be 5 cm.
  • Page 19 SOUL S 110 1 G2+ / T-ART G2+ AUDIO DOOR ENTRY SYSTEM KIT INSTALLATION OF THE T-ART/G2+ EPHONE IN AN EMBEDDING BOX Avoid dusty or smoky environments or locations near sources of heat. Positioning the embedding box: Make a hole in the wall to position the top of the universal embedding box at a height of 1.6 m from the ground. The minimum distance between the sides of the embedding box and the closest object must be 5 cm.
  • Page 20: Wiring Diagrams

    SOUL S 110 1 G2+ / T-ART G2+ AUDIO DOOR ENTRY SYSTEM KIT WIRING DIAGRAMS Cross sections and distances ART 1 ART 1 - Maximum 1 apartment. - The maximum number of terminal s in the apartment is 4. - The maximum number of terminals in cascade is 4.
  • Page 21 SOUL S 110 1 G2+ / T-ART G2+ AUDIO DOOR ENTRY SYSTEM KIT WIRING DIAGRAMS One apartment with up to two access panels and up to four ART 1/G2+ terminal n cascad SOUL/1A SOUL ART /G2+ ART /G2+ ART /G2+ DOOR PANEL 2 DOOR PANEL 1 APARTMENT 1...
  • Page 22: Cross Sections And Distances

    SOUL S 110 1 G2+ / T-ART G2+ AUDIO DOOR ENTRY SYSTEM KIT WIRING DIAGRAMS Cross sections and distances T-ART T-ART - Maximum 1 apartment. - The maximum number of telephone s in the apartment is 4. - The maximum number of telephones in cascade is 4.
  • Page 23 SOUL S 110 1 G2+ / T-ART G2+ AUDIO DOOR ENTRY SYSTEM KIT WIRING DIAGRAMS One apartment with up to two access panels and up to four ART 1/G2+ telephones n cascad SOUL/1A SOUL T-ART/G2+ T-ART/G2+ T-ART/G2+ DOOR PANEL 2 DOOR PANEL 1 APARTMENT 1 APARTMENT 1...
  • Page 24: Con E N Ction Of A Lock Release

    12Vd.c / 270mA If the lock release to be used is alternating current, use a relay and transformer suitable for the consumption, as well as the varistor supplied. The example shows a Golmar SAR-12/24 relay and a TF-104 transformer (12Vac/1.5A).
  • Page 25: Con E N Ction Of An Output Button

    SOUL S 110 1 G2+ / T-ART G2+ AUDIO DOOR ENTRY SYSTEM KIT WIRING DIAGRAMS Connection of an output button The output button allows remote activation of the lock release connected between the CV- and CV+ terminals (by default) or the relay output (installer programmable).
  • Page 26: Cleaning The Art 1/G2+ Terminal

    SOUL S 110 1 G2+ / T-ART G2+ AUDIO DOOR ENTRY SYSTEM KIT CLEANING THE ART 1/G2+ TERMINAL/ T-ART/G2+ TELEPHONE - Do not use solvents, detergents or cleaning products that contain acids, vinegar or abrasive components. - Use a soft damp cloth (not wet) that sheds no fibres. - Always wipe the terminal/ telephone in the same direction, from top to bottom.
  • Page 27 SOUL S 110 1 G2+ / T-ART G2+ AUDIO DOOR ENTRY SYSTEM KIT NOT S:...
  • Page 28: Compliance

    C/ Silici, 13 08940- Cornellá de Llobregat SPAIN Golmar se reserva el derecho a cualquier modificación sin previo aviso. Golmar se réserve le droit de toute modification sans préavis. Golmar reserves the right to make any modifications without prior notice.
