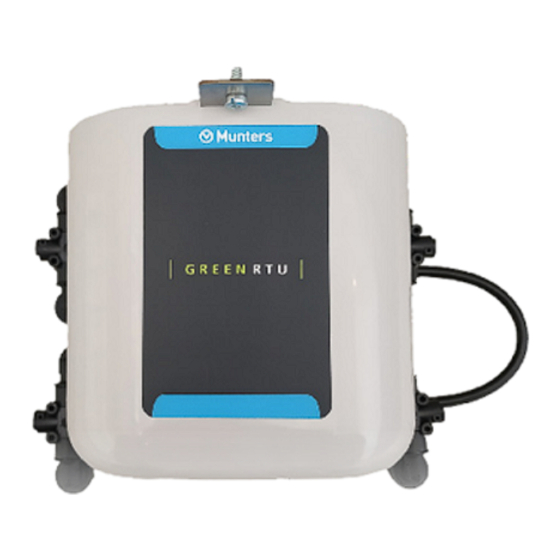

- Page 1 Green RTU RX Module Installation Manual Green RTU RX Module Climate Controllers Ag/MIS/ImEn-2765-05/20 Rev 1.2 P/N: 116812...
- Page 2 Green RTU RX Module User Manual Revision: N.1.2 of 07.2020 Product Software: N/A This manual for use and maintenance is an integral part of the apparatus together with the attached technical documentation. This document is destined for the user of the apparatus: it may not be reproduced in whole or in part, committed to computer memory as a file or delivered to third parties without the prior authorization of the assembler of the system.
-
Page 3: Table Of Contents
2.5 Programming the Radio Receiver Module -------------------------------------------------------------------------------------------------------- 2.6 Applying Power to the Radio Receiver Module -------------------------------------------------------------------------------------------- 2.7 Resetting the Radio Receiver Module ------------------------------------------------------------------------------------------------------------------ 2.8 Installing the Protection Hood ---------------------------------------------------------------------------------------------------------------------------------- 2.9 General Notes ------------------------------------------------------------------------------------------------------------------------------------------------------------------- WARRANTY ------------------------------------------------------------------------------------------------------------------------------------------------- 15 © Munters AB, 2020... -
Page 4: Introduction
The information contained herein has been prepared by qualified experts within Munters. While we believe the information is accurate and complete, we make no warranty or representation for any particular purposes. The information is offered in good faith and with the understanding that any use of the units or accessories in breach of the directions and warnings in this document is at the sole discretion and risk of the user. -
Page 5: Radio Receiver Module Installation
Figure 2 below. Insert an M5 machined screw through the hole provided in the top of the modules mounting bracket and lock this in place with a machine nut to secure the module. © Munters AB, 2020... - Page 6 Avoid mounting the radio receiver module in a metal or concrete enclosure or structure. Even a metal cage will negatively influence radio signal. It is acceptable to mount the receiver module within a plastic enclosure as shown in Figure 4. © Munters AB, 2020...
-
Page 7: Connecting The Output Devices To The Radio Receiver Module
The Green RTU RX radio receiver module is available in two output connection formats. • o The output plug format as shown in Figure 5 below Figure 5: Plug Format o The output wire loom format as shown in Figure 6 below Figure 6: Wire Loom Format © Munters AB, 2020... -
Page 8: Connecting The Output Devices To The Receiver Module Equipped With The Plug Connection Format
• length. Compatible output devices should be selected to meet this specification and tested properly for reliable use with the radio receiver module. Consult with Munters for a list of approved devices. 2.3 Connecting the Output Devices to the Receiver Module Equipped with the Plug... -
Page 9: Connecting The Output Devices To The Receiver Module Equipped With The Output Wire Loom Format
The other end of the cable has 6 soldered tinted wire ends exposed with ends, ready for attaching to the output devices as shown in Figure 9 below. © Munters AB, 2020... -
Page 10: Programming The Radio Receiver Module
The Green RTU RX radio receiver module is programmed using a Hand Held Programmer. Information relating to this process is available in a separate document titled “Green RTU RX Module Programming Guide”. If you do not have this document on record, feel free to contact Munters and we will forward a copy. - Page 11 Referring to Figure 14 below, plug the battery connector socket into the radio receiver modules • power connector plug (red and black wires). Figure 14: Battery Plugged in You will observe that both the Red and the Green LED’s will illuminate together. • © Munters AB, 2020...
-
Page 12: Resetting The Radio Receiver Module
Hand Held Programmer available you will need to perform a manual reset. Bridge out the black wires terminal pin with the green wires terminal socket for about 2 seconds • on the receiver module as shown in Figure 15 below. Figure 15: Resetting the RX © Munters AB, 2020... -
Page 13: Installing The Protection Hood
Remove the M5 securing screw from the hole in the top of the receiver modules stainless steel • mounting bracket. Install the protection hood by inserting the blade of the mounting bracket through the slot in the • hood as shown in Figure 17 below. © Munters AB, 2020... -
Page 14: General Notes
Avoid exposing the module to high vibration and or shock as this can lead to permanent • damage to the equipment. Do not attempt to modify the equipment or the electronics as this will deem the warranty void and • may lead to permanent damage of the equipment. © Munters AB, 2020... -
Page 15: Warranty
Munters plant was required: if this is not done, the user is fully responsible for the damage which they could suffer. - Page 16 The use of non-original spare parts or incorrect assembly exonerates the manufacturer from all liability. Requests for technical assistance and spare parts can be made directly to the nearest Munters office. A full list of contact details can be found on the back page of this manual.
- Page 17 Munters Brasil Industria e Comercio Ltda, Phone +55 41 3317 5050, Canada Munters Corporation Lansing, Phone +1 517 676 7070, China Munters Air Treatment Equipment (Beijing) Co. Ltd, Phone +86 10 80 481 121, Denmark Munters A/S, Phone +45 9862 3311, Munters India, Phone +91 20 3052 2520,...
