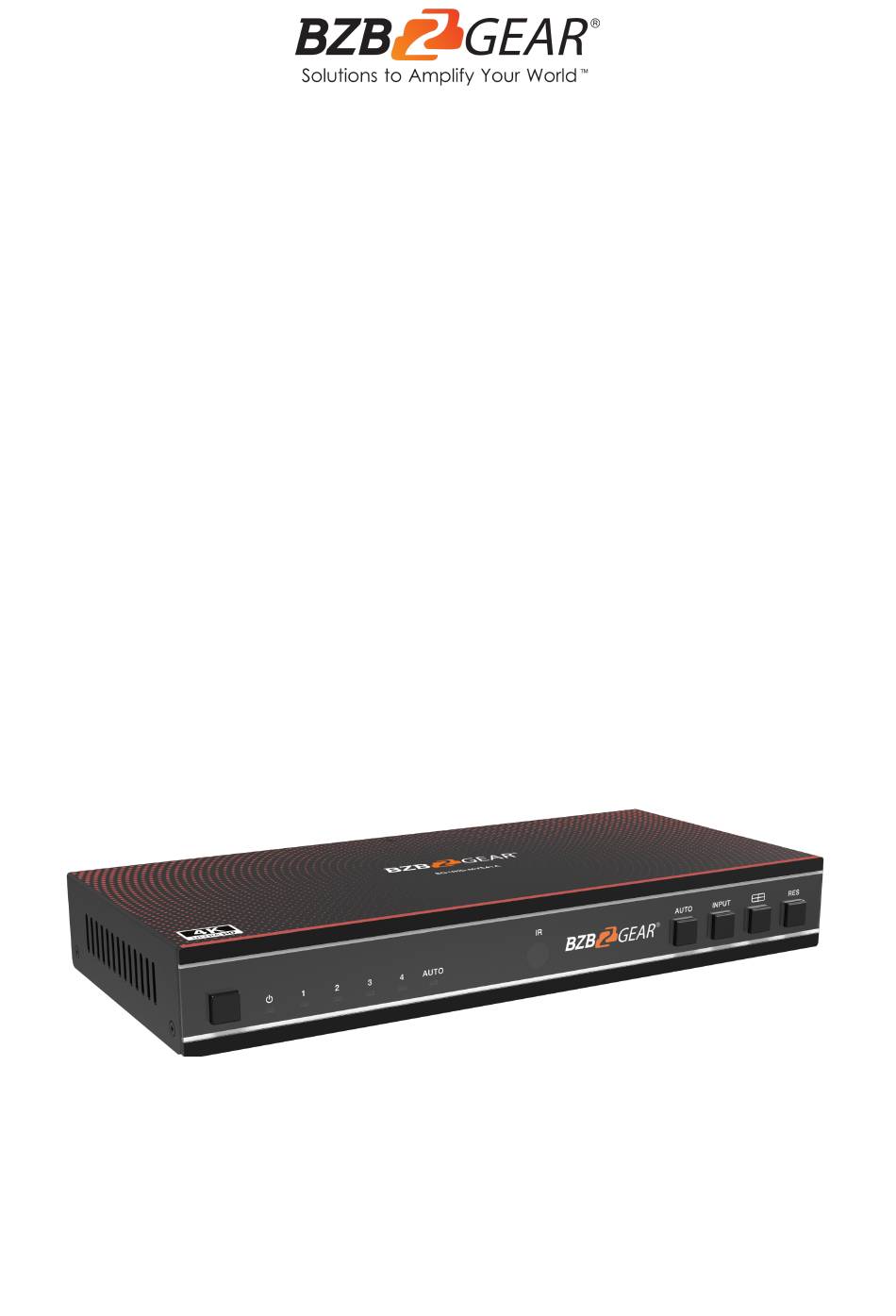

- Page 1 BG-UHD-MVS41A 4K60 4x1 Multiviewer Seamless UHD Video Switcher User Manual...
- Page 2 BZBGEAR BG-UHD-MVS41A PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 3: Table Of Contents
BZBGEAR BG-UHD-MVS41A PRODUCT MANUAL TABLE OF CONTENTS Statement Safety Precaution Introduction Features Packing List Specifications Operation Controls and Functions IR Remote EDID Settings Video & Audio Multiview OSD Menu Navigation RS-232 Command Application Diagram Tech Support Warranty Mission Statement Copyright ·... -
Page 4: Statement
● This product does not contain parts that can be maintained or repaired by users. Damage caused by dismantling the product without authorization from BZBGEAR is not covered under the warranty policy. ● Installation and use of this product must strictly comply with local electrical safety standards. -
Page 5: Introduction

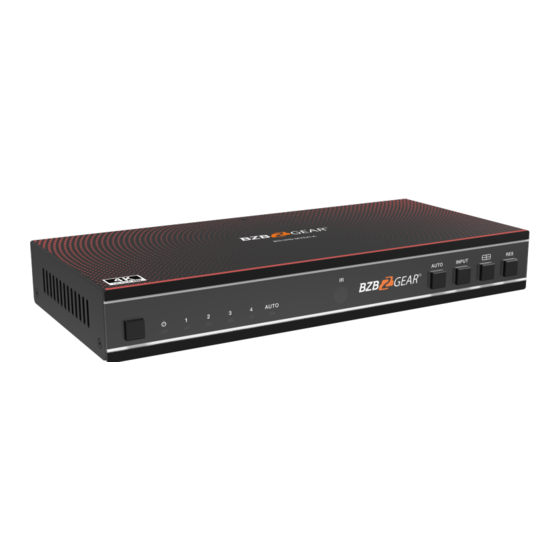

PRODUCT MANUAL Introduction The BG-UHD-MVS41A is a 4K60 4x1 Multiviewer and seamless UHD video switcher which was developed for the purpose of supporting higher output resolutions such as 4K@60 for multiple sources on a single screen. It can combine up to four video signals onto a single UHD or HD display. -
Page 6: Specifications
BZBGEAR BG-UHD-MVS41A PRODUCT MANUAL Specifications Technical HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.2 / 1.x Video Bandwidth 18Gbps Video Resolution Up to 4K@60Hz IR Level 5Vp-p IR Frequency 38KHz Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 Color Depth 8bit HDMI: PCM2.0/5.1/7.1CH, Dolby Digital/Plus, DTS, DTS High Res... -
Page 7: Operation Controls And Functions
BZBGEAR BG-UHD-MVS41A PRODUCT MANUAL Operation Controls and Functions Front Panel Name Function Description ▪ Short press this button to power on the device. Power button ▪ Long press this button for 1 second to enter standby mode. The Power LED will illuminate green when the product is powered Power LED on, and red when the product is on standby. - Page 8 BZBGEAR BG-UHD-MVS41A PRODUCT MANUAL Rear Panel Name Function Description L/R port PCM 2.0 Analog audio output port. OPTICAL port Optical fiber digital audio output port. Connect to an HDMI display device such as a TV or Monitor with HDMI OUTPUT port an HDMI cable.
-
Page 9: Ir Remote
BZBGEAR BG-UHD-MVS41A PRODUCT MANUAL IR Remote 1. Power on or Standby: Press this button to power on the switcher or set it to standby mode. 2. HD 1/2/3/4: Press these buttons to select the input source on single screen display modes and the corresponding input LED on the front panel will illuminate green. -
Page 10: Edid Settings
BZBGEAR BG-UHD-MVS41A PRODUCT MANUAL EDID Settings User can select the following EDID modes via RS-232 command or OSD menu navigation. No. EDID Mode No. EDID Mode 4K60-2.0CH 1920x1200-2.0CH 4K60-5.1CH 1680x1050-2.0CH 4K60-7.1CH 1600x1200-2.0CH 4K30-2.0CH 1440x900-2.0CH 4K30-5.1CH 1360x768-2.0CH 4K30-7.1CH 1280x1024-2.0CH 1080P-2.0CH 1024x768-2.0CH 1080P-5.1CH... -
Page 11: Multiview
BZBGEAR BG-UHD-MVS41A PRODUCT MANUAL Multiview The switcher supports 8 different multiview display modes: SINGLE, PIP, PBP (1), PBP (2), Triple (1), Triple (2), Quad (1), Quad (2) Users can select different operations for different Multiview modes as follows: SINGLE: Inputs selection... - Page 12 BZBGEAR BG-UHD-MVS41A PRODUCT MANUAL Win1 Select HDMI1,HDMI2,HDMI3,HDMI4 Win2 Select HDMI1,HDMI2,HDMI3,HDMI4 3xWIN Win3 Select HDMI1,HDMI2,HDMI3,HDMI4 MODE 1, 2 Aspect Full, 16:9 Multiview Win1 Select HDMI1,HDMI2,HDMI3,HDMI4 Win2 Select HDMI1,HDMI2,HDMI3,HDMI4 Win3 Select HDMI1,HDMI2,HDMI3,HDMI4 4xWIN Win4 Select HDMI1,HDMI2,HDMI3,HDMI4 MODE 1, 2 Aspect Full,16:9 Audio Select...
-
Page 13: Rs-232 Command
PRODUCT MANUAL RS-232 Command The BG-UHD-MVS41A supports RS-232 command control. Connect the RS-232 port of the product to a PC with a 3-pin phoenix connector cable. Then, open a Serial Command tool on PC to send ASCII commands to control the product. The ASCII command list is shown below. - Page 14 BZBGEAR BG-UHD-MVS41A PRODUCT MANUAL Command Code Function Description Example Feedback set output hdcp (x=1~3) 1. HDCP 1.4 s output hdcp x! s output hdcp 2! output HDCP: HDCP 1.4 2. HDCP 2.2 3. HDCP OFF r output hdcp! Get output hdcp status.
- Page 15 BZBGEAR BG-UHD-MVS41A PRODUCT MANUAL Command Code Function Description Example Feedback r output audio r output audio Get output audio mute on/off output audio mute: off mute! mute! Single Screen Mode Setting Enable/disable auto switch feature(x=0~1) s auto switch x! s auto switch 0! auto switch off...
- Page 16 BZBGEAR BG-UHD-MVS41A PRODUCT MANUAL Command Code Function Description Example Feedback r PBP mode! Get PBP windows display mode r PBP mode! PBP mode 1 Set PBP windows display aspect ratio s PBP aspect x! (x=1~2) s PBP aspect 1! PBP aspect: full screen 1.
-
Page 17: Application Diagram
BZBGEAR BG-UHD-MVS41A PRODUCT MANUAL Application Diagram · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 18: Tech Support
1.888.499.9906 support@bzbgear.com bzbgear.com Warranty BZBGEAR Pro AV products and cameras come with a three-year warranty. An extended two-year warranty is available for our cameras upon registration for a total of five years. For complete warranty information, please visit bzbgear.com/warranty. For questions, please call 1.888.499.9906 or email support@bzbgear.com. -
Page 19: Mission Statement
AVoIP, professional broadcasting, conferencing, home theater, to live streaming solutions. We pride ourselves on unparalleled customer support and services. Our team offers system design consultation, and highly reviewed technical support for all the products in our catalog. BZBGEAR delivers quality products designed with users in mind. ·... -
Page 20: Copyright
PRODUCT MANUAL Copyright All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual contains no guarantee, standpoint expression or other implies in any form. Product specification and information in this manual is for reference only and subject to change...
