Summary of Contents for BZBGEAR BG-UHD-MVS21A

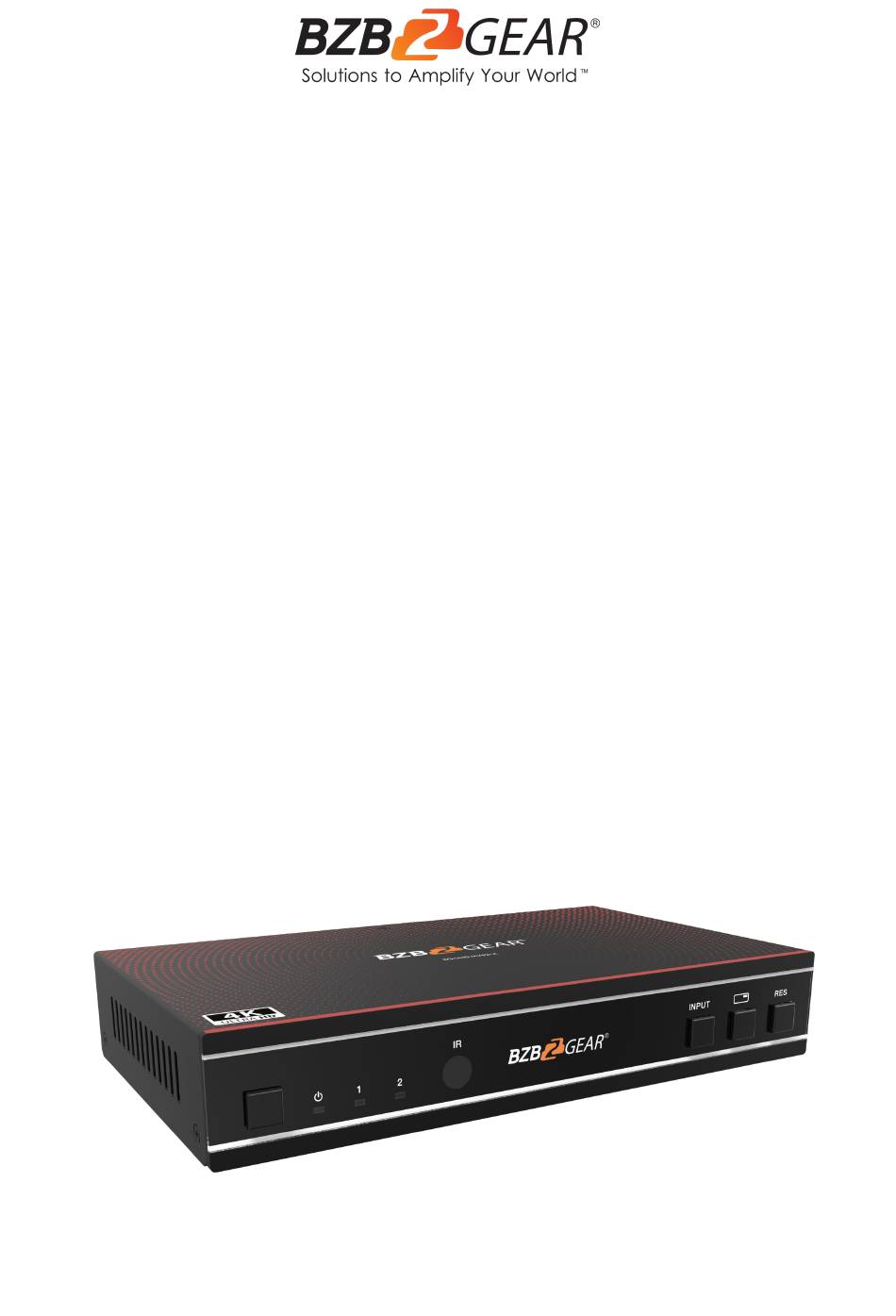

- Page 1 BG-UHD-MVS21A 4K60 2x1 Multiviewer Seamless UHD Video Switcher User Manual...
- Page 2 BZBGEAR BG-UHD-MVS21A PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 3: Table Of Contents
BZBGEAR BG-UHD-MVS21A PRODUCT MANUAL TABLE OF CONTENTS Statement Safety Precaution Introduction Features Packing List Specifications Operation Controls and Functions IR Remote EDID Settings Video & Audio Multiview OSD Menu Navigation RS-232 Command Application Diagram Tech Support Warranty Mission Statement Copyright ·... -
Page 4: Statement
● This product does not contain parts that can be maintained or repaired by users. Damage caused by dismantling the product without authorization from BZBGEAR is not covered under the warranty policy. ● Installation and use of this product must strictly comply with local electrical safety standards. -
Page 5: Introduction
The BG-UHD-MVS21A supports a full range of input video resolutions up to 4K@60 and audio de-embedding via RCA and optical S/PDIF for external audio distribution systems. -
Page 6: Specifications
BZBGEAR BG-UHD-MVS21A PRODUCT MANUAL Specifications Technical HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.2 / 1.x Video Bandwidth 18Gbps Video Resolution Up to 4K2K@60 4:4:4 IR Level 5Vp-p IR Frequency 38KHz Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0... -
Page 7: Operation Controls And Functions
BZBGEAR BG-UHD-MVS21A PRODUCT MANUAL Operation Controls and Functions Front Panel Name Function Description ▪ Short press this button to power on the device. Power button ▪ Long press this button for (1 second) to enter the standby mode. The Power LED will illuminate green when the product is powered Power LED on and red when the product is in standby. - Page 8 BZBGEAR BG-UHD-MVS21A PRODUCT MANUAL Rear Panel Name Function Description L/R port PCM 2.0 Analog audio output port. OPTICAL port Optical fiber S/PDIF digital audio output port. Connected to an HDMI display device such as a TV or Monitor with HDMI OUTPUT port an HDMI cable.
-
Page 9: Ir Remote
BZBGEAR BG-UHD-MVS21A PRODUCT MANUAL IR Remote 1. Power on or Standby: Press this button to power on the unit or set it to standby mode. 2. Baud: Press this button to pop up the OSD menu, then cycle through the serial port baud rates: 115200, 57600, 38400, 19200, 9600 3. -
Page 10: Edid Settings
BZBGEAR BG-UHD-MVS21A PRODUCT MANUAL EDID Settings Users can select following EDID modes via RS-232 commands: No. EDID Mode No. EDID Mode 4K60-2.0CH 1920x1200-2.0CH 4K60-5.1CH 1680x1050-2.0CH 4K60-7.1CH 1600x1200-2.0CH 4K30-2.0CH 1440x900-2.0CH 4K30-5.1CH 1360x768-2.0CH 4K30-7.1CH 1280x1024-2.0CH 1080P-2.0CH 1024x768-2.0CH 1080P-5.1CH 720P-2.0CH 1080P-7.1CH AUTO Video & Audio The switcher supports multiple resolutions for video input up to 3840x2160@60, and supports multiple audio formats such as LPCM, AC3, DD+, DTS, DTS- HD, up to 7.1... -
Page 11: Multiview
BZBGEAR BG-UHD-MVS21A PRODUCT MANUAL Multiview The switcher supports 4 categories of multiview display modes: SINGLE, PIP, PBP(1), PBP(2) Users can select different operations for different multiview modes as follows: User can select multiview modes via IR remote or RS-232 commands. -
Page 12: Rs-232 Command
BZBGEAR BG-UHD-MVS21A PRODUCT MANUAL RS-232 Command The product also supports RS-232 command control. Connect the RS-232 port of the product to a PC with a 3-pin phoenix connector cable. Then open a Serial Command tool on PC to send ASCII commands to control the product. The ASCII command list is shown below. - Page 13 BZBGEAR BG-UHD-MVS21A PRODUCT MANUAL Command Code Function Description Example Feedback r output res! Get output resolution r output res! out resolution: 3840x2160p60 set output hdcp (x=1~3) 1. HDCP 1.4 s output hdcp x! s output hdcp 2! output HDCP: HDCP 1.4 2.
- Page 14 BZBGEAR BG-UHD-MVS21A PRODUCT MANUAL Command Code Function Description Example Feedback Set output audio mute on/off (x=0~1) s output audio mute x! s output audio mute 0! output audio mute: off 0. mute off 1. mute on r output audio mute! Get output audio mute on/off...
-
Page 15: Application Diagram
BZBGEAR BG-UHD-MVS21A PRODUCT MANUAL Command Code Function Description Example Feedback Set PBP windows display aspect s PBP aspect x! ratio (x=1~2) s PBP aspect 1! PBP aspect: full screen 1. Full screen 2. 16:9 Get PBP windows display r PBP aspect! -
Page 16: Tech Support
Copyright All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual contains no guarantee, standpoint expression or other implies in any form. Product specification and information in this manual is for reference only and subject to change...
