Summary of Contents for Creality 3D Pad Mini

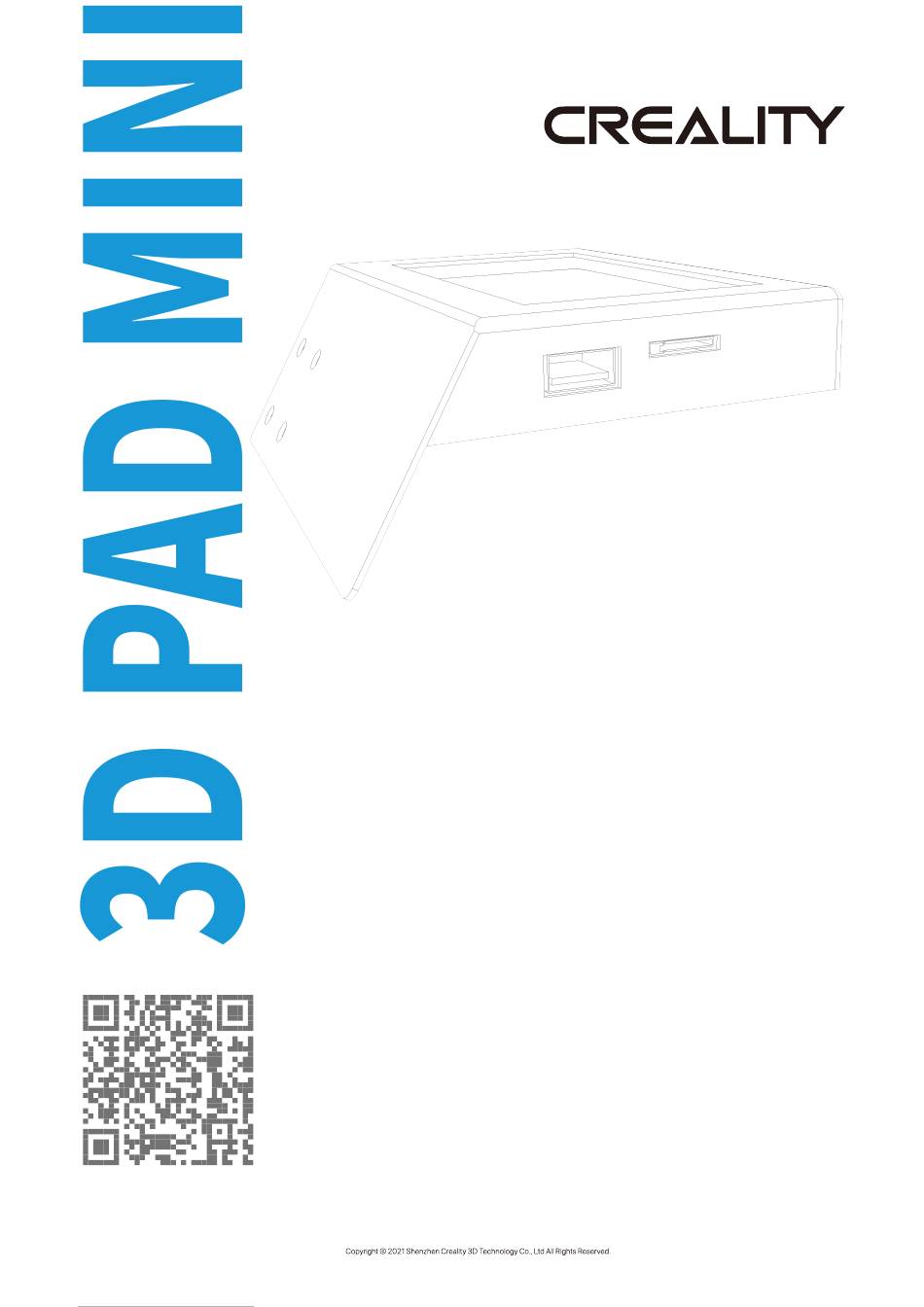

  • Page 1: Table Of Contents

    3D Pad Mini User Manual Specifications and Interface Description Installation Guide Firmware Upgrade,Notes and Maintenance Use the 3D Pad Mini Bed Leveling Creative 3D Usage...
  • Page 2: Specifications And Interface Description

    Specifications and Interface Description 3D Pad Mini Filament Sensor 4.3 Inches Screen Resolution (480*272) Beeper IIC Sensor Interface 3D Device Interface Filament Sensor Interface TF Card Slot USB 2.0...
  • Page 3: Installation Guide

    Installation Guide Filament XH2.54-3P Flat Cable Filament Sensor 3D Pad Mini FC-FD Flat Cable 3D Printer Before installation Installation completed...
  • Page 4: Firmware Upgrade,Notes And Maintenance

    firmware corresponding to the printer and upgrade the mainboard firmware Step 3: Insert the SD card into the 3D Pad Mini, power on, and wait for the 3D Pad Mini to read the card until the progress bar reaches 100% and displays "successful"...
  • Page 5: Use The 3D Pad Mini

    Use the 3D Pad Mini Step 1: ① 1.Select "Prepare" (Preparation before printing) ② ③ 2.Enter "Prepare→ Auto Home" and the nozzle return to the starting position 3.Select "Return" (Exit to the main interface)
  • Page 6 Step 2: ④ 4.Select "Print" (Go to the file selection) ⑤ 5.Select the file to print...
  • Page 7 Step 3: ⑥ 6.Click "Settings" (To enter the preheat interface) ⑦ ⑦ 7.It can adjust the nozzle temperature, bed temperature, print speed, Z axis movement, nozzle fan on/off...
  • Page 8 Step 4: ⑧ 8.Select "return" (The preheat temperature is up to the target temperature) ⑨ 9.Start printing...
  • Page 9: Bed Leveling

    Bed Leveling ① 1.Select "level" (In the main interface) ② ③ 2.Select"Z+" or "Z-" to adjust the Z axis up and down movement (Optional movement precision and auto leveling) 3.Select "Return" (Exit to the main interface)
  • Page 10: Creative 3D Usage

    Creative 3D Usage Software download: Software download link: https://www.creaity.com/download How to start the software: Open the software: Double-click "Creative3D" to open the application...
  • Page 11 Creative 3D software interface: ① ② ④ ⑤ ③ ① Main Menu ② Print Setting ③ Model Adjustment Toolbar ④ Slice Setting ⑤ Model View Print Setting: 1.Select the appropriate mode 2.Select the Gcode preview function...
