V1.0
Creality 3D Pad User Manual
For all FDM printers with USB connection and Marlin firmware

Advertisement

loading
Need help?

Need help?

Do you have a question about the 3D Pad and is the answer not in the manual?

Questions and answers

Summary of Contents for Creality 3D Pad

  • Page 1 V1.0 Creality 3D Pad User Manual For all FDM printers with USB connection and Marlin firmware...
  • Page 2: Parts Included

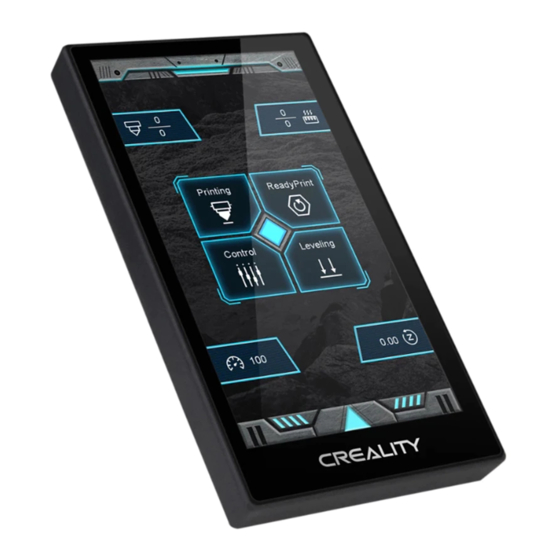

    1. Parts Included 5-inch high-definition screen Resolution (480*854) Creality 3D Pad Speaker TF card slot USB slot Communication port...
  • Page 3 3D printer USB Communication Interface Screen Communication Port Filament Run-out Sensor Port Communication Box Filament Run-out Sensor Port Filament Run-out Sensor...
  • Page 4 2. Installation Guide of Creality 3D Pad Marlin firmware FDM printer (Not Included) Filament Run-out Sensor Communication Box Creality 3D Pad 5V1A Charger (Not Included)
  • Page 5 3. Direction of Use for Creality 3D Pad 2. Creality 3D Pad安装说明 Print with 3D Pad ① Preparationbefore printing ② Auto Home ③ Return to Main Page ④ Click to Print ⑤ Select G-code File...
  • Page 6 ⑥ Printing Adjustment (Print head, hot bed temperature, speed & Z axis data adjustable) ⑦ Return to Print Page...
  • Page 7 Leveling Process ① Click to level ② Automatic leveling (Printer comes with automatic leveling) ③ Manual leveling...
  • Page 8 4. Direction of Use for Creative3D Slicing Software Double click Creative3D Open the App Firmware and slicing software download URL: https://www.creality.com/download Creality 3D Pad bracket download URL: https://www.crealitycloud.cn/model...
  • Page 9 ① Main Menu; ② Printer Setting; ③ Model Adjustment Window; ④ Slice Setting; ⑤ Model View Printer Setting Select Gcode Preview Function...
  • Page 10 Creality 3D Pad 3. Please plug printer and Creality 3D Pad separately, make sure that the printer is plugged earlier than Creality 3D Pad, or at the same time at least. 4. Creality 3D Pad comes with filament run-out sensor, plug and print.
