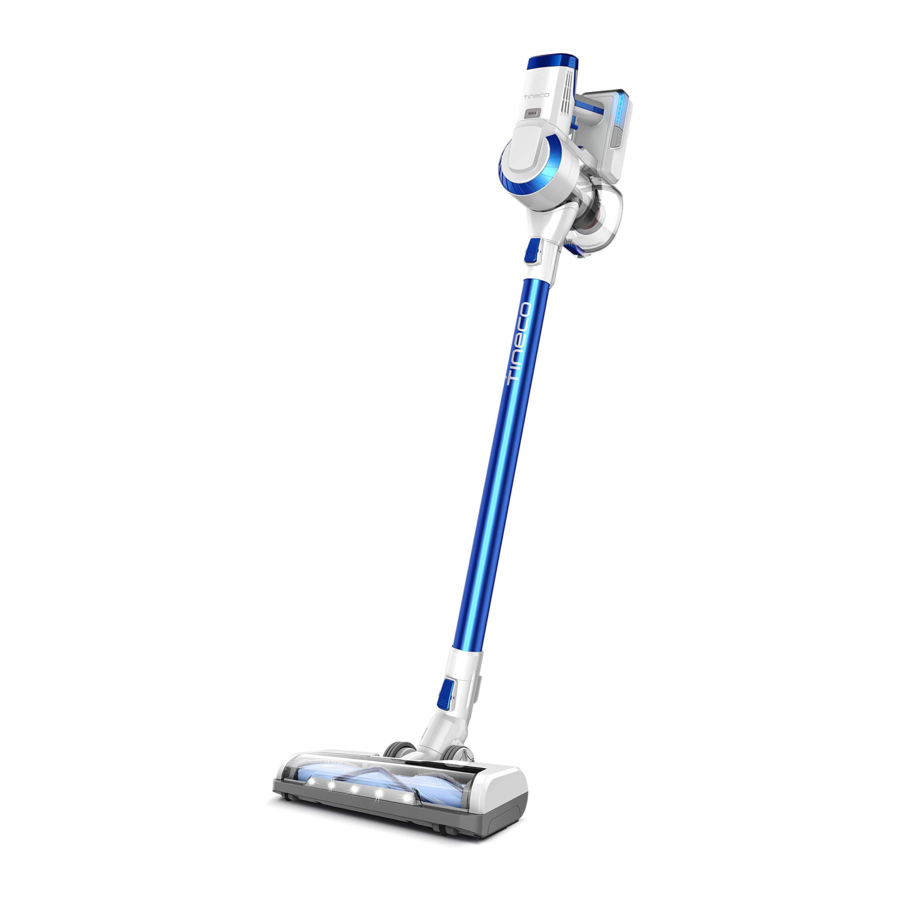

Tineco A10 Series - Stick Vacuum Cleaner Manual

Important Safety Instructions

SAVE THESE INSTRUCTIONS

Household use only.

When using an electrical appliance, basic precautions should always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING (THIS APPLIANCE). Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

To reduce the risk of fire, electric shock, or injury:

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children should not play with the appliance. Cleaning and user maintenance shall not be performed by children without supervision.
2. The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
3. For INDOOR use ONLY. Do not use the appliance outdoors, nor in commercial or industrial environments. Do not use the appliance on wet surfaces or surfaces with standing water.
4. Do not allow to be used as a toy. Close attention is necessary when used by or near children, pets or plants.
5. Use only as described in this manual. Use only manufacturer's recommended attachments.
6. Do not use with a damaged cord or plug. If appliance has been dropped, damaged, left outdoors, dropped into water, or is not working as it should, return it to a service center.
7. Do not handle charger, including charger plug, and charger terminals with wet hands.
8. Do not block openings. Stop use if openings become blocked. Clean and remove any blocked objects according to the manual instructions.
9. Keep hair, loose clothing, fingers, and all parts of your body away from openings and moving parts.
10. Use extra care when cleaning on stairs.
11. Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
12. Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
13. Do not use without a filter.
14. Prevent unintentional activation. Ensure the switch is in the off position before connecting to the battery pack, picking up or carrying the appliance. Carrying the appliance with your finger on the switch or powering on the appliance with the switch on may cause accidents.
15. Disconnect the battery pack from the appliance before making any adjustments, changing accessories, storing the appliance. Such preventive safety measures reduce the risk of starting the appliance accidentally.
16. For the purposes of recharging the battery, only use the detachable supply unit provided with this appliance. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
17. Use appliances only with specifically designated Tineco battery packs. Use of any other battery packs may create a risk of injury and fire.
18. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
19. Under improper usage, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid comes into eye contact, seek medical help. Liquid ejected from the battery may cause irritation or burns.
20. Do not use a battery pack or appliance that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.
21. Do not expose a battery pack or appliance to fire or excessive heat. Exposure to fire or temperatures above 266°F (130°C) may cause an explosion.
22. Follow all charging instructions and do not charge the battery pack or appliance outside of the temperature range specified in the instructions. Charging improperly or at temperatures outside of the specified range may damage the battery and increase the risk of fire.
23. Have servicing performed by a qualified repair person using only identical replacement parts. This will ensure that the safety of the product is maintained.
24. This appliance contains battery cells that are non-replaceable. Do not modify or attempt to repair the appliance or the battery pack except as indicated in the instructions for use and care.
25. Always turn off this appliance before connecting or disconnecting the motorized nozzle.
26. Do not charge or store the appliance outdoors or inside a car. Only charge, store or use the battery in a dry indoor area where the temperature is higher than 39.2°F (4°C) but lower than 104°F (40°C). The charger is for indoor use only.

Overview

1. MAX mode
2. Dust empty release button
3. Dustbin
4. Trigger lock
5. Trigger
6. Dustbin release button
7. Battery release button
8. HEPA release button
9. Battery indicator light
10. Rubber handle
11. Battery pack

Accessories

Note:

• Test an accessory on a small, inconspicuous area before use on sensitive surfaces.
• The packaging box shows which accessories are included with your purchase.
• As shown below, there are many components compatible with this model. If you require more accessories, please go to www.tineco.com or store.tineco.com.

Full-size LED multi-tasker power brush

Ideal for both hard floors and carpets.
Very effective for dislodging dirt embedded in the carpet.

Mini power brush

For vacuuming upholstered furniture, mattresses, etc. Vacuums pet hair and removes ingrained dirt.

2-in-1 dusting brush

Switches between a wide and a soft brush by pressing the release button. The soft brush is most effective on hard-surface furniture while the wide brush is effective for upholstered furniture, curtains, etc.

Crevice tool

For corners, nooks, and other hard-to-reach places such as around car seats, picture frames, and cupboards.

Soft dusting brush

Angled bristles on a slender, oval-shaped rim provide anti-static, cushioned contact. Suitable for dusting shelves, lighting, delicate surfaces, electronics and more.

Flexible long crevice tool

Easy to bend, easy to reach tight spots. Suitable for cleaning dust behind and beneath furniture, around refrigerators, and many other tight gaps.

Full-size LED soft-roller power brush

Perfect for hard floors, especially sensitive wood floor. Picks up coarse and fine dirt at the same time.

Multi-angle folding tube

An articulated joint makes it adjustable to allow for flexibility when cleaning from high to low.

Flexible extension hose

Excellent extension and flexibility to access hard-to-reach spaces; perfect for in-care use.
Compatible with all non-motorized Tineco accessories.

Pre-filter cleaning tool

A dirty filter is a leading cause of suction loss, and this tool is designed to make your filter last much longer. Place the dirty filter inside the pre-filter cleaning tool and close the lid. Run the appliance in MAX mode, and rotate the side cover.

Hair cleaning tool

Use the end with the small blade to remove hair and debris wrapped around the roller.
Use the end with the brush to clean the brush window, and the dustbin, as required.

Assembly

Tube Installation

Insert tube.

Press the release button to remove the tube.

Brush Installation

Insert the power brush.

Press the release button to remove the power brush.

Dustbin Installation

To clean the dustbin more thoroughly, press the dustbin release button to detach from the appliance.

When re-attaching the dustbin, hold on an angle and slot the top of the dustbin into the hook on the main body. Push upwards until the hook is fixed into the slot on the dustbin and then it clicks back into place.

Battery Installation

Press the battery release button, and remove the battery.

To replace, slide the battery into the slot at the base of the main body. The battery will click into position when correctly fitted.

Wall-mounted Dock Installation

1. Install the accessory bracket to the rail of the wall-mounted dock and push the clip into the slot to complete the assembly.
2. Stuck the power cord onto the slot behind the wall-mounted dock. Start from the plug end and reserve about 5.9" (15cm) power cord to ensure that the plug can reach the charging outlet.
3. Install the wall-mounted dock to the wall with the nails provided by Tineco.

Determine the best wall location for mounting the dock. We recommend placing it 43.3" (110cm) from the lower screw hole to the floor (may need to be adjusted based on the actual situation).

• Ensure the wall surrounding the mounting area is free of gas, water pipes, electrical cables and wires.
• To avoid the dock falling, ensure it is firmly installed.

Operation

Preparing for Use

Note:

• Before the first use, please charge the appliance (see "Charging the Battery") for 3-4 hours in an area where the ambient temperature is between 39.2°F (4°C) and 104°F (40°C).
• Select an accessory and attach it to the appliance before use (see "Accessories").

Pull the trigger to activate the suction. Pull the trigger lock to hold the trigger for continuous power mode.

Press the MAX button to switch between regular mode (regular power) and MAX mode (max power).

• Place the appliance on the wall-mounted dock for convenient storage and recharging after use.

Place the main body on the dock.

To avoid bristle damage, always place attachments on the dock after use.

Emptying the Dustbin

Press the release button on the side of the dustbin to empty the contents.

Close and click the dustbin flap back into place.

Charging the Battery

Place the main body with the battery on the charging dock, plug in the adaptor and charging port, three blue lights blinking successively shows charging correctly.

Or charge the battery separately: open the cover above and put the battery in the upper groove, then plug in the adaptor and charging port, three blue lights blinking successively shows charging correctly.

Note:

• If you need a spare battery, please purchase from Tineco.

• Only use the Tineco-provided adapter to charge the battery.
• During long periods of not being used, store the lithium battery in a cool, dry place. Ensure the battery is half-charged every 3 months (2 battery indicators glow on regular mode).
• Store appropriately indoors in a dry place. Do not expose appliance to sunlight or freezing temperature. Recommended temperature range: 39.2°F (4°C)~104°F (40°C).

Runtime

• When in regular mode, the runtime is approximately 25 minutes. When MAX power is used, the runtime is approximately 10 minutes.
• Estimated runtime data was obtained by a Tineco Laboratory using one battery and non-motorized accessories.

Charging Time

• A full charge takes approximately 3-4 hours for one battery.
• Estimated data was obtained by a Tineco Laboratory using ambient temperatures between 39.2°F (4°C) to 104°F (40°C).

Indicator

When in Use

	Three solid blue lights: full power.
	Two solid blue lights: medium power.
	One solid blue light: low power.
	One blinking red light: out of power, the appliance is blocked, or the battery is overheated.
	One blinking pink light: the filters or suction mouth is blocked.

During Charging

	Three blue lights blinking successively: charging.
	One blinking red light: fault, check the troubleshooting guide.

Fully Charged

	In 5 minutes: three solid blue lights.
	After 5 minutes: lights off.

Maintenance

Note:

• Clean the dustbin and filters after each use.
• Use the cleaning tool to thoroughly clean the pre-filter when pink light blinking. To maintain high performance, wash and dry the pre-filter monthly, replacing it every 6 months.
  Wash and dry the HEPA filter every 3 months, replacing it every 12 months.

Dustbin and Mesh Filter

1. Press the dustbin release button to remove the dustbin.

2. Clean with a damp cloth, taking care to prevent water entering the appliance main body and battery.

3. Turn counter-clockwise to remove the filters.

4. Clean the dustbin and mesh filter under cold, running water. Air dry completely before reinstalling.

5. After cleaning, insert the clean pre-filter into the mesh filter properly and it clicks into place. Install the clean filter and dustbin back into the main body, then close the dustbin flap.


Pre-filter

Ensure the appliance is switched off before cleaning, and remove the dirty pre-filter from the mesh filter-holder.

Do not turn the appliance upside down when removing or installing the filter to prevent dust from entering the motor.

Replace a clean filter to the main body. Put the dirty pre-filter into the cleaning tool and connect the cleaning tool to the main body.

Run the appliance in MAX mode, and rotate the side cover to clean the dirty pre-filter.

HEPA Filter

Press the HEPA release button and gently remove for cleaning. Do not use the appliance without first installing the HEPA filter.

Do not place the appliance in the direction as above when removing or installing the HEPA filter, to prevent dust from entering the motor.

The HEPA filter can be washed under running water and must be completely dry before reinstalling.

Brush Roller

1. Use a coin or other tool, to unlock the brush roller lock, then remove the brush from the brush window.

2. Remove the debris wrapped around the roller with the Tineco Hair Cleaning Tool.

3. Gently clean the transparent brush window.

4. After cleaning, reinstall the brush.


• The power brush contains electrical components which must not be soaked or washed with water.

Specifications

Product	A10 Series
Voltage	21.6V
Rated Power	350W
Dustbin Capacity	0.4L
Charging time	3-4 hrs
AC Input	100-240V~

Disposal

• The battery contains materials that are harmful to the environment and must be removed from the appliance before it is discarded.
• When removing the battery, the appliance must be powered off.
• Batteries, chargers, accessories and packaging should be sorted for environmental friendly recycling. Do not put them into fire, water or soil. Do not dispose of batteries and chargers into household waste!
• If battery leakage contacts skin or clothing, immediately flush with water to avoid irritation and seek medical help.

Troubleshooting

Note:
If the above troubleshooting guide fails to provide a solution, please visit our website www.tineco.com for further support.
