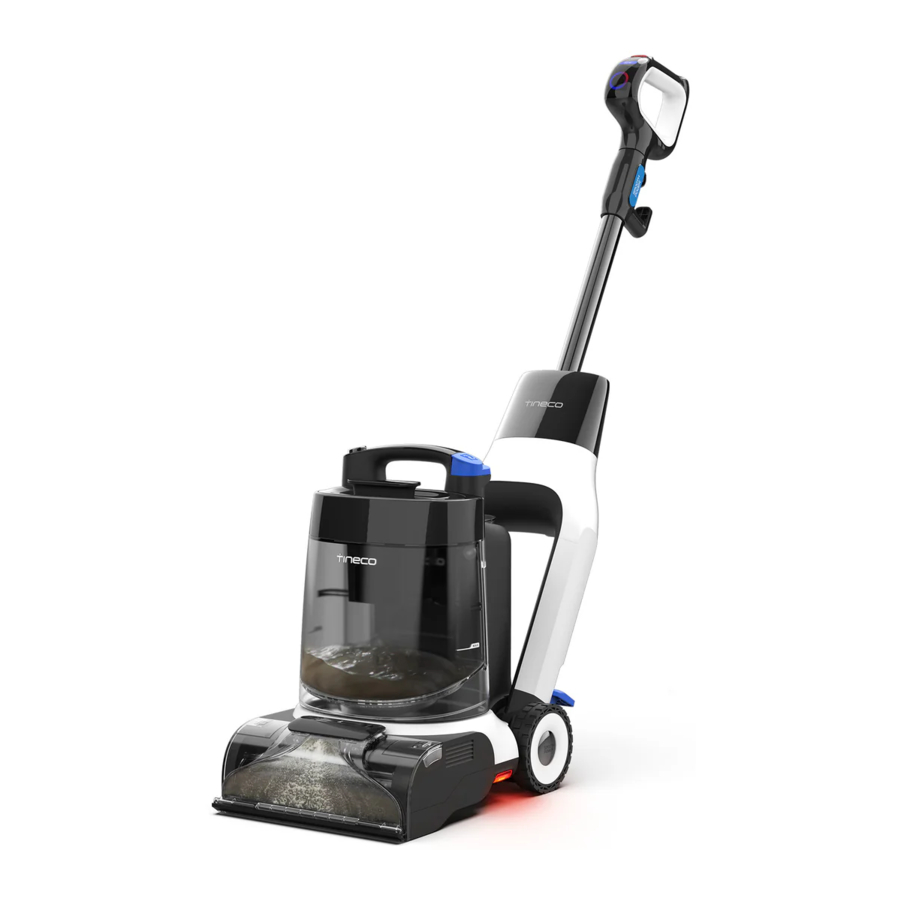

Tineco CARPET ONE CRUISER Manual

Overview

1. Self-cleaning Button
2. WiFi/Mute/Language Switch Button
3. Cord Wrap
4. Filter Chamber
5. Recline Pedal
6. Cleaning Tool
7. Dryness Indicator
8. Storage Tray
9. Power On/Off
10. Mode Switch Button
11. Drying Button
12. Digital Display
13. Tube
14. Clean Water Tank Cap

15. Water Tank Release Button
16. Dirty Water Tank Lid
17. Propulsion Assist
18. 2 in 1 Water Tank
19. Suction Port Door
20. Brush Cover Release Button
21. Brush Roller Release Button
22. Hair Cleaning Tool
23. Tineco Solution (Solutions may vary among markets)
24. 2 in 1 Nozzle
25. Tray Handle
26. Accessory Hose

Digital Display

1. Self-cleaning Indicator
2. Dryness Indicator
3. Dirt Monitoring Loop (Blue to red according to the dirt amount)
4. MAX Mode
5. AUTO Mode

6. Accessory Mode
7. WiFi Indicator
8. Filter Chamber
9. DWT Full or Blocked
10. CWT Empty
11. Brush Roller Blocked or Assisted Steering Wheel Failure

Accessories

Note: Accessories may vary among markets. If you require more accessories, please go to www.tineco.com or store.tineco.com.

	Pre-treat Formula Great for a variety of stains, this stain remover formula loosens tough, set-in stains & odors, and it works with Tineco Carpet One Series perfectly.
	Carpet Care & Deep Cleaning Solution Removes dirt, grime, grease and tough stains from most types of carpets. Always use Tineco solution in your appliance. Add two bottle caps of solution to each full tank of clean water.
	Cleaning Tool A full brush to clean the DWT, brush chamber and opening. The tool also has a bristled end to remove dirt and mud on the roller and DWT.
	2 in 1 Nozzle Remove stubborn stains on the carpet & upholstery.
	Sponge Filter Sponge filter can block large particles and debris, ensure the appliance's durability. * Please reinstall the sponge filter after maintenance, or it may lead to weak suction gradually.
	Hair Cleaning Tool Use the end with small blade to remove hair wrapped around the roller.
	Accessory Hose A 2.5-meter hose to connect the appliance and the accessory brush.

Assembly

How to Assemble/Disassemble

To assemble the handle, insert it into the appliance until you hear a "click".

In the event that the handle needs to be disassembled, press the spring to release the handle with a tool (like a screwdriver) and lift the released handle from the appliance.

Wrap the power cord around the cord hooks for convenient storage.

Water Tank

Press the water tank release button and lift the handle to remove it.

Install the Clean Water Tank into the appliance. You should hear a "click" if done correctly.

Accessory Hose & 2 in 1 Nozzle

Pinch the suction port door latch, and rotate the suction port door open to uncover the hose connection port.

Insert the hose end into the port. You should hear one "click" if done correctly.

Operation

Preparing for Use (Appliance)

Unwrap the power cord and plug into an electrical outlet.

Step on the recline pedal to recline the unit to cleaning position.
Tips:

• Press the button to adjust the voice volume.
• Press the button twice to switch languages.
• Press & hold for 3s to connect/disconnect WiFi.

Open the tank cap, add two bottle caps of solution to the CWT, then fill with tap water to the Max line and tightly close the cap.

Note: Only use water under 140°F/60°C. DO NOT USE HOT WATER.

• Press the button and the appliance will start in AUTO mode by default. Press it again to turn off the appliance. Switch between AUTO and MAX mode by pressing the button.
• Switch the appliance to Drying mode at any cleaning modes by pressing the button. Press the button again to switch back to cleaning modes.

In AUTO/MAX/DRYING mode, the appliance will stop working when put uprightly and start running again when reclined. In ACCESSORY mode, the appliance will only work when stand uprightly.

Note:

• Pretreat spots and heavy traffic areas with Tineco Pretreat Cleaning Solutions to achieve better cleaning effect. Follow Directions on bottle.
• The carpet cleaner differs from the traditional vacuum cleaner.
• In all modes, it blows hot air, whose temperature is 158-176°F (70-80°C). * Appropriate temperature is conducive to dissolve the dirt and helps surfactant in the solution to decompose the dirt.
• In AUTO/MAX mode, it sprays water when moving forward and stops spraying when moving backward.
• Take a spot test on a small and marginal area of the carpet for colorfastness. Gently rub surface with a damp white cloth. Then wait for ten minutes and check for color removal.
• During use, don't keep the appliance at a resting position for a long time.
• Important: Keep the foot of the deep cleaner perpendicular to the rug's edge with each cleaning pass to prevent damage.
• Important! Please check manufacturer's tag before cleaning area rugs for any specialized cleaning instructions. It's not advisable to perform deep cleaning on delicate, silk, wool, antique or area rugs without a manufacturer's tag.
• Some Loop Berber carpets, Natural Fiber (including silk and wool), and Soft Fiber carpets can fuzz with wear. Some vacuums & carpet cleaners can worsen this carpet wear. If cleaning on Berber, Natural Fiber, or Soft Fiber carpeting, first test on a small hidden area of carpet by running the carpet washer over it. If no fuzzing or overwetting occurs, continue cleaning. Avoid overwetting Berber carpets. If you have any questions or concerns, consult with your carpet manufacturer on deep cleaning recommendations.
• Avoid using it on rugs or carpets that require dry cleaning.
• For upholstery, check cleaning code - Use your Tineco Carpet Washer only if the upholstery fabric is marked with a "W" (for "wet" clean) or "S/W" (for "solvent/dry" or "wet" clean). Do not clean fabric marked "S" ("solvent/dry" clean only). If your upholstery does not have a code, seek professional assistance.
• Test for colorfastness - Wet a white absorbent cloth with the solution. In a small, hidden area, gently rub the surface with the dampened cloth. Wait for ten minutes and check for color removal.

Preparing for Use (Accessory Hose & 2 in 1 Nozzle)

Attach the accessory hose, stand the appliance upright and ensure that it is powered on ( if not, press the button), the appliance will enter ACCESSORY mode, the appliance will stop working when reclined.

Please rinse and let dry after use, then store the accessory in the bag afterwards.
Note: Do not vacuum foamed liquid. If additional cleaning is necessary, wait until the upholstery is completely dry before using the tool again to achieve better cleaning effect.

App
All the functions can be performed using the Tineco app. Download the Tineco app from App Store, Google Play and Tineco Official Site.


www.tineco.com

Support

App Downloads

Note: The default setting for voice prompt is English, you can change it to other languages via App or by pressing the language switch button twice.

Cleaning Mode Selection

AUTO Mode

• In AUTO mode, the iLoop sensor automatically detects how dirty the carpet is and applies the appropriate volume of water spray.
• A red dirt monitoring loop indicates more dirt is detected, and a blue loop indicates less dirt is detected. This mode automatically provides the best cleaning solution.

MAX Mode

• In AUTO mode, press the button to enter MAX mode.
• The iLoop still displays the dirty amount, yet the spray volume keeps at the maximum.

ACCESSORY Mode

• Ensure the appliance is powered on (if not, press the button), the appliance will enter ACCESSORY mode once the hose attachment is inserted. Press and hold the trigger on the 2 in 1 Nozzle to spray water.
• Stand the appliance upright, remove the accessory hose, the appliance will enter AUTO mode.

DRYING Mode

• In any cleaning modes, press the button to enter DRYING mode. In DRYING mode, the dryness indicator and iLoop ring will change. Red indicates drying, Blue means dried, meanwhile, the iLoop ring will display the real-time dryness level.
• Press the button to switch to AUTO mode.

Indicator

	Solid red light: dirt sensor malfunction or blocked.
	Indicator blinking: appliance is in need of self-cleaning.
	Black screen: appliance malfunction.
	Indicator illuminated: CWT is empty.
	Indicator illuminated: DWT is full or not installed.
	Illuminated: WiFi has successfully connected.
	Blinking: WiFi is connecting.
	Off: WiFi is not connected, please connect to the network.
	Indicator illuminated: Brush Roller is blocked or Assisted Steering Wheel Failure
	Indicator illuminated: Filter Chamber Blocked.

Voice Prompt (Contents may vary, please in kind prevail.)

Status	Reminder
Voice prompts on	Voice prompts on
Voice prompts disabled	Voice prompts disabled
AUTO mode by default	AUTO mode
Switch to MAX mode	MAX mode
Switch to DRYING mode	DRYING mode
Switch to Accessory mode	Accessory mode
Unable to use Accessory mode	Stand the appliance upright to apply Accessory mode
Accessory installed, start cleaning	Accessory installed, start cleaning
Accessory removed, start AUTO mode	Accessory removed, now in AUTO mode
Clean Water Tank is empty	Insufficient water in the Clean Water Tank. Please fill up water
Dirt sensor malfunction or blocked	Clean the channel under the dirty water tank
Dirty Water Tank is full	Please check the dirty water tank
Filter Chamber Blocked	Filter chamber blocked, please empty
Brush roller is tangled	Please clean the brush roller
In Accessory mode, switch to other modes	Remove Accessory before using other modes
Operate Accessory mode	Stand the appliance upright to start Accessory mode
Stand the appliance upright	Stand the appliance upright
Shutting down	Shutting down
Power is off	Power off, please clean the dirty water tank
Restore factory settings	Factory settings restored
Self-cleaning starts	Self-cleaning has started
Self-cleaning complete	Self-cleaning complete
The appliance needs self-cleaning	Please place appliance on the storage tray to begin self-cleaning
Carpet detected dried	Heated drying completed, please check the result
Brush Roller Blocked	Please clean the brush roller
Assisted Steering Wheel Failure	Please check the assisted steering wheel

Maintenance

Note:

• For optimal performance and to prevent odors, always clean and dry the water tank, filters, brush roller, brush roller cover, 2 in 1 nozzle completely after each use.
• Please make sure each part is installed correctly or the appliance may not work properly.
• After maintenance, place the appliance vertically. Do not expose the appliance to direct sunlight, and store it indoors in a dry place.

Brush Roller Self-cleaning

1. Place the appliance on the storage tray after use.
2. Plug it in, and press the self-cleaning button on top to start self-cleaning.
3. Once complete, please clean up the water tank.

Note: Before self-cleaning cycle, please plug in and ensure the water level in the CWT exceeds 40%.

Main Body

To reduce the risk of injury, switch off before performing maintenance.

Use a cloth to clean the surface with a neutral detergent. The cloth should be dry to prevent water from entering the appliance.

Remove the water tank, clean the dirt sensor with a damp cloth or the cleaning tool.

Filter Chamber

Grab the grip and pull out the filter chamber.

Empty the filter chamber regularly to avoid blockages.

Take out the lid.

And you should hear a "click" when installed correctly.

2 in 1 Water Tank

• When dirty water reaches the Max line, the appliance will stop working and show a reminder on the display and play a voice prompt.
• Grab the tank handle and press the release button on handle.
• Pull up the tank lid to empty the DWT. Use the cleaning tool to remove remaining debris. Rinse the inside of the DWT & tank lid and place back into the appliance.

Brush Roller Cover

• Press roller cover release button on both sides of the cover and take the cover out when it pops out.
• Then pinch the Suction Port Door latch, rotate upward to open, rinse with water.

Brush Roller

Take out the hair cleaning tool before pulling out the brush roller.

Using the cleaning tool, remove the hair and debris wrapped around the roller and rinse with water. Allow it to dry completely before reinstalling.

Remove the brush roller by squeezing the brush roller tab and pulling out.

Place the brush roller back by inserting the brush roller end into the right side of the holder, then attach the roller tab to the left side to lock into place.

Accessory Hose & 2 in 1 Nozzle

Press the buttons on both sides to remove the hose.

Press the release button to remove the accessory brush.

Rinse with water. Allow it to dry completely before reinstalling.

SCAN THE QR CODE BELOW TO GET PRODUCT CARE VIDEOS.

Troubleshooting

Problem	Possible cause	Solution
The appliance does not turn on	The power cord is not plugged in, or the socket is not energized	Ensure that the socket is energized and the power cord is plugged in
LED loop illuminates red Voice prompt: Clean the channel under the dirty water tank	Dirt sensor malfunction or blocked Channel has a blockage Sponge filter is dirty	Remove blockages Clean the debris channel Clean the sponge filter
CWT empty indicator illuminated Voice prompt: Pleasde add clean water or solution to clean water tank	CWT is empty	Refill CWT
DWT full indicator illuminated Voice prompt: Dirty water tank full, please empty Please check the dirty water tank	The dirty water in DWT has reached the MAX line	Empty the dirty water and then reinstall the DWT
Malfunction indicator illuminated Voice prompt: Please clean the brush roller Please install the brush roller cover Assisted Steering Wheel failure, please put the appliance upright to restart	The brush roller is blocked Assisted steering wheel failure	Remove blockages Put the appliance upright to restart
Filter Chamber Indicator illuminated Voice prompt: Filter chamber blocked, please clean the filter mesh	Filter Chamber Blocked	Remove blockages Empty the filter chamber Clean the filter mesh

Note: If the above troubleshooting guide fails to provide a solution, please visit our website www.tineco.com for further support.

15. Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
16. Do not use without filter.
17. To reduce the risk of electric shock, always install float before any wet pick-up operation.
18. Prevent unintentional activation. Ensure the switch is in the off-position before picking up or carrying the appliance. Carrying the appliance with your finger on the switch or energizing appliance that have the switch on invites accidents.
19. Always switch off the appliance before making any adjustments, changing accessories, or storing the appliance. Such preventive safety measures reduce the risk of starting the appliance accidentally.
20. TO REDUCE THE RISK OF ELECTRIC SHOCK – UNPLUG BEFORE CLEANING OR SERVICING. UNPLUG BEFORE CONNECTING HOSE.
21. Always turn off this appliance before connecting or disconnecting the motorized nozzle.
22. Turn off all controls before unplugging.
23. Do not leave appliance when plugged in. Unplug from outlet when not in use and before servicing.
24. Do not use to pick up ultrafine particles, such as lime, cement, sawdust, gypsum powder, or ashes.
25. Do not use to pick up sharp objects, such as metallic nails, pieces of glass, metal paper clips, or pins.
26. Do not use to pick up hazardous material and chemicals, such as solvent, drain cleaner, strong acids, or strong alkali.
27. Stop using immediately if the appliance is overheating, making unusual noises, producing unusual odors, performing low suction, or leaking electricity.
28. Turn cleaner OFF and disconnect from electrical outlet for long-term storage.
29. Always clean the Dirty Water Tank after each use to avoid potential blockage, which may lead to low suction power, motor overheating, or reduce the service life of the appliance.
30. Do not expose to rain.
31. Store appropriately indoors in a dry place after use.
32. Do not place or submerge appliance in standing water or try to clean flooded areas.
33. The plug must be removed from the socket-outlet before cleaning or maintaining the appliance.
34. A hazard may occur if the appliance runs over the supply cord.
35. Connect to a properly grounded outlet only.
36. To reduce the risk of fire and electric shock due to internal component damage, use only Tineco cleaning fluid/solution: Carpet Deodorizing & Cleaning Solution intended for use with this appliance. See the Cleaning Fluid/Solution section of this manual.
37. Do not turn over nozzle, or touch the bottom surface of the nozzle when using the dry function.
38. Do not use appliance in an enclosed space filled with vapors given off by oil base paint, paint thinner, some moth proofing substances, flammable dust, or other explosive or toxic vapors.

39. Do not store cleaner with solution in Clean Water Solution Tank or dirty water in Dirty Water Tank. Mineral deposits and mildew can form which will affect the performance of your carpet cleaner.
40. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Range of Usage

1. The Carpet washer is to be used on carpets, such as level loop, etc.
2. Some Loop Berber carpets, Natural Fiber (including silk and wool), and Soft Fiber carpets can fuzz with wear. Some vacuums & carpet cleaners can worsen this carpet wear. If cleaning on Berber, Natural Fiber, or Soft Fiber carpeting, first test on a small hidden area of carpet by running the carpet washer over it. If no fuzzing or overwetting occurs, continue cleaning. Avoid overwetting Berber carpets. If you have any questions or concerns, consult with your carpet manufacturer on deep cleaning recommendations.
3.
   Keep the foot of the deep cleaner perpendicular to the rug's edge with each cleaning pass to prevent damage.
4.
   Please check manufacturer's tag before cleaning area rugs for any specialized cleaning instructions. It's not advisable to perform deep cleaning on delicate, silk, wool, antique or area rugs without a manufacturer's tag.
5. When cleaning area rugs, place the rug on a sealed surface to test for colorfastness in an inconspicuous area. Your cleaner should not be used on unsealed surfaces.
6. Avoid using it on rugs or carpets that require dry cleaning.
7. For upholstery, check cleaning code - Use your Tineco Carpet Washer only if the upholstery fabric is marked with a "W" (for "wet" clean) or "S/W" (for "solvent/dry" or "wet" clean). Do not clean fabric marked "S" ("solvent/dry" clean only). If your upholstery does not have a code, seek professional assistance.
8. Test for colorfastness - Wet a white absorbent cloth with the solution. In a small, hidden area, gently rub the surface with the dampened cloth. Wait for ten minutes and check for color removal. If surface has more than one color, check all colors.
9. Keep your appliance away from heat sources, such as fireplace or heater, to avoid casing deformation.
10. Do not use to pick up flammable or combustible liquids, ultrafine particles, sharp objects, hazardous material, chemicals or anything that is burning or smoking, as described above.

About Cleaning Fluid/Solution

1.
   To Reduce the Risk of Fire and Electric Shock due to internal component damage, use only Tineco Carpet Cleaning Solution intended for use with the appliance.
2. A large amount of cleaning solution entering into the motor may cause damage to theappliance. Don't shake the machine violently.
3. Add solution as instructed in the Operation section. We recommend using the provided cleaning solution.
4. Keep out of the reach of children. Avoid contact with eyes and skin, otherwise, rinse thoroughly with water. If irritation persist, seek medical advice. If product is swallowed seek medical advice.
5. Dirty water and solution disposal should comply with local environmental regulations.

About the Appliance

1. Do not modify or attempt to repair the appliance except as indicated in the instructions for operating and cleaning.
2. Use extra care when cleaning on stairs.
3. Ensure that the Power Switch is in the OFF-position and unplug before picking up or carrying the appliance. Do not lay flat or lean the appliance so as to prevent dirty water from entering into the motor.
4. Always install the Dirty Water Tank and Clean Water Tank properly before use.
5. Do not allow the appliance to get wet to avoid risk of fire or injury caused by a short circuit.

Symbols:

	Read the instruction manual
	For indoor use only
	Alternating current
	Power On/Off
	Mode

Specifications

• All data and technical instructions of this manual are based on results from lab tests of Tineco or designated third parties. The company reserves all rights for final explanations.

Documents / Resources

References

• Floor Washers, Carpet Cleaners, Vacuums & More | Tineco
• Shop Tineco Wet Dry Vacuum & Tineco Vacuum - Tineco US Official Store
• App Store - Apple
• Google Play

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Tineco CARPET ONE CRUISER Manual
