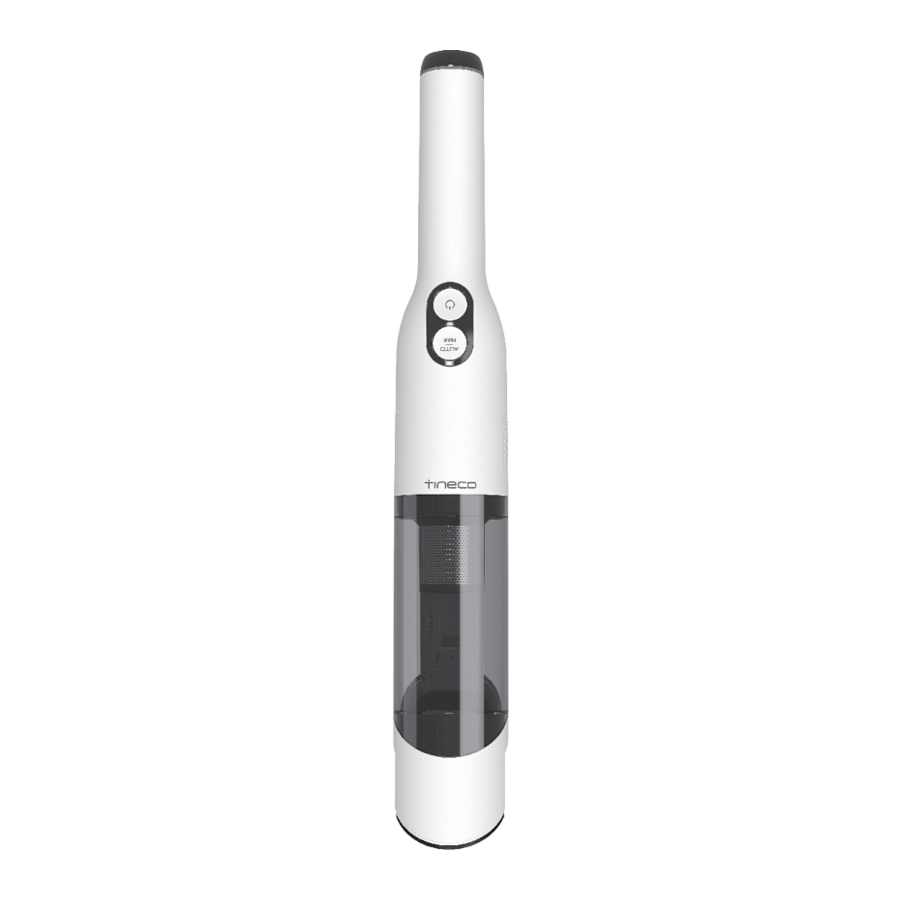

Tineco PURE ONE MINI S4 - Smart Cordless Hand Vac Manual

Also See for PURE ONE MINI S4:

Instruction manual (18 pages)

Table of Contents

Contents

1 Important Safety Instructions
2 Overview
3 Accessories
4 Assembly
5 Operation
6 Maintenance
- 6.1 Dustbin
- 6.2 Mesh Filter & HEPA Filter
7 Specifications
8 Disposal
9 Troubleshooting
10 Documents / Resources
- 10.1 References
- 10.2 Download manual

Tineco PURE ONE MINI S4 - Smart Cordless Hand Vac Manual

Important Safety Instructions

SAVE THESE INSTRUCTIONS
Household use only.

When using an electrical appliance, basic precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING (THIS APPLIANCE).

burn hazard shock hazard
Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

burn hazard
To reduce the risk of fire, electric shock, or injury:

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children should not play with the appliance. Cleaning and user maintenance shall not be performed by children without supervision.
The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
Do not use the appliance outdoors, nor in commercial or industrial environments. Do not use the appliance on wet surfaces or surfaces with standing water.
Do not allow to be used as a toy. Close attention is necessary when used by or near children, pets or plants.
Use only as described in this manual. Use only manufacturer's recommended attachments.
Do not use with a damaged cord or plug. If appliance has been dropped, damaged, left outdoors, dropped into water, or is not working as it should, return it to a service center.
Do not handle charger, including charger plug, and charger terminals with wet hands.
Do not put any object into openings. Do not use with any openings blocked; keep free of dust, lint, hair, and anything that may reduce air flow.
Keep hair, loose clothing, fingers, and all parts of your body away from openings and moving parts.
Use extra care when cleaning on stairs.
Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
Do not use without a filter.
Prevent unintentional activation. Ensure the switch is in the off position before connecting to the battery pack, picking up or carrying the appliance. Carrying the appliance with your finger on the switch or powering on the appliance with the switch on may cause accidents.
Disconnect the battery pack from the appliance before making any adjustments, changing accessories, storing the appliance. Such preventive safety measures reduce the risk of starting the appliance accidentally.
For the purposes of recharging the battery, only use the detachable supply unit provided with this appliance. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
Use appliances only with specifically designated Tineco battery packs. Use of any other battery packs may create a risk of injury and fire.
When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
Under improper usage, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid comes into eye contact, seek medical help. Liquid ejected from the battery may cause irritation or burns.
Do not use a battery pack or appliance that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.
Do not expose a battery pack or appliance to fire or excessive heat. Exposure to fire or temperatures above 266°F (130°C) may cause an explosion.
Follow all charging instructions and do not charge the battery pack or appliance outside of the temperature range specified in the instructions. Charging improperly or at temperatures outside of the specified range may damage the battery and increase the risk of fire.
Have servicing performed by a qualified repair person using only identical replacement parts. This will ensure that the safety of the product is maintained.
This appliance contains battery cells that are non-replaceable. Do not modify or attempt to repair the appliance or the battery pack except as indicated in the instructions for use and care.
Always turn off this appliance before connecting or disconnecting the motorized nozzle.
Do not charge or store the appliance outdoors. Only charge, store or use the battery in a dry indoor area where the temperature is higher than 39.2°F (4°C) but lower than 104°F (40°C). The charger is for indoor use only.

Overview

Power switch
AUTO/MAX button
LED loop
Dustbin release button
Dustbin lock
Dustbin lid

Accessories

Note:

Test an accessory on a small, inconspicuous area before use on sensitive surfaces.
Accessories included can be attached directly to the appliance.

Crevice tool
Crevice brush is suitable for dusting screens, delicate surfaces, keyboard and more. Flip down to expose a flat nozzle for cleaning corners and hard-to-reach areas.

Upholstery nozzle
Effective for upholstered furniture, curtains, etc.

Hair cleaning tool
Use the end with the small blade to remove wrapped hair and debris.
Use the end with the brush to clean the filter and the dustbin, as required.

Charging dock
For easy charging and accessory storage.

Assembly

Charging Dock Installation (optional)

The charging dock can be placed on a flat surface, or be mounted on the wall:

Determine the best wall location for mounting the dock. We recommend leaving 2.2" (56mm) between the two screw holes.
Use the screws provided by Tineco to affix the dock to the wall.

Ensure the wall surrounding the mounting area is free of gas, water pipes, electrical cables and wires.
To avoid the dock falling, ensure it is firmly installed.

Operation

Preparing for Use

Note:

Before the first use, please charge the appliance (see "Charging the Battery") for 3-4 hours in an area where the ambient temperature is between 39.2°F (4°C) and 104°F (40°C).

Press the power switch to turn on the appliance, and press it again to turn off.
The appliance will start in AUTO mode by default. Press the AUTO/MAX button to switch between MAX mode and AUTO mode.
A red LED loop indicates more dust is detected whereas a blue loop indicates the surface is clean.

Place the appliance on the charging dock for convenient storage after use.

Emptying the Dustbin

With the power off, open the lock. Slide the dustbin forward to open and empty contents.
Pull back and lock the dustbin, then close the dustbin lid.

Charging the Battery

Place the appliance on the charging dock and plug it into a wall outlet.
To avoid trip hazards, please place the appliance near a wall during charging when it is on a flat surface.

Only use the Tineco-provided adaptor to charge the appliance.
During long periods of not being used, store the appliance in a cool, dry place. Ensure the battery is fully charged every 3 months.
Do not expose appliance to sunlight or freezing temperature.
Recommended temperature range: 39.2°F (4°C)~104°F (40°C).

Runtime

When in AUTO mode, the runtime is approximately 26 minutes. When MAX power is used, the runtime is approximately 12 minutes.
Estimated runtime data was obtained by a Tineco Laboratory.

Charging Time

A full charge takes approximately 3-4 hours.
Estimated data was obtained by a Tineco Laboratory using ambient temperatures between 39.2°F (4°C) to 104°F (40°C).

Indicator

When in Use
	Solid blue light.
	Blinking blue light: low power.
During Charging
	Breathing blue light: charging.
Fully Charged
	Within 5 minutes of full charge: solid blue light.
	After 5 minutes: light off.

Maintenance

Note:

Turn power switch off and disconnect plug from electrical outlet before performing maintenance.
For optimal performance, wash and dry the mesh filter and HEPA bi-weekly, replacing both parts every 6 months.

Dustbin

With the power off, open the lock and slide the dustbin forward to open and empty contents.
If dirt remains inside the dustbin, press the release button at the end of the slider. Remove the dustbin and clean with a damp cloth.
After cleaning, reinstall and lock the dustbin, close the dustbin lid.

The dustbin contains electrical components which must not be soaked or washed with water.

Mesh Filter & HEPA Filter

With the dustbin uninstalled, turn counterclockwise to remove the mesh filter.

Remove HEPA from the mesh filter, clean with the hair cleaning tool. Or wash both parts with water and air dry completely if necessary (recommended every two weeks).

After cleaning, install the filters and dustbin back into the main body.

Specifications

Product	PURE ONE MINI S4
Voltage	10.8V
Rated Power	90W
Dustbin Capacity	0.2L
Battery	2000mAh
AC Input	100-240V~ 0.5A MAX
DC Output	14.4V 0.7A

Disposal

The battery contains materials that are harmful to the environment and must be removed from the appliance before it is discarded.
When removing the battery, the appliance must be powered off.
Batteries, chargers, accessories and packaging should be sorted for environmental friendly recycling. Do not put them into fire, water or soil. Do not dispose of batteries and chargers into household waste!
If battery leakage contacts skin or clothing, immediately flush with water to avoid irritation and seek medical help.

Troubleshooting

Problem	Possible cause	Solution
The appliance does not turn on	No power	Charge the battery
	The appliance is blocked (i.e. the suction mouth, HEPA)	Remove blockages
	Auto protection for overheating	Restart after cooling down
Weak suction power	Dustbin and filters are full	Clean the dustbin and filters
	Filters are not installed	Install the filters
	The appliance is blocked (i.e. the suction mouth, HEPA)	Remove blockages
Abnormal motor sounds	The suction mouth is blocked	Check and remove blockages
Battery won't charge	The adaptor is not designed for this appliance	Use the original adaptor
Battery won't charge	The adaptor is not correctly inserted	Reinsert the adaptor correctly
LED loop is blinking red	The suction mouth is blocked	Check and remove blockages
