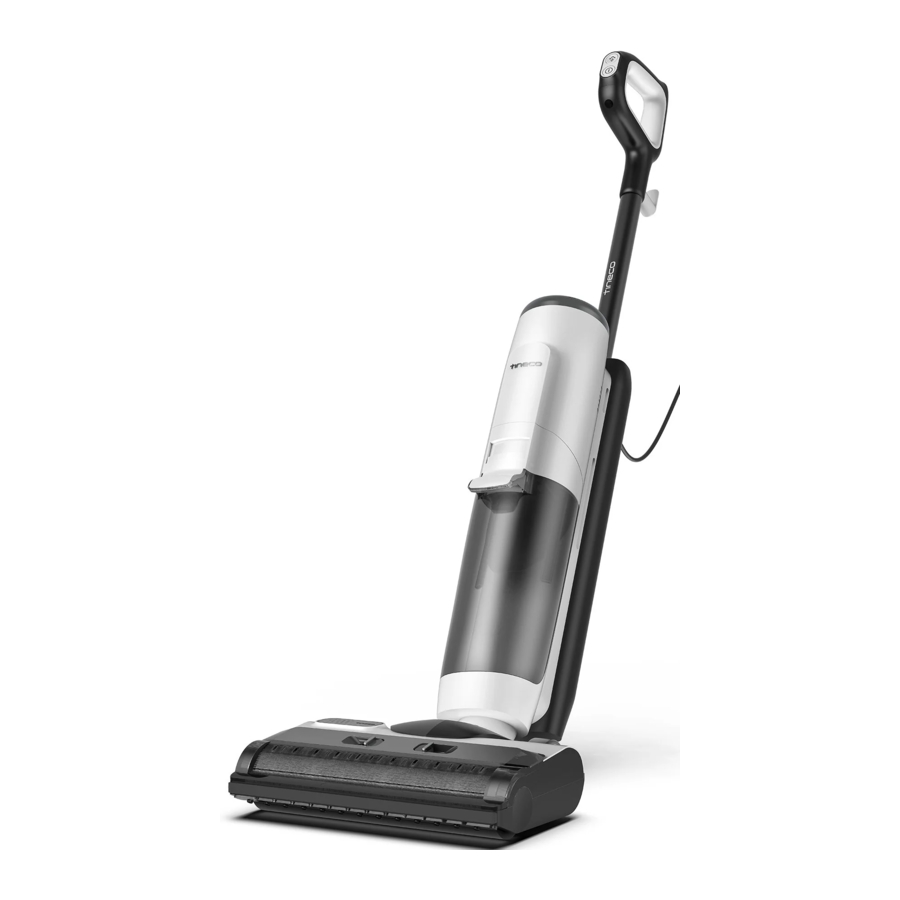

Tineco FLOOR ONE S5 STEAM Series - Smart Vacuum & Washer Manual

Important Safety Instructions

SAVE THESE INSTRUCTIONS"
Household use only.

When using an electrical appliance, basic precautions should always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING (THIS APPLIANCE). Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

To reduce the risk of fire, electric shock, or injury:

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children should not play with the appliance. Cleaning and user maintenance shall not be performed by children without supervision.
2. The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
3. Use only indoors, on non-carpeted floor surfaces such as vinyl, tile, sealed wood, etc. Be careful not to run over loose objects or edges of area rugs. Stalling the brush may result in premature belt failure.
4. Do not allow to be used as a toy. Close attention is necessary when used by or near children, pets or plants.
5. Use only as described in this manual. Use only manufacturer's recommended attachments.
6.
   Risk Of Injury. Brush May Start Unexpectedly. Unplug Before Cleaning or Servicing.
7. Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.
8. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
9. Do not handle plug or appliance with wet hands.
10. Do not use with a damaged cord or plug. If appliance has been dropped, damaged, left outdoors, dropped into water, or is not working as it should, return it to a service center.
11. Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.
12. Keep hair, loose clothing, fingers, and all parts of your body away from openings and moving parts.
13. Use extra care when cleaning on stairs.
14. Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
15. Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
16. Do not use without filter.
17. Prevent unintentional activation. Ensure the switch is in the off-position before picking up or carrying the appliance. Carrying the appliance with your finger on the switch or energizing appliance that have the switch on invites accidents.
18. Always switch off the appliance before making any adjustments, changing accessories, or storing the appliance. Such preventive safety measures reduce the risk of starting the appliance accidentally.
19. TO REDUCE THE RISK OF ELECTRIC SHOCK – UNPLUG BEFORE CLEANING OR SERVICING.
20. Always turn off this appliance before connecting or disconnecting the motorized nozzle.
21. Turn off all controls before unplugging.
22. Do not leave appliance when plugged in. Unplug from outlet when not in use and before servicing.
23. Do not use to pick up ultrafine particles, such as lime, cement, sawdust, gypsum powder, or ashes.
24. Do not use to pick up sharp objects, such as metallic nails, pieces of glass, metal paper clips, or pins.
25. Do not use to pick up hazardous material and chemicals, such as solvent, drain cleaner, strong acids, or strong alkali.
26. Stop using immediately if the appliance is overheating, making unusual noises, producing unusual odors, performing low suction, or leaking electricity.
27. Turn cleaner OFF and disconnect from electrical outlet for long-term storage.
28. Always clean the Dirty Water Tank after each use to avoid potential blockage, which may lead to low suction power, motor overheating, or reduce the service life of the appliance.
29. Do not expose to rain.
30. Store appropriately indoors in a dry place after use.
31. Do not place or submerge appliance in standing water or try to clean flooded areas.
32. Do not immerse in water. The plug must be removed from the socket-outlet before cleaning or maintaining the appliance.
33. A hazard may occur if the appliance runs over the supply cord.
34.
    To provide continued protection against risk of electric shock, connect to properly grounded outlets only. See Grounding Instructions.
35. Not for Space Heating Purposes.

Range of Usage

1. The appliance is to be used on indoor hard floors, such as vinyl, tile, sealed wood, etc. Use on a rough surface may not get the best performance.
2. Keep your appliance away from heat sources, such as fireplace or heater, to avoid casing deformation.
3. Do not use to pick up flammable or combustible liquids, ultrafine particles, sharp objects, hazardous material, chemicals or anything that is burning or smoking, as described above.

About the Appliance

1. Do not modify or attempt to repair the appliance except as indicated in the instructions for operating and cleaning.
2. Use extra care when cleaning on stairs.
3. Ensure that the Power Switch is in the OFF-position before picking up or carrying the appliance. Do not lay flat or lean the appliance so as to prevent dirty water from entering into the motor.
4. To avoid being tripped accidentally, please put away the appliance on the storage tray.
5. Always install the Dirty Water Tank and Clean Water Tank properly before use.
6. Do not allow the appliance to get wet to avoid risk of fire or injury caused by a short circuit.

Grounding Instructions

1. This appliance must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This appliance is equipped with a cord having an equipment-grounding conductor and grounding plug. The plug must be inserted into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.
2.
   Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service person if you are in doubt as to whether the outlet is properly grounded. Do not modify the plug provided with the appliance – if it will not fit the outlet, have a proper outlet installed by a qualified electrician.
3. This appliance is for use on a nominal 120-V circuit and has a grounding attachment plug that looks like the plug illustrated in sketch A in Figure 20. Make sure that the appliance is connected to an outlet having the same configuration as the plug. No adaptor should be used with this appliance.

Specifications

Overview

1. Self-cleaning Button
2. Auto/Steaming Mode
3. Power On/Off
4. Digital Display
5. Dirty Water Tank Release
6. Dirty Water Tank (DWT)
7. Steam Nozzle
8. Handle
9. Power Cord
10. Mute Button
11. Clean Water Tank (CWT)
12. Brush Roller Cover
13. Cleaning Tool
14. Dry Filter & Holder
15. Accessory Holder
16. Storage Tray

Digital Display

1. Steaming Indicator
2. DWT Full or Blocked
3. Dirt Monitoring Loop (Blue to red according to the dirt amount)
4. Power Indicator
5. CWT Empty
6. Brush Roller Tangled Indicator
7. Tineco Logo
8. Self-cleaning Icon
9. Steaming Progress

Accessories

Note: Accessories may vary between markets. If you require more accessories, please go to www.tineco.com or store.tineco.com.

Brush Roller

Soft roller head with bristles can be used to vacuum and wash at the same time. It can be easily cleaned with the self-cleaning function.

Dry Filter

Dry filter and filter net can block large particles and debris, ensure the appliance's durability.
* Please install the dry filter before use, or it may lead to weak suction.

Cleaning Tool

A full brush to clean the DWT, brush chamber and opening. The tool also has a bristled end to remove dirt and mud on the roller and DWT.

Assembly

How to Assemble/Disassemble
Note: For water tank and brush assembly, please refer to "Operation" and "Maintenance".

To assemble the handle, insert it into the appliance until you hear a click.

In the event that the handle need to be disassembled, press the spring to release the handle with a tool (like a screwdriver) and lift the released handle from the appliance.

Operation

Preparing for Use

Press the button and the appliance will start in Auto mode by default. Press it again to turn off the appliance. Switch between Auto and Steaming mode by pressing the button.

After switching to the Steaming mode, the number starts to read. After reaching 100, the nozzle starts to spray steam.
Plug into the AC power outlet.

Tips:

• Please avoid entanglement of the power cord in the process of releasing.
• The appliance can only be used under 120 voltage.

The appliance will stop working when put uprightly and start running again when you recline.
* Do not recline more than 142° to protect against water leakage.

Place the appliance on the storage tray vertically after use for storage.

Note:

• Selecting the appropriate mode depending on the actual demand.
• Do not vacuum foamed liquid.
• To vacuum water left on the surface, the appliance will switch off in 3 seconds after power off.
• To avoid the power cord from being caught in the brush roller.

Filling Clean Water Tank

Press the Clean Water Tank release button to remove it from the appliance.

Place the tank back into the appliance. You should hear a "Click" if done correctly.

Open the tank cap, and fill with tap water to the Max line.

Note: Only use water under 140°F/60°C. DO NOT USE HOT WATER.

Cleaning Mode Selection

Auto Mode

• In Auto mode, the iLoop™ sensor automatically detects how dirty the floor is and applies the appropriate amount of detergent and suction power.
• A red dirt monitoring loop indicates more dirt is detected, and a blue loop indicates less dirt is detected. This mode automatically provides the best cleaning solution.

	Clean: on Min Power
	Vary depending on dirt amount
	Heavy dirt: on Max Power

Steaming Mode

• In Auto mode, press button to enter Steaming mode. The steaming indicator on the display will turn on.
• In Steaming mode, the nozzle starts to spray steam when number reads to 100. It suits for deep cleaning.

Note:

Keep sharp objects away from the digital display screen to avoid scratches and scrapes.

Indicator

When in Use

	Off: no power detected.
	Solid or blinking red light: dirt sensor malfunction or blocked.
	Auto mode.
	Steaming mode.
	Indicator blinking: CWT is empty.
	Indicator blinking: DWT is full or channel has a blockage.
	Indicator blinking: brush roller has a blockage.
	Indicator blinking: appliance is in need of self-cleaning.

Voice Prompt

(Contents may vary, please in kind prevail.)

Maintenance

Note:

• For optimal performance and to prevent odors, always clean and dry DWT, filters, brush roller, brush roller cover completely after each use.
• Please make sure each part is installed correctly or the appliance may not work properly.
• After maintenance, place the appliance on the storage tray vertically. Do not expose the appliance to direct sunlight, and store it indoors in a dry place.

Main Body

To reduce the risk of injury, switch off before performing maintenance.

Use a cloth to clean the surface with a neutral detergent. The cloth should be dry to prevent water from entering the appliance.

When LED loop illuminates red, remove Dirty Water Tank, clean the dirt sensor with a damp cloth or the cleaning tool.

Dirty Water Tank

• When dirty water reaches the Max line, the appliance will stop working and show a reminder on the display and play a voice prompt.
• Pull up the tank lid to empty the DWT. Use the cleaning tool to remove remaining debris. Rinse the inside of the DWT and place back into the appliance.

Dirty Water Tank Lid

If the Dirty Water Tank lid and the filter inside have been blocked, remove the tank lid and the filter, rinse both parts with water.

Dry Filter

Grasp recessed area on each side of the dry filter and pull upward. Rinse under running water and must be completely dry before recombining with the lid of the DWT.
* A spare dry filter is provided with your appliance for convenient replacement.

Brush Roller Self-cleaning

1. Place the appliance on the storage tray after use, the sensor will auto-detect the level of dirt.
2. When you hear the voice prompt "please begin self- cleaning cycle," press the self-cleaning button and begin the process.
3. Once complete, please clean up the DWT.

Note: Before self-cleaning cycle, please plug in and ensure the water level in the CWT exceeds 40%.

Brush Roller Cover

Squeeze latches on the cover and pull upward to remove.

Rinse with water.

When replacing, always latch the brush cover into place to avoid leakage.

Brush Roller

Remove the brush roller by grabbing the brush roller tab and pulling out.

Remove hair and debris from the brush roller chamber and the opening with a tissue or a damp cloth.

Using the cleaning tool, remove the hair and debris wrapped around the roller and rinse with water. Replace the brush roller back into the accessory holder, and allow it to dry completely before reinstalling.

Replace the brush roller by inserting the brush roller end into the right side of the holder, then attach the roller tab to the magnetic buckle on the left side to lock into place.

Note: A spare brush roller is provided with your appliance for convenient replacement.

Troubleshooting

Problem	Possible cause	Solution
The appliance does not turn on	The power cord is not plugged in, or the socket is not energized	Ensure that the socket is energized and the power cord is plugged in
Weak suction	The dry filter is not installed, or the dry filter is dirty	Install the dry filter or clean and allow it to dry completely
	The brush roller is not installed	Install brush roller correctly
Brush roller tangled indicator blinking Voice prompt: Please clean the brush roller	The brush roller is blocked	Remove blockages
CWT empty indicator blinking Voice prompt: Clean Water Tank empty, please refill water and cleaning solution	CWT is empty	Refill CWT
DWT full indicator blinking Voice prompt: Please clean Dirty Water Tank	The dirty water in DWT has reached the MAX line	Empty the dirty water and then reinstall the DWT
LED loop illuminates red Voice prompt: Please begin self- cleaning cycle	Dirt sensor malfunction or blocked	Remove blockages, clean the debris channel, or restart
Self-cleaning icon blinking	Brush roller is dirty	Start self-cleaning

Note: If the above troubleshooting guide fails to provide a solution, please visit our website www.tineco.com for further support.

1-855-292-8864
Mon. - Fri. 9am - 6pm (CST)
