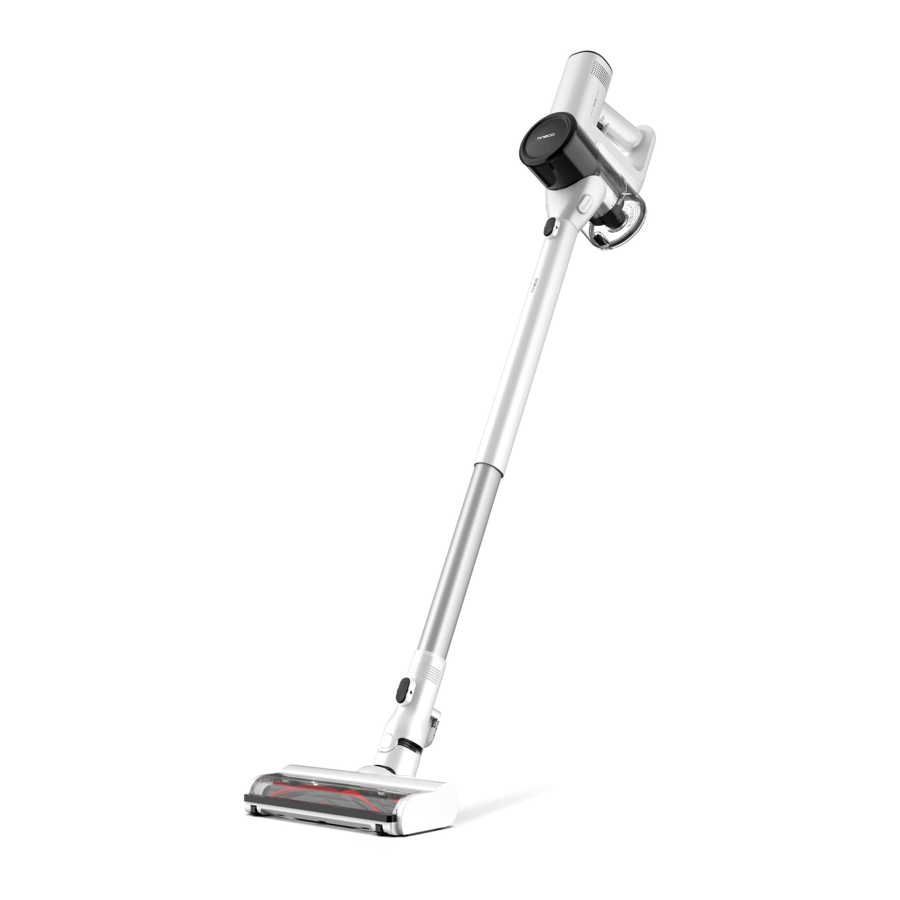

Tineco PURE ONE AIR Series - Stick Vacuum Cleaner Manual

Important Safety Instructions

When using an electrical appliance, basic precautions should always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING (THIS APPLIANCE).
Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

To reduce the risk of fire, electric shock, or injury:

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children should not play with the appliance. Cleaning and user maintenance shall not be performed by children without supervision.
The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
For INDOOR use ONLY. Do not use the appliance outdoors, nor in commercial or industrial environments. Do not use the appliance on wet surfaces or surfaces with standing water.
Do not allow to be used as a toy. Close attention is necessary when used by or near children, pets or plants.
Use only as described in this manual. Use only manufacturer's recommended attachments.
Do not use with a damaged cord or plug. If appliance has been dropped, damaged, left outdoors, dropped into water, or is not working as it should, return it to a service center.
Do not handle charger, including charger plug, and charger terminals with wet hands.
Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.
Keep hair, loose clothing, fingers, and all parts of your body away from openings and moving parts.
Use extra care when cleaning on stairs.
Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
Do not use without filter.
Prevent unintentional activation. Ensure the switch is in the off- position before picking up or carrying the appliance. Carrying the appliance with your finger on the switch or energizing appliance that have the switch on invites accidents.
Disconnect the battery pack from the appliance before making any adjustments, changing accessories, storing the appliance. Such preventive safety measures reduce the risk of starting the appliance accidentally.
For the purposes of recharging the battery, only use the detachable supply unit provided with this appliance. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
Use appliances only with specifically designated Tineco battery packs. Use of any other battery packs may create a risk of injury and fire. Follow all charging instructions and do not charge the battery pack or appliance outside of the temperature range specified in the instructions. Charging improperly or at temperatures outside of the specified range may damage the battery and increase the risk of fire.
When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
Under improper usage, liquid may be ejected from the battery avoid contact. If contact accidentally occurs, flush with water. If liquid comes into eye contact, seek medical help. Liquid ejected from the battery may cause irritation or burns.
Do not use a battery pack or appliance that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.
Do not expose a battery pack or appliance to fire or excessive temperature. Exposure to fire or temperature above 266°F (130°C) may cause an explosion.
Follow all charging instructions and do not charge the battery pack or appliance outside of the temperature range specified in the instructions. Charging improperly or at temperaturesoutside of the specified range may damage the battery and increase the risk of fire.
Have servicing performed by a qualified repair person using only identical replacement parts. This will ensure that the safety of the product is maintained.
This appliance contains battery cells that are non-replaceable. Do not modify or attempt to repair the appliance or the battery pack except as indicated in the instructions for use and care.
Always turn off this appliance before connecting or disconnecting the motorized nozzle.
Brush may start unexpectedly Disconnect battery pack before cleaning or servicing.
Do not charge or store the appliance outdoors or inside the car. Only charge, store or use the battery in a dry indoor area where the temperature is higher than 39.2°F (4°C) but lower than 104°F (40°C). The charger is for indoor use only.
Do not unplug by pulling on cord. To unplug, grasp the charger, not the cord.
Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.

SAVE THESE INSTRUCTIONS
Household use only.

Symbols

	Read the instruction manual
	For indoor use only
	Direct current
	Alternating current
	Power On/Off

Specifications

Product	PURE ONE AIR SERIES
Model	VS14******
Voltage	10.8V
Rated Power	130W
Dustbin Capacity	0.3L
Charging Time	3-4 hrs
AC Input	100-240V~ 50/60Hz 0.5A
Adaptor	KL-WA144070-V

Overview

Dust Sensor
Dust Empty Release Button
Dustbin
HEPA Filter
Power Button
AUTO/MAX Button

Accessories

warning Note:

Test an accessory on a small, inconspicuous area before use on sensitive surfaces.
To identify what should be included with your purchase, please refer to the "Included Accessories" located on the packaging box.
As shown below, there are many components compatible with this model. If you require more accessories, please go to www.tineco.com or store.tineco.com.

Multi-tasker power brush

Ideal for both hard floors and carpets.
Very effective for dislodging dirt embedded in the carpet.

2-in-1 dusting brush

Switches between a wide and a soft brush by pressing the release button. The soft brush is most effective on hard-surface furniture while the wide brush is effective for upholstered furniture, curtains, etc.

Crevice tool

For corners, nooks, and other hard-to-reach places such as around car seats, picture frames, and cupboards.

Hair cleaning tool

Use the end with the small blade to remove hair and debris wrapped around the roller.
Use the end with the brush to clean the brush window, and the dustbin, as required.

Assembly

Tube Installation

Insert tube.

Insert to the main body.

Press the release button to remove the tube.

Brush Installation

Insert the power brush.

Press the release button to remove the power brush.

Charging Dock Installation

Lift up the charging post to the upright position.

Press hard to fix the charging post firmly on the dock.

Operation

Preparing for Use

warning Note:

Before the first use, please charge the appliance (see "Charging the Battery") for 3-4 hours in an area where the ambient temperature is between 39.2°F (4°C) and 104°F (40°C).
Select an accessory and attach it to the appliance before use (see "Accessories").

Press the power button to activate the suction. Press it again to turn off the appliance.

The default setting on startup is AUTO. Press the button to switch between AUTO and MAX mode. The indicator color changes between blue and red according to dust detected.

Place the appliance on the charging dock for convenient storage and recharging after use.

Place the main body on the dock. To avoid bristle damage, always place attachments on the dock after use.

Emptying the Dustbin

Press the release button on the side of the dustbin to empty the contents.

Close and click the dustbin flap back into place.

Charging the Battery

Plug the adaptor into the charging port at the bottom of the dock.

Place the appliance on the charging dock and plug the adaptor into a wall outlet.

Only use the Tineco-provided adapter to charge the appliance.
To avoid trip hazards, please place the appliance securely on the charging dock, near a wall during charging.
During long periods of not being used, store the appliance in a cool, dry place. Ensure the battery is fully charged every 3 months.
Do not expose appliance to sunlight or freezing temperature. Recommended temperature range: 39.2°F (4°C)~104°F (40°C).

Runtime

In AUTO mode, the runtime is approximately from 10 minutes to 20 minutes.
Estimated runtime data was obtained by a Tineco Laboratory using one battery and non-motorized accessories.

Charging Time

A full charge takes approximately 3-4 hours.
Estimated data was obtained by a Tineco Laboratory using ambient temperatures between 39.2°F (4°C) to 104°F (40°C).

Indicator

When in Use

	Solid blue light: AUTO mode.
	Slowly blinking red light: low power.
	Rapidly blinking red light: the air channel or brush roller is blocked.
	Solid red light: dust sensor is blocked.

During Charging

Breathing blue light: charging.

Fully Charged

	In 5 minutes: solid blue light.
	After 5 minutes: light off.

Maintenance

warning Note:

Clean the dustbin and filters after each use.
To maintain high performance, wash and dry the sponge filter monthly, replacing it every 6 months. Wash and dry the HEPA filter every 2 months, replacing it every 6 months.

Dustbin and Mesh Filter

Press the dustbin release button to remove the dustbin.
Clean with a damp cloth, taking care to prevent water entering the appliance main body and battery.
Turn counter-clockwise to remove the mesh filter.
Clean the mesh filter with a damp cloth, wash under cold, running water if necessary. Air dry completely before reinstalling.

Dust Sensor

Dust Sensor
To avoid dust accumulation which can affect cleaning performance, wipe the suction mouth with a damp cloth.

HEPA and Sponge Filter

Ensure the appliance is switched off before cleaning, rotate to remove the HEPA filter and take out the sponge filter.

Clean the dust on the HEPA and sponge filter, wash them under cold, running water if necessary. Air dry completely before reinstalling.

After cleaning, put back the sponge filter and ensure the HEPA is correctly installed.

Brush Roller

Slide the switch to open the brush roller end cover, and rotate it counter-clockwise to be able to pull out the brush roller.

Remove the debris wrapped around the roller with the Tineco Hair Cleaning Tool.

Fully reinsert the brush roller into the brush window and the end cover can be rotated clockwise until it clicks securely back into place.

The power brush contains electrical components which must not be soaked or washed with water.

Troubleshooting

Problem	Possible cause	Solution
The appliance does not turn on	No power	Charge the battery
	Auto protection for overheating	Restart after cooling down
	The appliance is blocked (i.e. the tube, suction mouth or some other parts)	Check and remove blockages
Weak suction power	Dustbin and filters are full	Clean the dustbin and filters
	The mesh filter is not installed	Install the mesh filter
	The appliance is blocked (i.e. the tube, suction mouth or some other parts)	Remove blockages
Rapidly blinking red	Brush roller tangled	Clean the brush roller
Rapidly blinking red	Air channel blocked	Remove blockages
Slowly blinking red	Low power	Charge the battery
Solid red light	Dust sensor blocked	Remove blockages
Battery won't charge	The adaptor is not designed for this appliance	Use the original adaptor
	The adaptor is not correctly inserted	Reinsert the adaptor correctly
	Poor contact during charging	Check the appliance is correctly placed
Abnormal motor sounds	The appliance is blocked (i.e. the tube, suction mouth or some other parts)	Remove blockages
