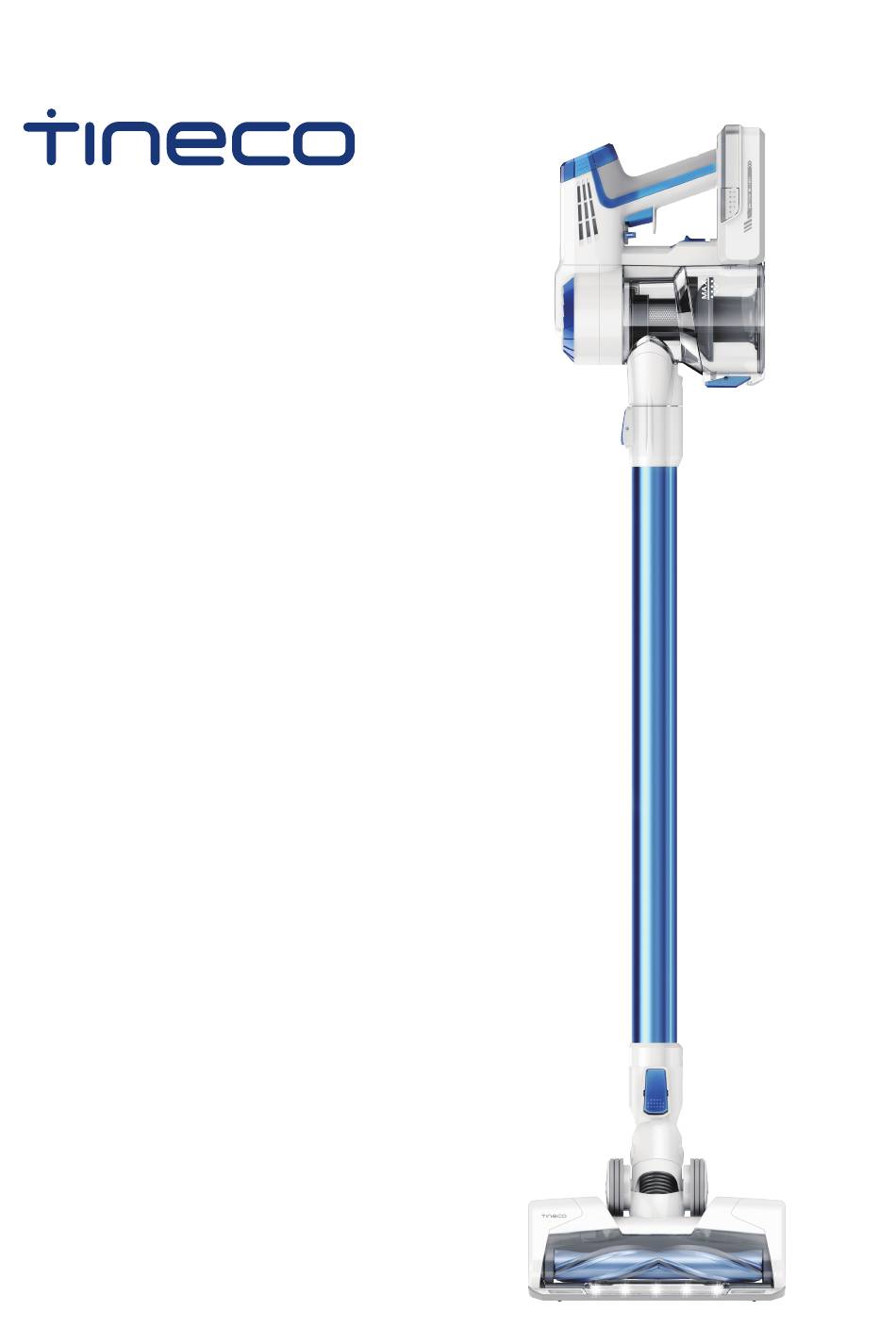

- Page 1 Instruction Manual Stick Vacuum Cleaner A10 SERIES...
-
Page 2: Table Of Contents
CONTENTS 1. Important Safety Instructions 2. Overview 3. Product Components 4. Accessory Instructions 5. Assembly 6. Product Operation 7. Daily Maintenance 8. Specification 9. Trouble Shooting 10. Warranty... -
Page 3: Important Safety Instructions
Important Safety Instructions SAVE THESE INSTRUCTIONS Household use only. When using an electrical appliance, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING (THIS APPLIANCE). Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. WARNING –... - Page 4 17. Use appliances only with specifically designated TINECO battery packs. Use of any other fire when used with another battery pack. battery packs may create a risk of injury and fire.
-
Page 5: Overview
Overview A. MAX mode G. Battery release button H. HEPA release button B. Dust empty release button I. Indicator light C. Dustbin J. Rubber handle D. Switch lock K. Battery pack E. Switch button F. Dustbin release button... -
Page 6: Product Components
Product Components A. Main body G. Wall-mounted dock B. Tube H. Adaptor C. Full-size LED Multi-tasker power brush I. Pre filter cleaning tool D. Mini power brush J. Extra pre filter E. 2-in-1 Dusting brush K. Hair cleaning tool F. Crevice tool *Actual accessories may vary from shown or change without notice. -
Page 7: Accessory Instructions
Accessory Instructions Note: • Test an inconspicuous area of a sensitive surface before using an accessory on it. • All accessories can be directly connected to the main body or to the tube. Full-size LED Multi-tasker power brush Very effective for agitating dirt embedded in the carpet. Mini power brush For vacuuming upholstered furniture, mattresses etc. - Page 8 Optional accessories (please purchase separately) * Note: You can purchase additional accessories from TINECO. Full-size LED Soft-roller power brush Perfect for hard floors, especially sensitive wood floor. Picks up coarse and fine dirt at the same time.
-
Page 9: Assembly
2. Stuck the power cord onto the slot behind the wall-mounted dock. Start from the plug end and reserve about 150mm power cord to ensure that the plug can reach the charging outlet. 3. Install the wall-mounted dock to the wall with the nails provided by Tineco. Warning: •... - Page 10 Assembly Install the Dustbin ① ② Press the dustbin release button and pull out. Incline the dustbin, the slot on the dustbin towards the hook on the main body. Push upward until the hook fixed into the slot. A 'click' sound will be heard when it has been successfully accomplished.
-
Page 11: Product Operation
Product Operation Start to Work Note: • Before the first use, please charge the appliance (see "Charging the battery") for 3-4 hours in an area where the temperature is higher than 4°C (39.2°F) but lower than 40°C (104°F), and the above charging time based on the condition that the battery is cooled. - Page 12 Product Operation Empty the Dustbin When finished, press the release button on the Reattach the dustbin's bottom cover. side of the dustbin and empty the contents. Charging the Battery Place the main body with the battery on the You can also charge the battery separately: docking station, plug in the adaptor and open the cover above the docking station, charging port, three blue lights blinking...
- Page 13 • Data is obtained by Tineco laboratory using one battery and non-motorized accessories. Charging Time • Charging time takes about 3-4 hours. • Based on results from Tineco lab tests. Lab test environment: temperature between 4°C (39.2°F) to 40°C (104°F). Indicator Light On Work Three solid blue lights: Full power.
-
Page 14: Daily Maintenance
③ ④ ② ① Clean the pre filter with Tineco Pre Filter Cleaning Tool. Take out the dirty pre filter After cleaning, insert the clean pre filter into mesh and replace with a clean one. Put the dirty filter properly, a 'click' sound will be heard once pre filter into the cleaning tool and connect right into place. - Page 15 Daily Maintenance HEPA filter Press the HEPA release button on both sides of The HEPA can be washed under running water the windshield and gently pull out the HEPA. if necessary, and should be dried completely Please detach the battery pack before pulling out before reinstalling.
-
Page 16: Specification
Specification Model A10 Series Voltage 21.6V 2000mAh Li-ion Rated Power 350W Dustbin Capacity 0.4L Charging Time 3-4 hrs Charging Input 100-240V~ Running Time 25 min. (MAX mode: 10 min.) Disposal Batteries, chargers, accessories and packaging should be sorted for environmental-friendly recycling. Do not dispose of batteries and... -
Page 17: Trouble Shooting
The filters or the suction mouth is Clean filters or remove Pink light blinking blocked blockages Note: In any other case or if the solution explained above did not solve the problem, please contact us at support.uk@tineco.com or visit our website www.tineco.com for further support. -
Page 18: Warranty
WHAT IS COVERED? • Your TINECO machine has a 2-year warranty against original defects in material and workmanship, when used for private household purposes in accordance with the TINECO Instruction Manual. • This warranty provides, at no extra cost to you, all labor and parts necessary to ensure your machine is in proper operating condition during the warranty period. - Page 19 Please review the warranty carefully, and contact the manufacturer if you have any questions. WARRANTY SERVICE Register: Highly recommend you to register your machine on Tineco official website and enjoy exclusive benefits. Failure to register your product won't diminish your warranty rights.
- Page 20 Web: www.tineco.com Contact us - We'll get back to you within 1 business day. Email: support.uk@tineco.com...
