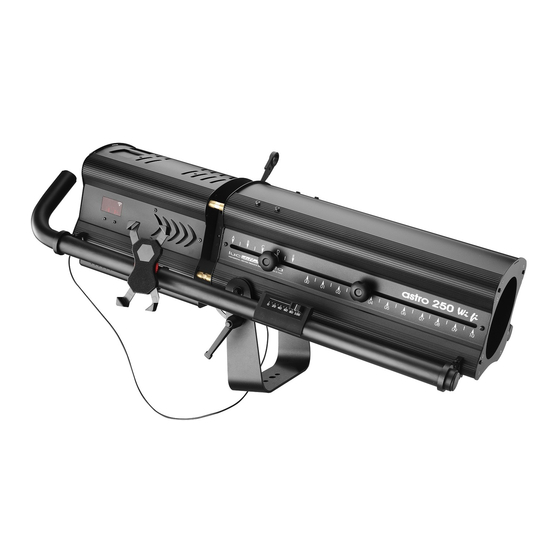

LDR Astro 250 Wi-fi RGBW Operating Instructions Manual
  1. Manuals
  2. Brands
  3. LDR Manuals
  4. Lighting Equipment
  5. Astro 250 Wi-fi RGBW
  6. Operating instructions manual

LDR Astro 250 Wi-fi RGBW Operating Instructions Manual

Dmx512+rdm led
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
istruzioni per l'uso
operating instructions
Bedienungsanleitung
instrucciones de
manejo
mode d'emploi
gebruiksaanwijzing
Astro 250 Wi‐fi RGBW
01207190
DMX512+RDM LED
Astro 250 Wi‐fi RGBW HP
01207390
DMX512+RDM LED
Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo mn Italy. tel +39 0376 771 777 ‐ fax +39 0376 772 140 ‐ email info@ldr.it

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Astro 250 Wi-fi RGBW and is the answer not in the manual?

Questions and answers

Related Manuals for LDR Astro 250 Wi-fi RGBW

Summary of Contents for LDR Astro 250 Wi-fi RGBW

  • Page 1 Bedienungsanleitung instrucciones de manejo mode d'emploi gebruiksaanwijzing Astro 250 Wi‐fi RGBW 01207190 DMX512+RDM LED Astro 250 Wi‐fi RGBW HP 01207390 DMX512+RDM LED Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo mn Italy. tel +39 0376 771 777 ‐ fax +39 0376 772 140 ‐ email info@ldr.it...
  • Page 2 Astro 250 Wi-Fi RGBW, DMX 512+ RDM LED followspot - User’s Manual – 1.0 ENGLISH – TABLE OF CONTENTS 1.Important safety norms ………………………………………………………………………. page 3 2.Check packing content………………………………………………………………………… page 4 3.Mounting the spigot…………………………………………………..……....page 4 4.Mounting the iris diaphragm …………………………………………….……………….

  • Page 3: Table Of Contents

    Astro 250 Wi-Fi RGBW, DMX 512+ RDM LED followspot - User’s Manual – 1.0 13.App settings and operations from user’s IOs mobile controller………………………..page 23 13.1 Operating the Astro wi fi page 25 13.2 Creating, storing and deleting colours page 25 14.
  • Page 4 Astro 250 Wi-Fi RGBW, DMX 512+ RDM LED followspot - User’s Manual – 1.0 ENGLISH Thank you for choosing a quality product from Luci della Ribalta srl. We trust our products and services meet your requirements, but if not please contact us directly using the attached feedback form to help us improve our service quality.
  • Page 5 Astro 250 Wi-Fi RGBW, DMX 512+ RDM LED followspot - User’s Manual – 1.0 • Repairing and replacement of any component of this product must be carried out exclusively by professional personnel in conformity with the relevant safety and health standards and only with original Luci della Ribalta srl components.
  • Page 6 Astro 250 Wi-Fi RGBW, DMX 512+ RDM LED followspot - User’s Manual – 1.0 • Fix the iris in position by tightening the previously removed screws Important notice: do not leave the iris closed for over 5 minutes while the LED is on...
  • Page 7 Astro 250 Wi-Fi RGBW, DMX 512+ RDM LED followspot - User’s Manual – 1.0 • The brown wire must be connected to the connection point marked with the letter L or coloured in red Before you finally position this product for use, temporarily connect it to a properly fused power supply to check the unit works correctly.
  • Page 8 Astro 250 Wi-Fi RGBW, DMX 512+ RDM LED followspot - User’s Manual – 1.0 In case you are using your own mobile device, please refer to chapter 12 and 13 of this manual for all the necessary steps needed to set up the control system Select the LED control mode between Wi-Fi (factory setting –...
  • Page 9 Astro 250 Wi-Fi RGBW, DMX 512+ RDM LED followspot - User’s Manual – 1.0 Factory setting is 8 Bit. 3 8/16b 3 8/16b 3 8/16b PRESS THE ROTARY TURN TO SELECT 8 SELECTOR TO OR 16 BITS AND 8 BITS 8 BITS 16 BITS ←...
  • Page 10 Astro 250 Wi-Fi RGBW, DMX 512+ RDM LED followspot - User’s Manual – 1.0 10.7 DIMMING CURVE (Curves) : This function allows to select a response curve for the Astro. A choice of two curves is available: Square and Linear. Factory setting is SQUARE .
  • Page 11 Astro 250 Wi-Fi RGBW, DMX 512+ RDM LED followspot - User’s Manual – 1.0 10.10 FAN SETTING (Fan) : This function allows to set the fan’s response. A choice of three modes is available: Automatic, Silent or Steady. When the fan is in Auto mode, the speed is regulated by the LED temperature. In Silent mode the fan runs slowly to reduce the noise.
  • Page 12 Astro 250 Wi-Fi RGBW, DMX 512+ RDM LED followspot - User’s Manual – 1.0 10.13 GREEN COLOUR INTENSITY (Green) : This function allows to set the intensity of green color for manual mode. Selecting the manual mode, 100% is automatically set.
  • Page 13 Astro 250 Wi-Fi RGBW, DMX 512+ RDM LED followspot - User’s Manual – 1.0 10.19 SUB-NET (SubNet) : This function allows to set the SUB-NET field of Art-Net 3 Port-Address, in a range between 0 and 15. Factory setting is 00.
  • Page 14 Astro 250 Wi-Fi RGBW, DMX 512+ RDM LED followspot - User’s Manual – 1.0 10.23-B FACTORY SETTINGS (Reset) : The RESET control is a special function which allows to RESET the product to factory settings. Choose Are You SURE MenuType...
  • Page 15 Astro 250 Wi-Fi RGBW, DMX 512+ RDM LED followspot - User’s Manual – 1.0 10.27-F SUBNET MASK (Net Mask) : It allows to view the Astro Subnet Mask when operating in Wi-Fi mode. Subnet Mask can’t be changed. Choose 255.255.
  • Page 16 Astro 250 Wi-Fi RGBW, DMX 512+ RDM LED followspot - User’s Manual – 1.0 11. APP SETTINGS AND OPERATION FROM LDR MOBILE CONTROLLER SMARTPHONE HONOR 7S BLACK – # A20702074 – optional accessory If the Astro was purchased complete with the LDR controller A20702074 Smartphone Honor 75 Black , (available as an optional accessory), pre-loaded with the Android Art-Net Controller app, relevant settings and libraries, it is ready to be operated.
  • Page 17 Astro 250 Wi-Fi RGBW, DMX 512+ RDM LED followspot - User’s Manual – 1.0 12. APP SETTINGS AND OPERATION FROM USER’S ANDROID MOBILE CONTROLLER If you are planning to use an ANDROID mobile device of your own to control the ASTRO WI-FI, please carefully follow the here-below described steps to ensure a correct configuration of your mobile device.
  • Page 18 Astro 250 Wi-Fi RGBW, DMX 512+ RDM LED followspot - User’s Manual – 1.0 • Enter the password (default AstroNet) and press CONNECT. When the device is connected to the network, exit from the Wi-Fi settings and tap on the Art-Net Controller Libraries icon.
  • Page 19 Astro 250 Wi-Fi RGBW, DMX 512+ RDM LED followspot - User’s Manual – 1.0 • Open the Art-Net Controller app: by default the app displays the Prog (Programmer) window. Tap the three dots located on the upper left corner of the screen to open the main menu and select Patch Lib.
  • Page 20 Astro 250 Wi-Fi RGBW, DMX 512+ RDM LED followspot - User’s Manual – 1.0 • Open the main menu and select Options Play ‘Pb 0v’ by Fixture.   • Open the main menu and select Settings. Enter your ASTRO’s IP address in the “Art-net broadcast/unicast to:” fields Please refer to chapter 10.26-E of this user guide to know the IP address to be used.
  • Page 21 Load share and Search for your SHOW.ZIP file (for example  in the download folder if received by e-mail or downloaded by the LDR’s website) and confirm (OK): the LDR settings and libraries will be loaded and saved. Your mobile device is now ready to control the Astro Wi-Fi 12.2 OPERATING THE ASTRO WI-FI...
  • Page 22 Astro 250 Wi-Fi RGBW, DMX 512+ RDM LED followspot - User’s Manual – 1.0 Dimming can be performed either through the digital clamp-on dimmer (supplied, suggested option) or by sliding the yellow bar located above the colours’ palette. The percentage of power out is indicated beside the yellow bar and changes according to the set level (100% full power;...
  • Page 23 Astro 250 Wi-Fi RGBW, DMX 512+ RDM LED followspot - User’s Manual – 1.0 If you want to create and store a new colour (or scene), select Prog in the main app toolbar to view the RGBW faders and set each colour (Red, Green, Blue, White) to the required level by sliding each fader to the right (higher level) or to the left (lower level) until you get the desired colour.

  • Page 24: App Settings And Operations From User's Ios Mobile Controller

    Astro 250 Wi-Fi RGBW, DMX 512+ RDM LED followspot - User’s Manual – 1.0 13. APP SETTINGS AND OPERATION FROM USER’S iOS MOBILE CONTROLLER If you are using an iOS mobile device (iPhone or iPad) to control the ASTRO, please: •...
  • Page 25 “Astro RGBW - LDR revxxx.luminair” file and open it with Luminair App. This file can be requested directly from LDR or your dealer and can be received by email or WhatsUp or downloaded from the LDR website. Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel.

  • Page 26: 13. 1 Operating The Astro Wi Fi

    Astro 250 Wi-Fi RGBW, DMX 512+ RDM LED followspot - User’s Manual – 1.0 Once the file has been loaded, your mobile device is ready to take control of the Astro. 13. 1 Operating the Astro WI FI Make sure the clamp-on digital dimmer is connected and its fader above zero. Please see relevant instruction manual supplied with the item.
  • Page 27 Astro 250 Wi-Fi RGBW, DMX 512+ RDM LED followspot - User’s Manual – 1.0 Tap the + button (Add Scene): after selecting the button color, the parameters are automatically saved on the scene. WARNING: because Luminair only offers 10 colour codings, which do not correspond to the loaded colours, we have chosen GREY for all buttons.

  • Page 28: Universal 360° Rotating Mobile Device Holder Supplier

    Astro 250 Wi-Fi RGBW, DMX 512+ RDM LED followspot - User’s Manual – 1.0 To avoid undesired or accidental changes to a project, uncheck Auto-Save Projects from the Settings menu. UNIVERSAL, 360° ROTATING MOBILE DEVICE HOLDER, supplied Your Astro Wi-FI will have been delivered with an universal, 360° rotating, mobile device holder.The holder is factory-mounted in a convenient position on the right-hand side control bar, in order to avoid damages in transit.

  • Page 29: Recharging Your Mobile Battery

    Astro 250 Wi-Fi RGBW, DMX 512+ RDM LED followspot - User’s Manual – 1.0 RE.CHARGING YOUR MOBILE’S BATTERIES A USB Port is provided on the rear of the Astro. This will allow you to re-charge your device while the Astro is being operated, without risking to run flat on batteries during a show or having to rely on an external power supply unit.

  • Page 30: Spare Sparts

    SPARE PARTS All components are available as spare parts. We strongly recommend you always use original LDR components as spare parts. Please refer to our technical assistance should you need to order and/or replace any part of the unit. WARRANTY Our warranty covers all structural and manufacture defects for one year from the date you purchased this product.

  • Page 31: Summery Of Controls And Functions

    Astro 250 Wi-Fi RGBW, DMX 512+ RDM LED followspot - User’s Manual – 1.0 17. SUMMARY OF CONTROLS AND FUNCTIONS Funct Factoring Description Available Options Setting MANUAL (controlled from MANUAL or DMX control the rotary switch or clamp-on manual dimmer) ; DMX...

  • Page 32: Dmx Charts

    Astro 250 Wi-Fi RGBW, DMX 512+ RDM LED followspot - User’s Manual – 1.0 SPECIAL FUNCTIONS : to activate these functions press the rotary switch at power on Func Factoring Description Available Options tion Setting PRO = Enable acces to all...

  • Page 33: Dmx Chart 3( Strobe Functions Inabled, 8 Bit Dimmer)

    Astro 250 Wi-Fi RGBW, DMX 512+ RDM LED followspot - User’s Manual – 1.0 19.3 DMX chart 3 (Strobe function enable, 8 bit dimmer) : This DMX chart refers to the followspot set at strobe function on (See chapter 5.5 of this user guide).

  • Page 34: Dimx Chart 4 ( 16 Bit Dimmer And Strobe Inabled)

    Astro 250 Wi-Fi RGBW, DMX 512+ RDM LED followspot - User’s Manual – 1.0 Control Channel Master Proportio Adjust luminous output Dimmer intensity from 0 to 100% Dimmer Proportio Fine dimmer control 16 bit Fine Step Open Strobe speed 1 (minimum...

  • Page 35: Ldr Conformity Certificate - Certificato Di Conformità - Konformitätserklärung

    P .iva 01815640204 c.iso IT01815640204 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo MN Italy - tel +39 0376 771777 - web www.ldr.it - email info@ldr.it IT/015/MN/11 VAT registration # It01815640204 - REA MN 198438 - Authorized Exporter #...

  • Page 36: Complaint Form - Modulo Di Reclamo - Reklamationsformular

    Reklamationsformular ‐ formulaire de réclamation ‐ hoja de reclamaciones email: info@ldr.it Azienda ed Indirizzo ‐ Company's name and address ‐ Firmenname und Addresse ‐ Nom et adresse ‐ Nombre  y direcciòn _______________________________________________________________________________________________________ _______________________________________________________________________________________________________ Nome del rivenditore da cui il prodotto è stato acquistato ‐ Name of the dealer where you have purchased the product ‐ Namen der Firma, die Ihnen das Produkt verkauft hat ‐ Nom de la société qui vous a vendu ce produit ‐ Nombre de la compañia donde han comprado el producto: ____________________________________________________________________________________________________ 01207190 Astro 250 Wi‐fi RGBW Prodotto difettoso DMX512+RDM LED Faulty product 01207390 Astro 250 Wi‐fi RGBW HP Defekte s Produkt DMX512+RDM LED Produit défectueux Producto  defectuoso Descrizione del problema /Problem found/Beschreibung des Defekts/Description du défaut/Descripciòn del problema ________________________________________________________________________________________________________ ________________________________________________________________________________________________________ ________________________________________________________________________________________________________ ________________________________________________________________________________________________________ Data d'acquisto ‐ Date of purchase ‐ Kaufdatum ‐ Date de  l'achat ‐ Fecha de compra  ________________________ Si prega di allegare prova d'acquisto ‐ Please attach copy of purchase invoice ‐ Bitte Kaufnachweis beilegen ‐ Veuillez joindre une quittance d'achat ‐ Les rogamos incluyan lcopia de la factura de compra. Nome e qualifica ‐ Name and position ‐ Name und Funktion ‐ Nom et fonction ‐ Nombre y cargo ____________________________________________________________________ Data ‐ Date ‐ Datum ‐ Date  ‐ Fecha     _____________________________...

  • Page 37: Weee Directive - Direttiva Raee - Weee Richtlinie

    local de escoamento de residuos, ou a loja na qual efectuou a compra. Richtlinie 2002/96/EU (Elektro- und Elektronik- Altgeräte - WEEE): Benutzerinformationen. Dieses Produkt entspricht Richtlinie WEEE-symbolet (Waste Electrical 2002/96/EU. Das Symbol des auf dem Gerät Electronic Equipment). dargestellten, durchgestrichenen Korbes gibt an, dass Bruken av WEEE-symbolet indikerer at dette Produkt Ende...
  • Page 38 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo mn Italy. tel +39 0376 771 777 ‐ fax +39 0376 772 140 ‐ email info@ldr.it...
