istruzioni per l'uso
operating instructions
Bedienungsanleitung
instrucciones de manejo
mode d'emploi
gebruiksaanwijzing

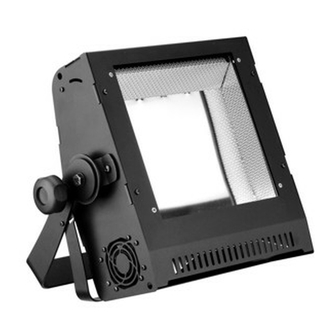

Samba A100 CM
01106250
180W RGBW LED
100/260V, DMX512
Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo mn Italy. tel +39 0376 771 777 ‐ fax +39 0376 772 140 ‐ email info@ldr.it
Advertisement
Table of Contents
Related Manuals for LDR Samba A100 CM
Summary of Contents for LDR Samba A100 CM
- Page 1 Bedienungsanleitung instrucciones de manejo mode d'emploi gebruiksaanwijzing Samba A100 CM 01106250 180W RGBW LED 100/260V, DMX512 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo mn Italy. tel +39 0376 771 777 ‐ fax +39 0376 772 140 ‐ email info@ldr.it...
-
Page 2: Table Of Contents
SUMMARY OF CONTROLS AND FUNCTIONS 14. Summary of Controls and Functions ......... 1 1 15. DMX Charts ................ 1 2 15.1 DMX Chart 1 ............ 1 2 15.2 DMX Chart 2 ............ 1 2 15.3 DMX Chart 3 ............ 1 2 15.4 DMX Chart 4 ............ 1 3 LDR Conformity Certificate – Certificato di Conformità – Konformitätserklärung 14 Complaint form – Modulo di reclamo – Reklamationsformular …………………………. 1 5 WEEE Directive – Direttiva RAEE – WEEE Richtlinie …………………………………………… 16 1 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 3: Important Safety Norms
The limitation extends to damages for personal injury, property damage, loss of operations, loss of profits, loss of product or loss of time, whether incurred in by the customer, the customer’s employees or a third party. Apart from the instructions given on this manual, all relevant safety and health standards of the appropriate Directives of the country where the unit will be installed must be complied with. 1. IMPORTANT SAFETY NORMS This product is a professional lighting fixture, namely a floodlight/cyclorama, fitted with a LED light source, which can only be operated by professional staff This product must be fitted with a secondary fixing system such as a safety chain or bond. Should this not be supplied as a standard accessory, please make sure you buy it separately and install it before using the product Warning, high voltage ignition. Disconnect the unit from power before servicing Continuous mains power is required for this spotlight as an internal dimmer controls the intensity via DMX or local rotary knob. Use of a phase control dimmed mains supply may damage the internal electronics This product features fan‐assisted ventilation. Make sure you do not cover the fans or obstruct the air flow at any time Make sure all fans are working correctly at any one time. Should you detect even the slightest malfunction, switch the luminaire off and carry out the necessary servicing. Replace the fans if necessary This product is rated IP 20 and is therefore designed for interior use only. For details on maximum ambient temperature and tilt angle please refer to what indicated on the product label or screen‐printing on the rear of the unit Repairing and replacement of any component of this product must be carried out exclusively by professional personnel in conformity with the relevant safety and health standards and only with original Luci della Ribalta srl components 2 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 4: Check Packing Contents
SAMBA A100 RGBW 180W LED User’s Manual – 2.0 Replacement of any part of the wiring system must be carried out exclusively by professional personnel in compliance with the original wiring diagram and with components identical to or compatible with those originally fitted Installation of this product must be exclusively carried out by professional personnel in compliance with the safety norms in force in the country where the product is used WARNING: DANGER OF ELECTRICAL SHOCK DO NOT OPERATE ON LIVE EQUIPMENT Disconnect power before opening this fixture to access its light source or electronics. The replacement of the LED source or any of its electronic components can be carried out exclusively by professional personnel upon LDR’s written authorization and only with original Luci della Ribalta srl components. Failure to obtain the manufacturer’s authorization to carry out the replacement/repair, will immediately invalidate the product’s warranty WARNING: EYE DAMAGE HAZARD Make sure this fixture is installed so as to avoid prolonged direct staring at its operating light source (LED) from a distance of less than 7m / 23ft. WARNING: FIRE HAZARD Never locate this fixture on any flammable surface. Minimum distance of any part of the body of the luminaire from any flammable surface or object: 0,5m / 20in Minimum distance from lit surface, please refer to product label ... -
Page 5: Weight And Dimensions
When tilting the unit make sure the knob blocking the stirrup is strongly tightened at any time and that the luminaire can hold the desired tilt angle 5. WIRING Before being connected to the mains power, this unit may need to be wired with a suitable plug if not already installed. Make sure the plug you are using is rated for the product’s power load and it conforms to the relevant EU/UL electrical standards. Make sure the plug you are fitting withstands the LED power load. This fixture must be grounded To perform a correct wiring, please note that the cores in this mains lead are colour‐coded as follows: Ground: green+yellow – Neutral: blue ‐ Phase: brown In case the colours of the wires do not correspond to the colour of the connection points on your plug, please proceed as follows: The green or green and yellow wire must be connected to the connection point marked with the letter E or with the symbol or coloured in green or in green‐yellow The blue wire must be connected to the connection point marked with the letter N or coloured in black The brown wire must be connected to the connection point marked with the letter L or coloured in red Before you finally position this product for use, temporarily connect it to a properly fused power supply to check the LED works correctly 4 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 6: Voltage
APPEAR CONFIRM Tap the rotary selector and the LCD screen will display the mode status and the current value: 1 Mode M: DMX TAP THE ROTARY 00 % = LED OFF SELECTOR TO DISPLAY 100 % = LED FULL XX % THE VALUE 1 Mode M: Manual 00 % (000) = LED OFF TAP THE ROTARY SELECTOR TO DISPLAY 100% (FFF) = LED FULL XX % XXX MANUAL THE VALUE 5 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 7: Dmx Address
9.5 STROBE (Strobe) This function enables the activation of the strobe function. Factory setting is DISABLE. PRESS TO ACTIVATE 5 Strobe 5 Strobe 5 Strobe TURN TO ENABLE OR THE MENU DISABLE STROBE AND DISABLE DISABLE ENABLE AN ARROW SHOULD PRESS TO CONFIRM APPEAR 9.6 STROBE SPEED (SetStr) It allows to set the strobe speed. This menu is not active when the strobe function is disabled or when it is remotely controlled through DMX. Factory setting is OPEN. 6 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 8: Dimming Curve
PRESS TO ACTIVATE 9 Smooth 9 Smooth THE MENU, FAST DIMMING NORMAL NORMAL AN ARROW SHOULD RESPONSE = 150ms APPEAR 9 Smooth SLOW DIMMING SLOW RESPONSE = 300ms 9 Smooth IMMEDIATE DIMMING FAST RESPONSE 7 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 9: Fan Setting
###% AN ARROW SHOULD ###% AND PRESS TO ###% APPEAR CONFIRM 9.14 BLUE COLOUR INTENSITY (Blue) This function allows to set the intensity of the blue colour for manual mode. Selecting the manual mode, 100% is automatically set. PRESS TO ACTIVATE 14 Blue 14 Blue 14 Blue TURN TO SELECT THE THE MENU, BLUE INTENSITY AND ###% AN ARROW SHOULD ###% ###% PRESS TO CONFIRM APPEAR 8 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 10: White Colour Intensity
PRESS TO ACTIVATE PRESS TO CONFIRM Reset SURE? BASIC THE MENU THE RESET 9.20 ID REMOTO (ID Rem) It allows to select the ID number to connect the Samba to Remoto to upload and download firmware. To change the initial ID press the rotary switch until an arrow appears, then turn to change to the desired ID number. Press to confirm your selection. It is possible to select an ID number from 0 to 250. If ID number=0 remote control is not active. Factory setting is 000. PRESS TO ACTIVATE Choose ID Rem ID Rem TURN TO ASSIGN THE THE MENU, ID NUMBER AND ID Rem AN ARROW SHOULD PRESS TO CONFIRM APPEAR 9 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 11: Calibration
9.22 EXIT HIDDEN MENU (Exit) It allows to exit from hidden menus. 10. SOFTWARE UPGRADE – REMOTO control device Software upgrades are available for download from the reserved area of our website (password requested). An accessory gateway REMOTO, ‐ GATEWAY FULL LINE DISPLAY REMOTER DMX512A‐ ARTNET (part # 20107072) Allows to upload the desired software version on your Sambas. Please contact your local distributor for more detailed information. 11. CLEANING AND MAINTENANCE To ensure the maximum performance of this product, a regular maintenance service should be carried out. Please make sure the product is cold and disconnected from power supply when doing this. with the help of a soft cloth clean all reflective parts, making sure you do not touch the LEDs at any time clean air ducts and fans in order to allow proper ventilation activity on the product. check internal and external wiring and replace any cable which should be damaged by heat or mechanical agents. 12. SPARE PARTS All components are available as spare parts. We strongly recommend you always use original LDR components as spare parts. Please refer to our technical assistance should you need to order and/or replace any part of the unit. 13. WARRANTY Our warranty covers all structural and manufacturing defects for a period of two years from the date of purchase. In case of complaint, we strongly recommend that in the first instance you contact the local dealer who supplied the product to you. In all cases, please refer to the serial number located at the rear of the spotlight. 10 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... - Page 12 1'30" ‐‐‐ 12 Red Red intensity for manual mode From 00% to 100% Green intensity for manual ‐‐‐ 13 Green From 00% to 100% mode ‐‐‐ 14 Blue Blue intensity for manual mode From 00% to 100% White intensity for manual ‐‐‐ 15 White From 00% to 100% mode 16 Tled Visualizes the LED temperature Select the LED Temp in °C or F° °C ‐‐‐ 17 SwVer Visualizes the software version 11 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ...
-
Page 13: Dmx Charts
‐ 255 0% ‐ 100% 5 Blue Proportional 0 from 0 to 100% Proportional setting of the white colour ‐ 255 0% ‐ 100% 6 White Proportional 0 from 0 to 100% Samba RGBW Chart name: DMX512 Functions chart 1 (Default) Issue: 1.0 Date: Oct. 2018 Luminaire: 12 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 14: Dmx Chart 2
Strobe speed 8 181 ‐ 200 72% ‐ 78% Step Strobe speed 9 201 ‐ 220 79% ‐ 86% Step Strobe speed 10 (maximum frequency) 221 ‐ 255 87% ‐ 100% Step Closed Samba RGBW Chart name: DMX512 Functions chart 3 (Strobe) Issue: 1.0 Date: Oct. 2018 Luminaire: 13 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 15: Dmx Chart 4
181 ‐ 200 72% ‐ 78% Step Strobe speed 9 201 ‐ 220 79% ‐ 86% Step Strobe speed 10 (maximum frequency) 221 ‐ 255 87% ‐ 100% Step Closed Chart name: DMX512 Functions chart 4 (16 bits + Samba RGBW Issue: 1.0 Date: Oct. 2018 Luminaire: Strobe) Luci della Ribalta srl reserves the right to modify the present document without prior notice. 14 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... - Page 16 P .iva 01815640204 c.iso IT01815640204 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo MN Italy - tel +39 0376 771777 - web www.ldr.it - email info@ldr.it IT/015/MN/11 VAT registration # It01815640204 - REA MN 198438 - Authorized Exporter #...
- Page 17 Reklamationsformular ‐ formulaire de réclamation ‐ hoja de reclamaciones email: info@ldr.it Azienda ed Indirizzo ‐ Company's name and address ‐ Firmenname und Addresse ‐ Nom et adresse ‐ Nombre y direcciòn _______________________________________________________________________________________________________ _______________________________________________________________________________________________________ Nome del rivenditore da cui il prodotto è stato acquistato ‐ Name of the dealer where you have purchased the product ‐ Namen der Firma, die Ihnen das Produkt verkauft hat ‐ Nom de la société qui vous a vendu ce produit ‐ Nombre de la compañia donde han comprado el producto: ____________________________________________________________________________________________________ 01106250 Samba A100 CM Prodotto difettoso 180W RGBW LED Faulty product 100/260V, DMX512 Defekte s Produkt Produit défectueux Producto defectuoso Descrizione del problema /Problem found/Beschreibung des Defekts/Description du défaut/Descripciòn del problema ________________________________________________________________________________________________________ ________________________________________________________________________________________________________ ________________________________________________________________________________________________________ ________________________________________________________________________________________________________ Data d'acquisto ‐ Date of purchase ‐ Kaufdatum ‐ Date de l'achat ‐ Fecha de compra ________________________ Si prega di allegare prova d'acquisto ‐ Please attach copy of purchase invoice ‐ Bitte Kaufnachweis beilegen ‐ Veuillez joindre une quittance d'achat ‐ Les rogamos incluyan lcopia de la factura de compra. Nome e qualifica ‐ Name and position ‐ Name und Funktion ‐ Nom et fonction ‐ Nombre y cargo ____________________________________________________________________ Data ‐ Date ‐ Datum ‐ Date ‐ Fecha _____________________________...
- Page 18 local de escoamento de residuos, ou a loja na qual efectuou a compra. Richtlinie 2002/96/EU (Elektro- und Elektronik- Altgeräte - WEEE): Benutzerinformationen. Dieses Produkt entspricht Richtlinie WEEE-symbolet (Waste Electrical 2002/96/EU. Das Symbol des auf dem Gerät Electronic Equipment). dargestellten, durchgestrichenen Korbes gibt an, dass Bruken av WEEE-symbolet indikerer at dette Produkt Ende...
- Page 19 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo mn Italy. tel +39 0376 771 777 ‐ fax +39 0376 772 140 ‐ email info@ldr.it...
