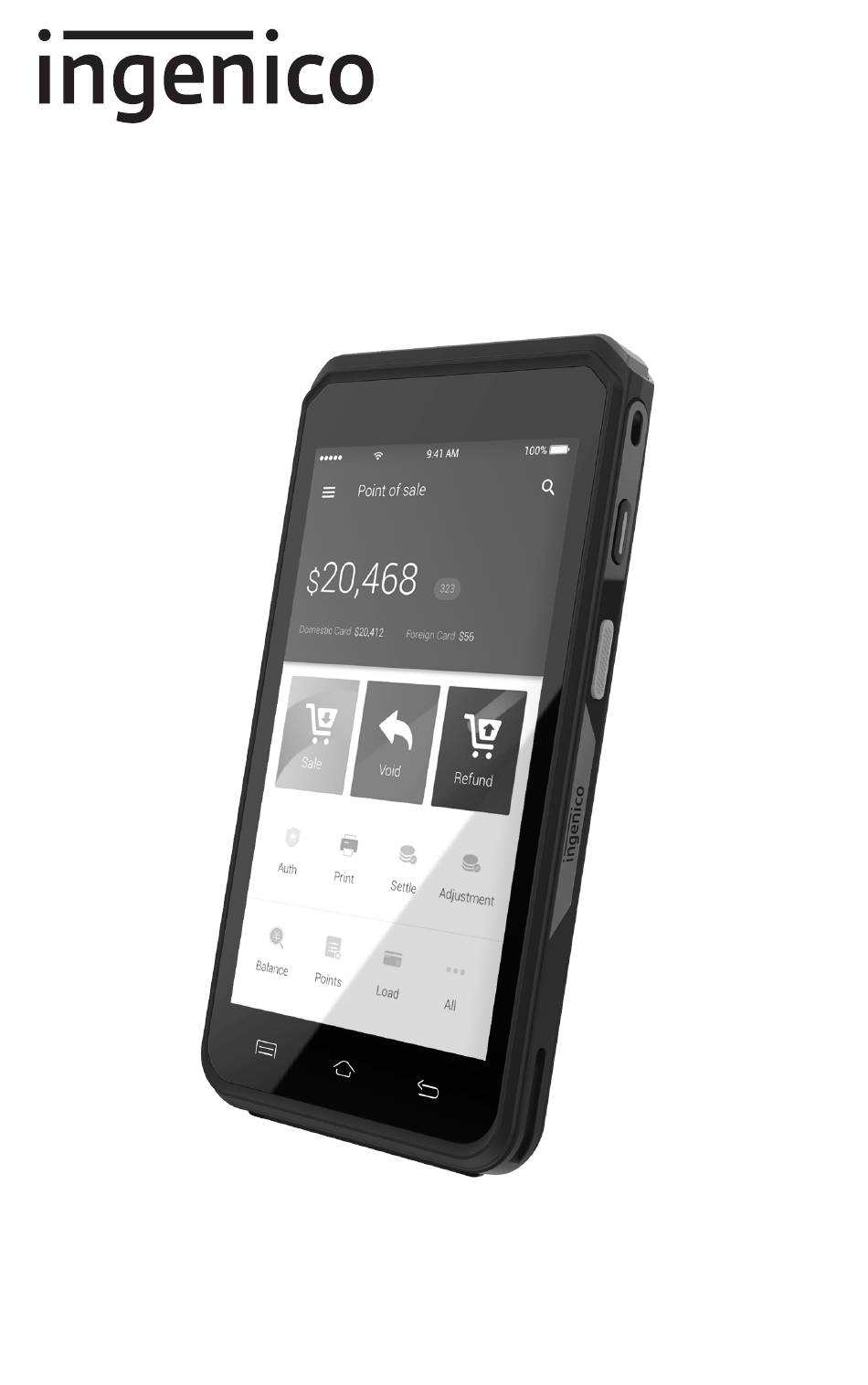

- Page 1 AXIUM EX6000 User Guide www.ingenico.com 13-17 rue Pagès, 92150 Suresnes – France Banks and Acquirers International Holding, SAS / 814 767 216 RCS Nanterre...
-
Page 2: Table Of Contents
Table of Contents Introduction Presentation Content of the box Overview of AXIUM EX6000 Key Locations and Functions Touch Panel Use of the terminal Power on/Power off the terminal Reading cards Front scanner Usage USB Type-C Installation Recommendations Screen Protective film... -
Page 3: Introduction
Introduction We hope that you will be fully satisfied with your new AXIUM EX6000 terminal. Read this guide to understand and make the best use of your terminal. It presents necessary information about use, installation, maintenance, safety and security recommendations. -
Page 4: Presentation
Presentation Contents of the box The power supply unit provided with your equipment is specially designed for INGENICO AXIUM EX6000 terminal. Do not use any other power supply. The use of a power supply with apparently similar voltage/current characteristics may damage your terminal. -
Page 5: Overview Of Axium Ex6000

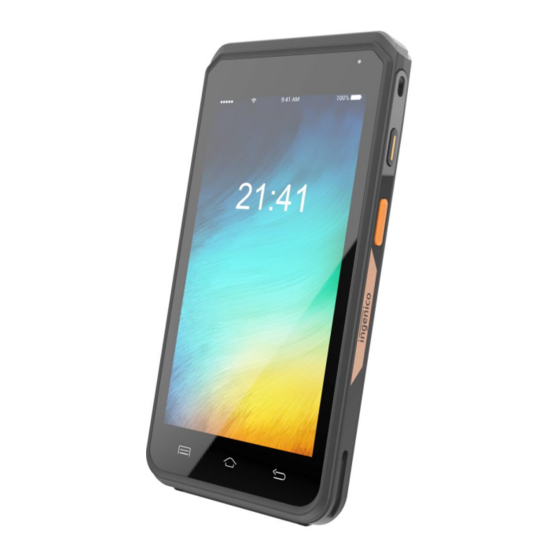

Overview of AXIUM EX6000 1) Volume Keys 2) Scan key 3) LCD and touch screen 4) USB Type-C connector 5) Smart card reader 6) Bar code scanner indicator LED 7) Bar code scanner 8) Bar code scanner illumination light 9) Magnetic card reader... - Page 6 Dimension (L x W x H) 152.2 X 77.1 X 17.5mm / 5.9 x 3.0 x 0.69 in Electrical mains network 100-240VAC/50-60Hz Class II Copyright© 2023 Ingenico – AXIUM EX6000 Banks and Acquirers International Holding SAS All rights reserved 07/11...
-
Page 7: Key Locations And Functions
Three virtual keys at the bottom of the 5-inch screen: Menu, Home and Back keys. Touch Panel The AXIUM EX6000 is equipped with touch panel that allows input via finger or with the use of a stylus. Copyright© 2023 Ingenico –... -
Page 8: Use Of The Terminal
8 seconds to force the terminal to power off. Screen saver mode: To conserve battery power, the screen may be turned off with a short press of the power button. (approximately 0.5 seconds) Copyright© 2023 Ingenico – AXIUM EX6000 Banks and Acquirers International Holding SAS All rights reserved... -
Page 9: Reading Cards
Keep the card close to the reader during the transaction. Do not remove the card until prompted by application or the LEDs indicate that the transaction has been completed. Copyright© 2023 Ingenico – AXIUM EX6000 Banks and Acquirers International Holding SAS All rights reserved 07/11... -
Page 10: Front Scanner Usage
A red LED will be emitted from the window in front of the terminal. Align the red LED beam with the bar code to be scanned. A beep will sound when the barcode is successfully scanned. Copyright© 2023 Ingenico – AXIUM EX6000 Banks and Acquirers International Holding SAS... -
Page 11: Usb Type-C
From 0°C to +40°C (32°F to 104°F) Ambient temperature From -20°C to +70°C (-4°F to 158°F) Max relative humidity From 5% to 90%, Non-condensing Copyright© 2023 Ingenico – AXIUM EX6000 Banks and Acquirers International Holding SAS All rights reserved 07/11... -
Page 12: Screen Protective Film
The SAM/SIM connectors are located inside the terminal, in a closed compartment. Turn the terminal and remove the battery door. SAM and SIM1,SIM2 are identified by the engraved marks on the lower housing. Copyright© 2023 Ingenico – AXIUM EX6000 Banks and Acquirers International Holding SAS All rights reserved 07/11... - Page 13 When introducing a MicroSD in its slot, be sure to put the cut corner as indicated on the picture. Close the battery door. The terminal supports SDHC MicroSD cards up to 32GB. Copyright© 2023 Ingenico – AXIUM EX6000 Banks and Acquirers International Holding SAS All rights reserved 07/11...
-
Page 14: Battery
Turn the terminal over and remove the battery door Locate the battery pack connector beside the battery compartment Plug the battery pack connector according to the connector locating system. Copyright© 2023 Ingenico – AXIUM EX6000 Banks and Acquirers International Holding SAS All rights reserved... -
Page 15: Visual Impaired (Vi) Accessory
Replace the battery door Visual Impaired (VI) Accessory slide the accessory down and slide the accessory onto the away from the terminal terminal from the bottom. Copyright© 2023 Ingenico – AXIUM EX6000 Banks and Acquirers International Holding SAS All rights reserved 07/11... -
Page 16: Recommendations Safety
Recommendations Safety The AXIUM EX6000 is fitted with an internal lithium cell which should only be accessed by a qualified technician. AXIUM EX6000 is fitted with battery specially designed for this terminal. Only use the approved power supplies, cables and batteries listed in the Ingenico’s catalogue. - Page 17 The terminal is a radio transmitter which may interfere with health appliances, such as hearing aids, pacemaker, hospital equipment, etc. Your doctor or the equipment manufacturer will be able to provide you with appropriate advice. Copyright© 2023 Ingenico – AXIUM EX6000 Banks and Acquirers International Holding SAS All rights reserved...
-
Page 18: Security Of Your Terminal
There should be placement of conspicuous notices and educational material that informs the user to shield their PIN during PIN entry. Copyright© 2023 Ingenico – AXIUM EX6000 Banks and Acquirers International Holding SAS All rights reserved... -
Page 19: 5.4 Cleaning The Terminal
Good rules for proper cleaning of the terminal are: Unplug all wires from the terminal prior to cleaning. Apply soapy water or other approved cleaning product to a soft, non-abrasive cloth. Copyright© 2023 Ingenico – AXIUM EX6000 Banks and Acquirers International Holding SAS All rights reserved... -
Page 20: 5.5 Transport And Storage
50cm. Follow the specific stored conditions as noted in Section 4 of this document. Copyright© 2023 Ingenico – AXIUM EX6000 Banks and Acquirers International Holding SAS All rights reserved... -
Page 21: Safety And Standards
Safety and Standards The CE marking indicates AXIUM EX6000 complies with the requirements of European Directive 2014/53/EU on Radio Equipment for: The protection of the health and the safety of the user and any other person. The protection requirements with respect to electromagnetic compatibility. - Page 22 GSM850: 32.54±2dBm(GMSK),26.91±2dBm(8PSK) EGSM900: 31.95±2dBm(GMSK),31.95±2dBm(8PSK) DCS1800: 30.67±2dBm(GMSK),30.67±2dBm(8PSK) PCS1900: 28.55±2dBm(GMSK),25.03±2dBm(8PSK) WCDMA B1/B2/B5/B8: 23+1/-3dBm LTE B1/B3/B5/B7/B8/B20/B28/B38/B40/B41: 23±2dBm BT: 8.84±2dBm BLE:0.92 ±2dBm 2.4G WiFi: 17.24dBm(802.11b),15.71dBm(802.11g),14.38dBm(802.11n20) RF ID: 9.48±3dBμ A/m@3m Copyright© 2023 Ingenico – AXIUM EX6000 Banks and Acquirers International Holding SAS All rights reserved 07/11...
- Page 23 In this way you can participate in the re-use and upgrading of Electrical and Electronic Equipment Waste, which can have an effect on the environment and human health. Copyright© 2023 Ingenico – AXIUM EX6000 Banks and Acquirers International Holding SAS...
- Page 24 In door use only “Conformite Europe enne” or CE Mark Double insulation symbol 5 Years China RoHS symbol 10 Years China RoHS symbol Copyright© 2023 Ingenico – AXIUM EX6000 Banks and Acquirers International Holding SAS All rights reserved 07/11...
- Page 25 Risk of explosion if the battery is incorrectly replaced or is placed in a fire Dispose of batteries at a hazardous waste collection site or recycling facility Direct Current Copyright© 2023 Ingenico – AXIUM EX6000 Banks and Acquirers International Holding SAS All rights reserved 07/11...
-
Page 26: Troubleshooting
Check if the SIM card is installed correctly and local wireless communication network functions or not. If there is still problem, please contact our customer service center. Copyright© 2023 Ingenico – AXIUM EX6000 Banks and Acquirers International Holding SAS All rights reserved... - Page 27 “INGENICO is a trademark of BANKS AND ACQUIRERS INTERNATIONAL HOLDING . This Document is Copyright © 2023 BANKS AND ACQUIRERS INTERNATIONAL HOLDING . BANKS AND ACQUIRERS INTERNATIONAL HOLDING retains full copyright ownership, rights and protection in all material contained in this document. The recipient can receive this...
- Page 28 Copyright© 2023 Ingenico – Banks and Acquirers International Holding SAS All rights reserved...
